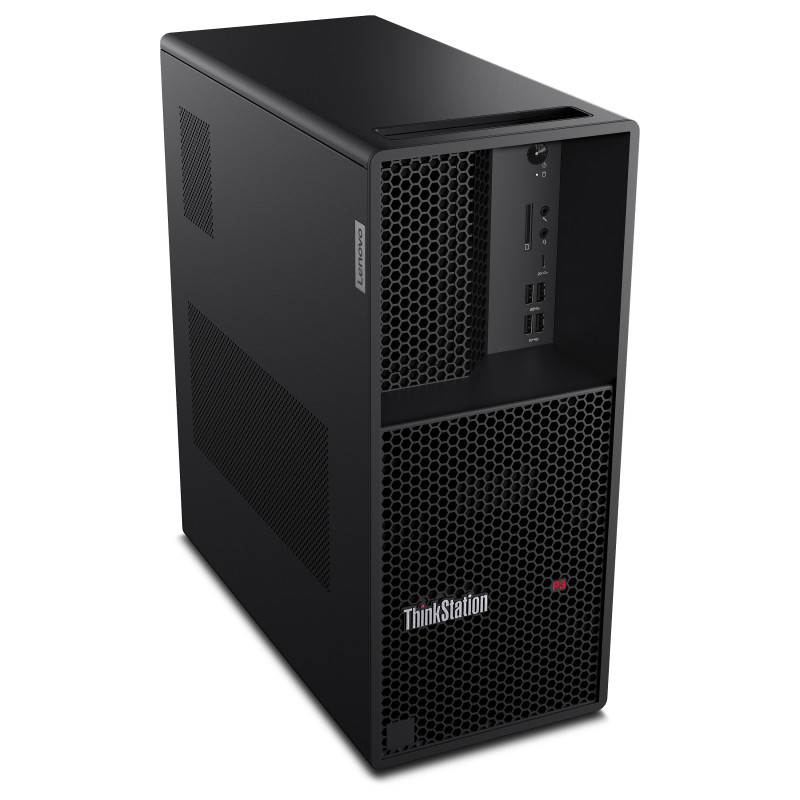

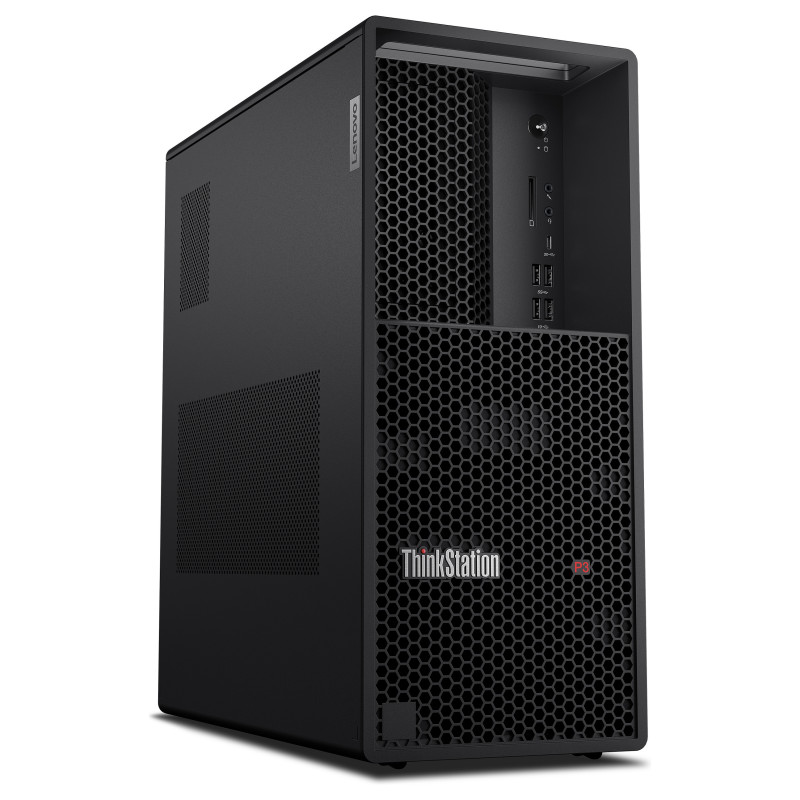

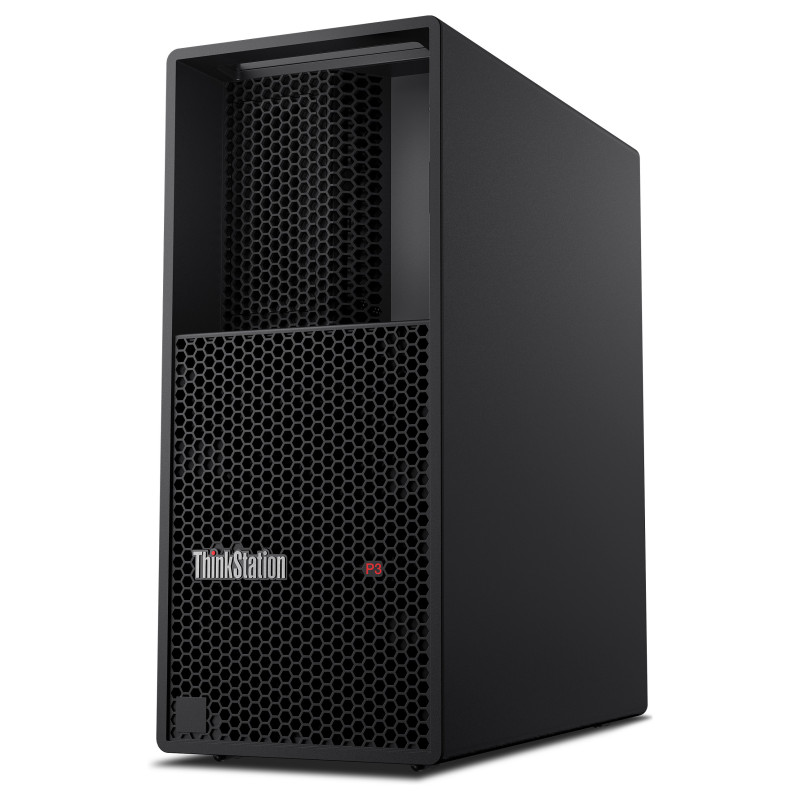

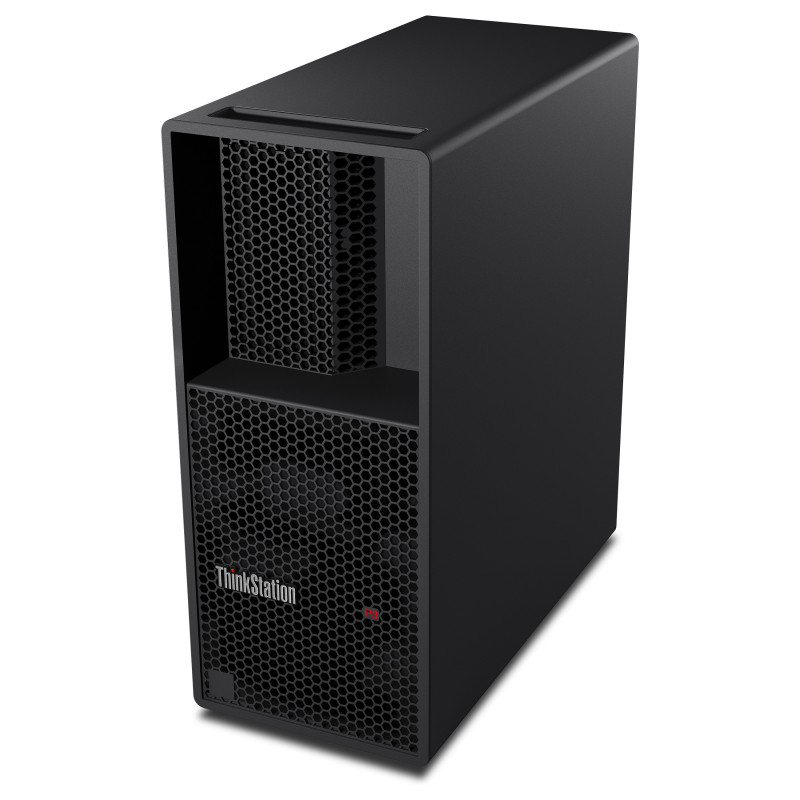

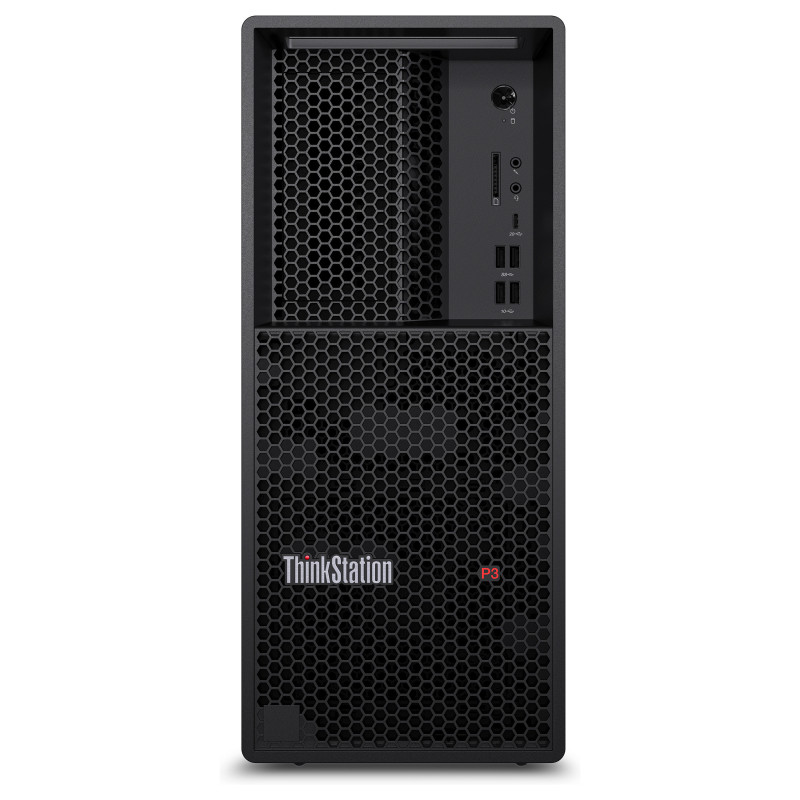

Lenovo ThinkStation P3 Tower Gen 2

Lenovo ThinkStation P3 Tower Gen 2. Processor family: Intel Core Ultra 9, Processor model: 285K. Internal memory: 96 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX PRO 4500 Blackwell. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 750 W. Chassis type: Tower. Product type: Workstation. Product colour: Black
Workstation might, desktop price
Designed by engineers for engineers, the Lenovo ThinkStation P3 Tower offers all the workhorse capabilities of a workstation for the price of a desktop. Built for tasks that require superior power and performance, it's equipped with Intel® Core™ processors with Intel vPro®, and supports professional NVIDIA® discrete graphics.
Delivering power performance
The ThinkStation P3 Tower's chassis has an advanced thermal design to promote extra power and performance, without overheating. It also comes with a choice of operating systems, including Windows 11 Pro and Linux®. In short, the P3 gives you the compute power to execute your visions, time and time again.
Configure it any which way
With three onboard DisplayPorts, plus the ability to configure up to eight more, the ThinkStation P3 Tower can support up to 12 independent displays. It also comes with a choice of operating systems, including Windows 11 Pro and Red Hat® Enterprise Linux®. And with heaps of speedy memory and SSD storage, plus five open PCIe slots, this workstation can be configured to tackle your most exacting workflows. It also comes with a USB mouse and keyboard.
Mission-critical performance, made easy
At the heart of every Lenovo ThinkStation is reliability. Proven to run in extreme conditions, the ThinkStation P3 Tower also boasts an array of independent software vendor (ISV) certifications. It's the perfect workstation for designers, engineers, and students looking for versatility, flexibility, and breakthrough performance to breeze through heavy workloads.
See the complete list of ISV certifications.
Security you can count on
The ThinkStation P3 Tower is protected with ThinkShield, a suite of hardware and software that work together to safeguard your workstation and data. This includes the discrete Trusted Platform Module (TPM) 2.0 to encrypt sensitive data, as well as various programs to prevent unauthorized access to the BIOS, plus self-healing software if the BIOS is corrupted or maliciously attacked. For extra peace of mind, it also supports Windows firmware updates.
Specifications may vary depending upon region / model.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285K
Processor cores: 24
Processor threads: 24
Processor boost frequency: 5.7 GHz
Performance cores: 8
Efficient cores: 16
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 3.7 GHz
Efficient-core base frequency: 3.2 GHz
Processor cache: 36 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor base power: 125 W
Maximum turbo power: 250 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 36 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 96 GB
Maximum internal memory: 256 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 48 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz
Non-ECC: Yes
Memory channels: Dual-channel

Storage

Total storage capacity: 1 TB
Storage media: SSD
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 5.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Card reader integrated: Yes
Compatible memory cards: SD

Graphics

Discrete graphics card: Yes
Discrete GPU manufacturer: NVIDIA
On-board graphics card: Yes
Discrete graphics card model: NVIDIA RTX PRO 4500 Blackwell
Discrete graphics card memory: 32 GB
Discrete graphics memory type: GDDR7
Number of discrete graphics cards: 1
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Graphics card DisplayPorts quantity: 4

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel® I219-LM

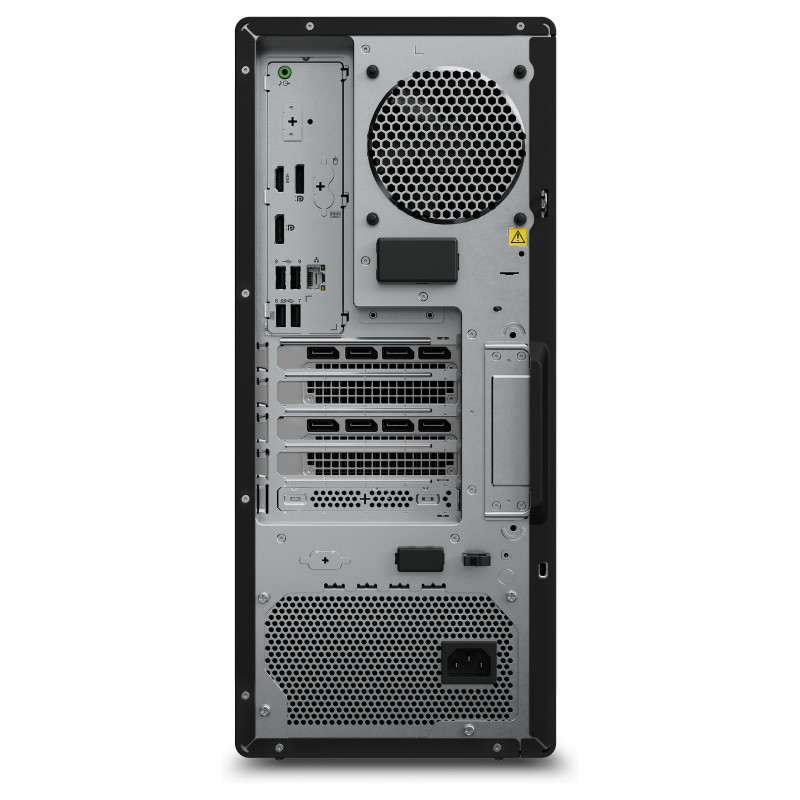

Ports interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Line-out: Yes
Combo headphone/mic port: Yes

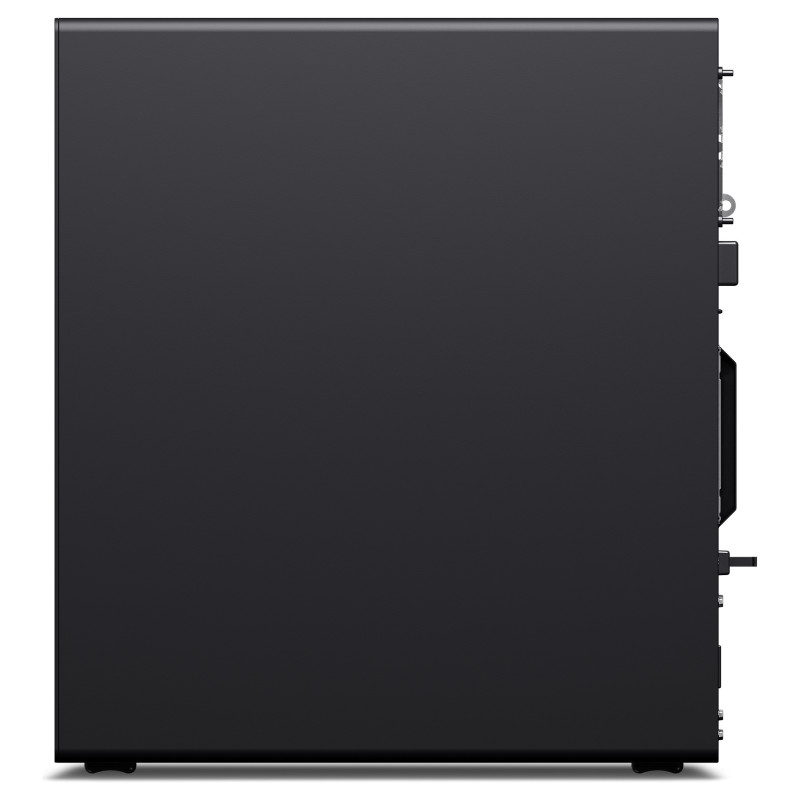

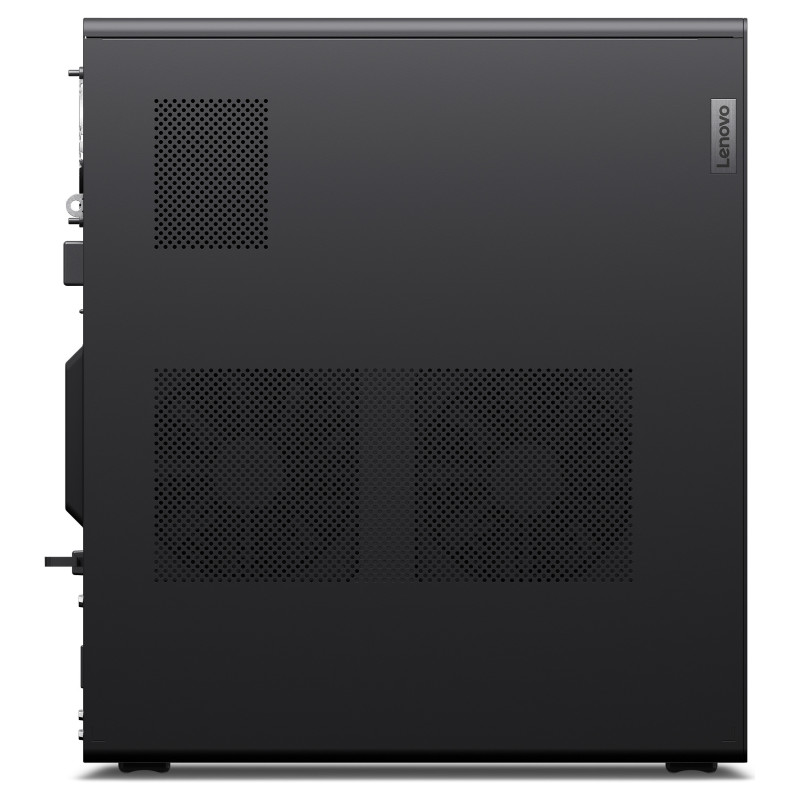

Design

Chassis type: Tower
Volume: 27 L
Placement supported: Vertical
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Performance

Motherboard chipset: Intel W880
Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
Built-in speaker(s): Yes
Number of speakers: 1
Password protection: Yes
Password protection type: BIOS, Power on
Trusted Platform Module (TPM): Yes
Product type: Workstation
Trusted Platform Module (TPM) version: 2.0

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Power

Power supply: 750 W
80 PLUS certification: 80 PLUS Platinum

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Certificates

Compliance certificates: RoHS
Certification: ErP Lot 3TCO Certified 10.0MIL-STD-810H

Weight dimensions

Width: 180 mm
Depth: 370 mm
Height: 415 mm
Weight: 14.4 kg

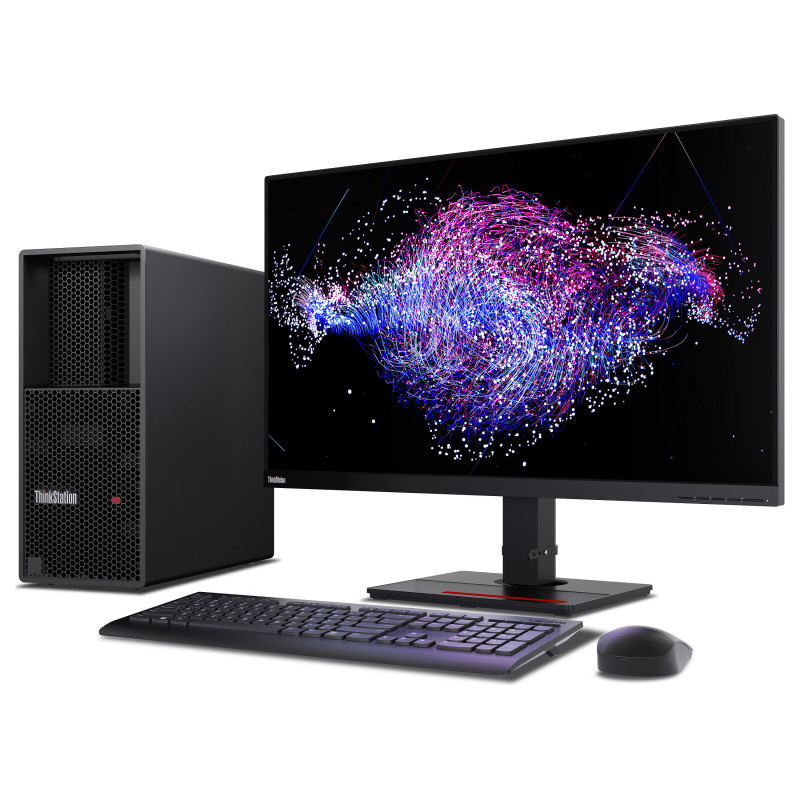

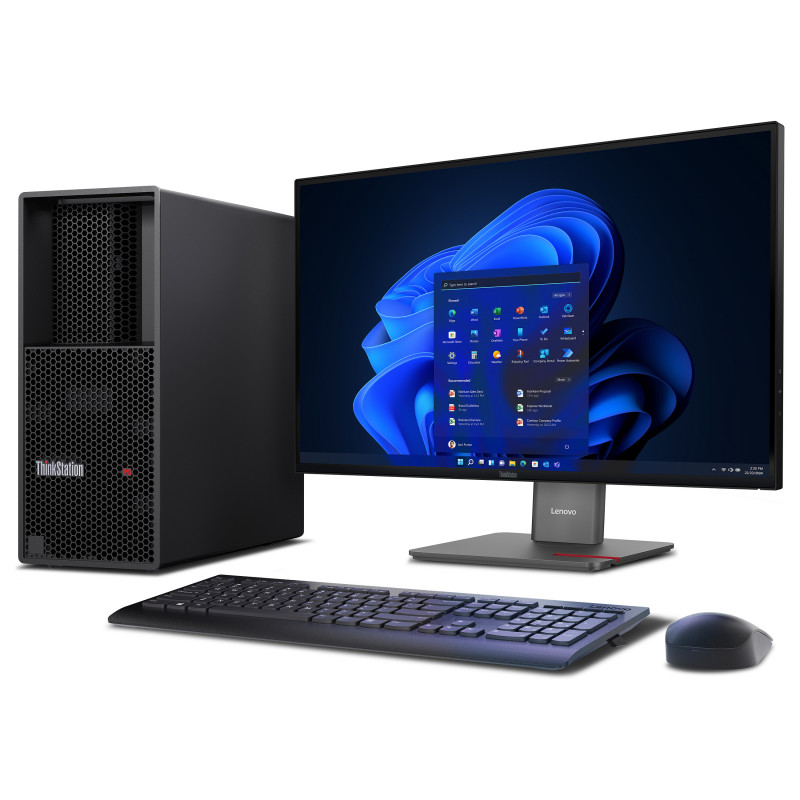

Packaging content

Mouse included: Yes
Mouse connectivity: Wired
Keyboard included: Yes
Keyboard connectivity: Wired

Display

Display included: No
