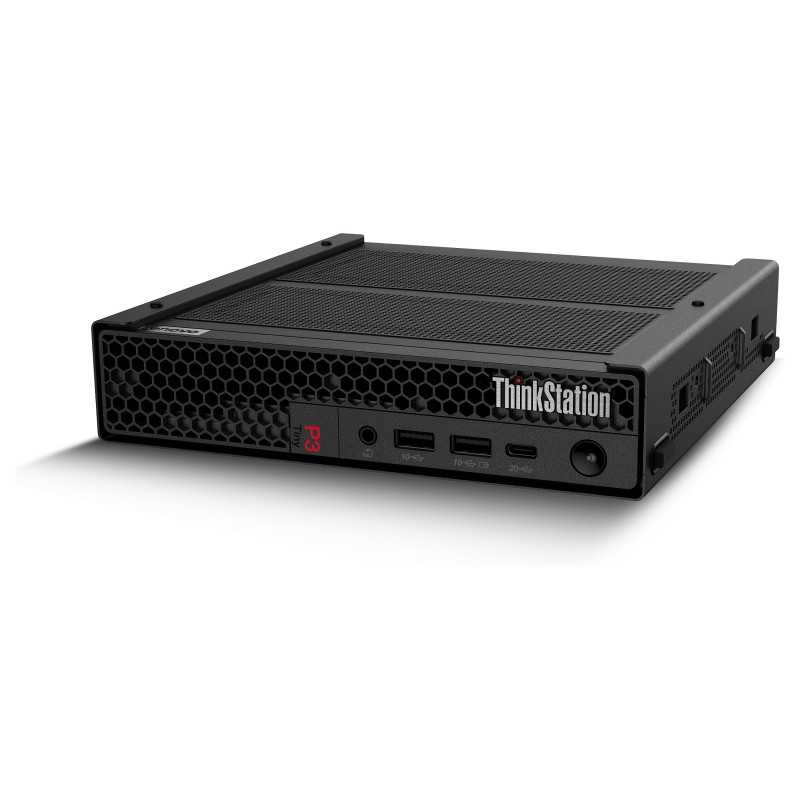

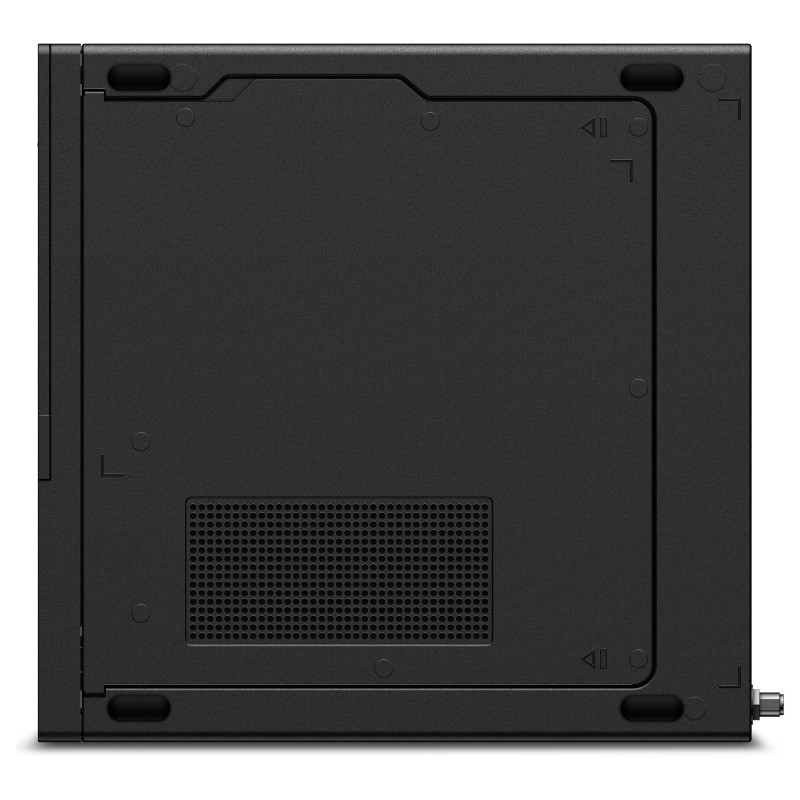

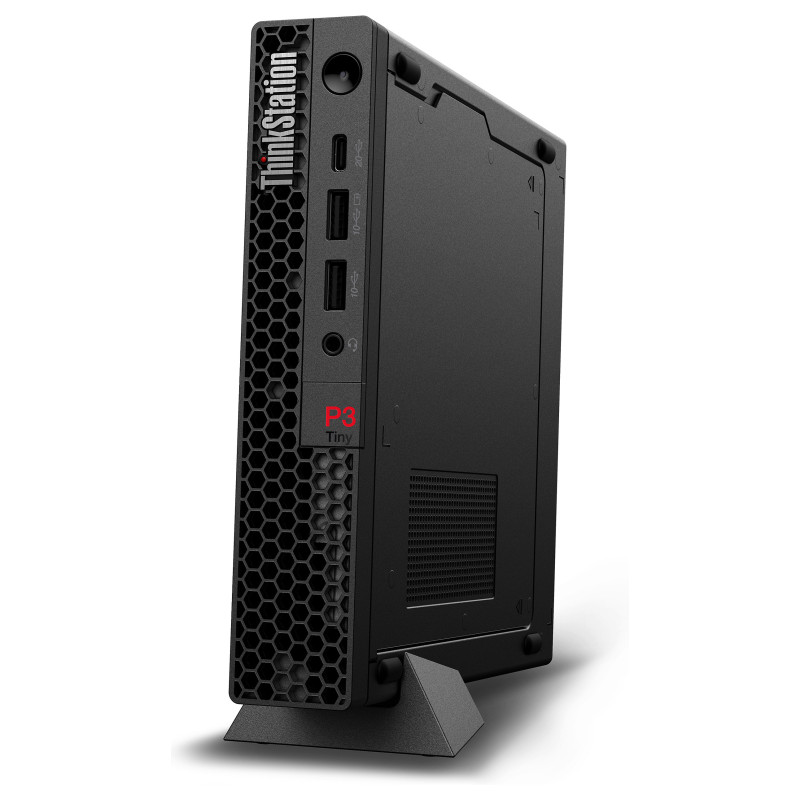

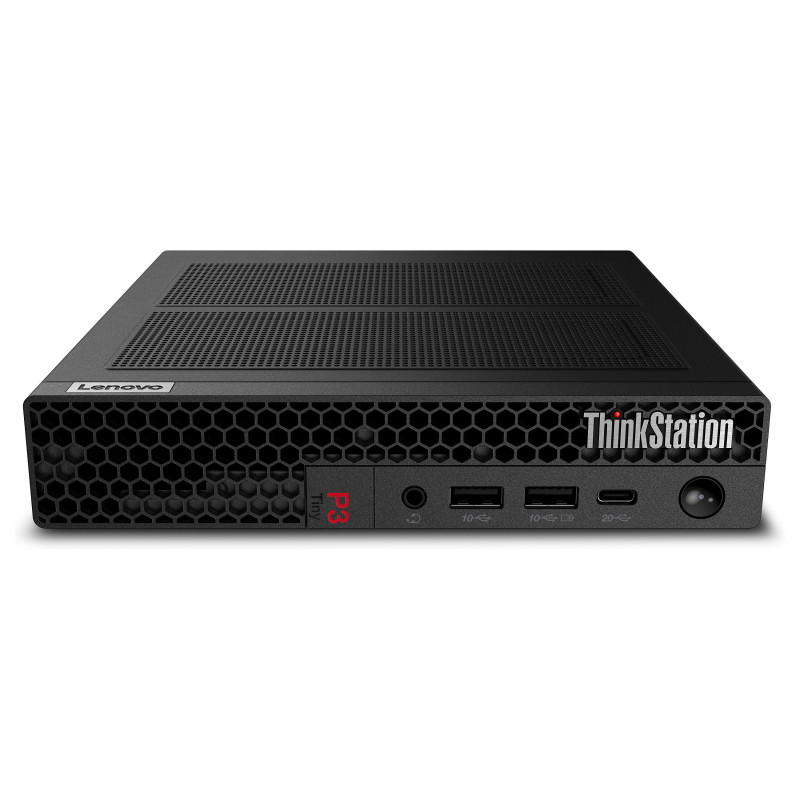

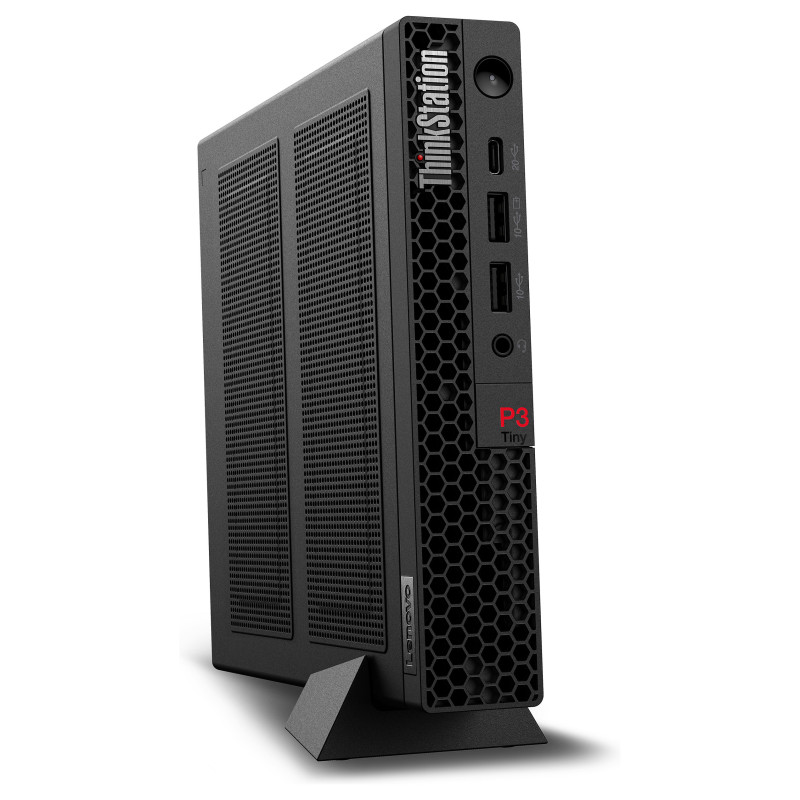

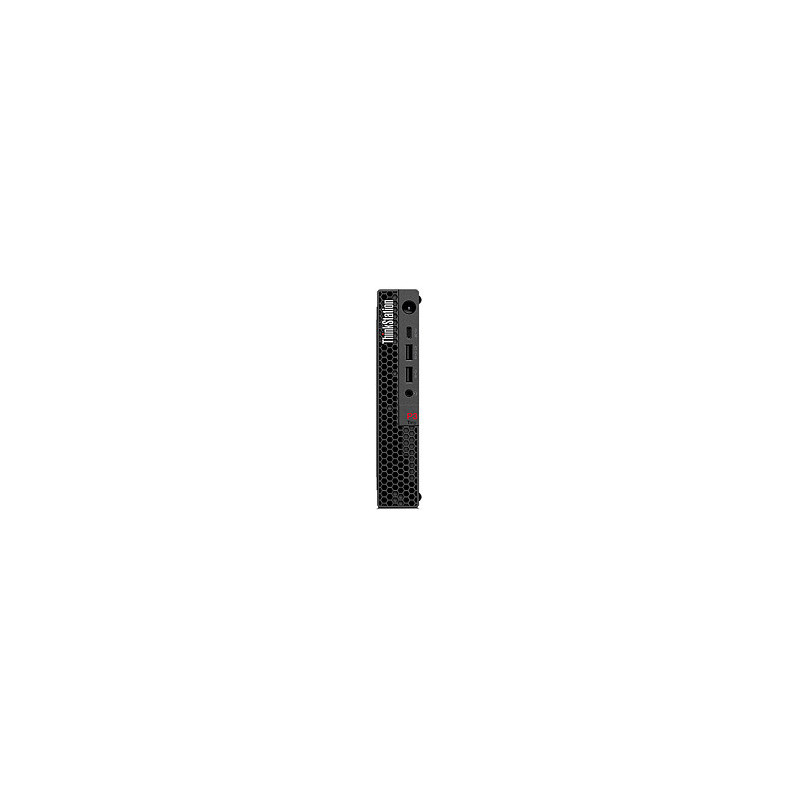

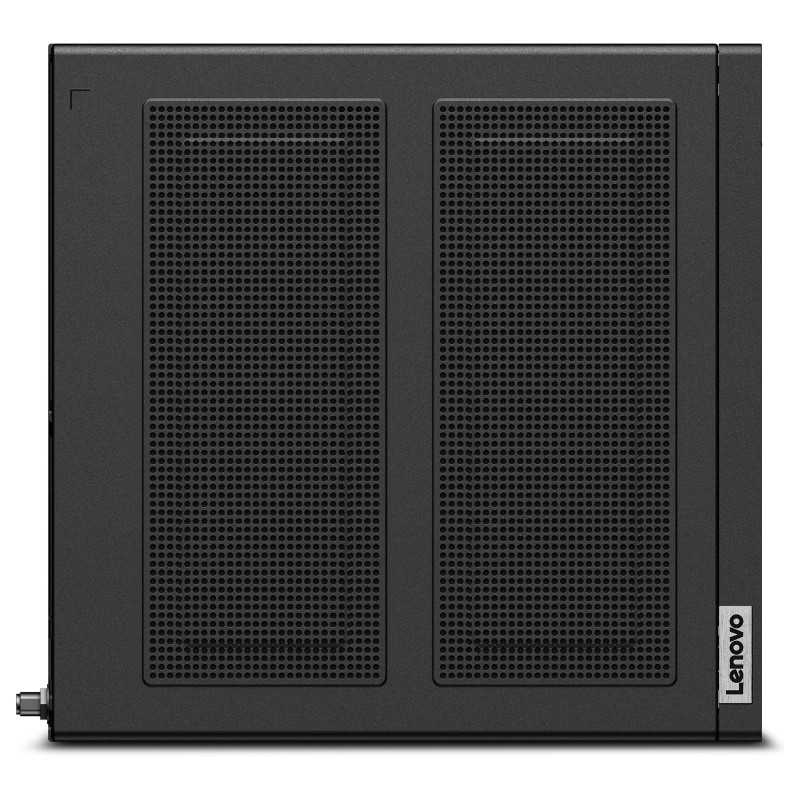

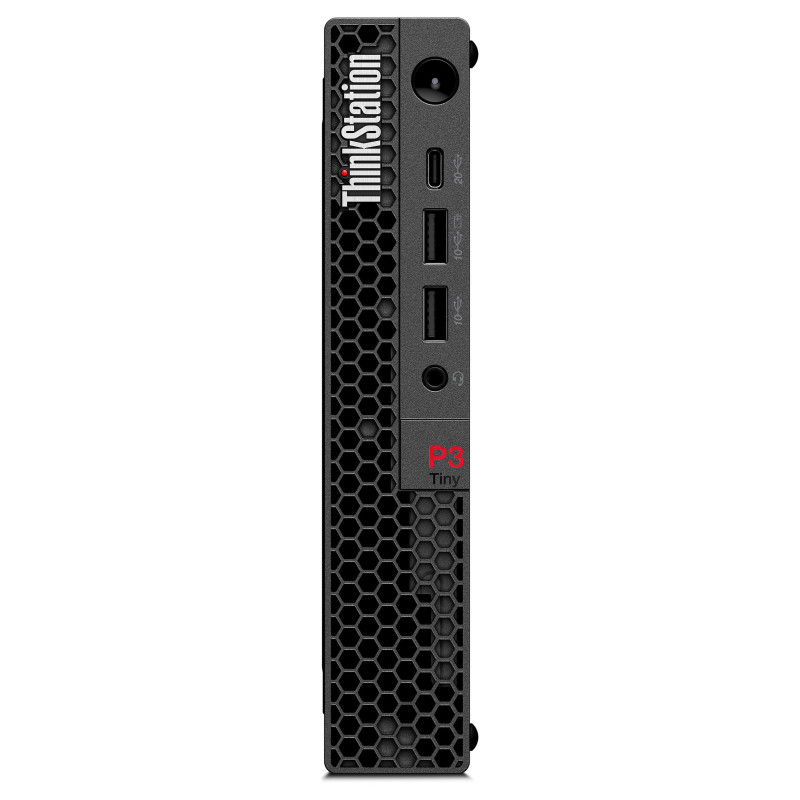

Lenovo ThinkStation P3 Tiny Gen 2

Lenovo ThinkStation P3 Tiny Gen 2. Processor family: Intel Core Ultra 9, Processor model: 285. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 230 W. Chassis type: Mini PC. Product type: Workstation. Weight: 1.4 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285
Processor cores: 24
Processor threads: 20
Performance cores: 8
Efficient cores: 16
Processor cache: 40 MB

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost

Memory

Internal memory: 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel® Q870
Trusted Platform Module (TPM): Yes
Product type: Workstation

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Intel
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4

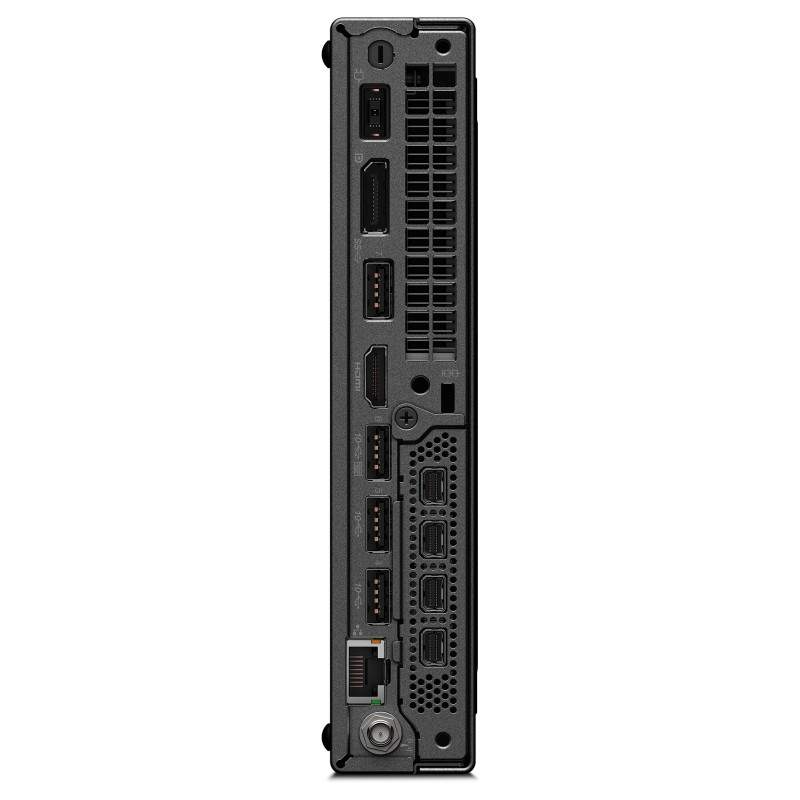

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes

Power

Power supply: 230 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Design

Chassis type: Mini PC
Colour name: Black
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Display

Display included: No

Audio

Audio chip: Realtek ALC233VB
Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight dimensions

Width: 179 mm
Depth: 182.9 mm
Height: 37 mm
Weight: 1.4 kg

Packaging content

Mouse included: Yes
Mouse connectivity: Wired
Keyboard included: Yes

Keyboard

Keyboard connectivity: Wired
