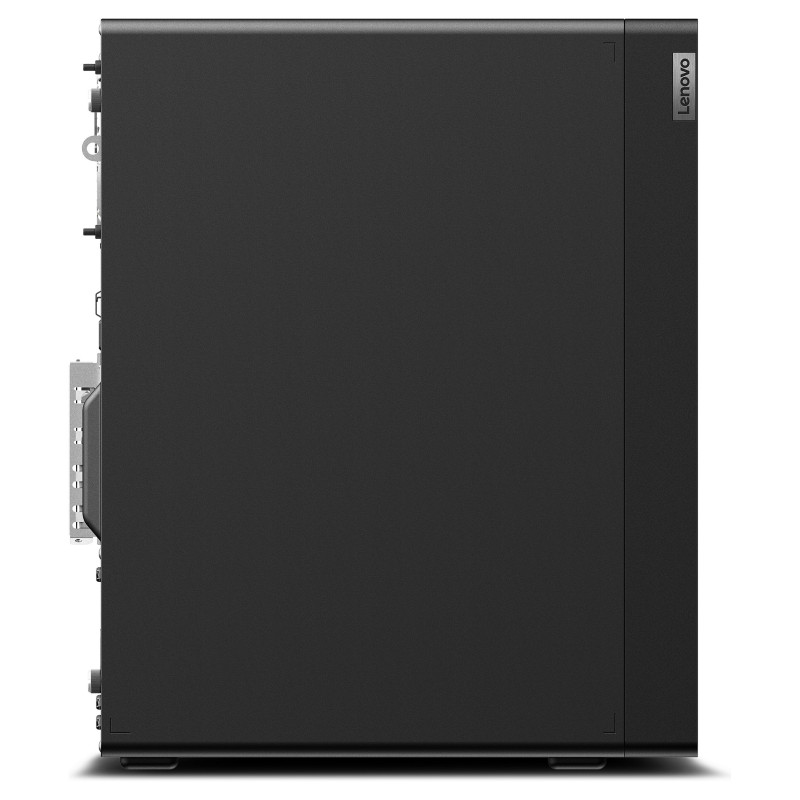

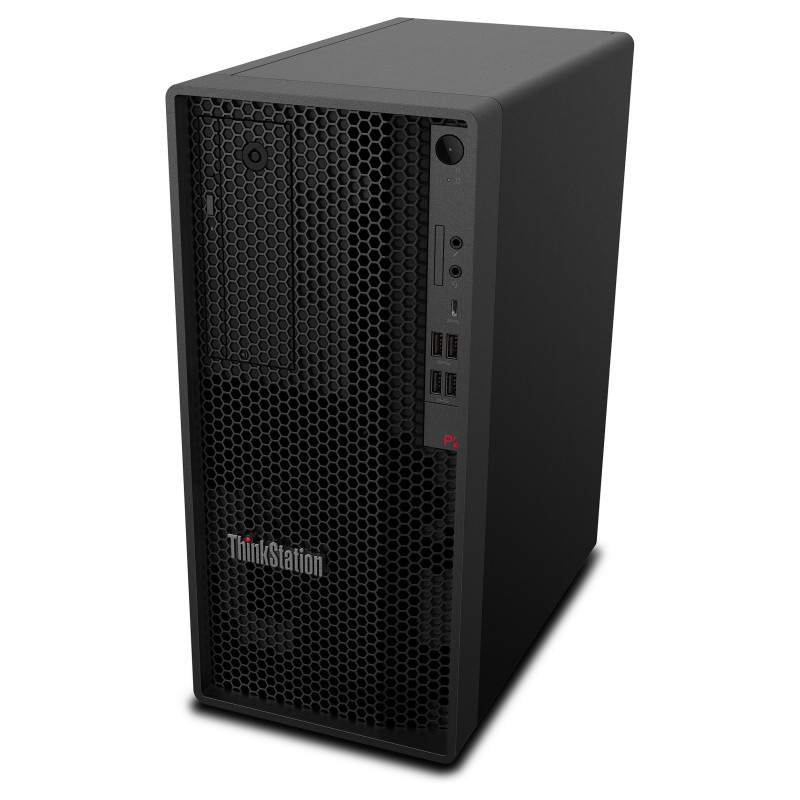

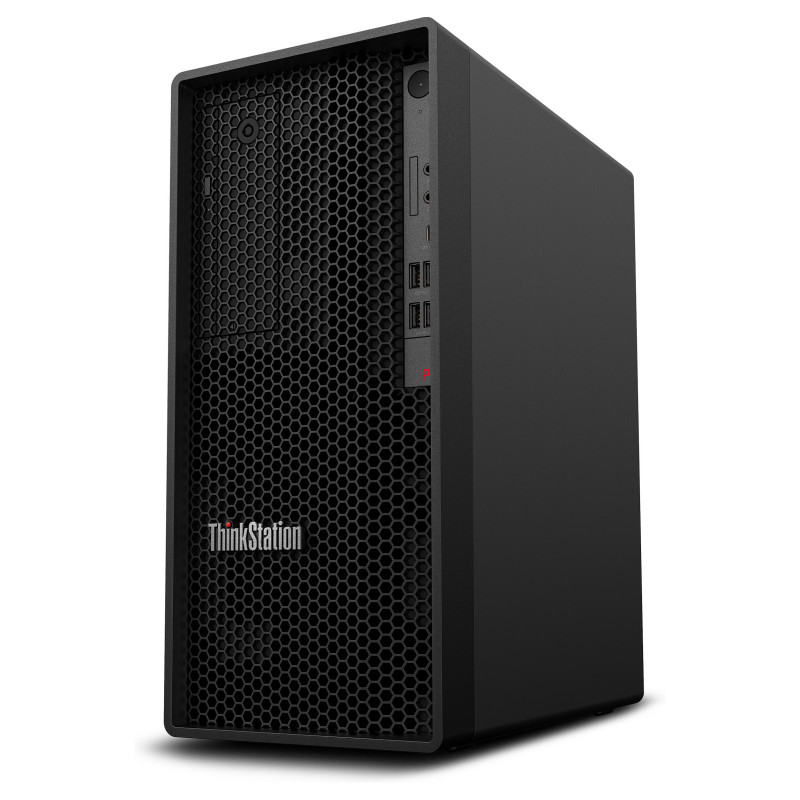

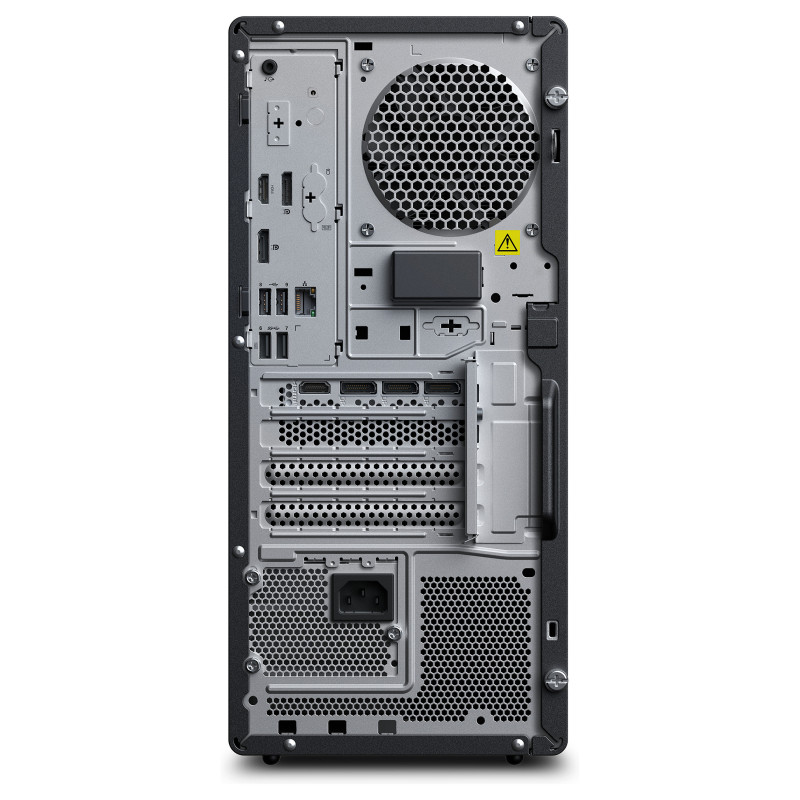

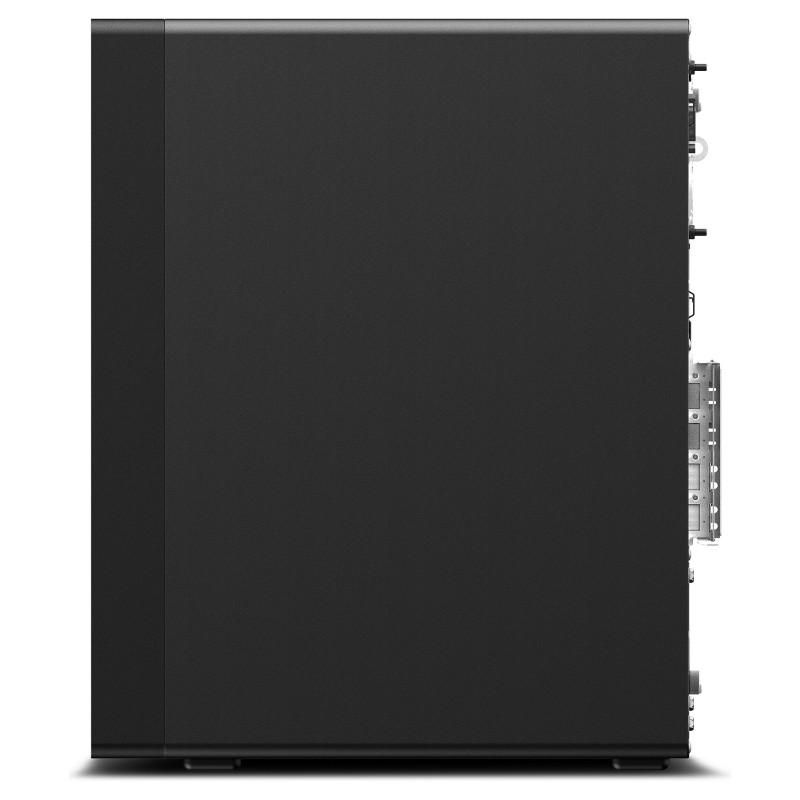

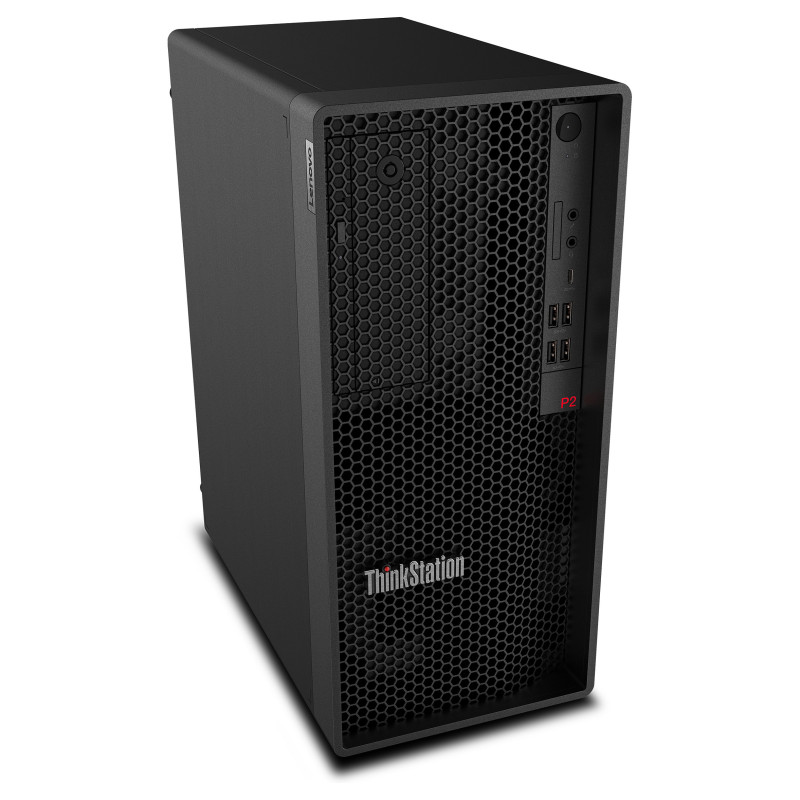

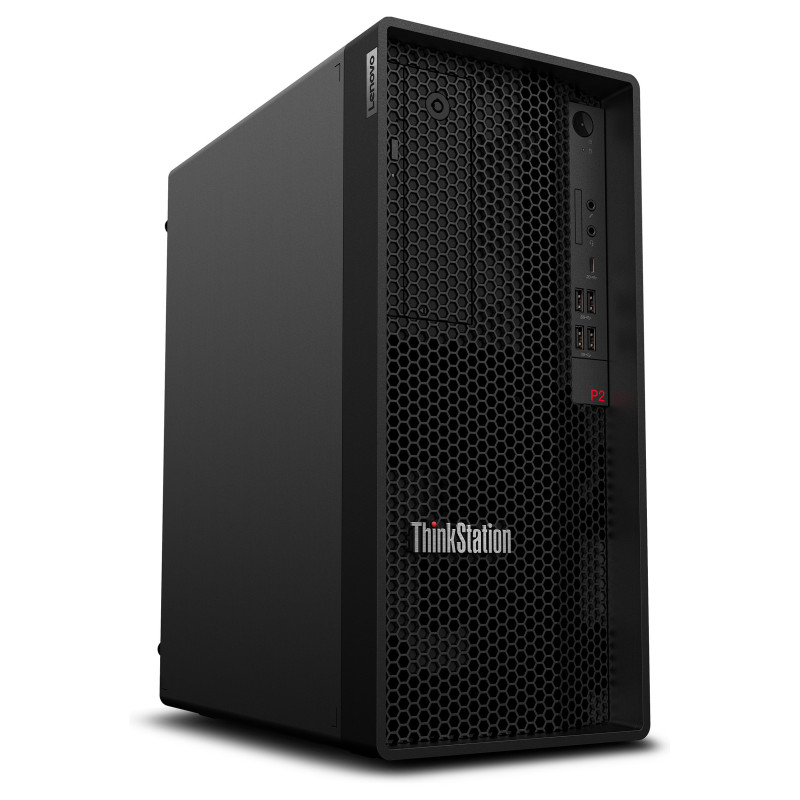

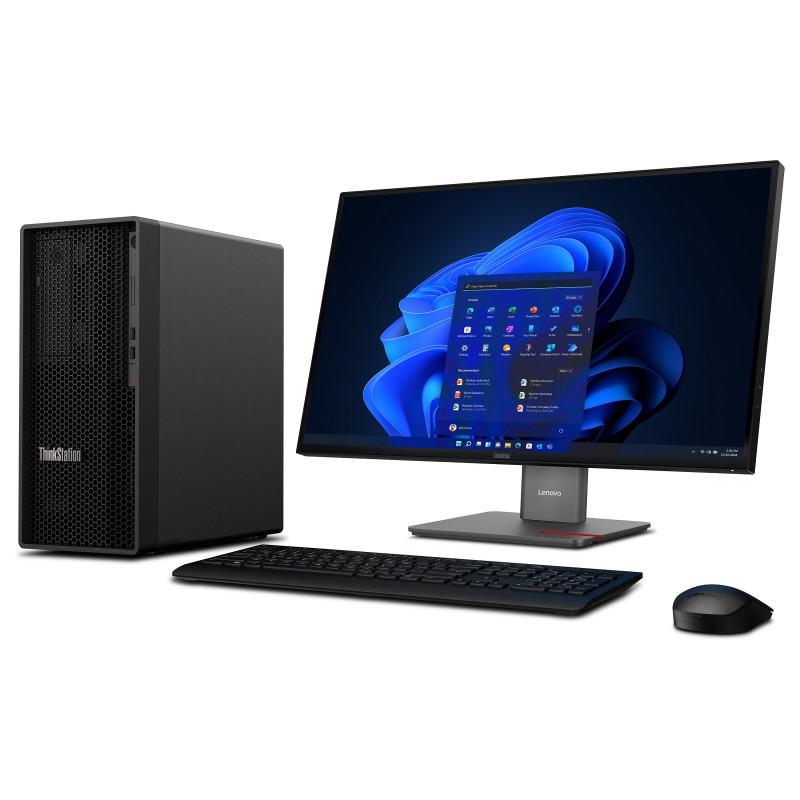

Lenovo ThinkStation P2 Tower Gen 2

Lenovo ThinkStation P2 Tower Gen 2. Processor family: Intel Core Ultra 9, Processor model: 285K. Internal memory: 128 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5070. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 750 W. Chassis type: Tower. Product type: Workstation. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285K
Processor cores: 24
Processor threads: 24
Processor boost frequency: 5.7 GHz
Performance cores: 8
Efficient cores: 16
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 3.7 GHz
Efficient-core base frequency: 3.2 GHz
Processor cache: 36 MB
Processor cache type: Smart Cache
Processor base power: 125 W
Maximum turbo power: 250 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 36 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 128 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 4 x 32 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 2 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 2 TB
Number of SSDs installed: 1
SSD capacity: 2 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Feature: Discrete graphics card
Discrete GPU manufacturer: NVIDIA
Feature: On-board graphics card
Discrete graphics card model: NVIDIA GeForce RTX 5070
Discrete graphics card memory: 12 GB
Number of discrete graphics cards: 1
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel W880
Feature: Trusted Platform Module (TPM)
Product type: Workstation

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Microphone in

Power

Power supply: 750 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Design

Chassis type: Tower
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Lenovo AI Now

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight & dimensions

Width: 170 mm
Depth: 315.4 mm
Height: 376 mm
Weight: 9.67 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Keyboard

Keyboard connectivity: Wired
