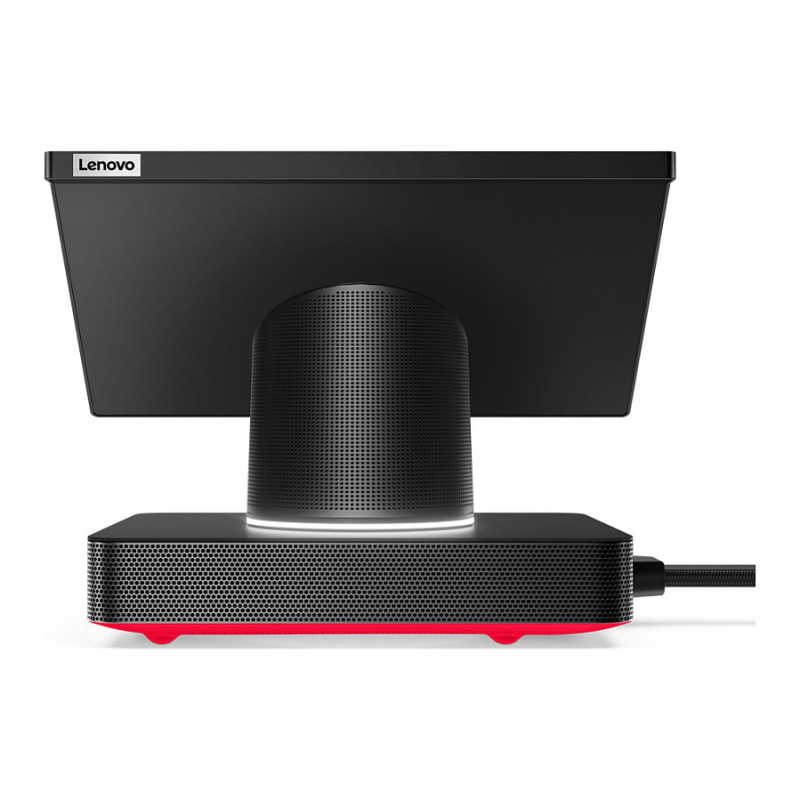

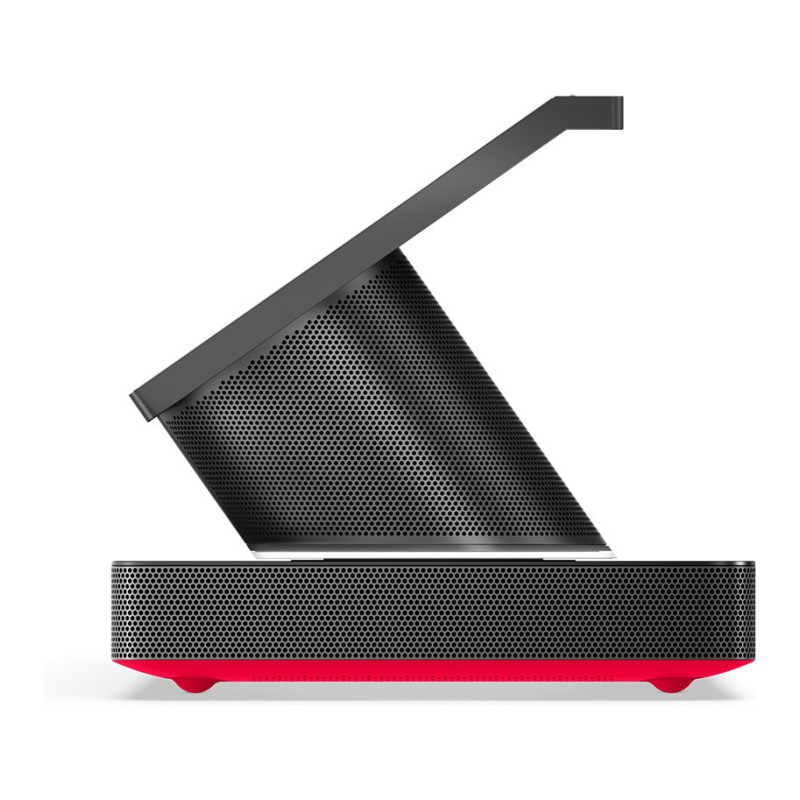

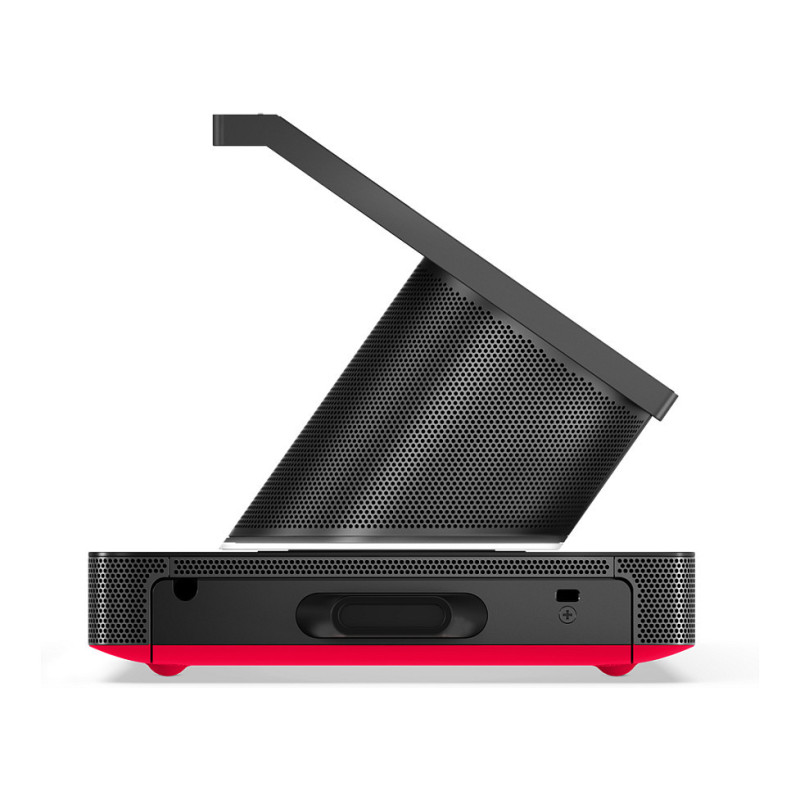

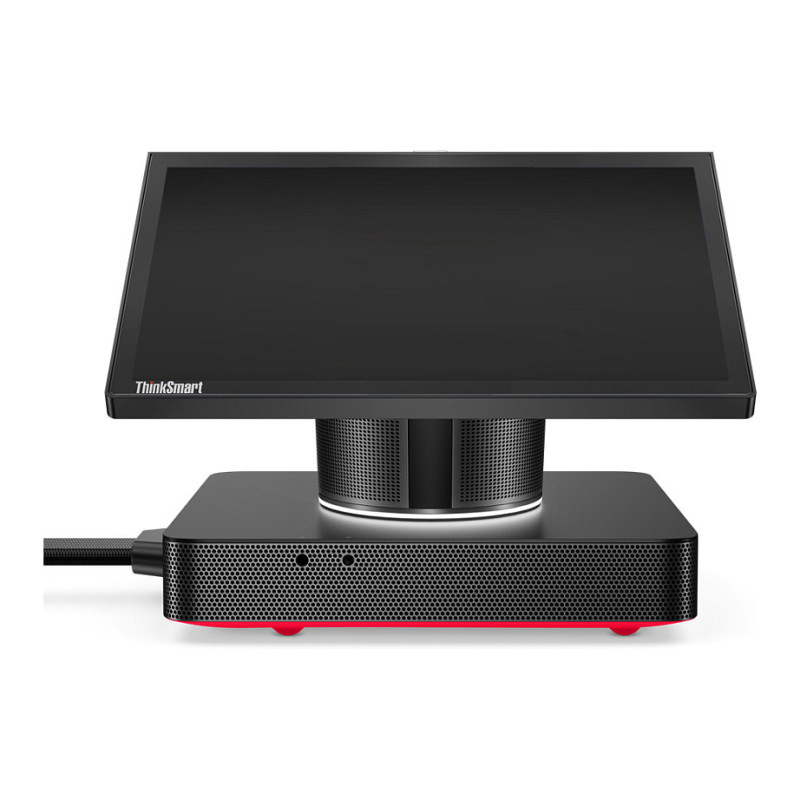

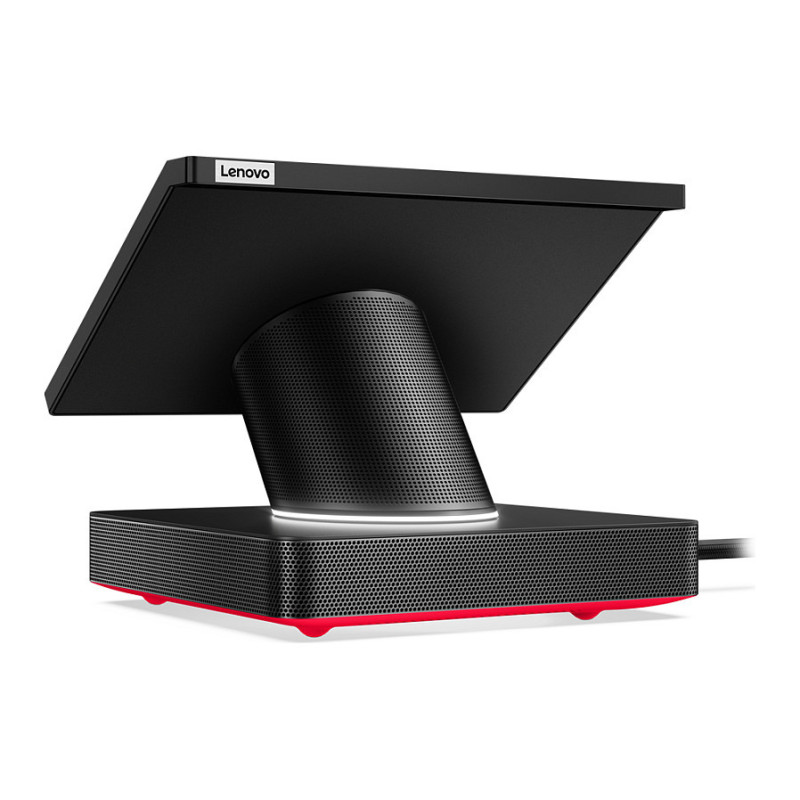

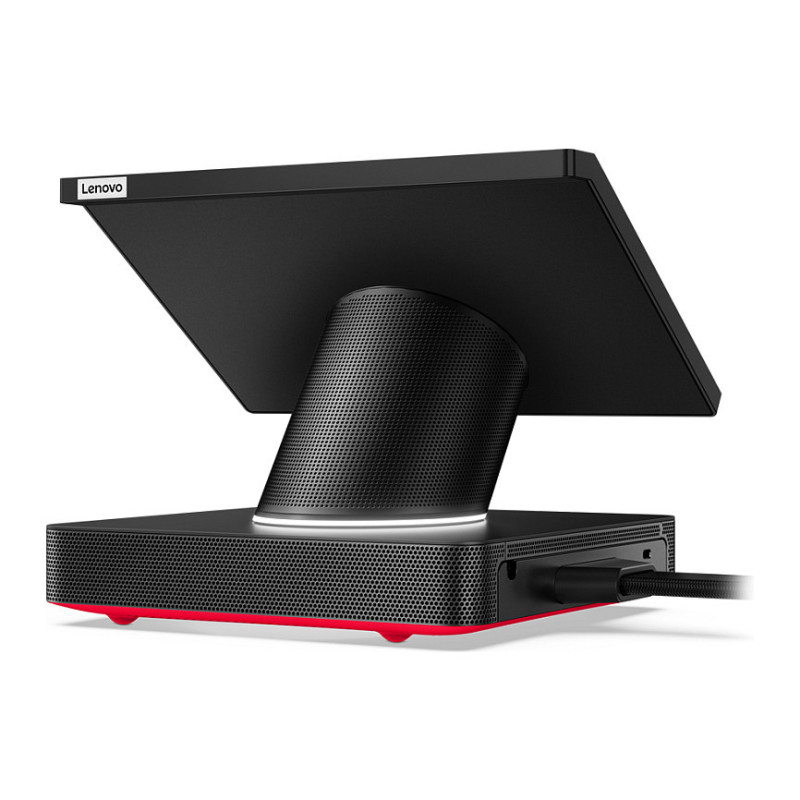

Lenovo ThinkSmart Hub for Microsoft Teams Rooms

Lenovo ThinkSmart Hub for Microsoft Teams Rooms. Product type: All-in-One PC. Display diagonal: 25.6 cm (10.1"), HD type: Full HD, Display resolution: 1920 x 1200 pixels, Touchscreen. Processor family: Intel® Core™ i5, Processor frequency: 1.6 GHz. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® HD Graphics. Operating system installed: Windows 10 IoT Enterprise. Product colour: Black

Meetings just got easier
The ThinkSmart Hub meeting room device is making meetings more efficient than ever. Built on the Microsoft Teams platform with 8th Gen Intel® Core™ processors, the redesigned Hub has a slimmer design with a sleeker display, more speakers and microphones, an innovative single-cable mechanism, and more visible indicator lights. It's still scalable across room sizes and features one-touch meeting start, for the best possible Microsoft Teams experience.

Display

Display diagonal: 25.6 cm (10.1")
Display resolution: 1920 x 1200 pixels
Feature: Touchscreen
HD type: Full HD
Native aspect ratio: 16:10
Display brightness: 320 cd/m²
Feature: Anti-glare screen

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 8th gen Intel® Core™ i5
Processor model: i5-8365UE
Processor cores: 4
Processor boost frequency: 4.1 GHz
Processor frequency: 1.6 GHz
Processor cache: 6 MB
Processor cache type: Smart Cache

Memory

Internal memory: 16 GB
Internal memory type: DDR4-SDRAM
Maximum internal memory: 16 GB
Memory clock speed: 2400 MHz

Storage

Total storage capacity: 256 GB
Storage media: SSD
Number of storage drives installed: 1
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 3.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card model: Intel® HD Graphics

Audio

Feature: Built-in speaker(s)
Number of speakers: 4
RMS rated power: 12 W
Feature: Built-in microphone
Audio system: HD

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Dual Band Wireless-AC 9560
Antenna type: 2x2
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Combo headphone/mic port

Design

Colour name: Black
Product colour: Black
Feature: Cable lock slot
Cable lock slot type: Kensington

Performance

Product type: All-in-One PC
Motherboard chipset: Intel SoC
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: BIOS password

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 10 IoT Enterprise

Power

AC adapter power: 90 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V

Weight & dimensions

Width (with stand): 240 mm
Depth (with stand): 200 mm
Height (with stand): 185.3 mm
Weight (with stand): 2.45 kg

Certificates

Compliance certificates: RoHS
Certification: TÜV Rheinland Ultra Low Noise

Technical details

Box contents: ThinkSmart One Cable (1.83m)
