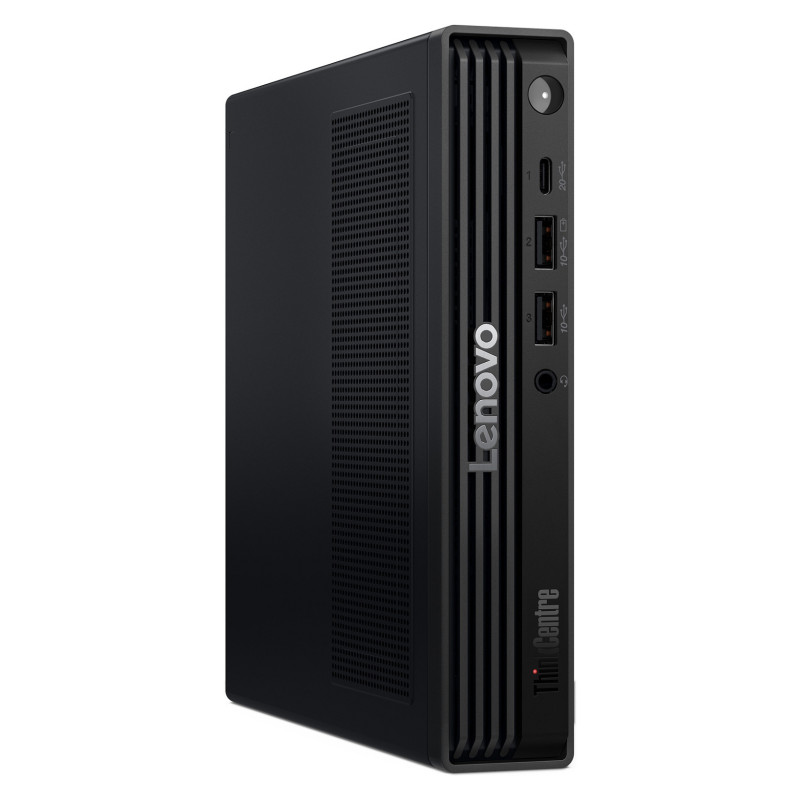

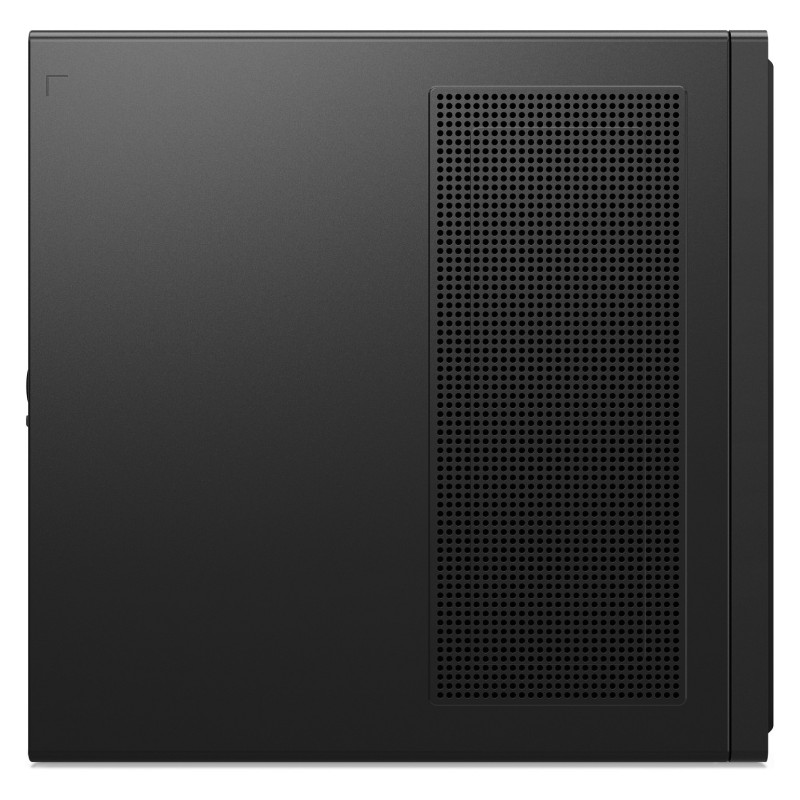

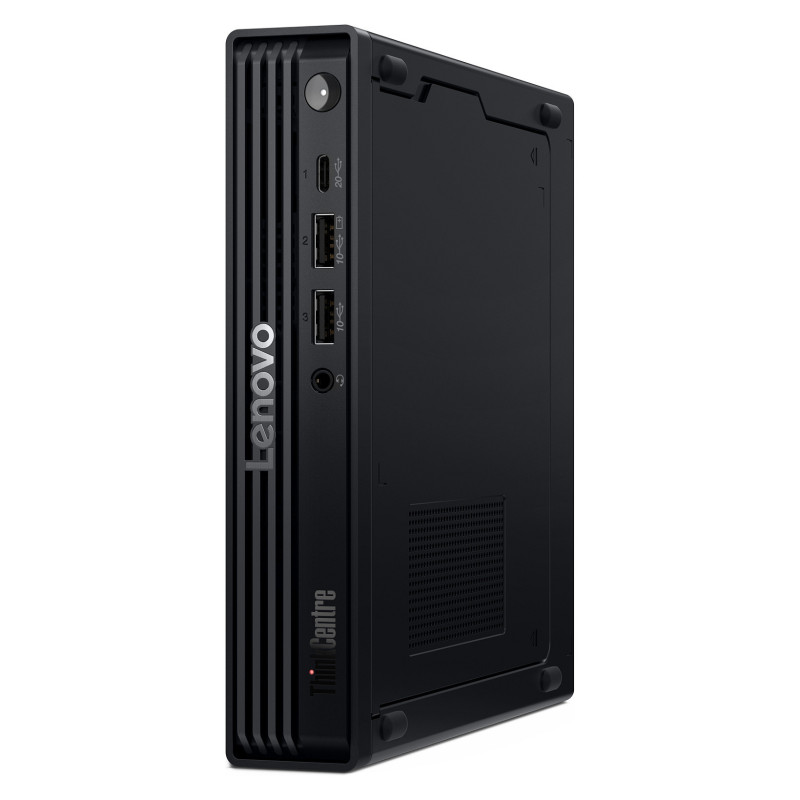

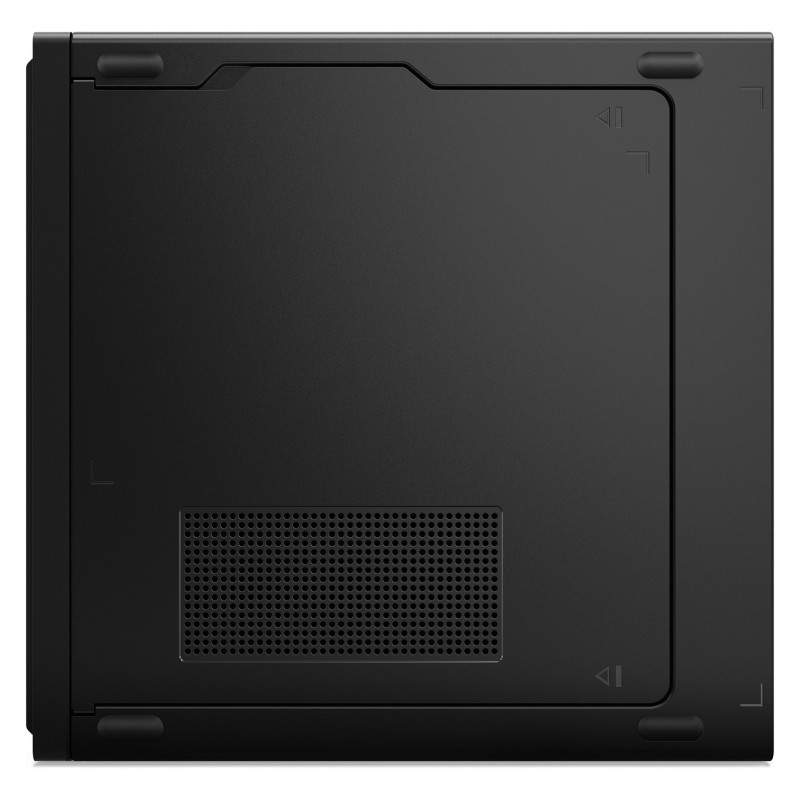

Lenovo ThinkCentre M90q Gen 6

Lenovo ThinkCentre M90q Gen 6. Processor family: Intel Core Ultra 9, Processor model: 285. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 230 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.34 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor model: 285
Processor cores: 24
Processor threads: 24

Memory

Internal memory: 32 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel® Q870
Feature: Trusted Platform Module (TPM)
Product type: Mini PC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Intel
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

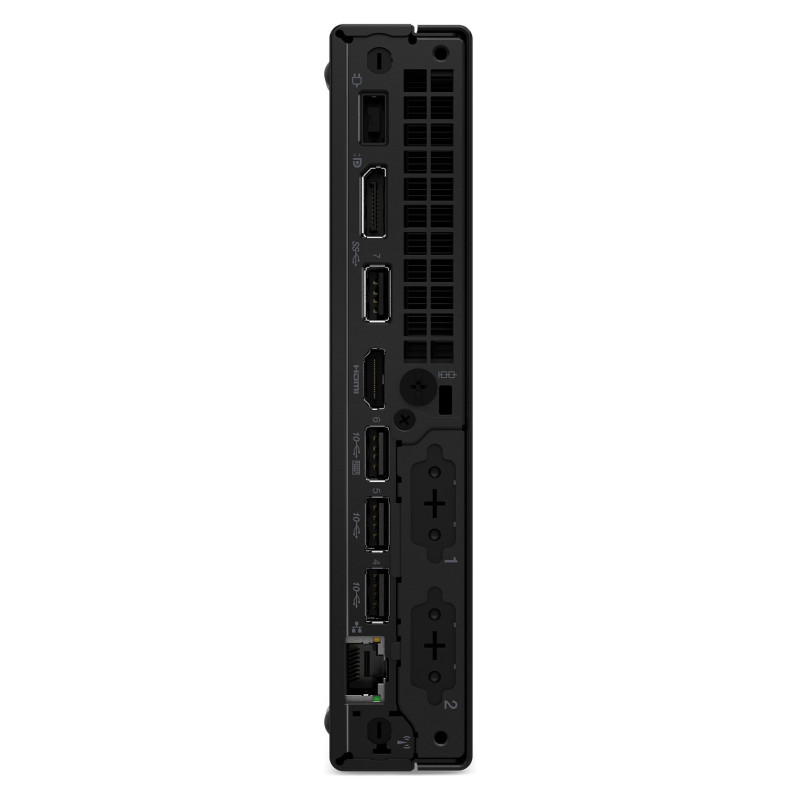

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2x2 Type-C ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port

Power

Power supply: 230 W

Design

Chassis type: Mini PC
Volume: 1 L
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system language: German
Operating system installed: Windows 11 Pro

Audio

Audio chip: Realtek ALC233VB
Audio system: High Definition Audio
Number of speakers: 1

Weight & dimensions

Width: 179 mm
Depth: 182.9 mm
Height: 36.5 mm
Weight: 1.34 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Certificates

Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Keyboard

Keyboard connectivity: Wired
