Lenovo ThinkCentre M90q Gen 6

Lenovo ThinkCentre M90q Gen 6. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 230 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.34 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 182 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 32 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Card reader integrated: No

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller manufacturer: Intel
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4

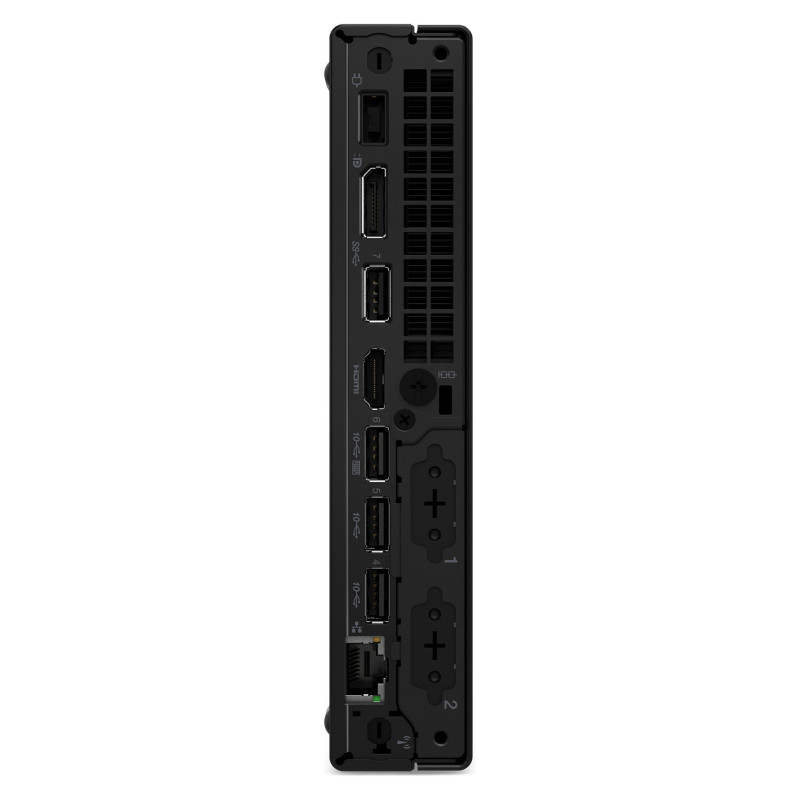

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2x2 Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes

Design

Chassis type: Mini PC
Volume: 1 L
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Performance

Motherboard chipset: Intel® Q870
Audio chip: Realtek ALC233VB
Audio system: High Definition Audio
Number of speakers: 1
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Software

Operating system language: German
Operating system installed: Windows 11 Pro

Power

Power supply: 230 W

Certificates

Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight dimensions

Width: 179 mm
Depth: 182.9 mm
Height: 36.5 mm
Weight: 1.34 kg

Packaging content

Mouse included: Yes
Mouse connectivity: Wired
Keyboard included: Yes
Keyboard connectivity: Wired
