Lenovo ThinkCentre M75t Gen 5

Lenovo ThinkCentre M75t Gen 5. Processor family: AMD Ryzen™ 7, Processor model: 8700G. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5200 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: AMD Radeon 780M. Wi-Fi. Power supply: 260 W. Chassis type: Tower. Product type: PC. Weight: 5.9 kg. Product colour: Black

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor model: 8700G
Processor cores: 8
Processor threads: 16

Memory

Internal memory: 32 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x DIMM
Memory clock speed: 5200 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Feature: Card reader integrated

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 780M

Performance

Feature: Trusted Platform Module (TPM)
Product type: PC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.3

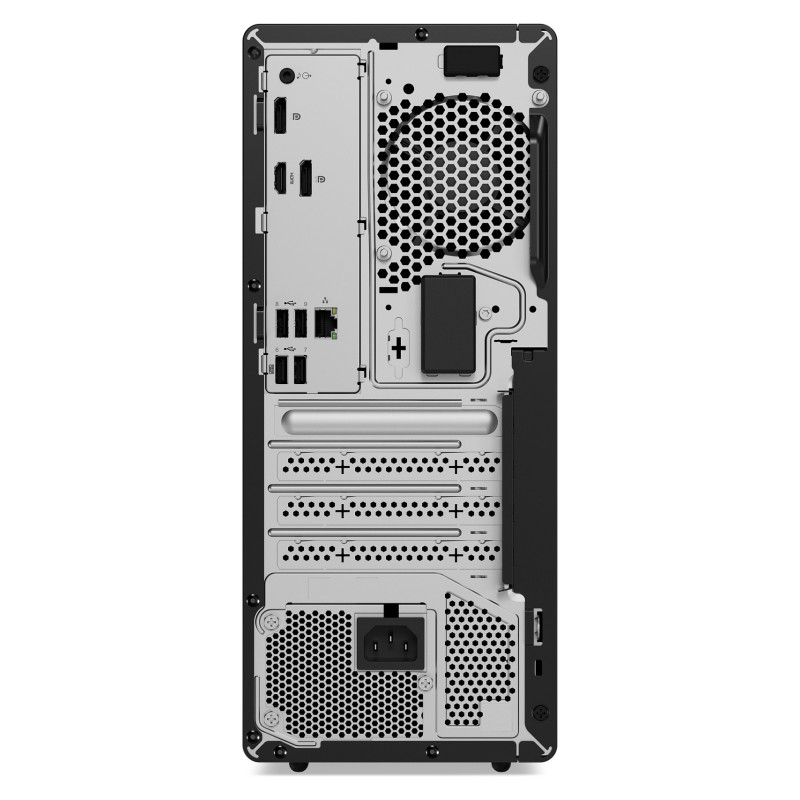

Ports & interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Microphone in

Power

Power supply: 260 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Design

Chassis type: Tower
Volume: 13.6 L
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system installed: No

Audio

Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
Number of speakers: 1

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Weight & dimensions

Width: 145 mm
Depth: 296 mm
Height: 346 mm
Weight: 5.9 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included

Certificates

Certification: TCO,RoHS

Keyboard

Keyboard connectivity: Wired
