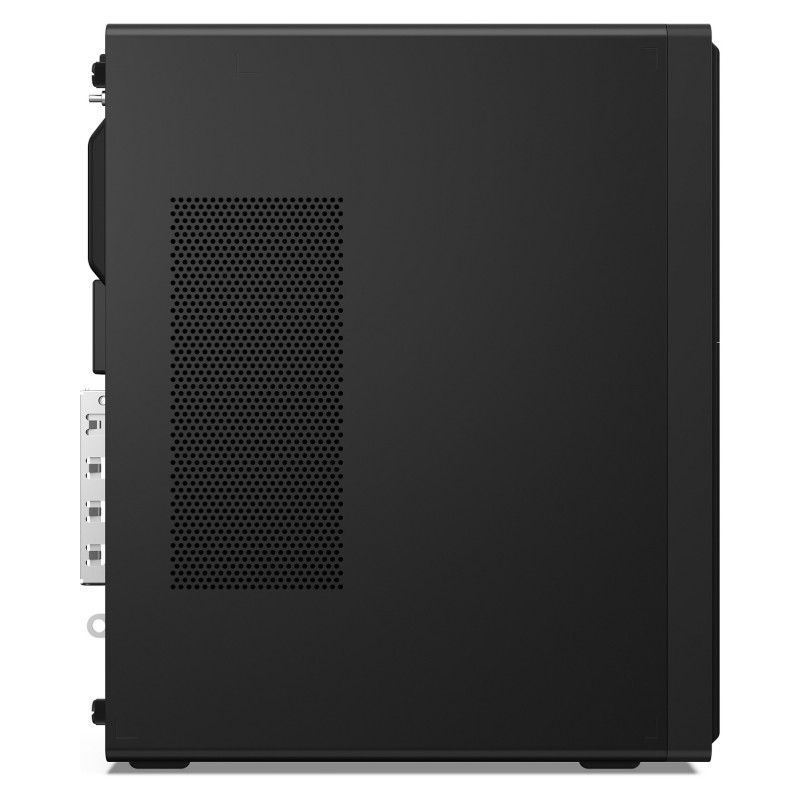

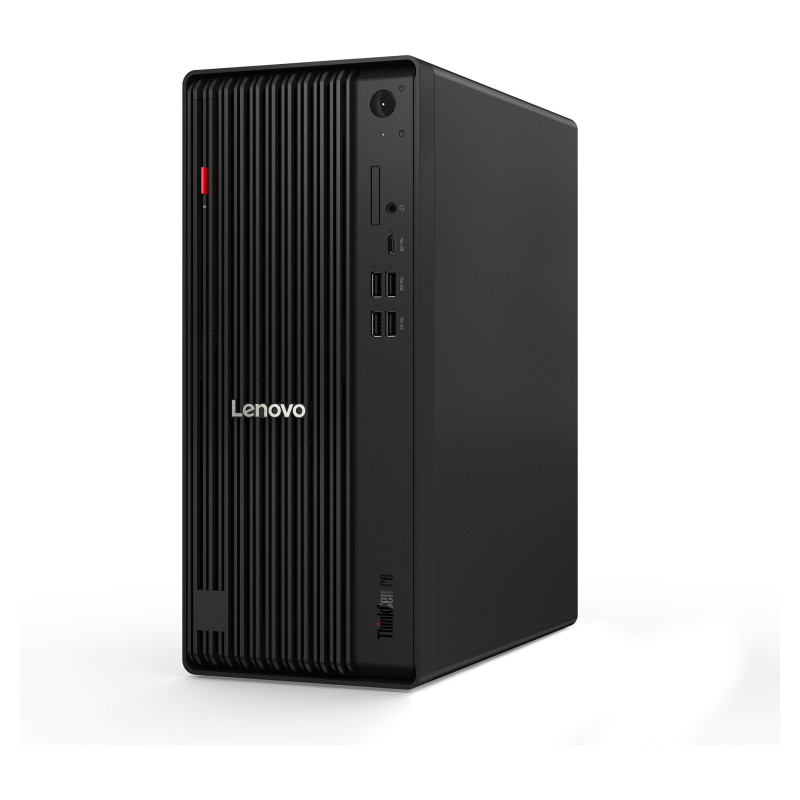

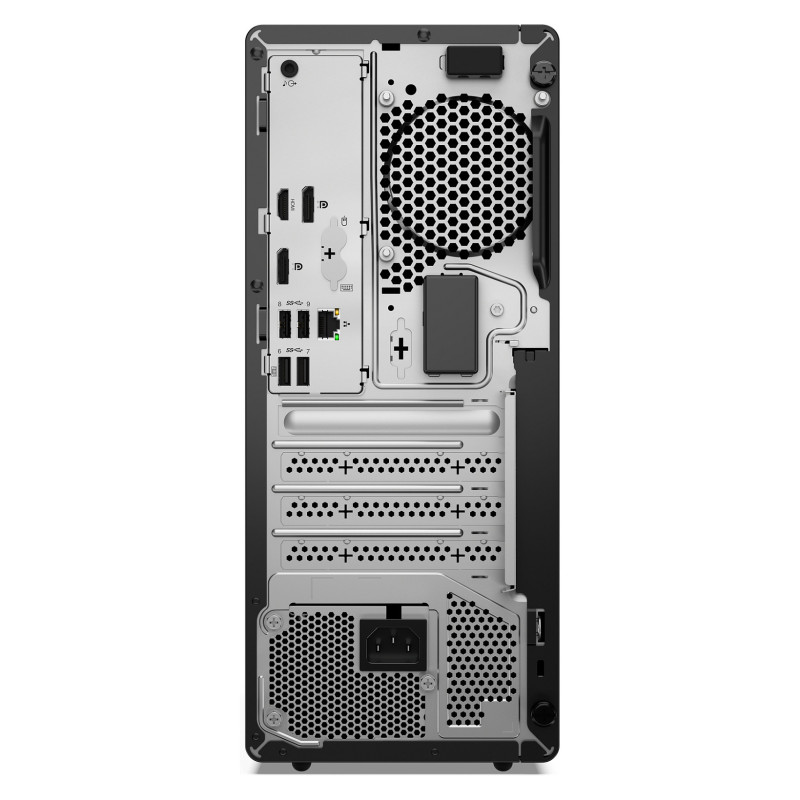

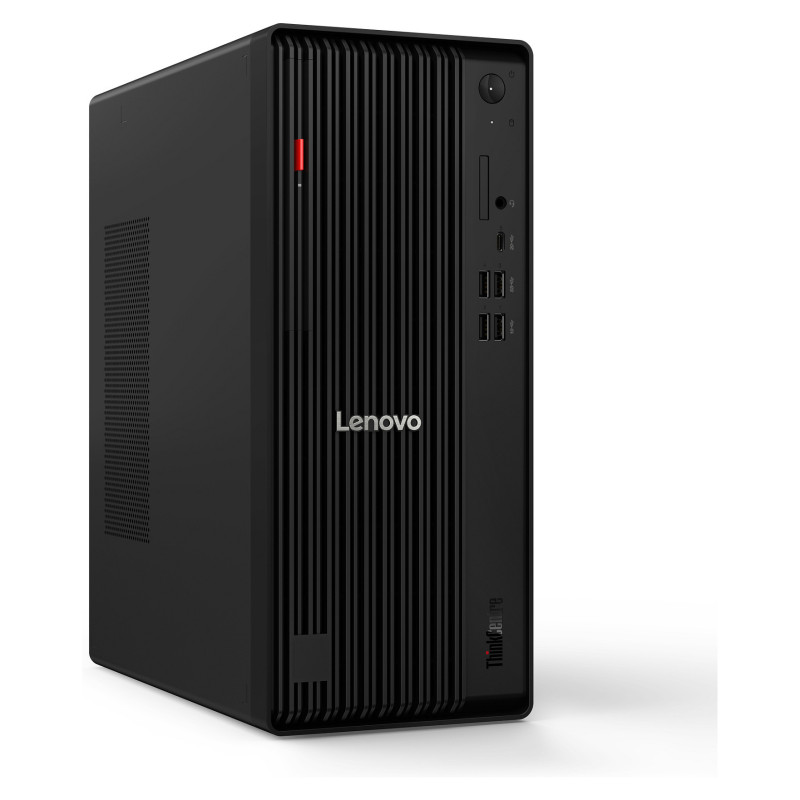

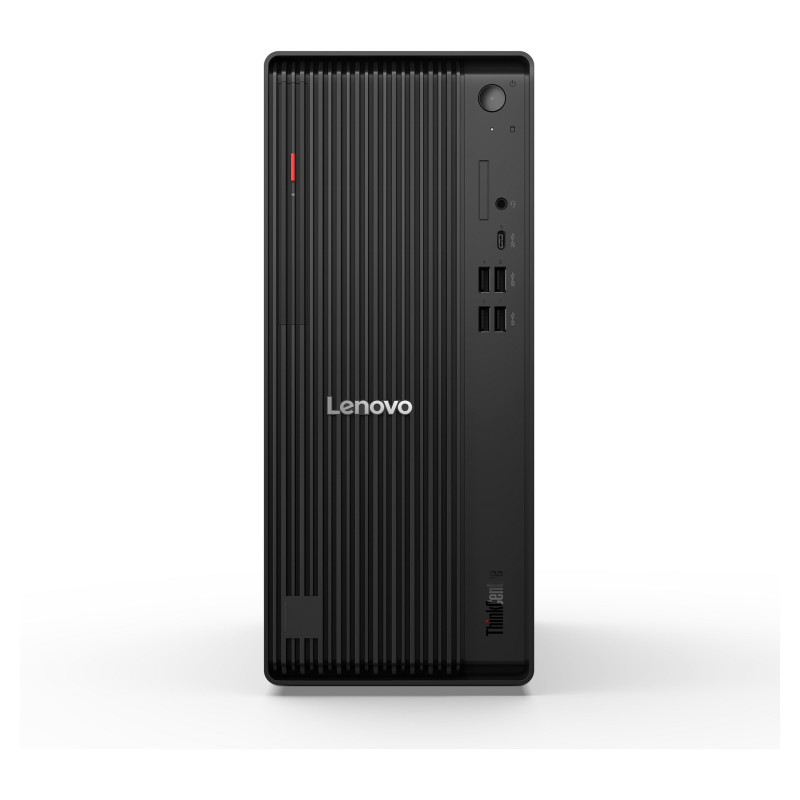

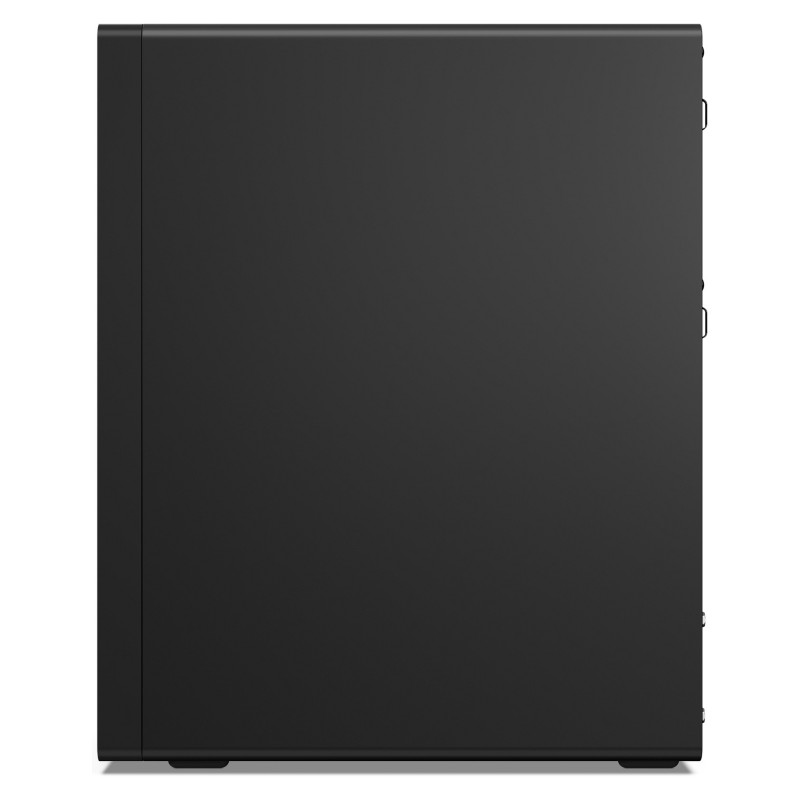

Lenovo ThinkCentre M70t Gen 6

Lenovo ThinkCentre M70t Gen 6. Processor family: Intel Core Ultra 7, Processor model: 265. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 260 W. Chassis type: Tower. Product type: PC. Weight: 5.7 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 182 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Line-out
Feature: Combo headphone/mic port

Design

Chassis type: Tower
Volume: 13.6 L
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Performance

Motherboard chipset: Intel Q870
Audio chip: Realtek ALC623-CG
Audio system: High Definition Audio
Number of speakers: 1
Feature: Trusted Platform Module (TPM)
Product type: PC

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro

Power

Power supply: 260 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12192 m

Certificates

Certification: ENERGY STAR,TCO,RoHS

Weight & dimensions

Width: 145 mm
Depth: 296 mm
Height: 346 mm
Weight: 5.7 kg
Package width: 313 mm
Package depth: 242 mm
Package height: 327 mm
Package weight: 4.9 kg

Packaging content

Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Keyboard connectivity: Wired
