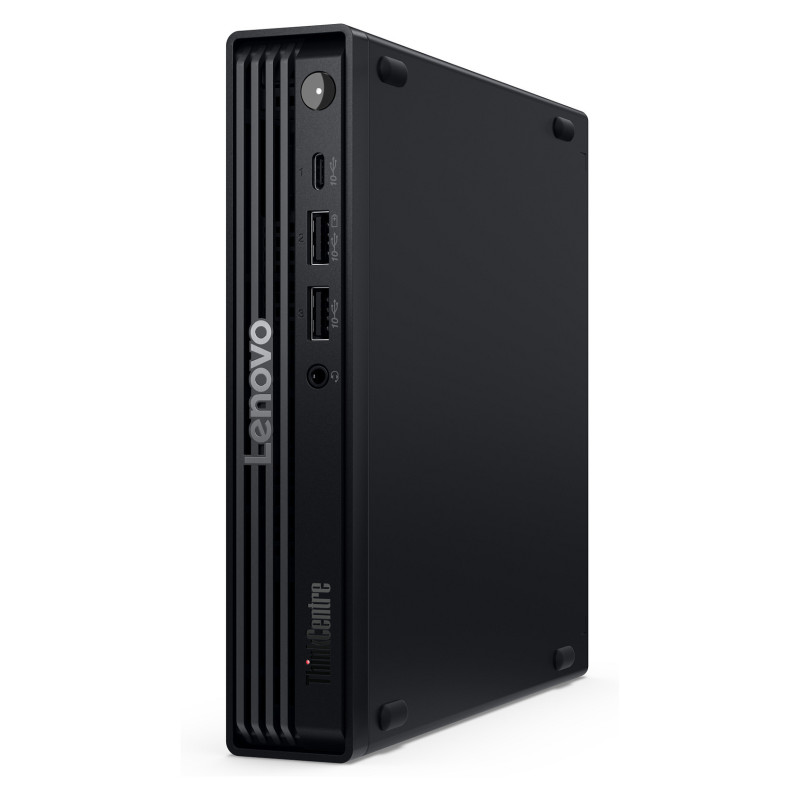

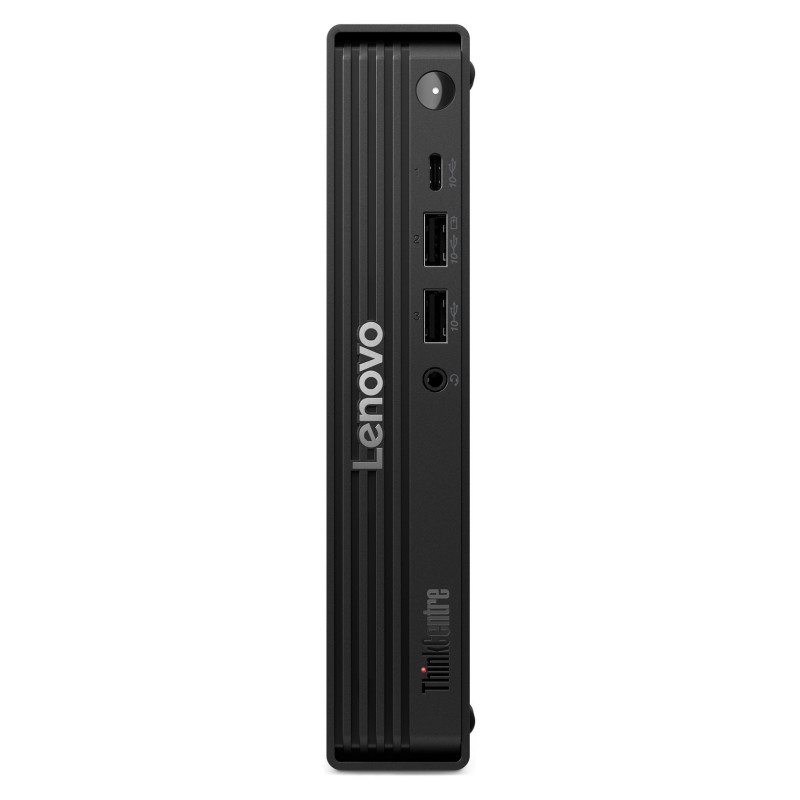

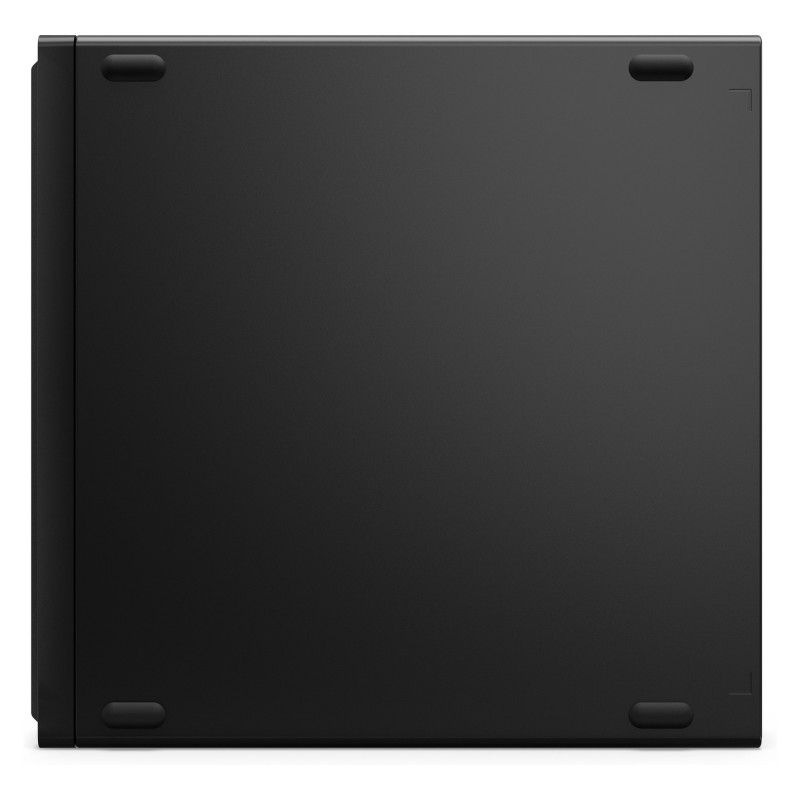

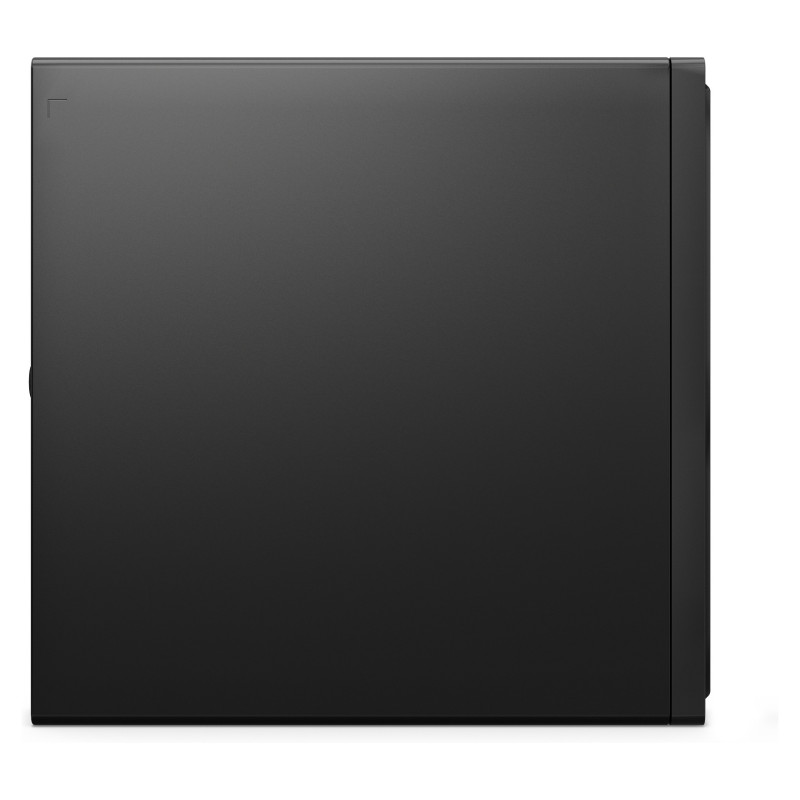

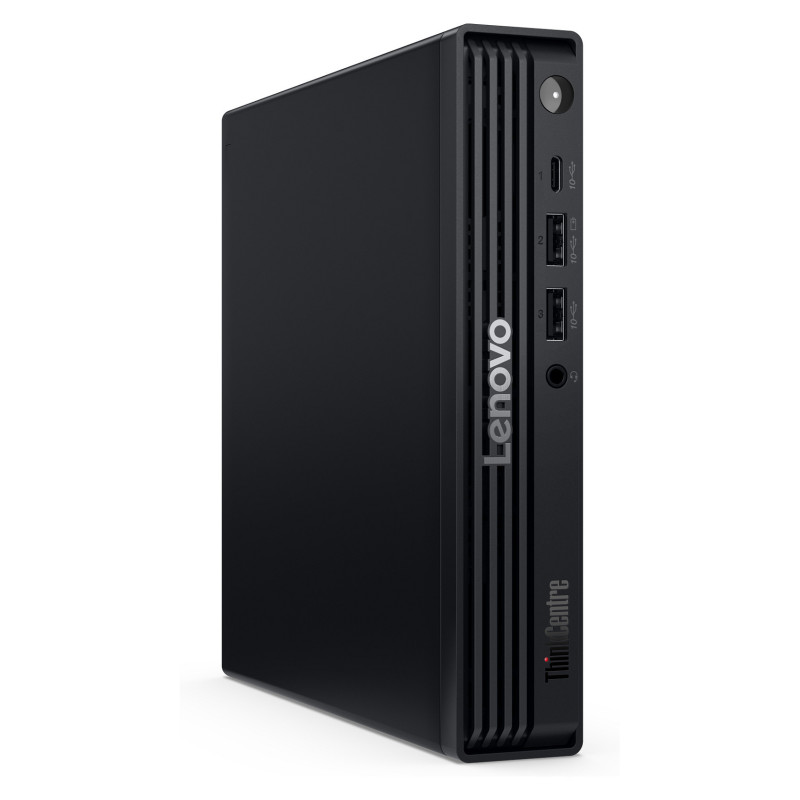

Lenovo ThinkCentre M70q Gen 6

Lenovo ThinkCentre M70q Gen 6. Processor family: Intel Core Ultra 7, Processor model: 265T. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Pro. Power supply: 135 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.18 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265T
Processor cores: 20
Processor threads: 20
Processor boost frequency: 5.3 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core base frequency: 1.5 GHz
Efficient-core base frequency: 1.2 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Processor base power: 35 W
Maximum turbo power: 112 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs

Memory

Internal memory: 32 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Card reader integrated: No

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel B860
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Wi-Fi 6 AX203
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.2

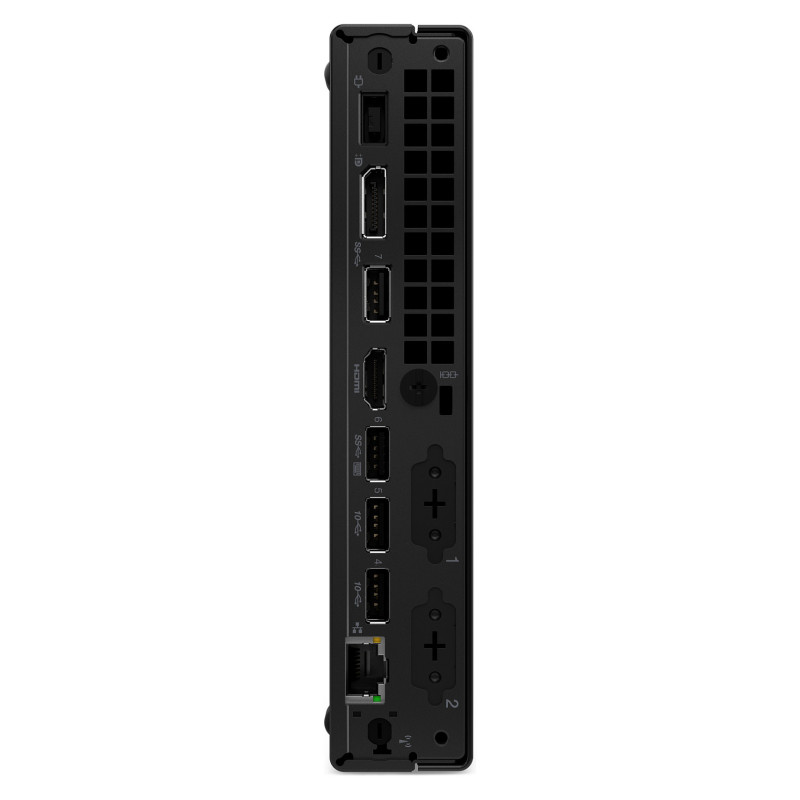

Ports interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes

Power

Power supply: 135 W

Design

Chassis type: Mini PC
Volume: 1 L
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system language: German
Operating system installed: Windows 11 Pro

Audio

Audio chip: Realtek ALC233VB
Audio system: High Definition Audio
Number of speakers: 1

Weight dimensions

Width: 179 mm
Depth: 182.9 mm
Height: 36.5 mm
Weight: 1.18 kg

Packaging content

Mouse included: Yes
Mouse connectivity: Wired
Keyboard included: Yes

Certificates

Certification: ENERGY STAR,TCO,RoHS

Keyboard

Keyboard connectivity: Wired
