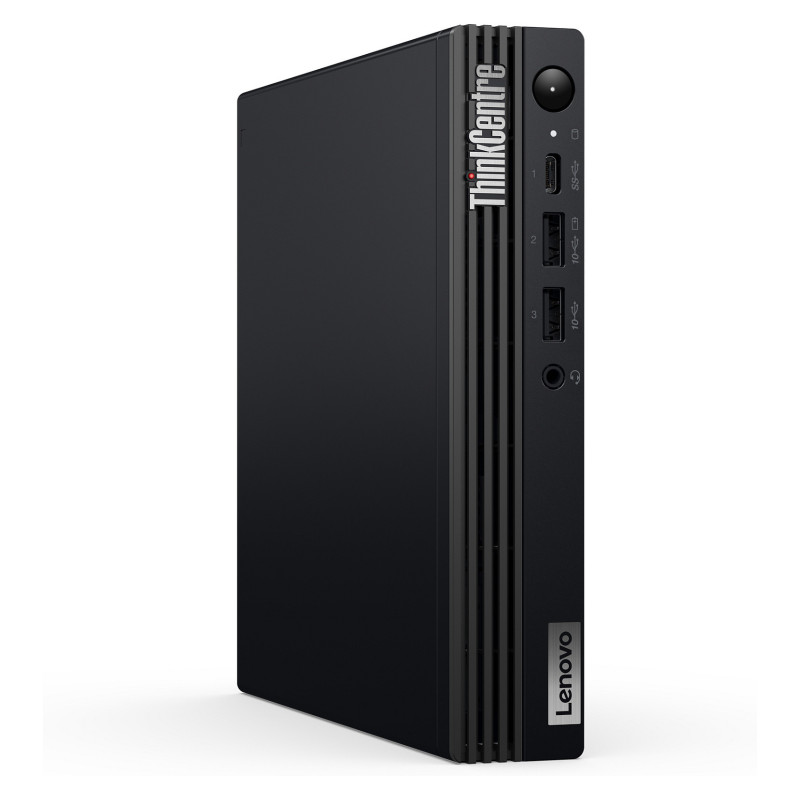

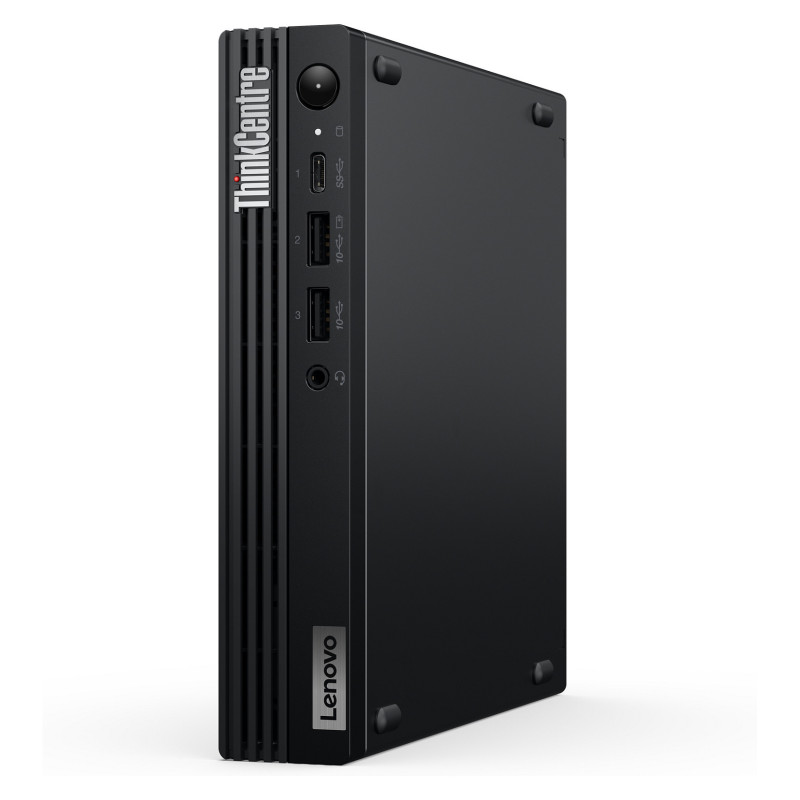

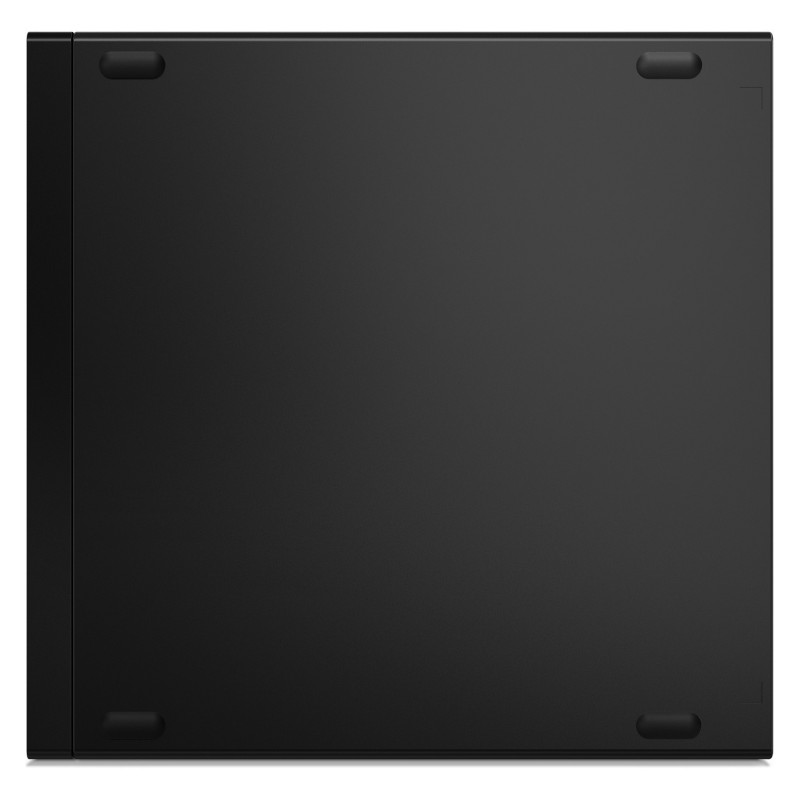

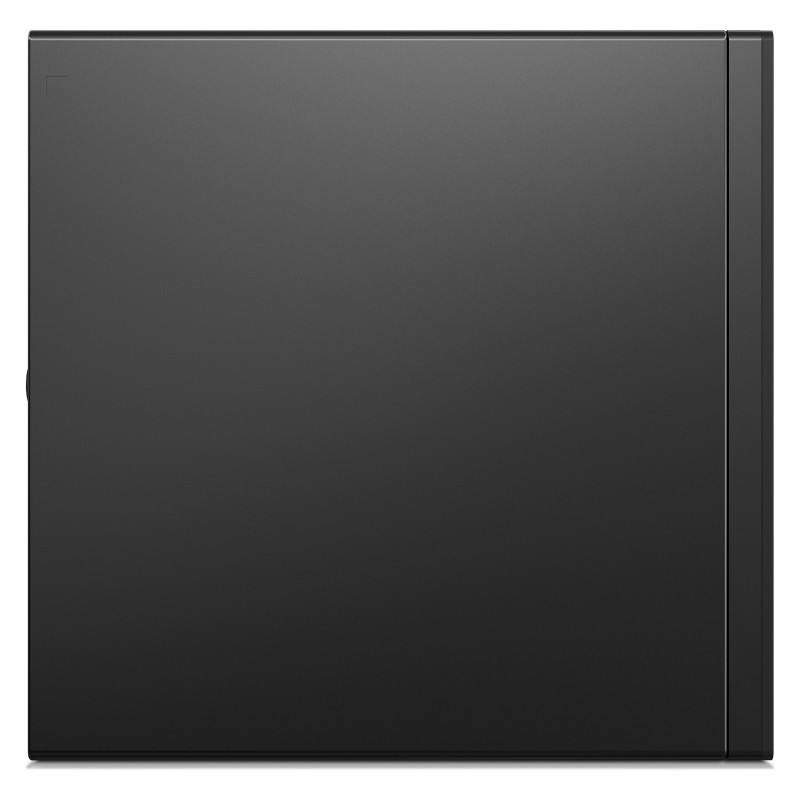

Lenovo ThinkCentre M70q Gen 5

Lenovo ThinkCentre M70q Gen 5. Processor family: Intel® Core™ i5, Processor model: i5-13400T. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Wi-Fi. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.25 kg. Product colour: Black

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 13th gen Intel® Core™ i5
Processor model: i5-13400T
Processor cores: 10
Processor threads: 16
Processor boost frequency: 4.4 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 3 GHz
Performance-core base frequency: 1.3 GHz
Efficient-core base frequency: 1 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Processor base power: 35 W
Maximum turbo power: 82 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 4800 MHz

Storage

Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Card reader integrated: No

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 730

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 100,1000 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E-BR) (___MIAI__T4_K) standards: Wi-Fi 6E (802.11ax)
WLAN controller manufacturer: Intel
WLAN controller model: Intel1_ Wi-K_T_Fi AX211
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.3

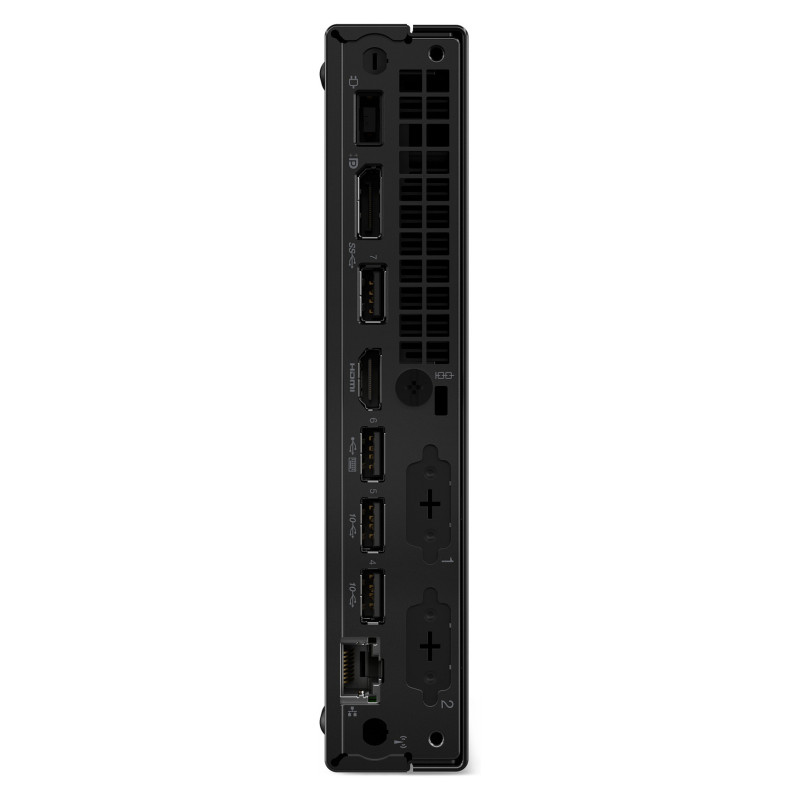

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes

Design

Chassis type: Mini PC
Colour name: Black
Volume: 1 L
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Performance

Motherboard chipset: Intel Q670
Audio chip: Realtek ALC233VB
Audio system: High Definition Audio
Number of speakers: 1
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Software

Operating system installed: No

Power

Power supply: 90 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Certificates

Certification: TCO,RoHS

Weight dimensions

Width: 179 mm
Depth: 182.9 mm
Height: 36.5 mm
Weight: 1.25 kg

Packaging content

Mouse included: Yes
Mouse connectivity: Wired
Keyboard included: Yes
Keyboard connectivity: Wired

Display

Display included: No
