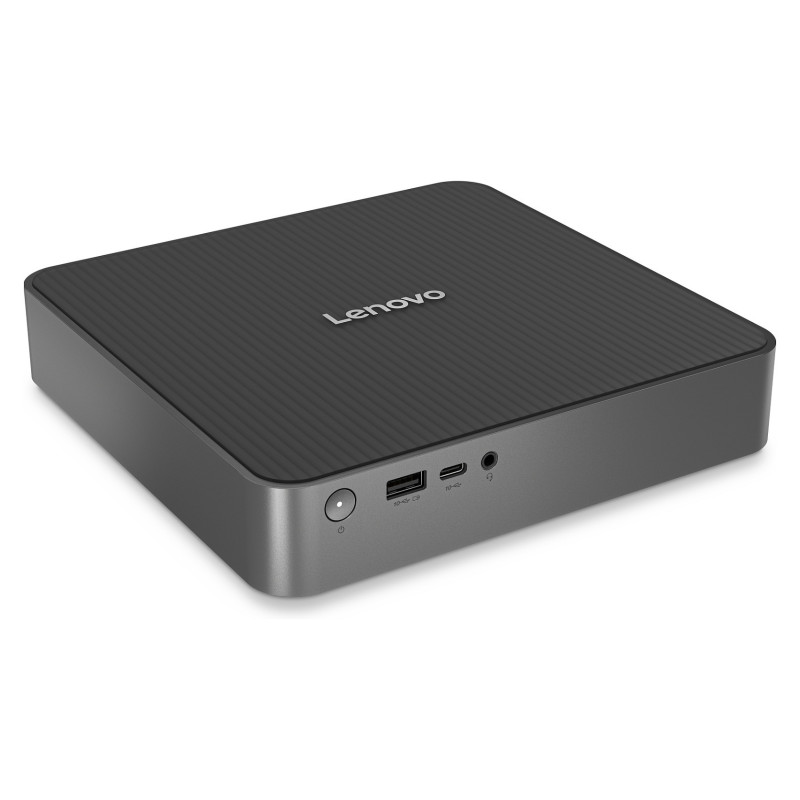

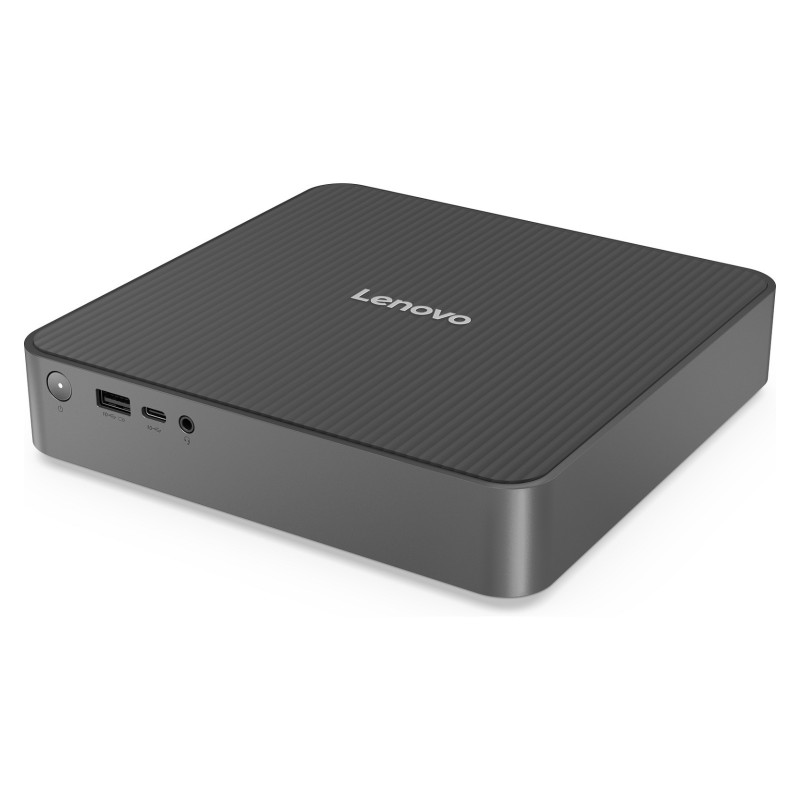

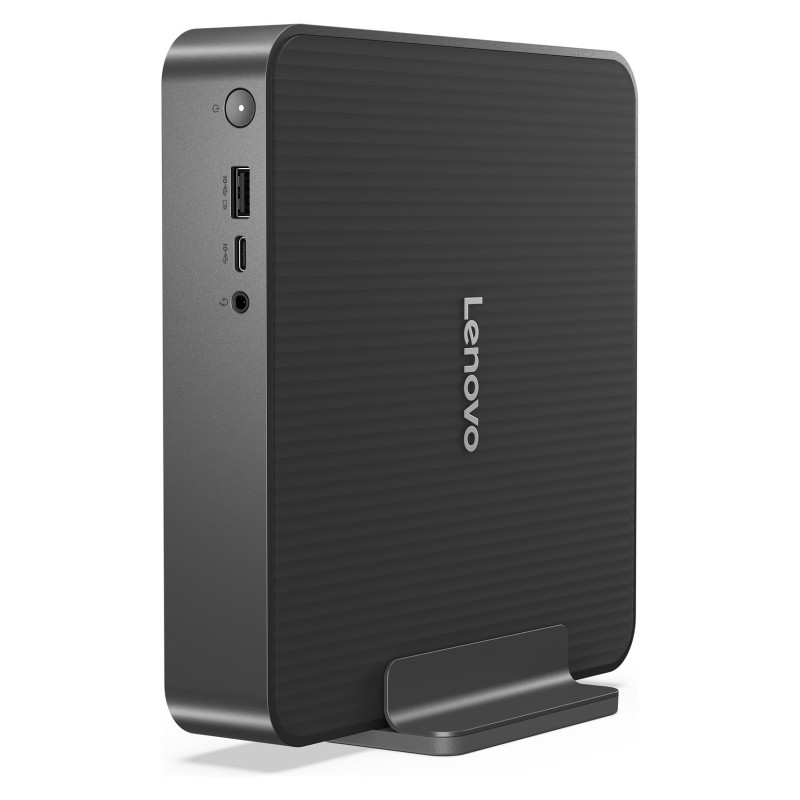

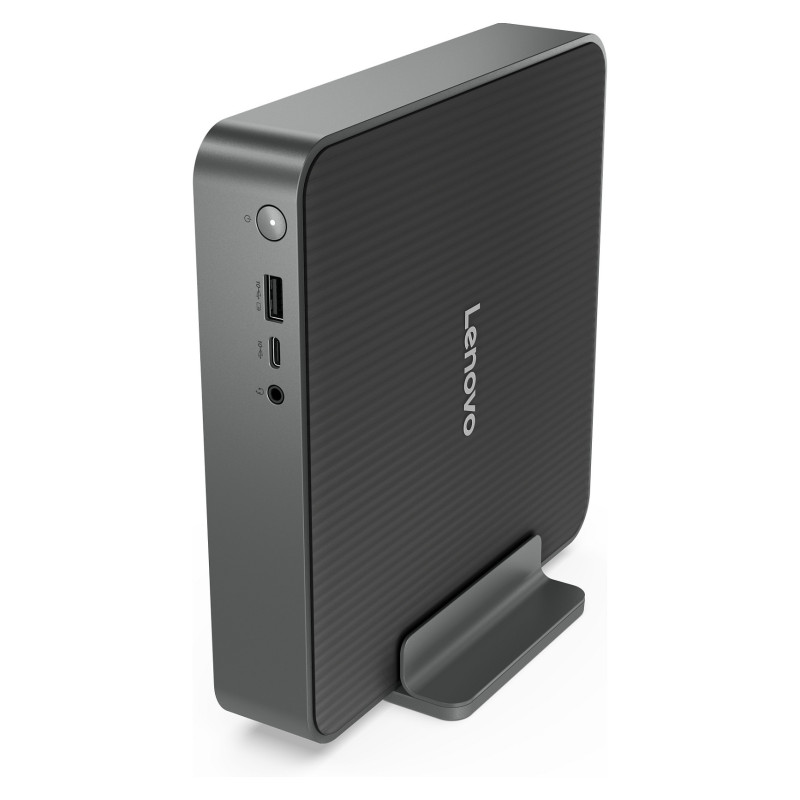

Lenovo IdeaCentre Mini 01IRH10R

Lenovo IdeaCentre Mini 01IRH10R. Processor family: Intel Core 7, Processor model: 240H. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Operating system installed: Windows 11 Home. Power supply: 150 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.8 kg. Product colour: Grey

Processor

Processor manufacturer: Intel
Processor family: Intel Core 7
Processor generation: Intel Core (Series 2)
Processor model: 240H
Processor cores: 10
Processor threads: 16
Processor boost frequency: 5.2 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4 GHz
Performance-core base frequency: 2.5 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor base power: 45 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): No

Memory

Internal memory: 32 GB
Maximum internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel SoC
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Network

Ethernet LAN: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4

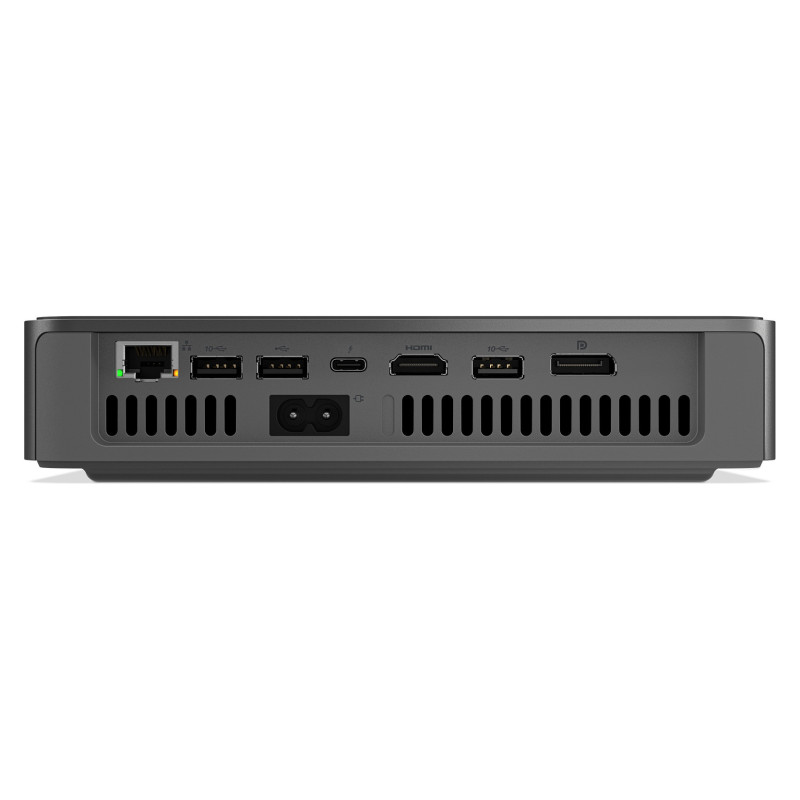

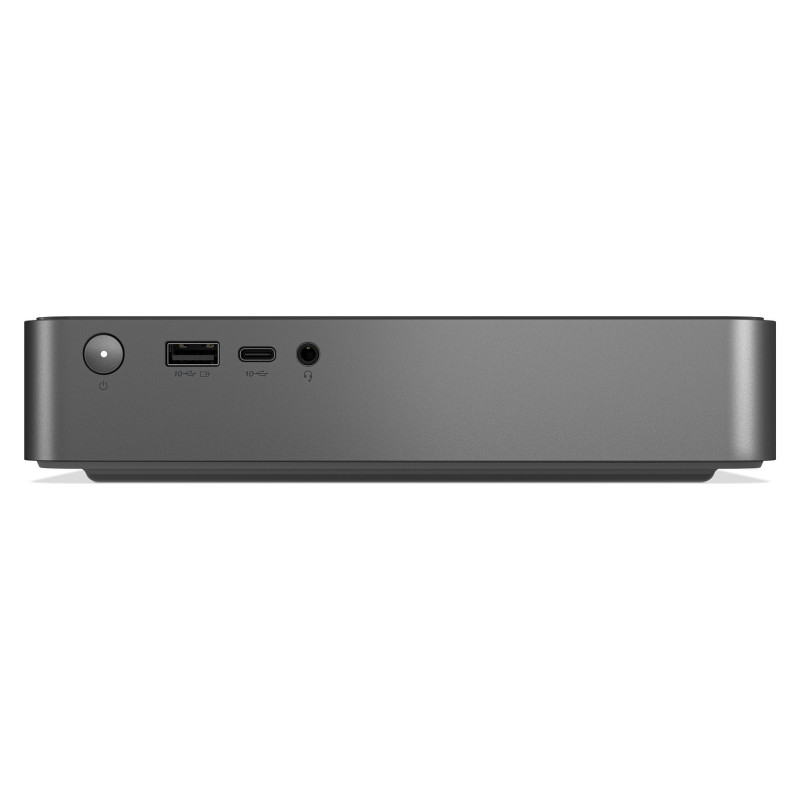

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Intel® Thunderbolt 4: Yes
Thunderbolt 4 ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes

Power

Power supply: 150 W

Design

Chassis type: Mini PC
Colour name: Luna Grey
Volume: 1 L
Product colour: Grey

Software

Operating system language: German
Operating system installed: Windows 11 Home

Display

Display included: No

Audio

Audio system: High Definition Audio

Weight dimensions

Width: 191 mm
Depth: 195 mm
Height: 42.7 mm
Weight: 1.8 kg

Certificates

Certification: ENERGY STAR,RoHS
