iiyama SDM31201BC-1L PC / workstation

iiyama SDM31201BC-1L. Processor family: Intel® Core™ i3, Processor model: i3-1220P. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Operating system installed: Windows 11 IoT Enterprise, Operating system architecture: 64-bit. Chassis type: Mini PC. Product type: Mini PC. Weight: 400 g. Product colour: Black

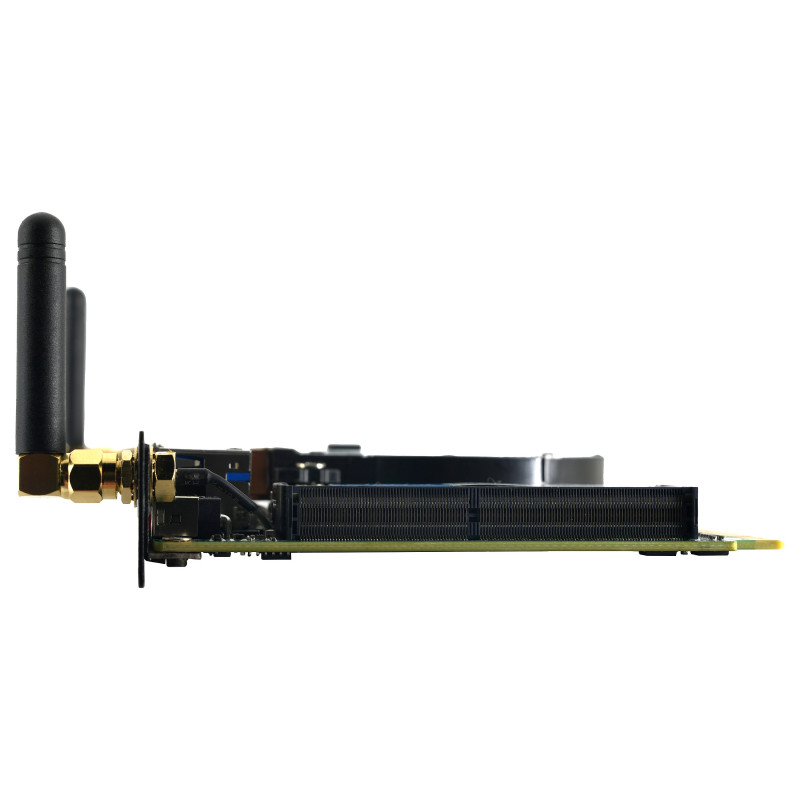

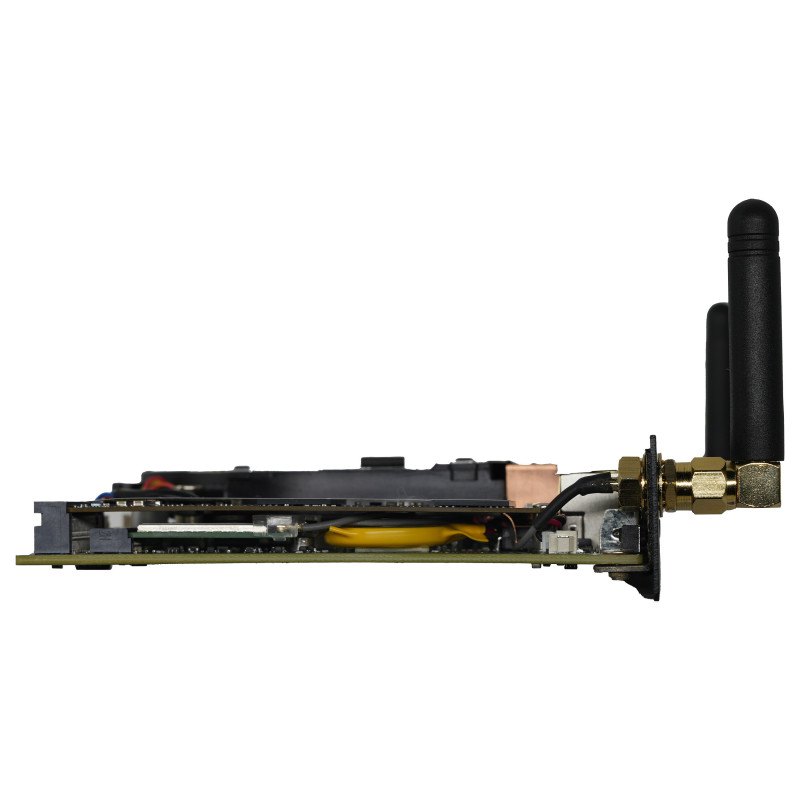

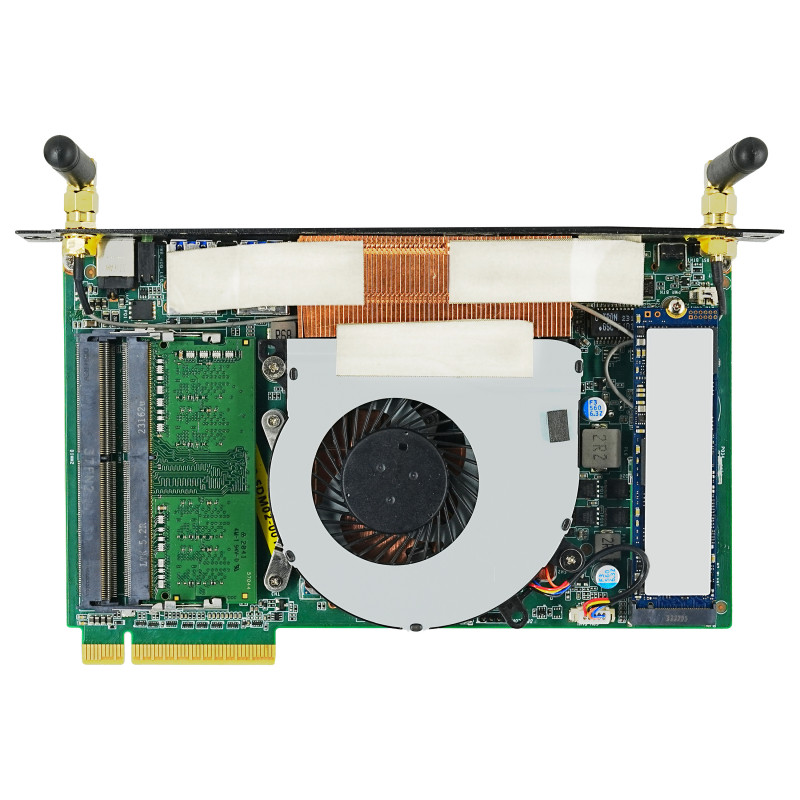

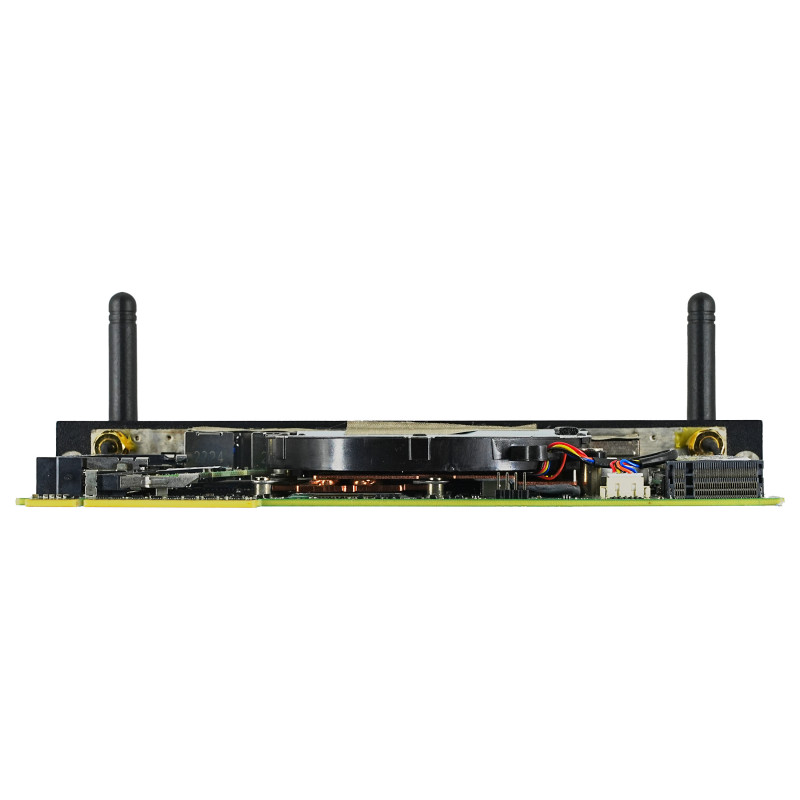

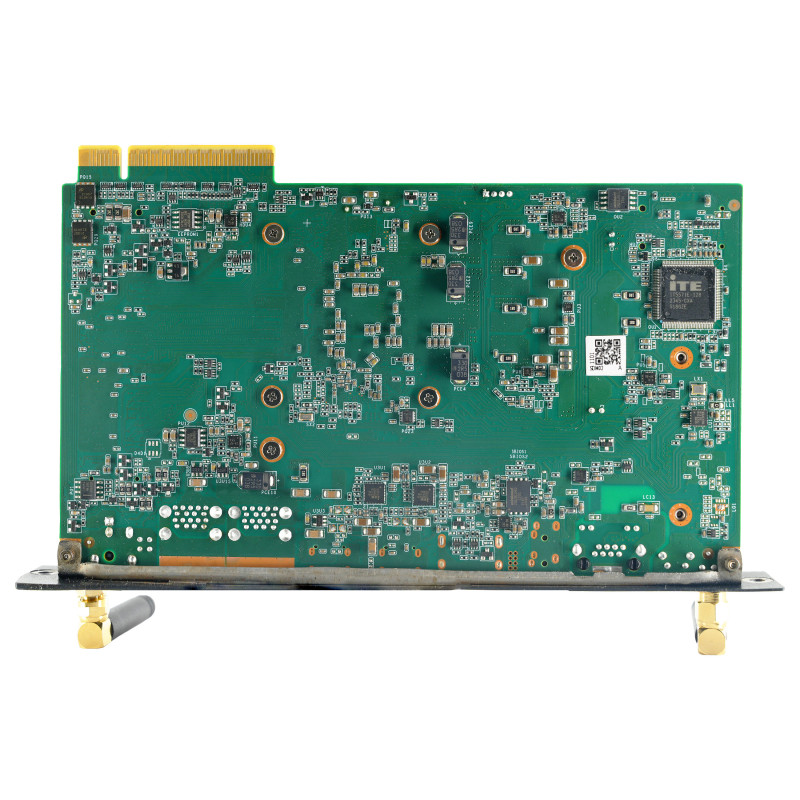

This mini SDM-L PC with an Intel Core i3 processor turns your iiyama large format display from the ProLite LH75 SERIES (50" and larger) into a stand-alone solution. It comes equipped with a powerful Intel processor, integrated Ultra HD graphics, and a fast SSD. It features four USB 3.2 Gen 1 ports and two Type-C ports (USB 3.2 + DP ALT).

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: 12th gen Intel® Core™ i3
Processor model: i3-1220P
Processor cores: 10
Processor threads: 12
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.4 GHz
Efficient-core Max Turbo Frequency: 3.3 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 28 W
Maximum turbo power: 64 W

Memory

Internal memory: 8 GB
Internal memory type: DDR4-SDRAM

Storage

Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: M.2
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics

Performance

Product type: Mini PC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,10,1000 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

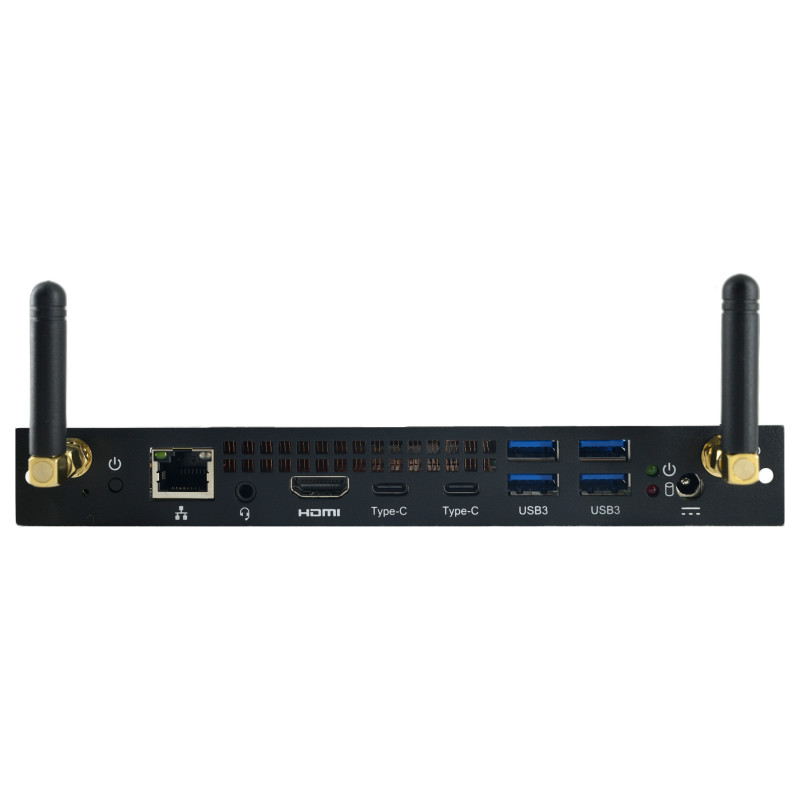

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.0
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port

Power

Power consumption (typical): 72 W
Power consumption (standby): 0.5 W

Design

Chassis type: Mini PC
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 IoT Enterprise
Compatible operating systems: Windows 11 loT Enterprise (SAC) 64Bit

Audio

Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 110 mm
Depth: 195 mm
Height: 25 mm
Weight: 400 g

Packaging data

Package weight: 610 g
