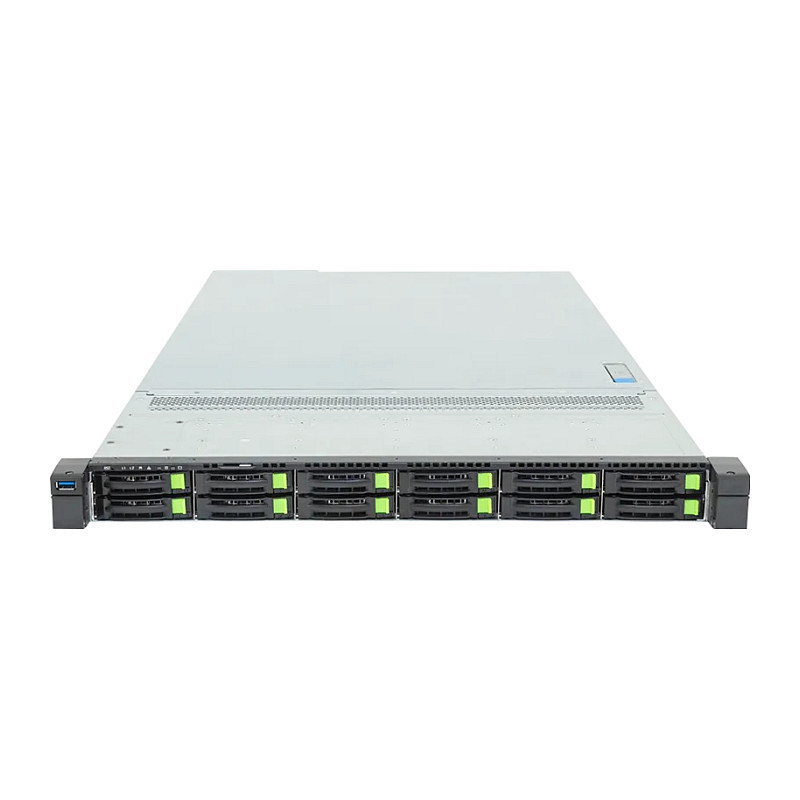

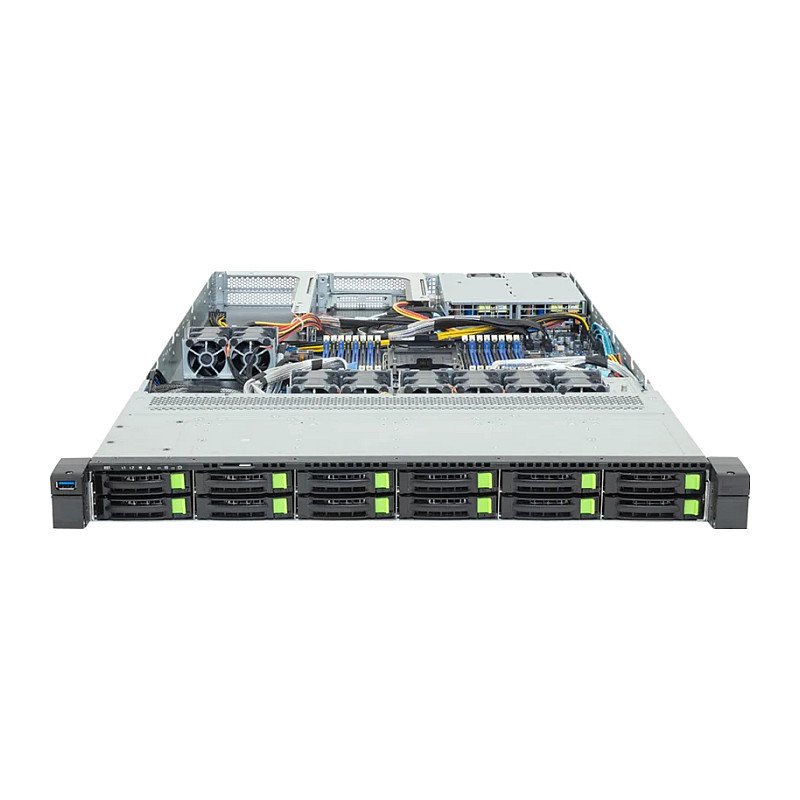

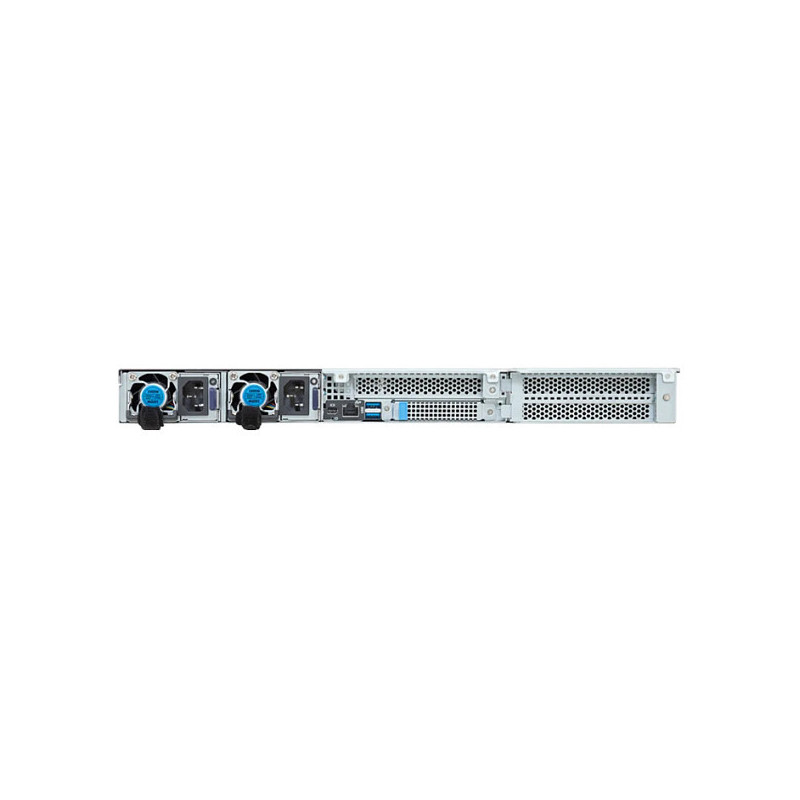

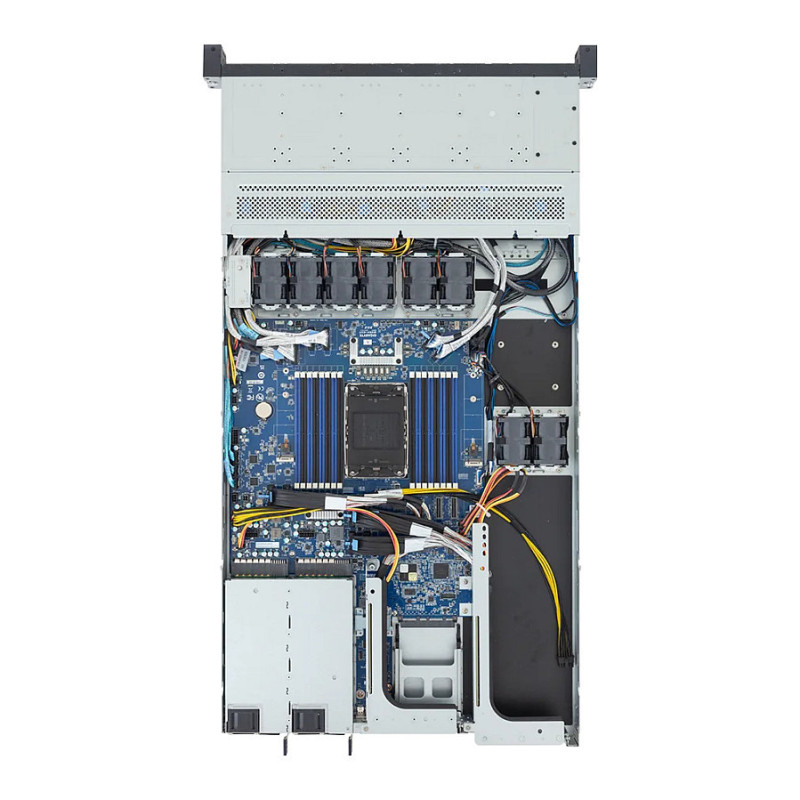

GIGABYTE R164-SG5-AAV1 server barebone

GIGABYTE R164-SG5-AAV1. Processor socket: LGA 4710, Compatible processor series: Intel® Xeon®. Supported memory types: GDDR5, Memory channels: Octa-channel. Storage drive sizes supported: 2.5", Supported storage drive types: HDD SSD, Supported storage drive interfaces: Serial ATA, PCI Express 4.0. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s
Boosting Individual Applications with On-Point Features
Intel® Xeon® 6 is a new generation of processors that has tailored its CPU lineup to target all uses cases such as Cloud Computing, AI, Analytics, and Edge IOT. Whether it's high compute density that is dependent on core count and power efficiency or AI/HPC applications that heavily rely on strong single-core performance, this new platform covers them all with its Performance cores (P-cores) and Efficient-cores (E-cores). Along with flexible I/O options, integrated accelerators, and support for CXL 2.0 devices, Intel Xeon 6 fulfills customer needs across the broadest range of data center workloads, segments, and deployment models.

Processor

Processor socket: LGA 4710
Number of processors supported: 1
Compatible processor series: Intel® Xeon®

Memory

Number of DIMM slots: 16
Supported memory types: GDDR5
Memory channels: Octa-channel

Storage

Number of storage drives supported: 14
Feature: Hot-swap HDD bays
Number of 2.5" bays: 12
Storage drive sizes supported: 2.5"
Supported storage drive types: HDD SSD
Supported storage drive interfaces: Serial ATA, PCI Express 4.0
SSD form factor: M.2

Graphics

On-board graphics card model: Aspeed AST2600

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1

Expansion slots

Number of M.2 (M) slots: 1

Features

Feature: Trusted Platform Module (TPM)

Design

Chassis type: Rack (1U)
Product colour: Black, Steel
LED indicators: LAN, HDD, Status
Feature: On/off switch
Feature: Reset button
Cooling type: Active
Feature: Heat sink included
Number of fans: 8 fan(s)
Fan diameter: 4 cm

Power

Power supply: 1600 W
Number of main power supplies: 2
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12 - 10 A
80 PLUS certification: 80 PLUS Titanium

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 8 - 80%
Storage relative humidity (H-H): 20 - 95%

Weight dimensions

Width: 438 mm
Depth: 815 mm
Height: 43.5 mm
Weight: 13.5 kg

Packaging data

Packaging content: 1 x R164-SG5-AAV11 x CPU heatsink1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 550mm)2 x Carriers1 x 2-Section Rail kit
Package width: 1038 mm
Package depth: 588 mm
Package height: 238 mm
Package weight: 15.7 kg
