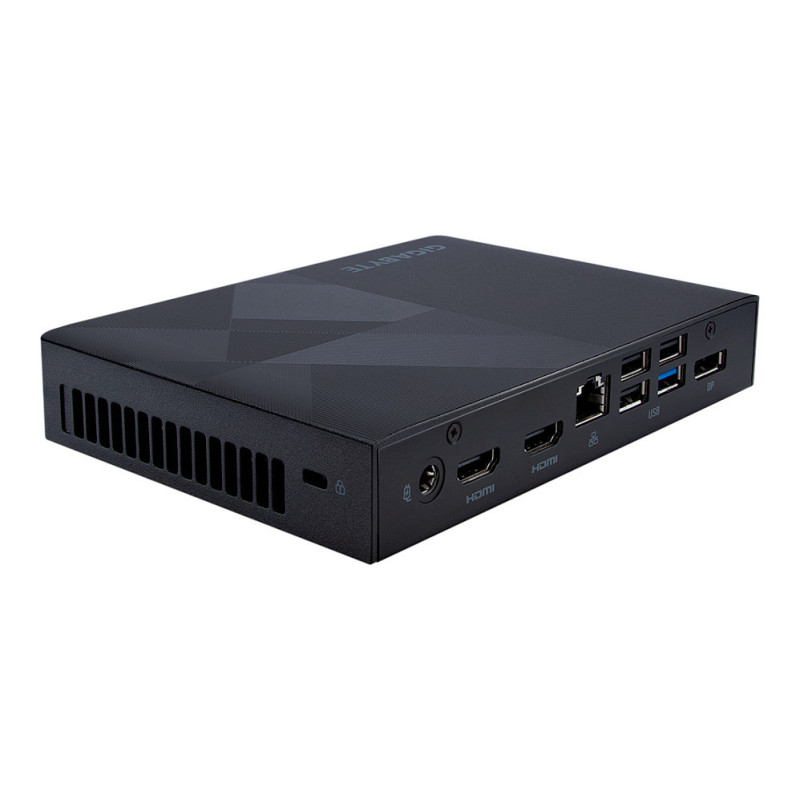

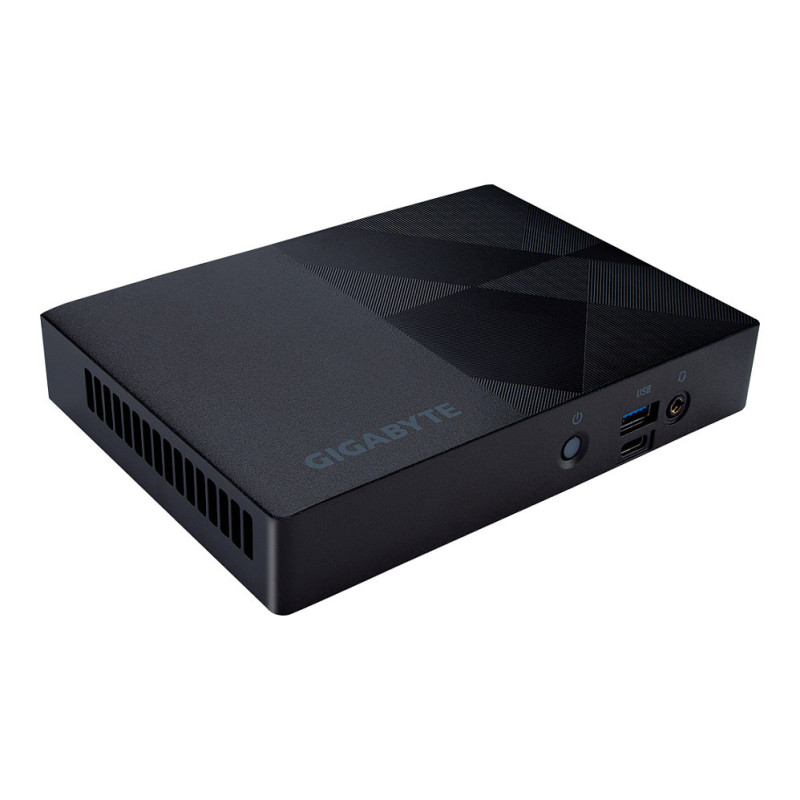

GIGABYTE GB-BNIP-N100 PC / workstation barebone

GIGABYTE GB-BNIP-N100. Product type: Mini PC barebone. Processor socket: BGA 1264. Supported memory types: DDR4-SDRAM, Number of memory slots: 1, Maximum internal memory: 32 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 1. Power supply: 65 W

Experience the merging of real and virtual worlds with our refreshing and impressive design.
The product boasts a sleek and contemporary grid design on its exterior, creating a fresh and minimalist impression. The intricately patterned surface produces a pleasing interplay of light, shadow, reflection, and refraction from different angles, for an overall pleasant aesthetic. This design not only enhances the product's visual appeal, but also symbolizes the numerous possibilities of integrating and merging virtual and real elements within this compact mini-PC.

Intel® Processor and Intel® Core™ i3 N-Series Processors deliver the performance you need at an affordable price to allow you to connect, learn, and play anywhere. The new Intel "Gracemont" CPU microarchitecture built on the latest Intel 7 process features up to 8 efficient cores ("E-cores"), enabling easy, responsive, streamlined experiences. You can scale up to BRIX BNi3 series (Intel® Core™ i3-N305) with an Intel Core i3 N-series platform for a 3.8 GHz turbo frequency and enable Intel® Wi-Fi 6E (Gig+), next-gen Intel® UHD Graphics, enhanced Image Processing Unit (IPU 6) to enjoy a balance of performance and value for the essential BRIX that's right for you. With the above technologies, users can experience faster browsing and better productivity to accomplish more. Intel N-series processors harness power and efficiency to support learning, streaming and productivity at an affordable cost.

Performance
Intel® Processor and Intel® Core i3 N-Series Processor is much more powerful than the prior generation. The all-new Intel 7nm manufacturing process and E-core (Efficient Core) architecture, users can benefit not only from the performance boost, but also compute with greater power efficiency. Overall, generational performance improvements are easily 30% or more.

USB Type-C Connector
The USB Type-C™ is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.

Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.

Processor

Processor manufacturer: Intel
Processor family: Intel® N
Processor model: N100
Processor cores: 4
Processor threads: 4
Processor boost frequency: 3.4 GHz
Feature: Built-in processor
Processor cache: 6 MB
Processor cache type: Smart Cache
Thermal Design Power (TDP): 6 W

Memory

Memory slots type: SO-DIMM
Number of memory slots: 1
Maximum internal memory: 32 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM

Storage

Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express, Serial ATA

Graphics

Feature: On-board graphics card
Graphics card family: Intel
On-board graphics card model: Intel® UHD Graphics

Performance

Processor socket: BGA 1264

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Feature: Ethernet LAN
Feature: Wi-Fi
LAN controller: Intel I226-V

Ports & interfaces

USB 2.0 ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Expansion slots

PCI slots: 3

Design

Product colour: Black
Feature: On/off switch
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone

Software

Windows operating systems supported: Windows 11

Power

Power supply: 65 W
AC input voltage: 100 - 240 V
AC adapter output voltage: 19 V
AC adapter output current: 3.42 A

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 163.5 mm
Depth: 116.8 mm
Height: 28.5 mm
