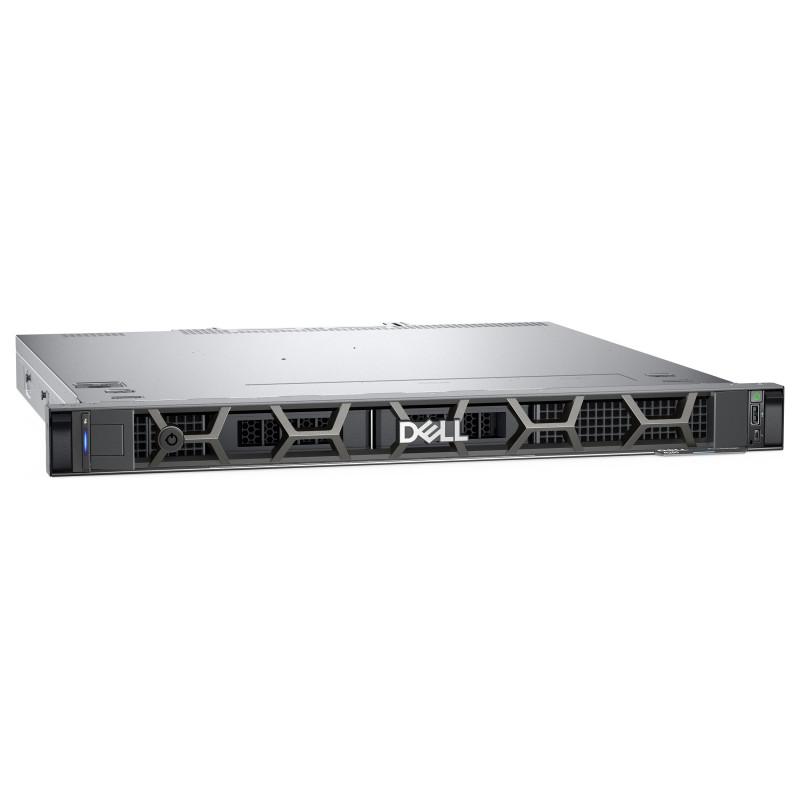

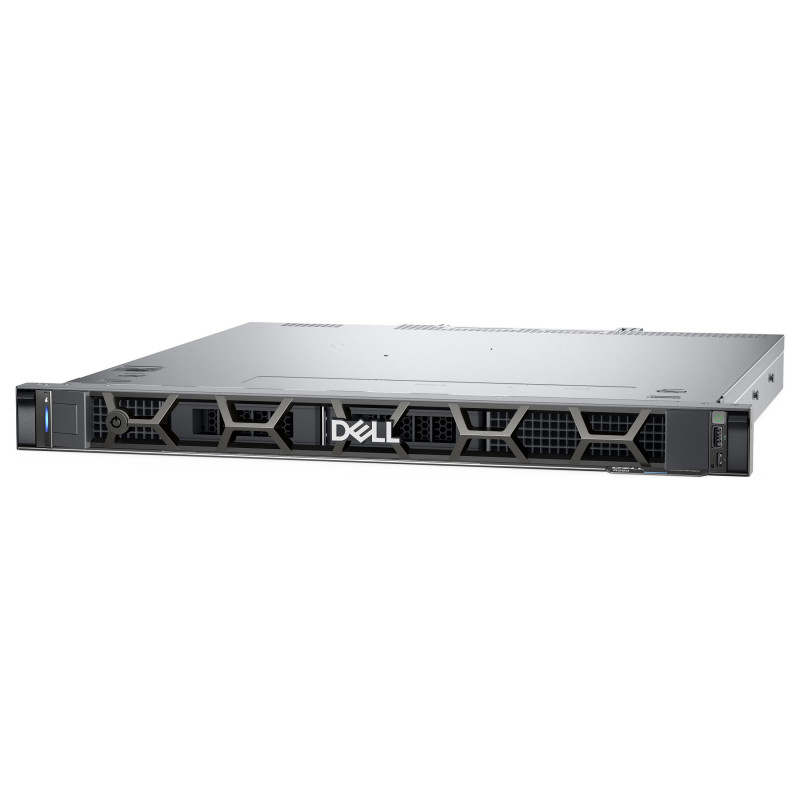

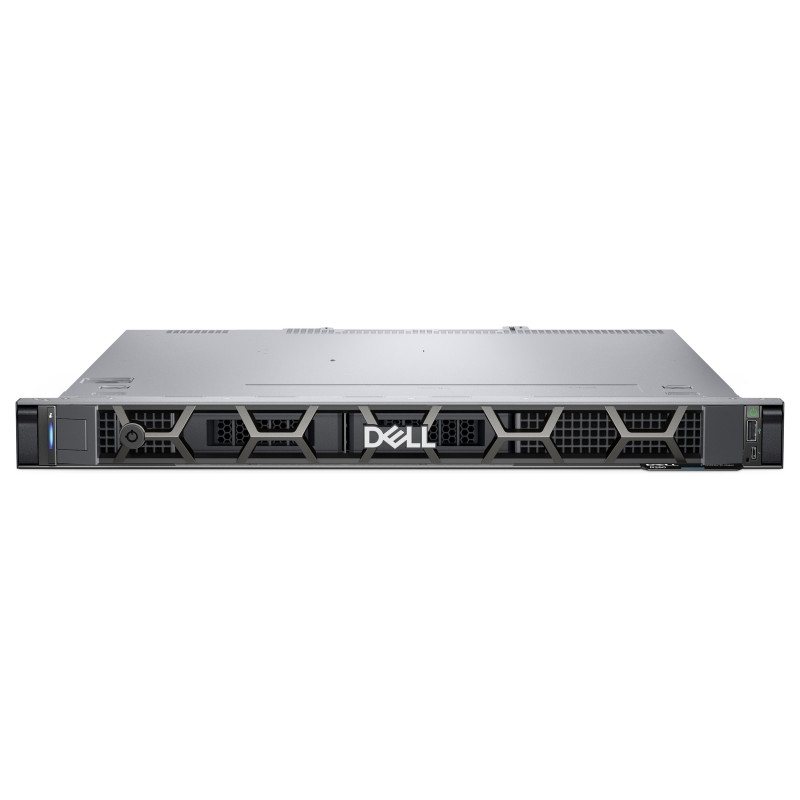

DELL PowerEdge R260 server

DELL PowerEdge R260. Processor family: Intel Xeon 6, Processor frequency: 2.8 GHz, Processor model: 6315P. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, HDD size: 3.5", HDD interface: SATA III. Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 700 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)

Processor

Processor manufacturer: Intel
Processor family: Intel Xeon 6
Processor model: 6315P
Processor frequency: 2.8 GHz
Processor boost frequency: 5.2 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Number of processors installed: 1
Thermal Design Power (TDP): 55 W
System bus rate: 16 GT/s
Processor threads: 4
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 4800 MHz

Memory

Internal memory: 16 GB
Internal memory type: DDR5-SDRAM
Memory slots: 4x DIMM
Maximum internal memory: 128 GB

Storage

Total storage capacity: 2 TB
Number of HDDs installed: 1
HDD capacity: 2 TB
HDD interface: SATA III
HDD speed: 7200 RPM
HDD size: 3.5"
Number of HDDs supported: 2
Supported HDD sizes: 3.5"
Hot-Plug support: Yes
Optical drive type: No

Network

Ethernet LAN: Yes
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1

Design

Chassis type: Rack (1U)
Product colour: Black
Rack rails: Yes

Performance

Trusted Platform Module (TPM): Yes

Software

Operating system installed: No

Power

Redundant power supply (RPS) support: Yes
Power supply: 700 W
Number of main power supplies: 1
Power supply input voltage: 200 - 240 V

Operational conditions

Storage temperature (T-T): -40 - 65 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m
Non-operating altitude: 0 - 12000 m

Certificates

80 PLUS certification: 80 PLUS Titanium

Carbon footprint

Total carbon footprint (kg of CO2e): 950
Total carbon emissions, standard deviation (kg of CO2e): 711
Carbon emissions, manufacturing (kg of CO2e): 304
Carbon emissions, logistics (kg of CO2e): 95
Carbon emissions, energy usage (kg of CO2e): 541.5
Carbon emissions, end-of-life (kg of CO2e): 9.5
PAIA version: PAIA 1.3.2, 2024

Weight dimensions

Width: 482 mm
Height: 42.8 mm

Packaging content

Packaging content: Riser Config 1, Gen4 Riser

Other features

Data transfer rate: 6 Gbit/s
Bytes per sector: 512n
