Monitor - Feelworld H5 5.5 inch 12G SDI Full HD 1,200 cd/m² 4K 60 fps
Product reference:
14-6971863818825
Feelworld H5 - 5.5-inch Full HD broadcast monitor with 1,200 cd/m² brightness IPS screen, 12G SDI and HDMI 2.0 inputs and outputs, supporting up to 4K resolution signals at 60 frames per second. It is equipped with touch control, waveform and vectorscope tools, HDR support and 3D LUT loading, making it suitable for camera, cinema and live broadcast monitoring.
Monitor - Feelworld H5 5.5 inch 12G SDI Full HD 1,200 cd/m² 4K 60 fps
Product reference:
14-6971863818825
Feelworld H5 - 5.5-inch Full HD broadcast monitor with 1,200 cd/m² brightness IPS screen, 12G SDI and HDMI 2.0 inputs and outputs, supporting up to 4K resolution signals at 60 frames per second. It is equipped with touch control, waveform and vectorscope tools, HDR support and 3D LUT loading, making it suitable for camera, cinema and live broadcast monitoring.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Feelworld H5 5.5 inch 12G SDI monitor
" Feelworld H5" - 5.5-inch professional Full HD broadcast monitor with 1200 cd/m² brightness IPS screen, 12G SDI and HDMI 2.0 inputs and outputs. It supports up to 4K resolution signals at 60 frames per second. The monitor features touch control, waveform and vectorscope, HDR support and 3D LUT loading, making it suitable for monitoring cameras, cinema and live broadcasts.
- 5.5-inch Full HD IPS display with a brightness of 1200 cd/m² ensures clear images in brightly lit filming environments
- 12G SDI and HDMI 2.0 inputs and outputs support up to 4K resolution at 60 frames per second
- CalMAN calibrated 10-bit color reproduction, DCI-P3 and Rec.709 color spaces ensure accurate image viewing

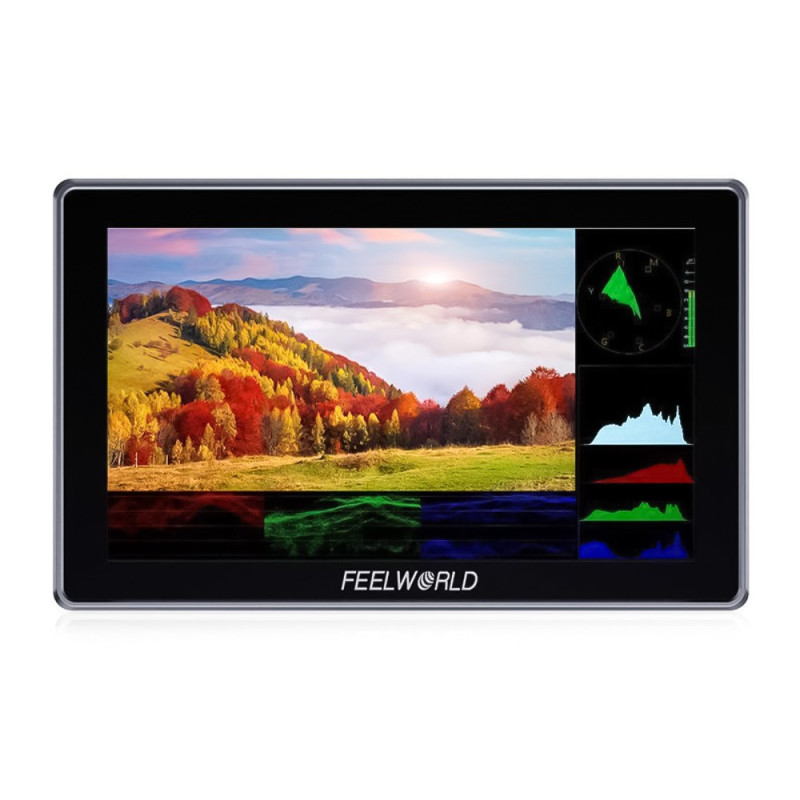

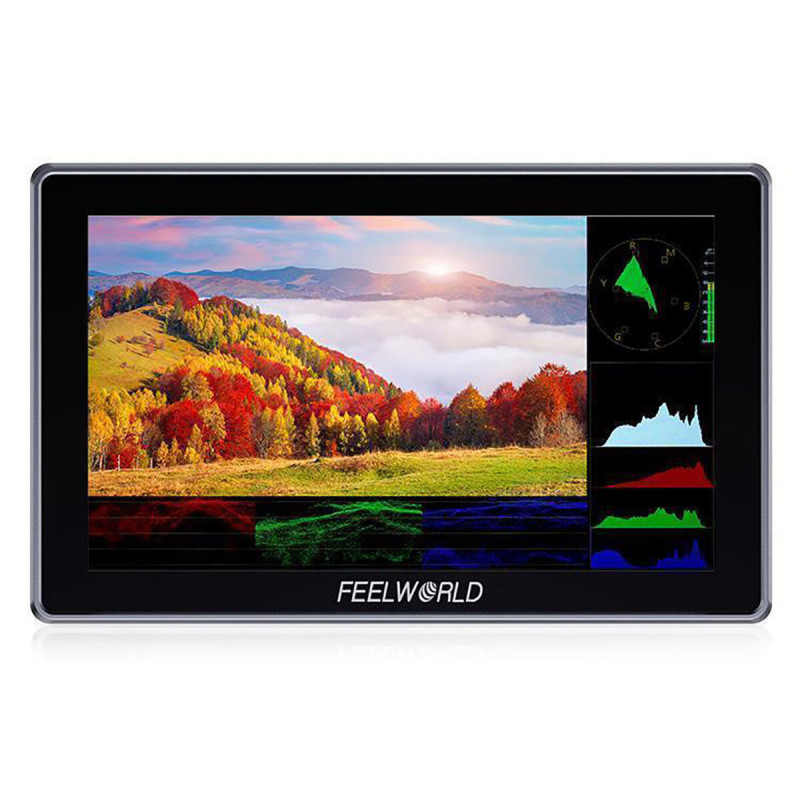

- Touch control, waveform, vectorscope, histogram, HDR support and the ability to load up to 32 custom 3D LUTs
Product information | |
|---|---|
| Product type | Professional broadcast monitor |
| Brand | Feelworld |
| Model | H5 |
| Screen size | 5.5 inches |
| Screen type | IPS LCD |
| Resolution | 1920 × 1080 pixels |
| Aspect ratio | 16:9 |
Technical specifications | |
| Color depth | 10 bits (8 bits + 2 bits) |
| Contrast ratio | 1000:1 |
| Backlight | LED |
| Viewing angle | 80° left/right and 80° up/down |
| Color spaces | DCI-P3 and Rec.709 |
| Calibration | Factory calibrated using CalMAN |
Connections and power supply | |

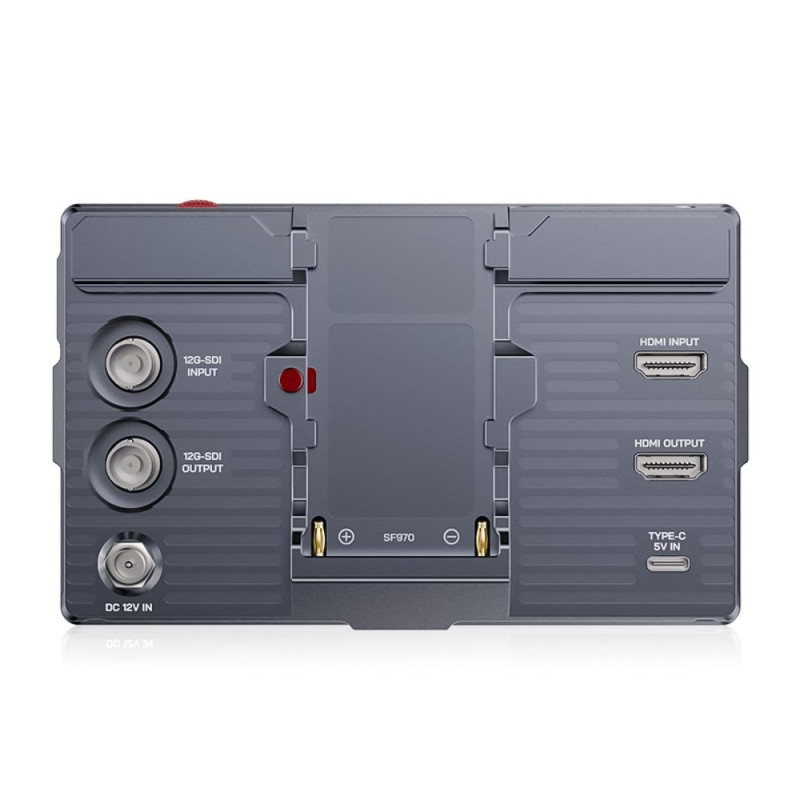

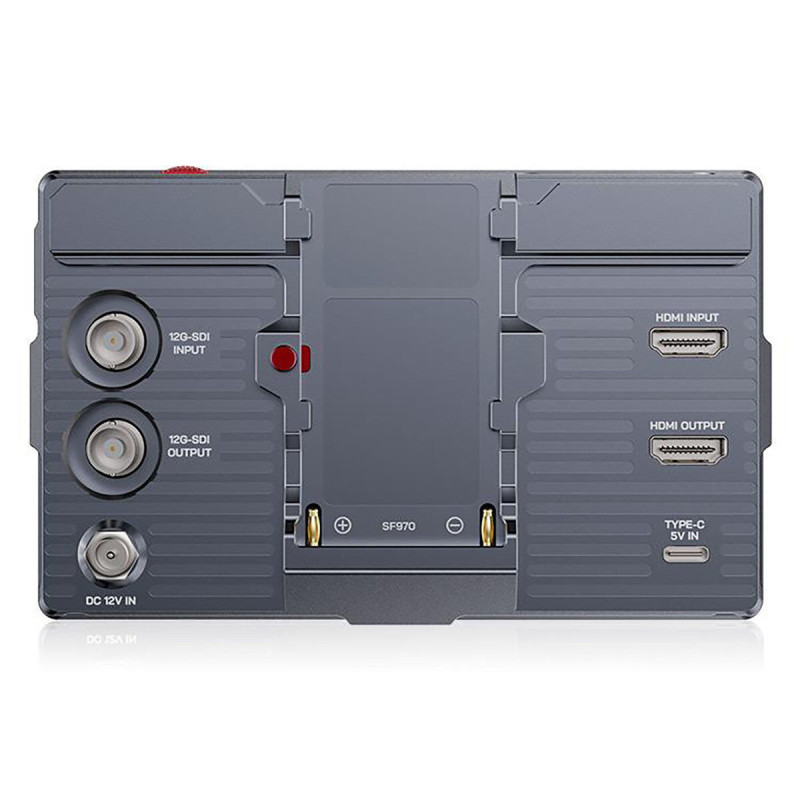

| Inputs | 1 × 12G SDI, 1 × HDMI 2.0, 1 × USB-C for LUT and firmware functions |
| Outputs | 1×12G SDI and 1×HDMI 2.0 |
| Audio output | 3.5mm stereo headphone output |
| Power input | DC, 7-24 V |
| Maximum power consumption | 12W |
Monitoring functions | |

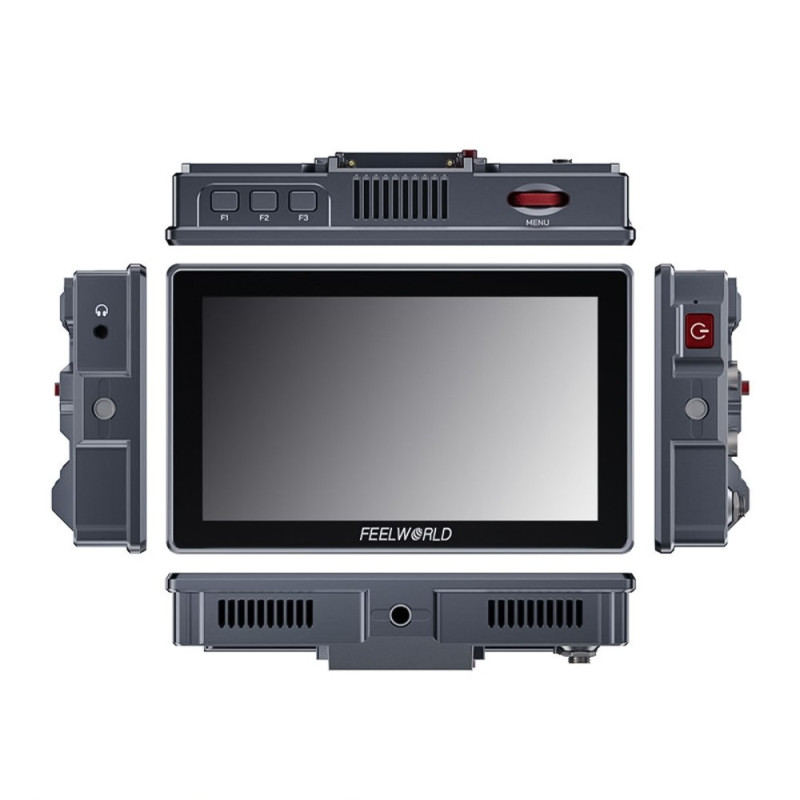

| Management | Touchscreen, scroll wheel and three customizable quick function buttons |
| Signal tools | Waveform, vectorscope, histogram, and audio phase and level monitoring |
| HDR support | HLG1, HLG2 and HLG3 |
| 3D LUT support | Up to 32 custom .cube LUTs |
Physical specifications | |
| Housing material | CNC machined aluminum with integrated cooling |
| Confirmation | 1/4"-20 threads on left, right and bottom |
| Dimensions | 145.25 × 90.3 × 30.85mm |
| Weight | 306 g |
Included accessories | |
| The set includes: | Monitor, Micro HDMI cable, HDMI cable, mini connector for attaching to the flash socket, USB-A to USB-C adapter, cable tie and user manual |
Safety information | |
| Safety warning | Use the monitor only for professional video monitoring and with compatible power supplies and cables. Do not block the ventilation openings, protect the device from moisture, and unplug it from the power source before cleaning or performing maintenance. |
| Height | 100mm |
| Length | 300mm |
| Weight | 450 g |
| Width | 200mm |
