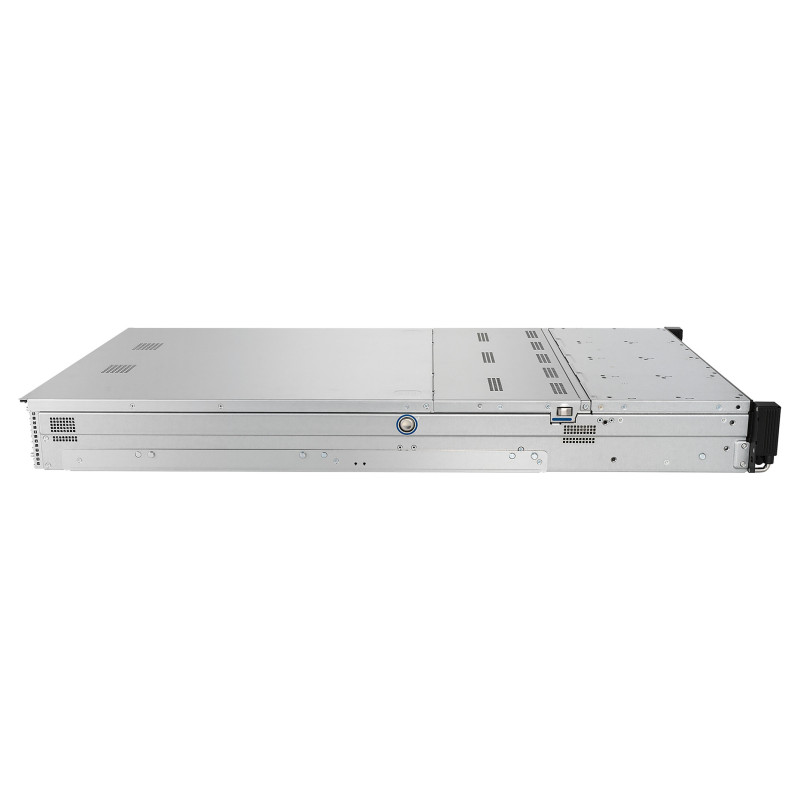

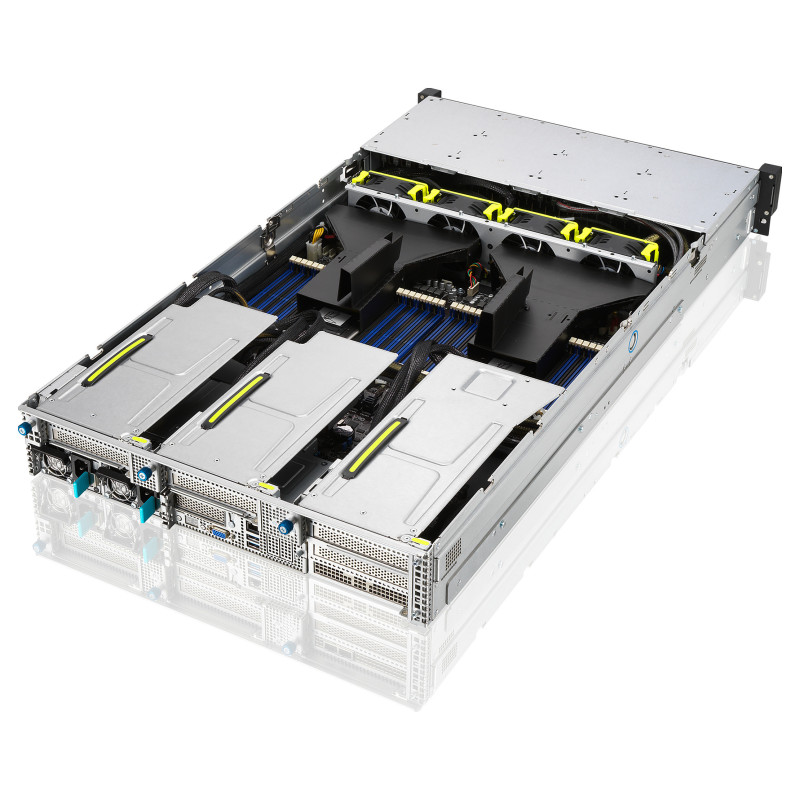

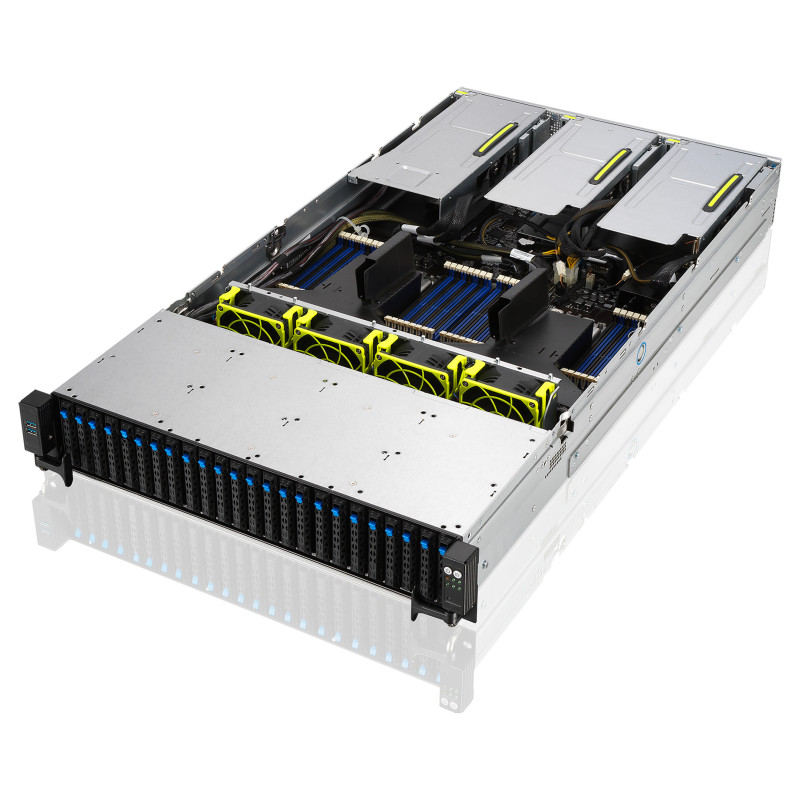

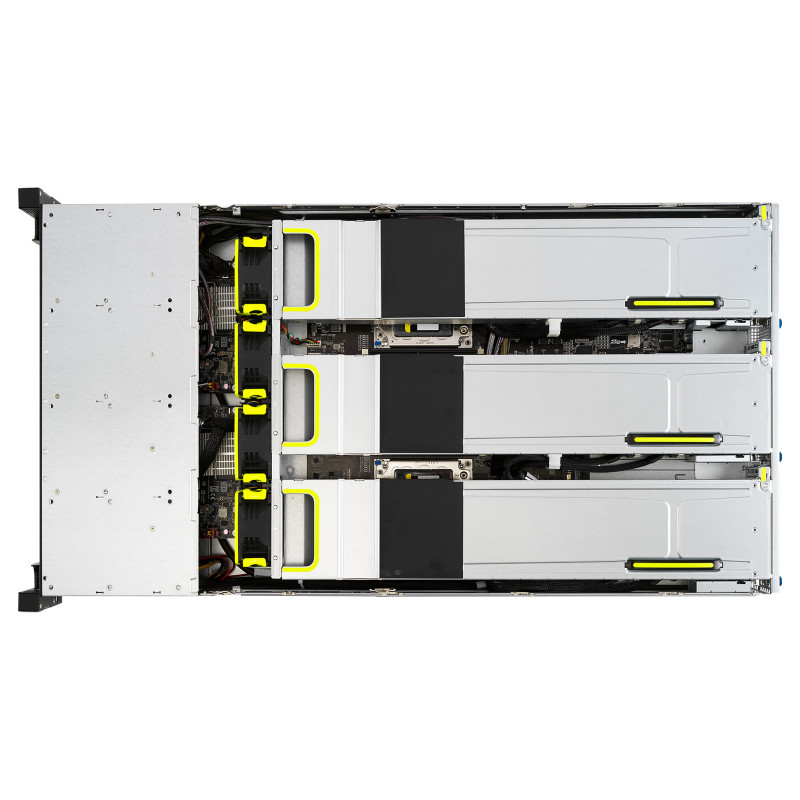

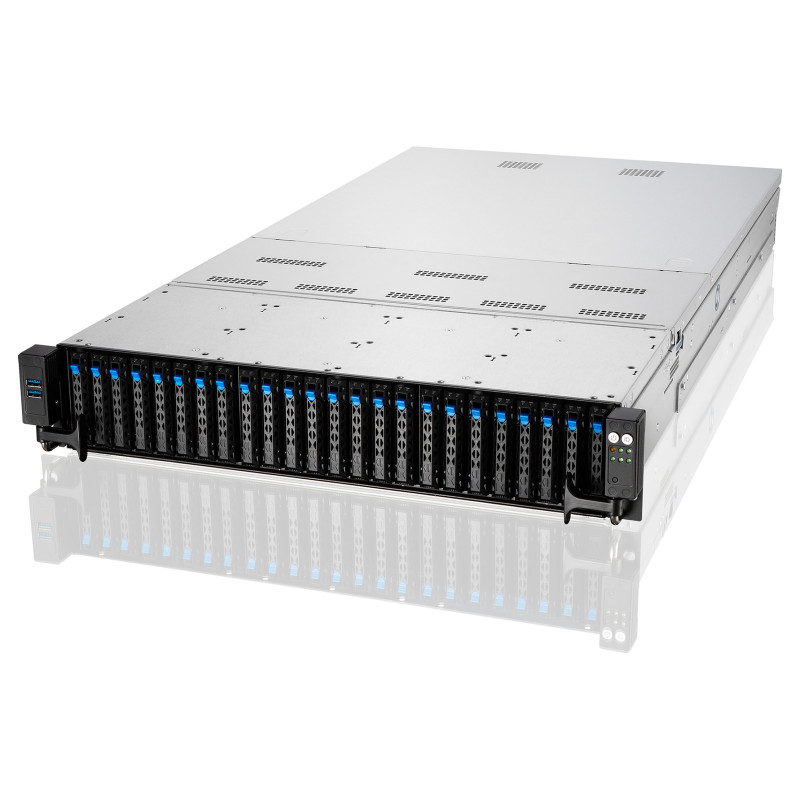

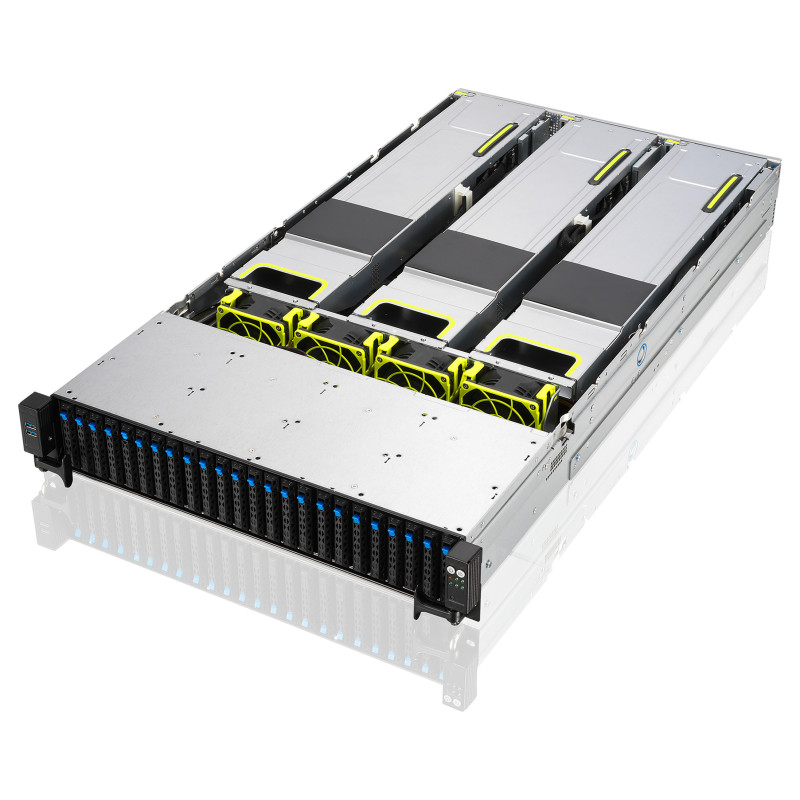

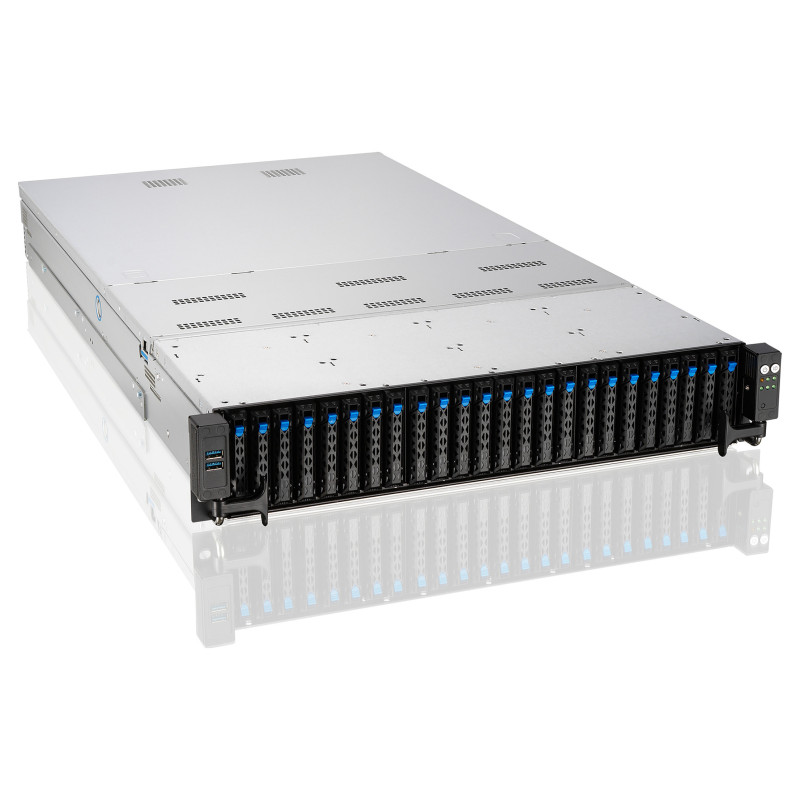

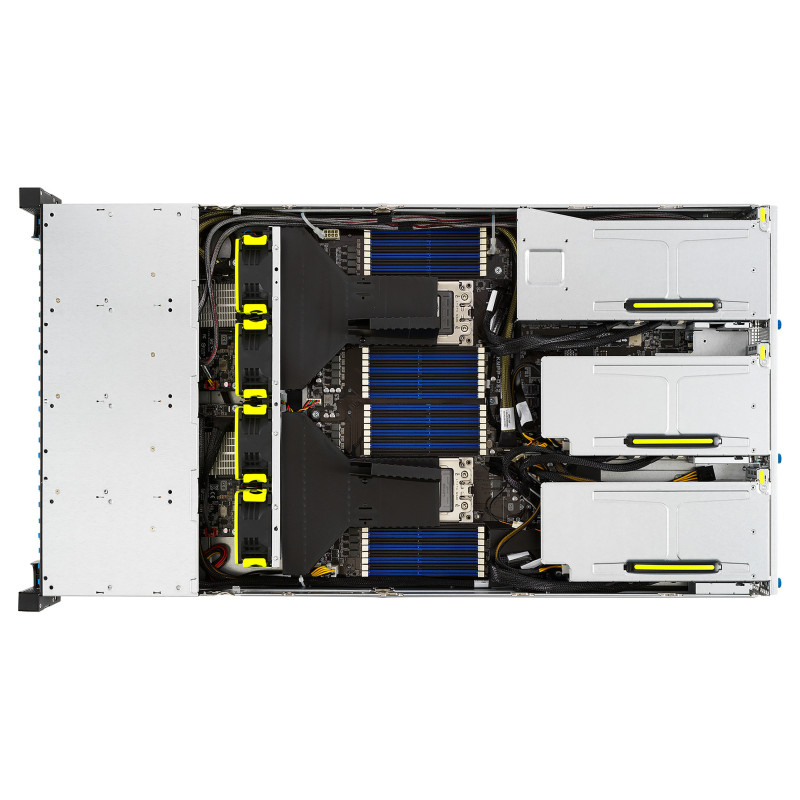

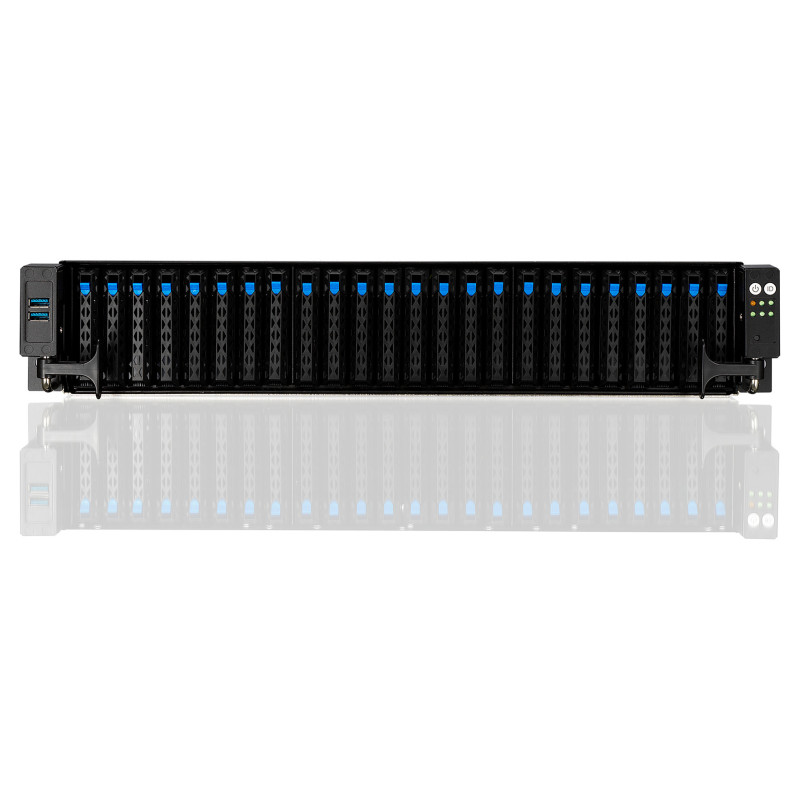

ASUS RS720-E11-RS24U

ASUS RS720-E11-RS24U. Motherboard chipset: Intel C741, Processor manufacturer: Intel, Processor family: Intel® Xeon® Scalable. Supported memory types: DDR5-SDRAM. Storage drive sizes supported: 2.5,3.5,M.2, Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS). On-board graphics card model: Aspeed AST2600, On-board graphics card memory: 64 MB, Maximum graphics card memory: 64 MB. Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 1000,10000 Mbit/s, LAN controller: Intel X710-AT2, Intel® I350-AM2

PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Processor

Motherboard chipset: Intel C741
Processor manufacturer: Intel
Processor family: Intel® Xeon® Scalable
Number of processors supported: 1
Compatible processor series: Intel® Xeon®

Memory

Number of DIMM slots: 32
Supported memory types: DDR5-SDRAM

Storage

Number of storage drives supported: 48
Feature: Hot-swap HDD bays
Storage drive sizes supported: 2.5,3.5,M.2
Supported storage drive interfaces: Serial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card model: Aspeed AST2600
On-board graphics card memory: 64 MB
Maximum graphics card memory: 64 MB

Network

Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 1000,10000 Mbit/s
LAN controller: Intel X710-AT2, Intel® I350-AM2

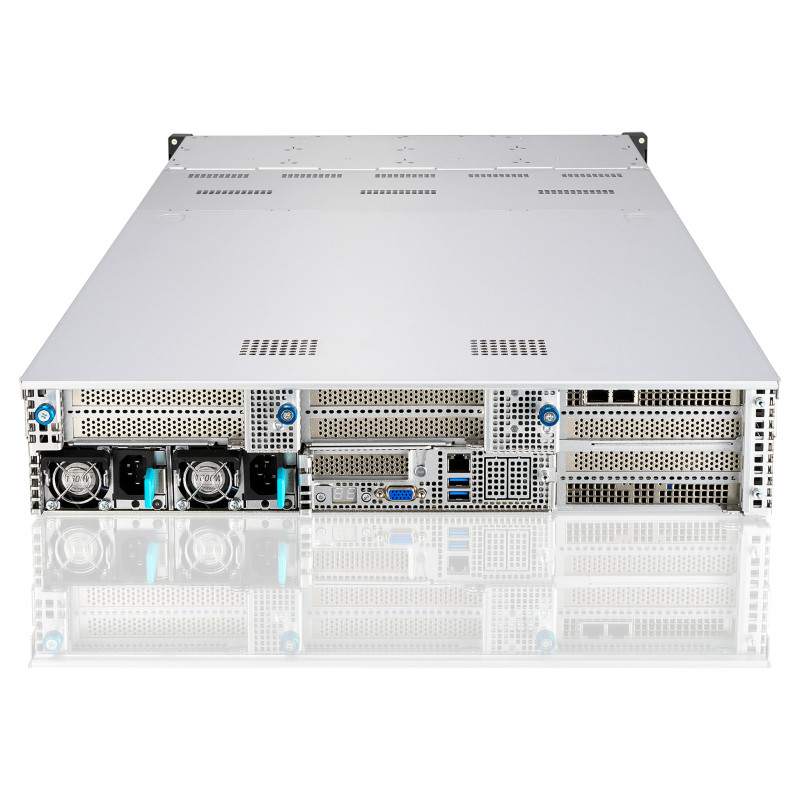

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port

Expansion slots

PCI Express slots version: 5.0
PCI Express x8 slots: 2
PCI Express x16 slots: 3

Features

Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Design

Chassis type: Rack (2U)
Product colour: Black, Silver
LED indicators: Yes
Cooling type: Active
Number of fans: 4 fan(s)

Power

Power supply: 1600 W
Number of redundant power supplies supported: 2
80 PLUS certification: 80 PLUS Platinum

Weight & dimensions

Width: 840 mm
Depth: 447 mm
Height: 88 mm
Weight: 36 kg
