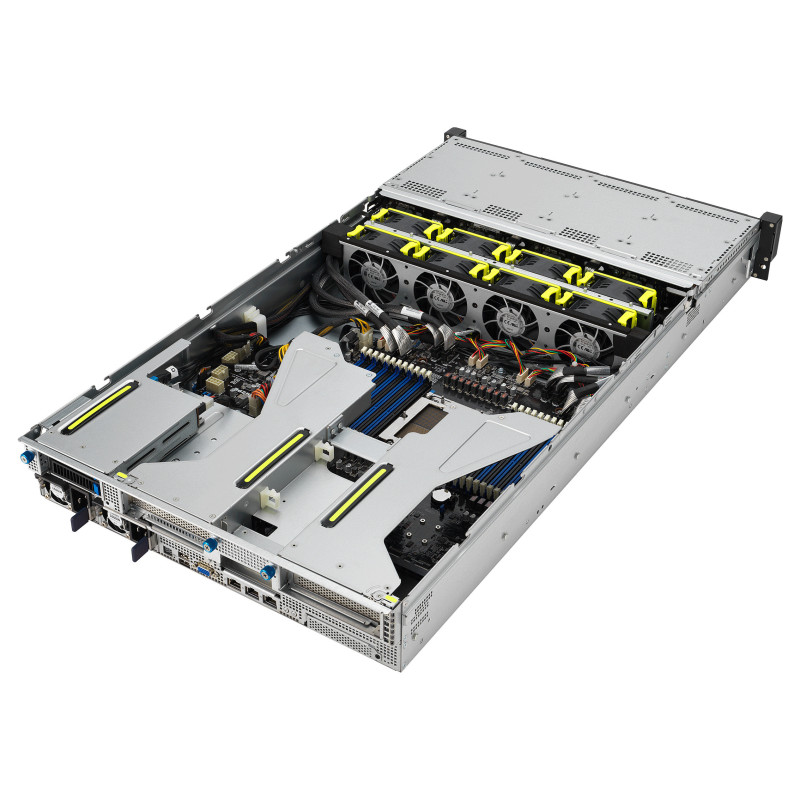

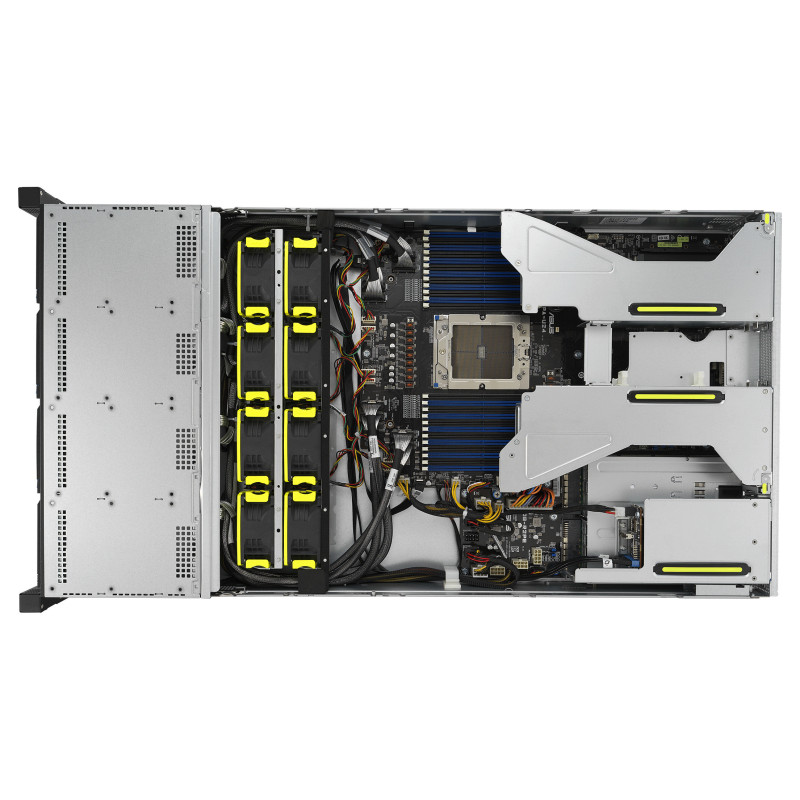

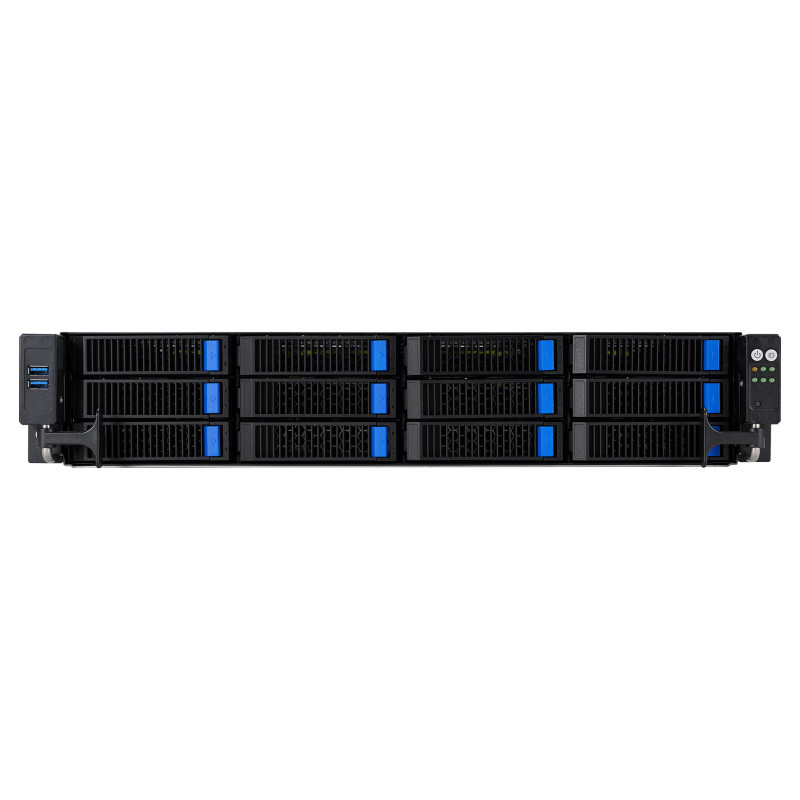

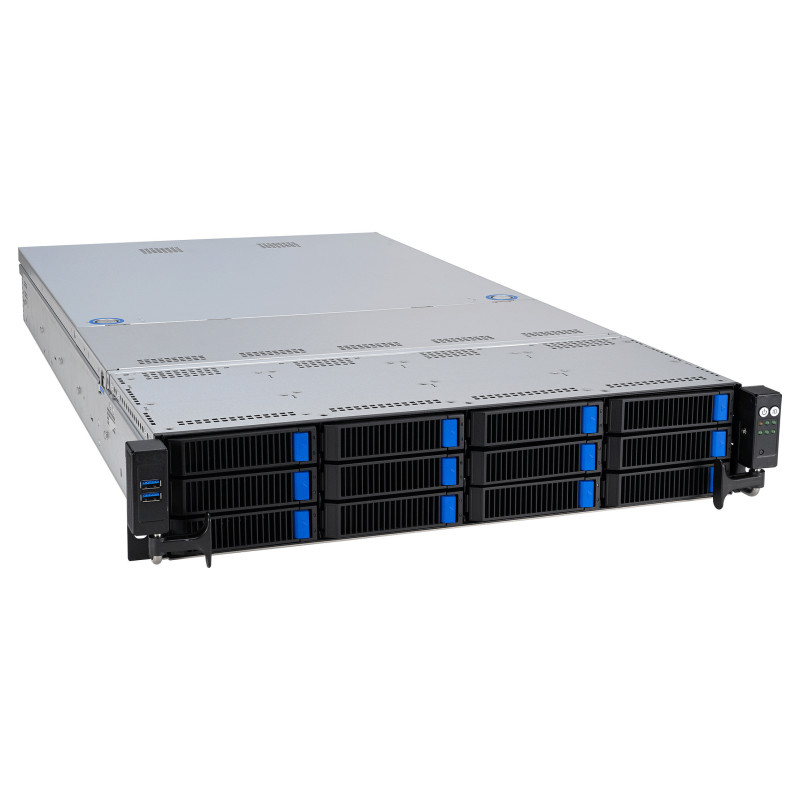

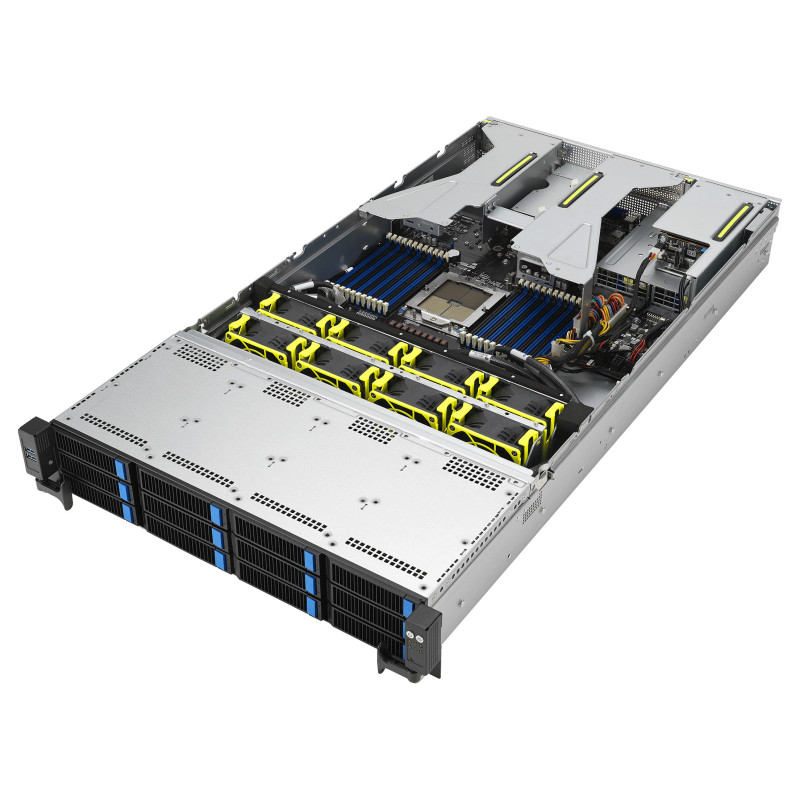

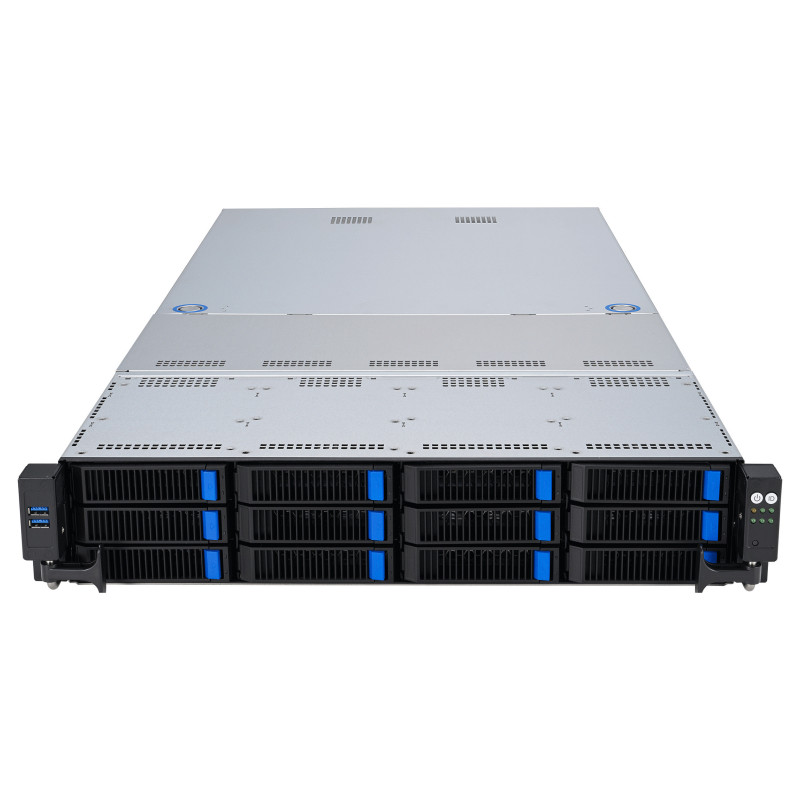

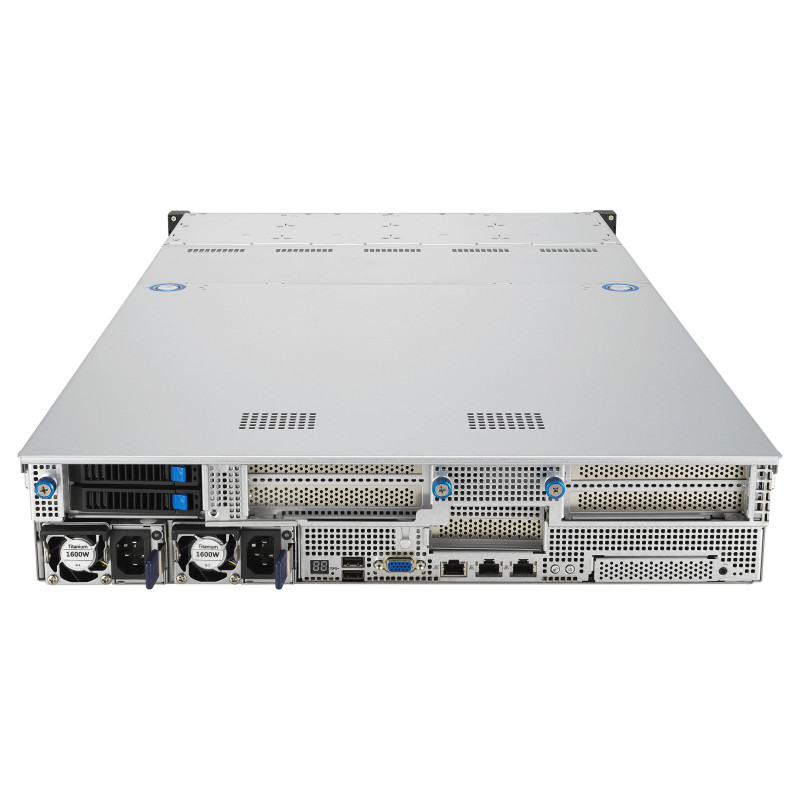

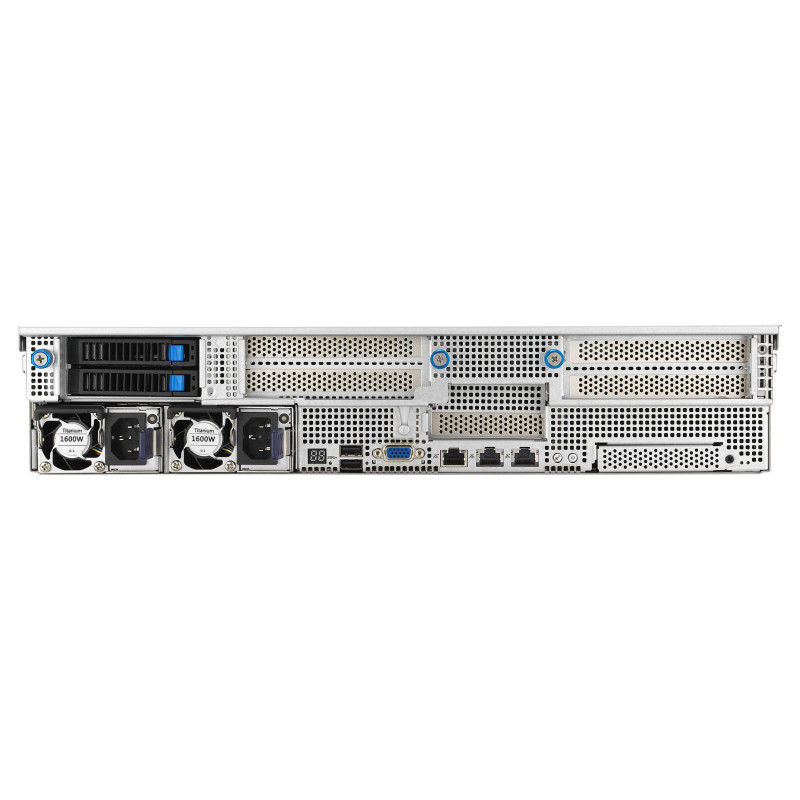

ASUS RS521A-E12-RS12U

ASUS RS521A-E12-RS12U. Processor socket: Socket SP5, Processor manufacturer: AMD, Processor family: AMD. Supported memory types: DDR5-SDRAM, Maximum internal memory: 3 TB, Supported RDIMM clock speeds: 4800,6400,5600 MHz. Storage drive sizes supported: M.2,2.5,3.5, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I350-AM2. Chassis type: Rack (2U), Product colour: Black, Silver

Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data centers.

Processor

Processor socket: Socket SP5
Processor manufacturer: AMD
Processor family: AMD
Number of processors supported: 1
Compatible processor series: AMD EPYC 9004

Memory

Number of DIMM slots: 24
Supported memory types: DDR5-SDRAM
Maximum internal memory: 3 TB
Supported RDIMM clock speeds: 4800,6400,5600 MHz

Storage

Number of storage drives supported: 16
Feature: Hot-swap HDD bays
Number of 2.5" bays: 2
Number of 3.5" bays: 12
Storage drive sizes supported: M.2,2.5,3.5
Supported storage drive types: HDD & SSD

Network

Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
LAN controller: Intel® I350-AM2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 2
Feature: IPMI LAN (RJ-45) port
VGA (D-Sub) ports quantity: 1

Expansion slots

PCI Express x8 slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 2

Design

Chassis type: Rack (2U)
Product colour: Black, Silver
LED indicators: Yes

Power

Power supply: 1600 W
80 PLUS certification: 80 PLUS Titanium

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 20 - 90%

Weight & dimensions

Width: 840 mm
Depth: 449 mm
Height: 88.1 mm
Weight: 17.9 kg

Packaging data

Package weight: 25.1 kg
