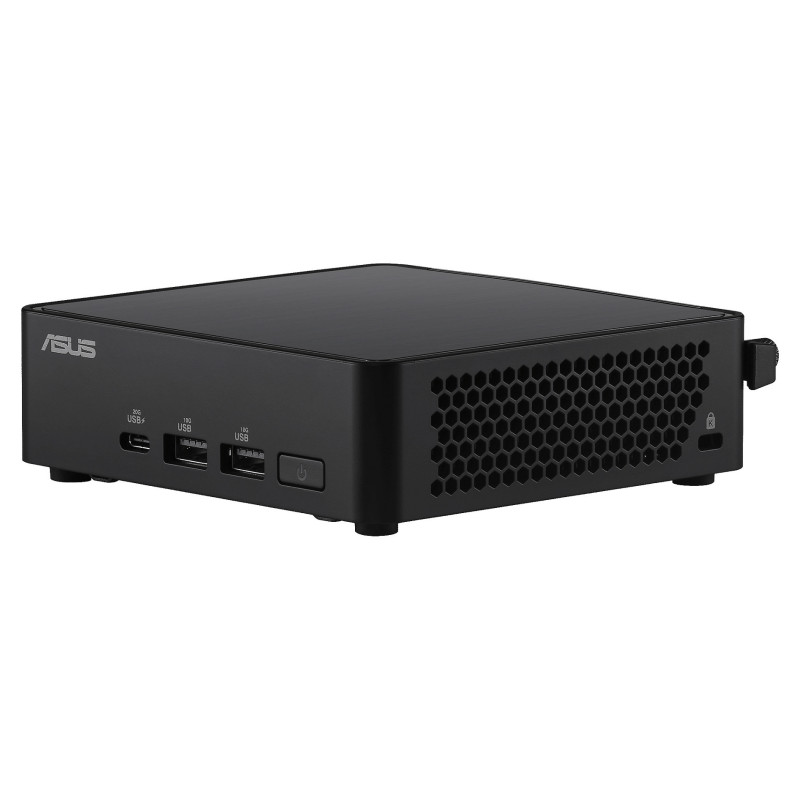

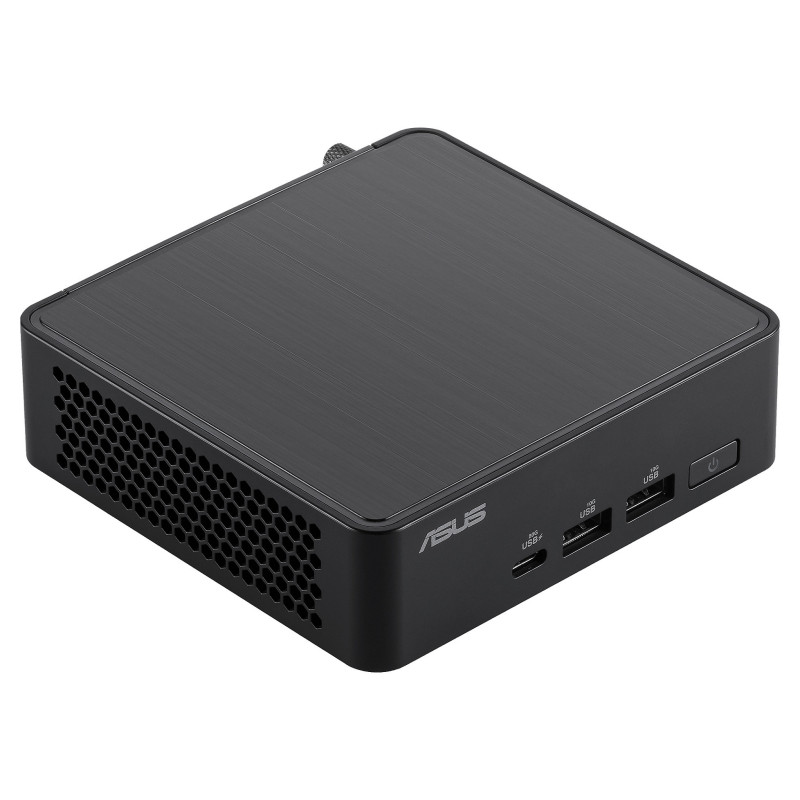

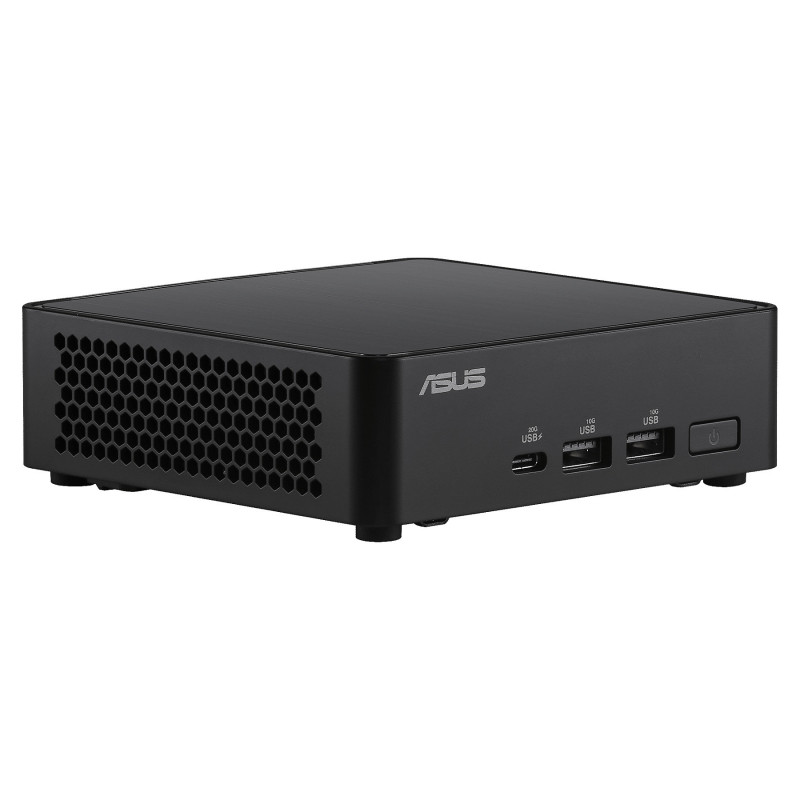

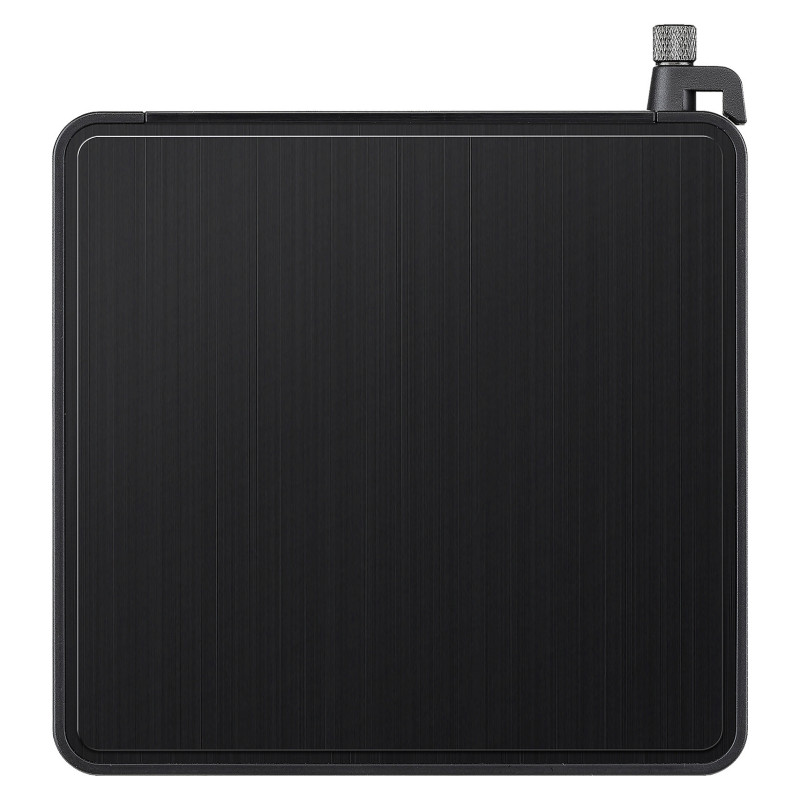

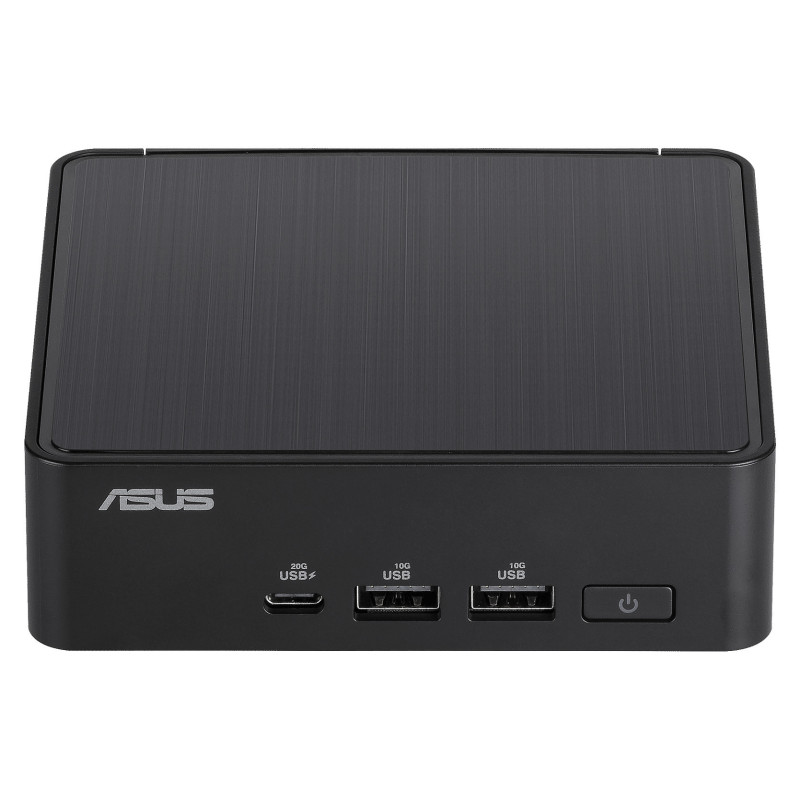

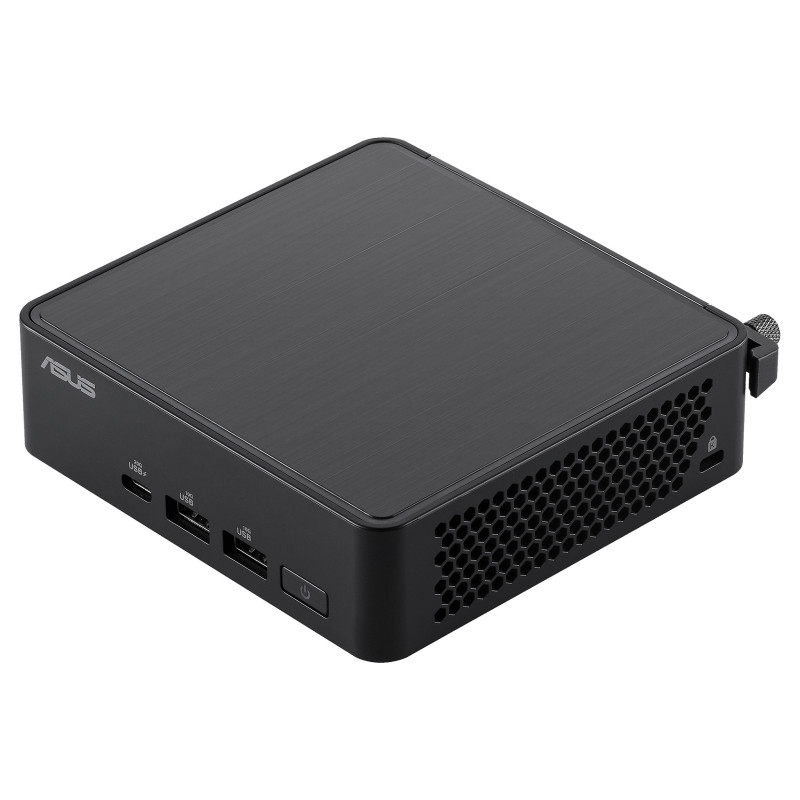

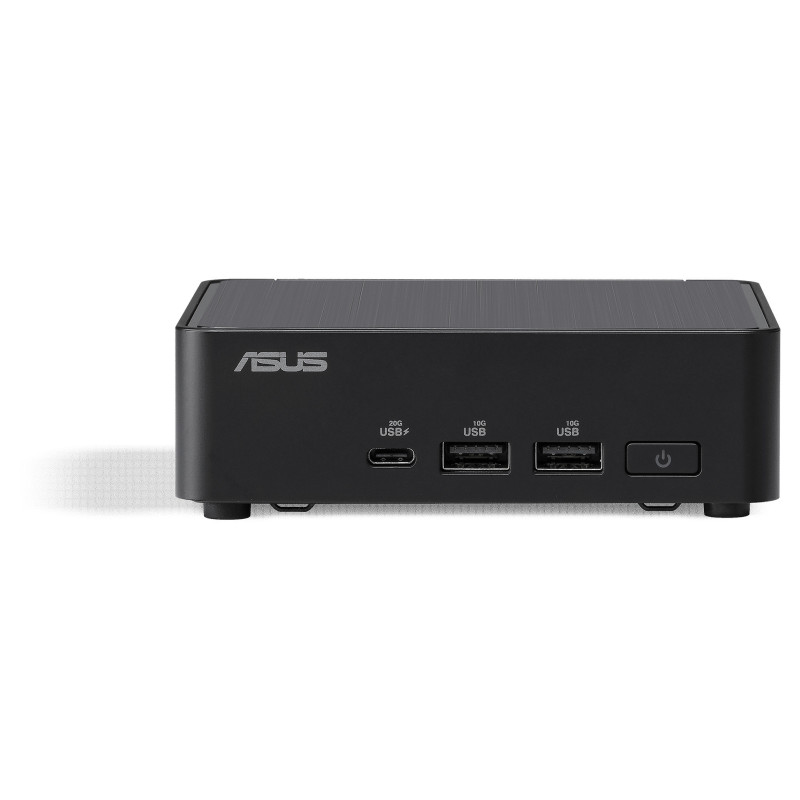

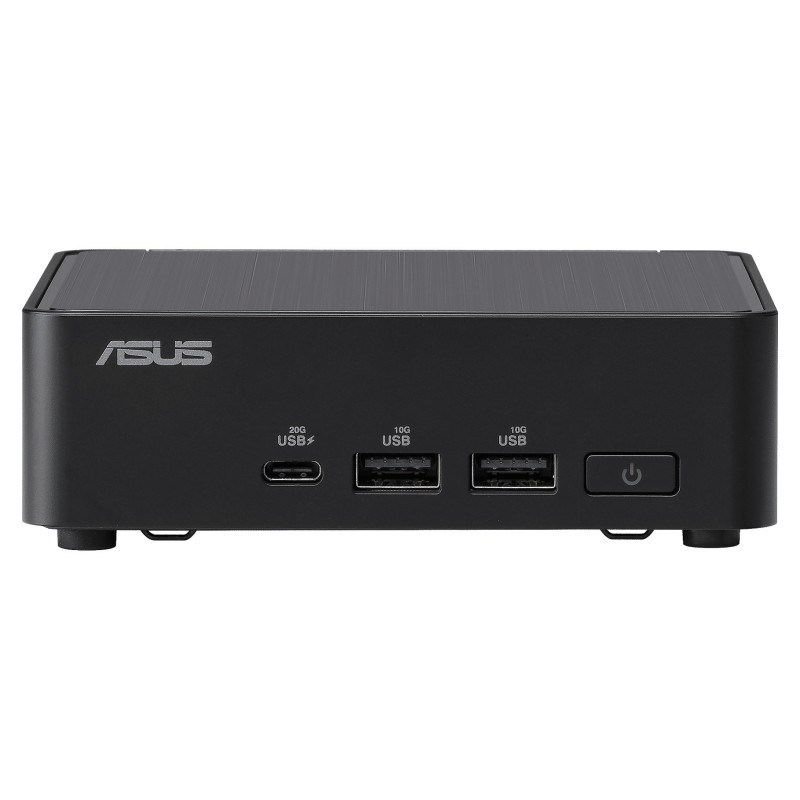

ASUS NUC 14 Pro Slim Kit RNUC14RVKU700000I

ASUS NUC 14 Pro Slim Kit RNUC14RVKU700000I. Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 48 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Power supply: 120 W
AI-Enabled Mini PC designed for everyday computing needs, featuring Intel® Core™ Ultra processors, Arc™ GPU, Intel AI Boost (NPU), and toolless-access chassis.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 1)
Processor model: 155H
Processor cores: 16
Processor threads: 22
Processor boost frequency: 4.8 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 1.4 GHz
Efficient-core base frequency: 0.9 GHz
Low Power Efficient-core Base Frequency: 0.7 MHz
Built-in processor: Yes
Processor cache: 24 MB

Memory

Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 48 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM

Storage

Storage drives installed: No
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express
NVMe: Yes
Number of storage drives supported: 2

Graphics

On-board graphics card: Yes
On-board graphics card model: Intel® Graphics

Audio

Built-in speaker(s): No

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN_MI8Controller_Wi_K 6E AX211
Ethernet LAN: Yes
Copper ethernet cabling technology: 2.5GBASE-T
Wi-Fi: Yes_BR_BR43_Ye_4_MI_BR_42__ Bluetooth version: 5.3

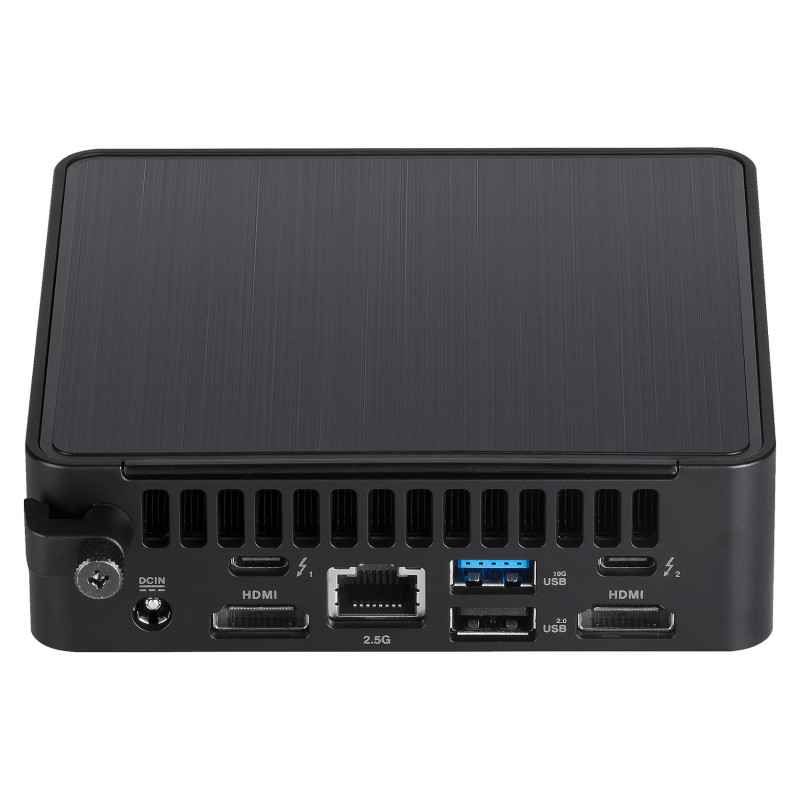

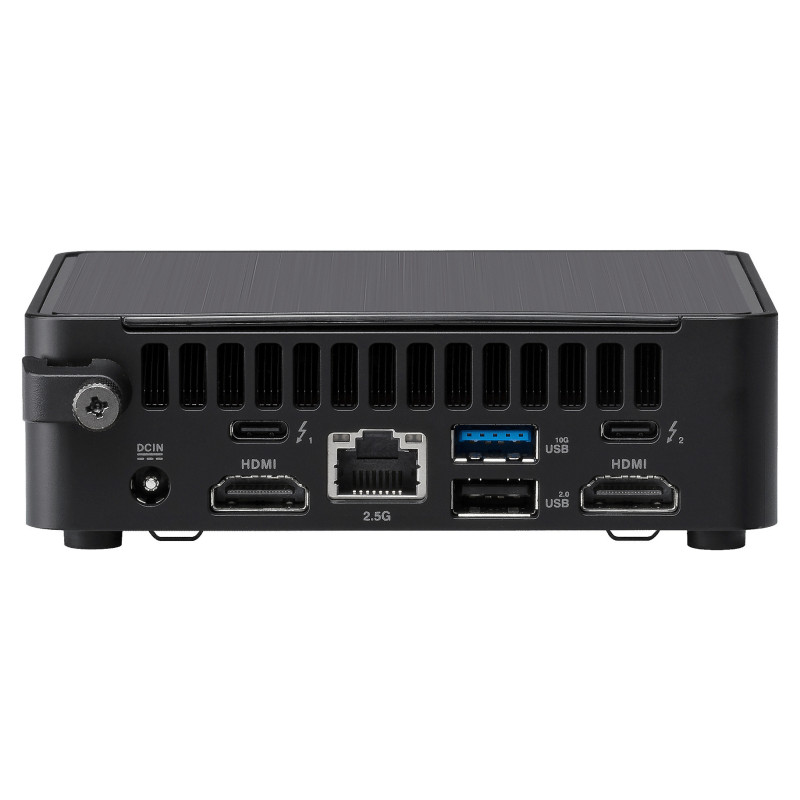

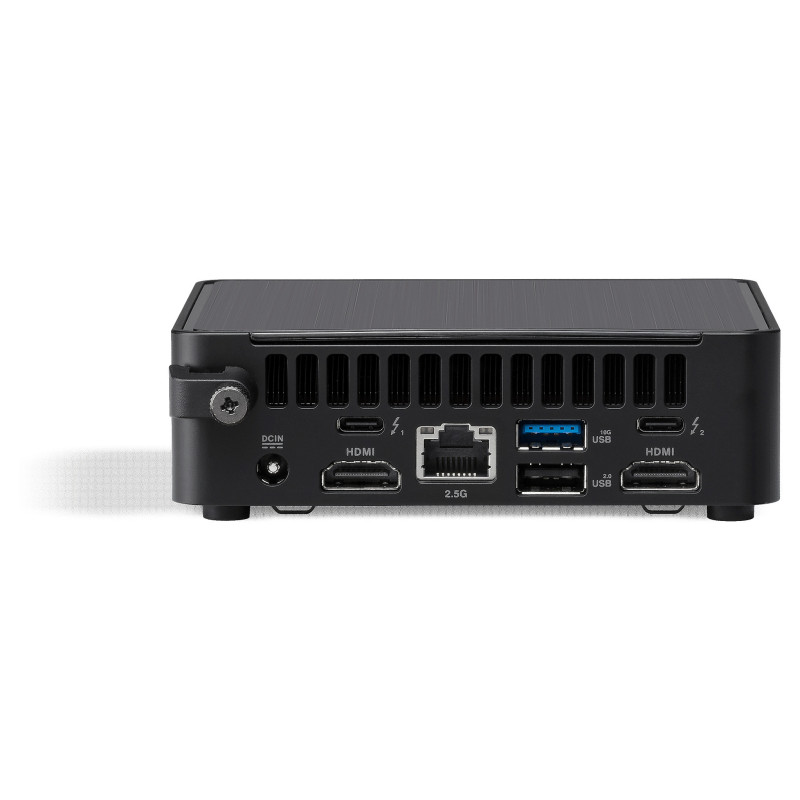

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Thunderbolt 4 ports quantity: 2
DC-in jack: Yes

Design

Product colour: Black
On/off switch: Yes

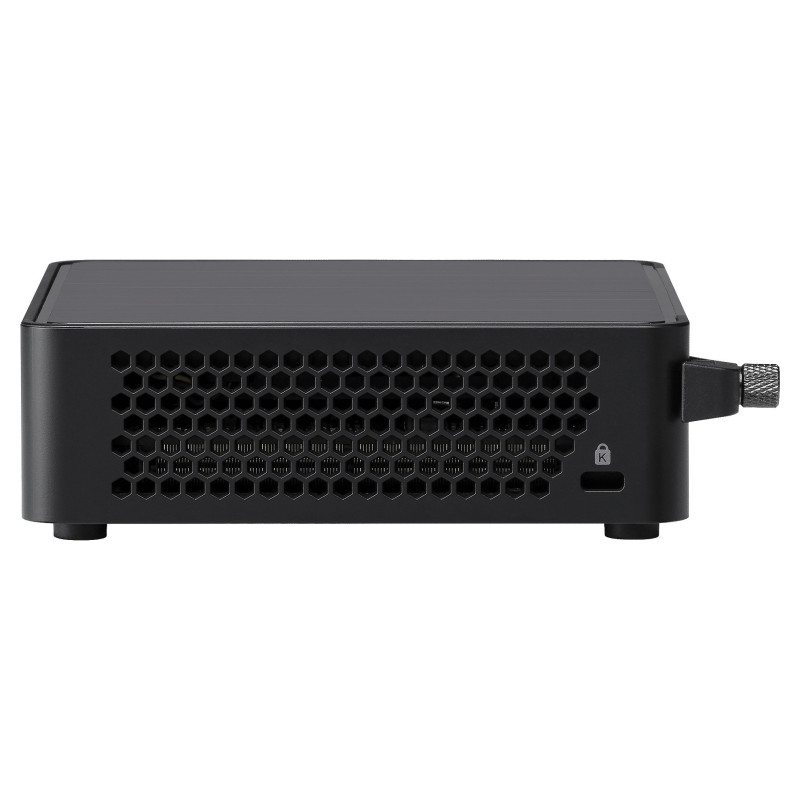

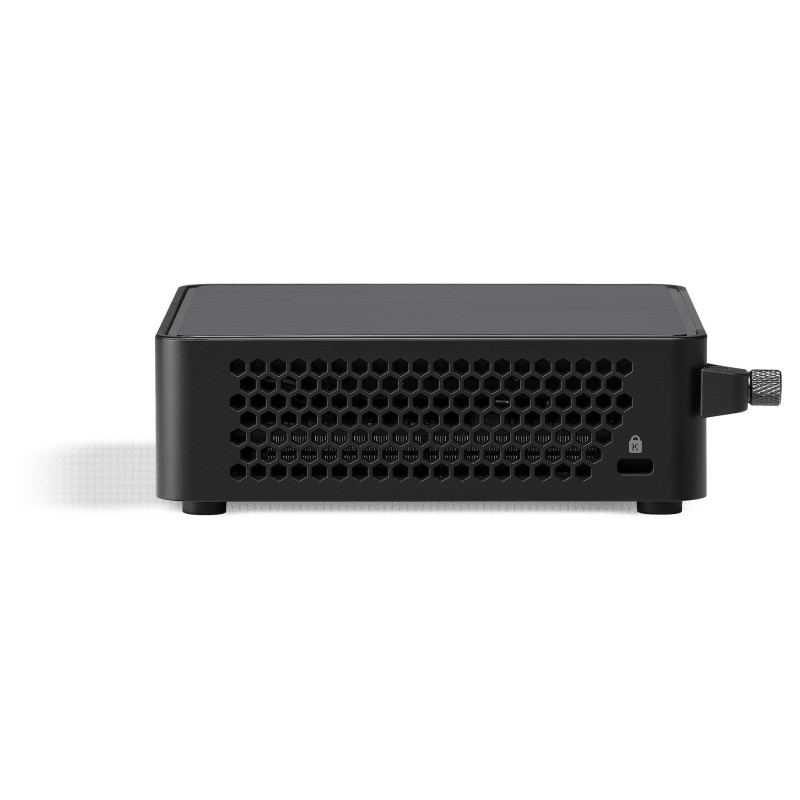

Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Product type: Mini PC barebone

Software

Operating system installed: No

Power

Power supply type: External AC adapter
Power supply: 120 W
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A

Weight dimensions

Width: 117 mm
Depth: 112 mm
Height: 37 mm
Weight: 480 g
