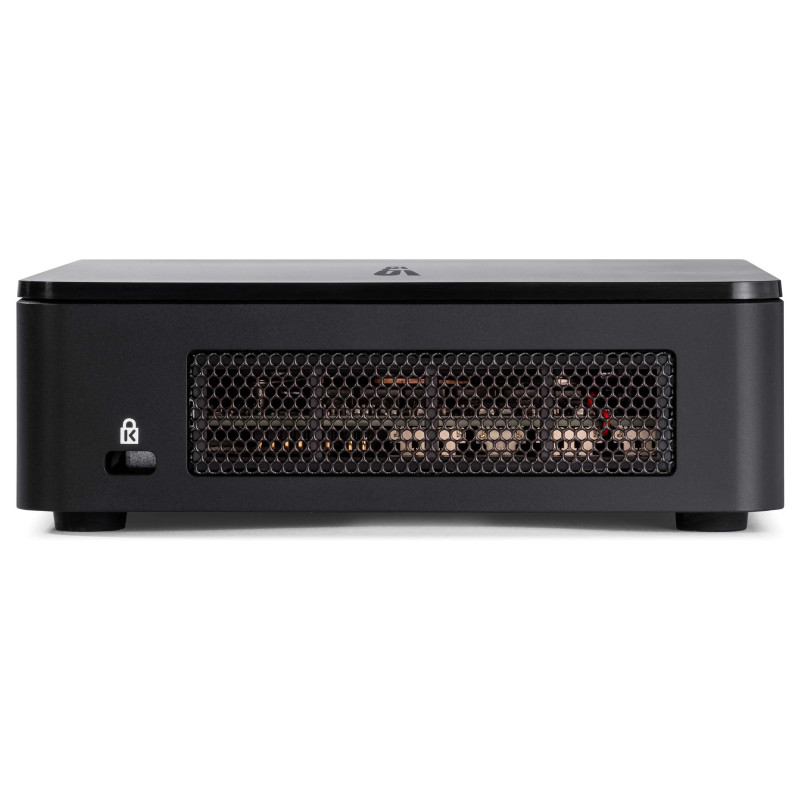

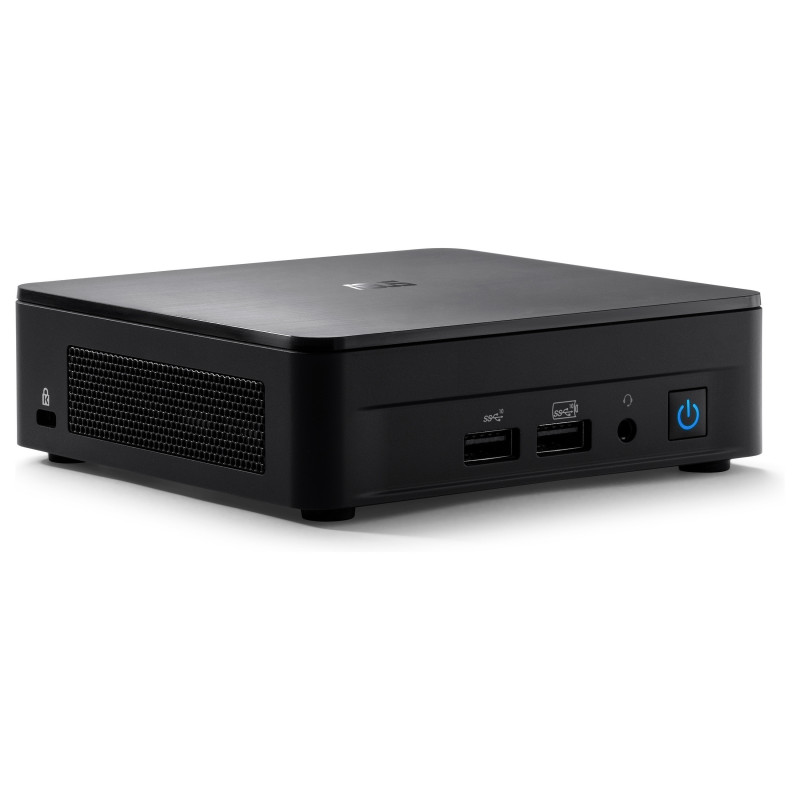

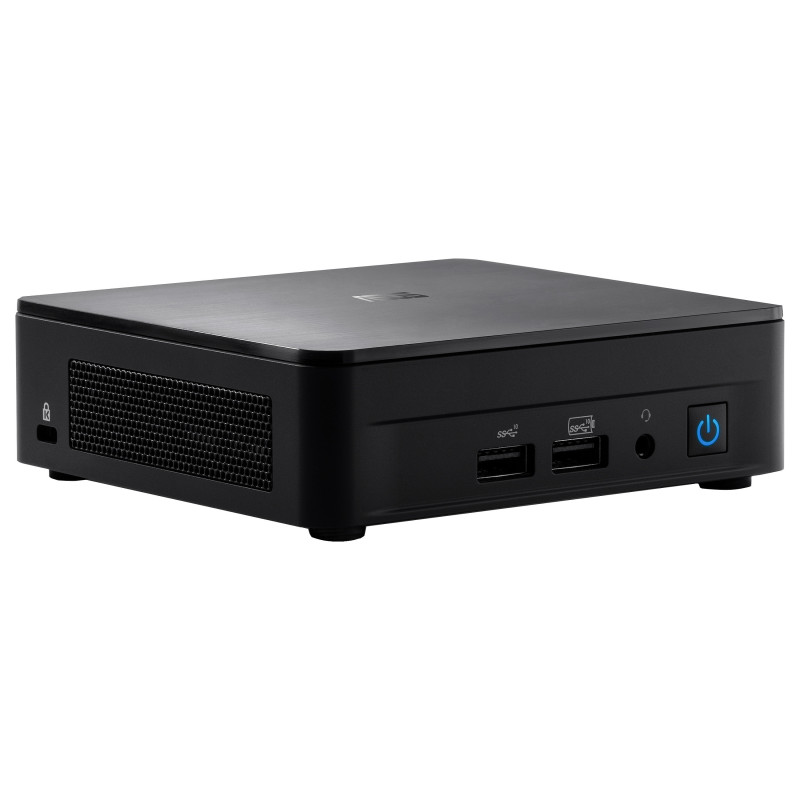

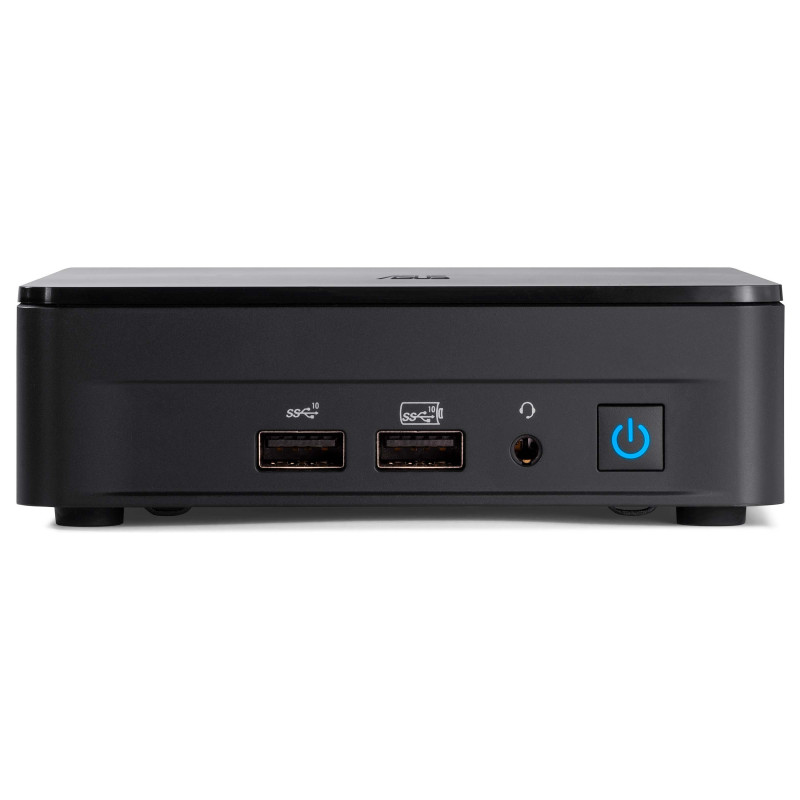

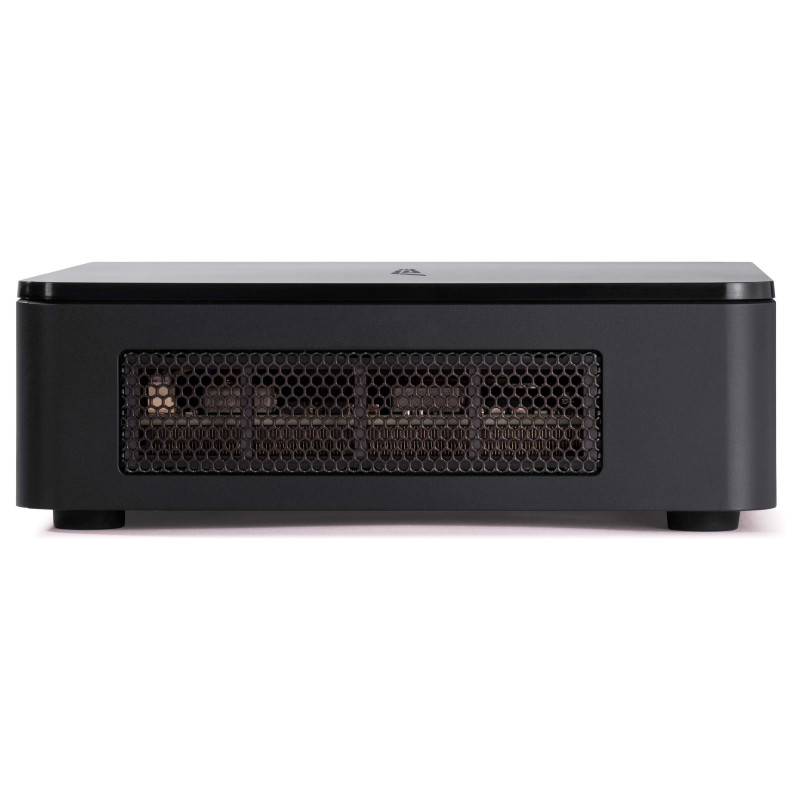

ASUS NUC 12 Pro Slim Kit RNUC12WSKI700002I

ASUS NUC 12 Pro Slim Kit RNUC12WSKI700002I. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Cooling type: Active

Built for Business. NUC 12 Pro
Boost business performance with 12th Gen Intel® Core™ processors and the latest features to support productivity, collaboration, and edge compute.

NUC 12 Pro Mini PCs, Kits, & Boards
Ready to work, wherever it's needed—the 4x4 compact device is designed to go where you go, and fit into any space.

Surprising size. Supercharged performance
Level up your business with the latest technologies.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: 12th gen Intel® Core™ i7
Processor model: i7-1260P
Processor cores: 12
Processor threads: 16
Processor boost frequency: 4.7 GHz
Performance cores: 4
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.4 GHz
Built-in processor: Yes
Processor cache: 18 MB

Memory

Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Memory voltage: 1.2 V
ECC: No

Storage

Storage drives installed: No
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
NVMe: Yes
Number of storage drives supported: 2

Graphics

On-board graphics card: No
Graphics card family: Intel
On-board graphics card model: Intel Iris Xe Graphics
Number of displays supported: 4

Audio

Built-in speaker(s): No

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Wi-Fi: Yes
LAN controller: Intel I225-V
Bluetooth: Yes
Bluetooth version: 5.2

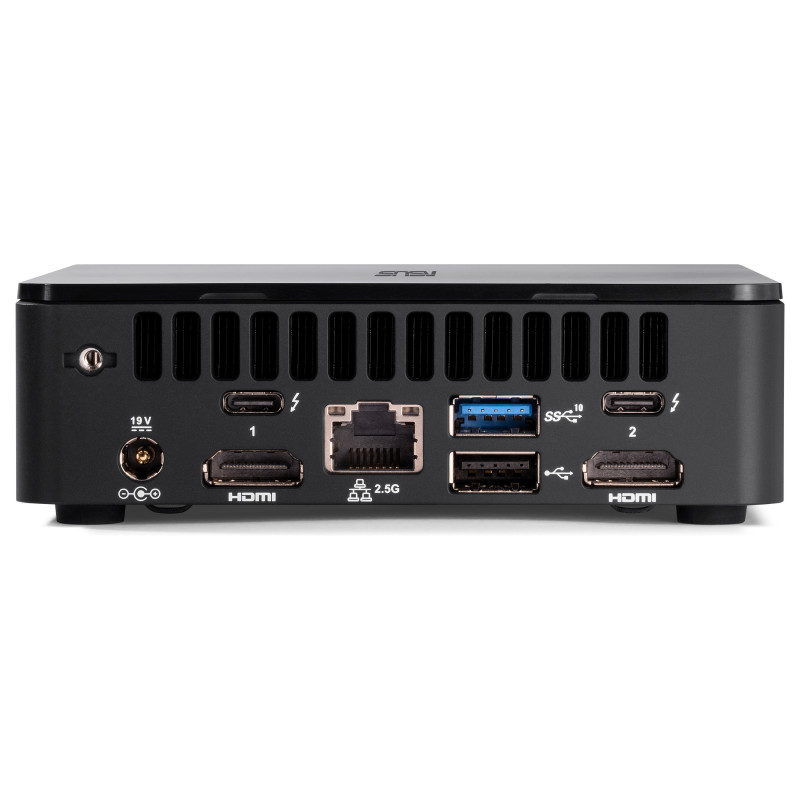

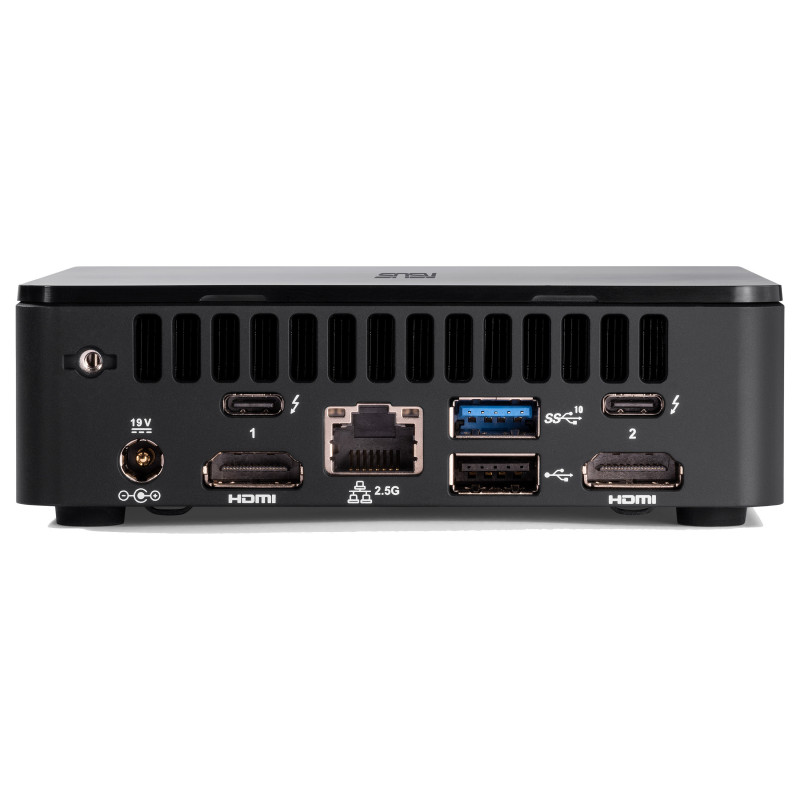

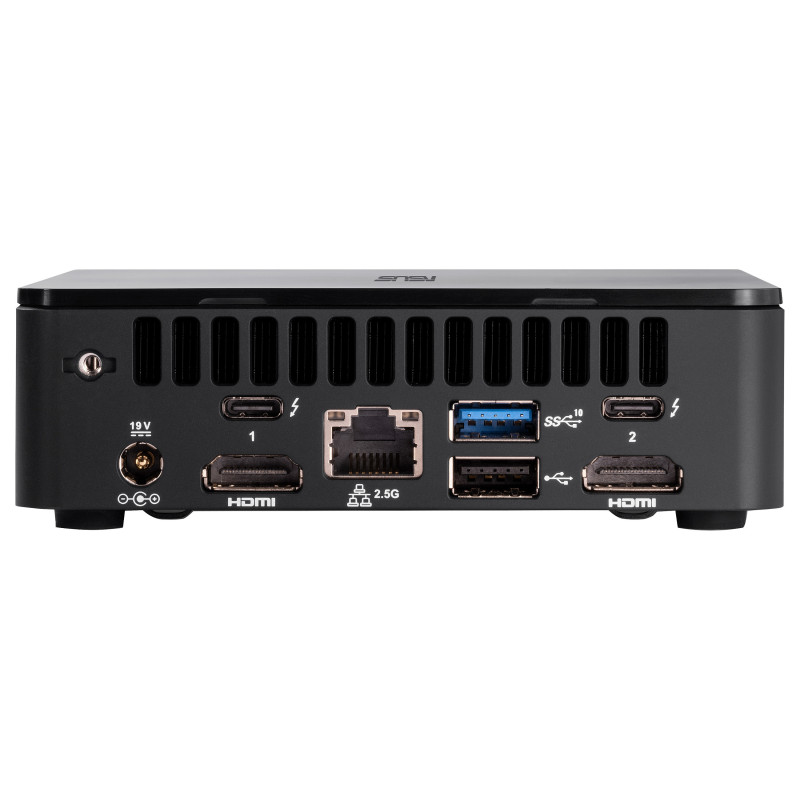

Ports & interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI ports quantity: 2
HDMI version: 2.1
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 1
Serial port via internal header: No
Thunderbolt 4 ports quantity: 2
DC-in jack: Yes

Expansion slots

PCI Express slots version: 4.0

Design

Chassis type: UCFF
Product colour: Black
Cooling type: Active
On/off switch: Yes
LED indicators: Yes
VESA mounting: Yes
Product type: Mini PC barebone

Performance

Motherboard form factor: UCFF
Number of processors supported: 1

Software

Windows operating systems supported: Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
Linux operating systems supported: Yes

Power

Power supply type: External AC adapter

Weight & dimensions

Width: 117 mm
Depth: 112 mm
Height: 37 mm
