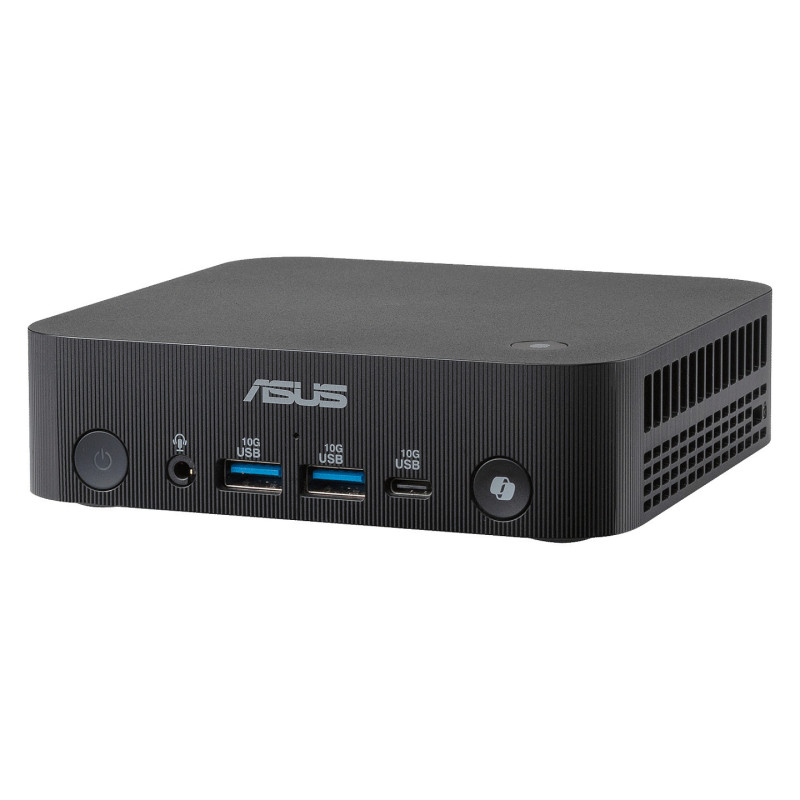

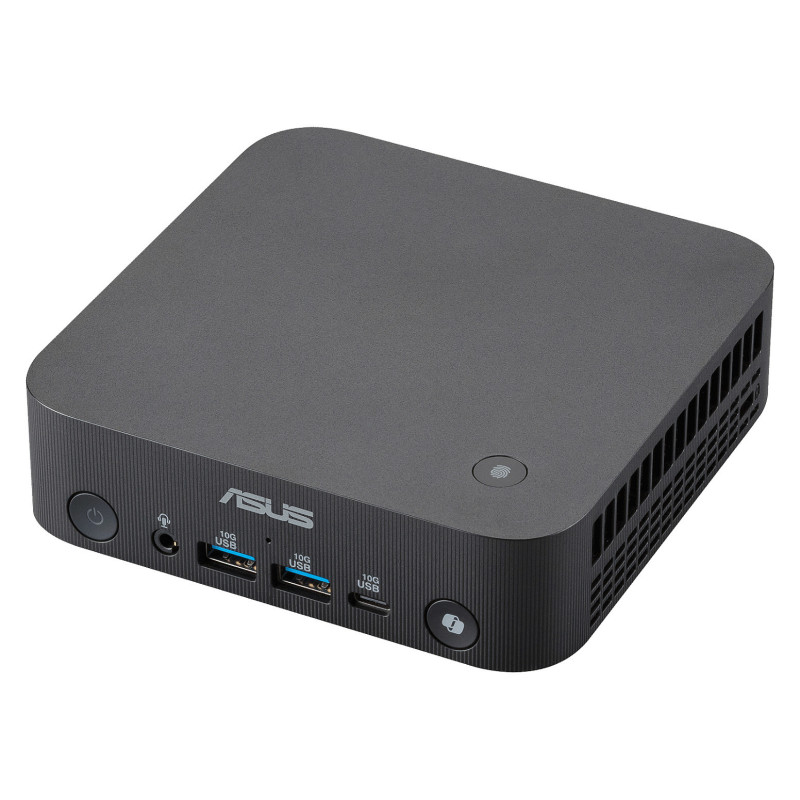

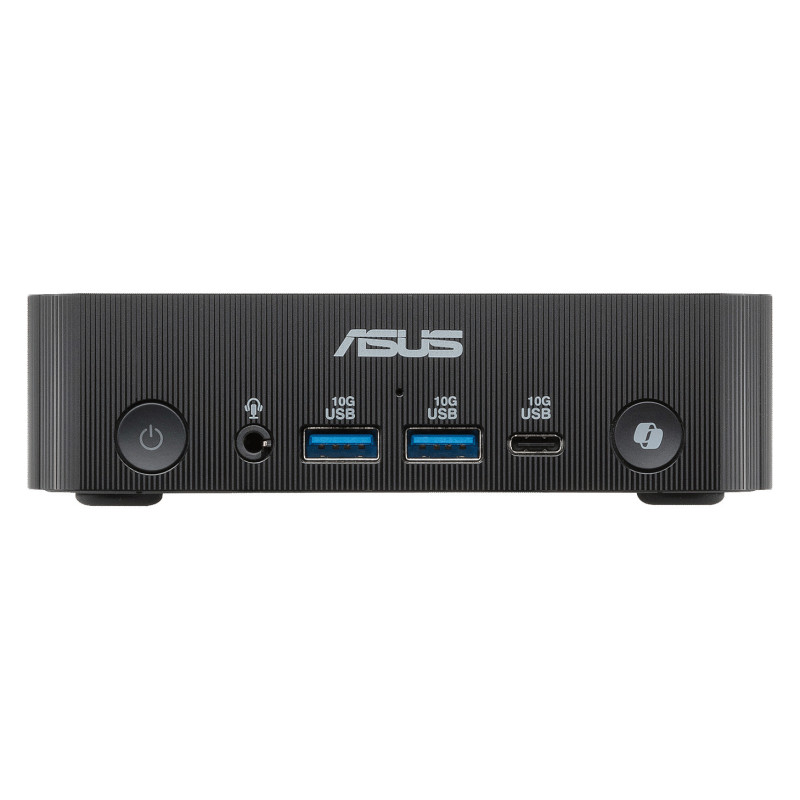

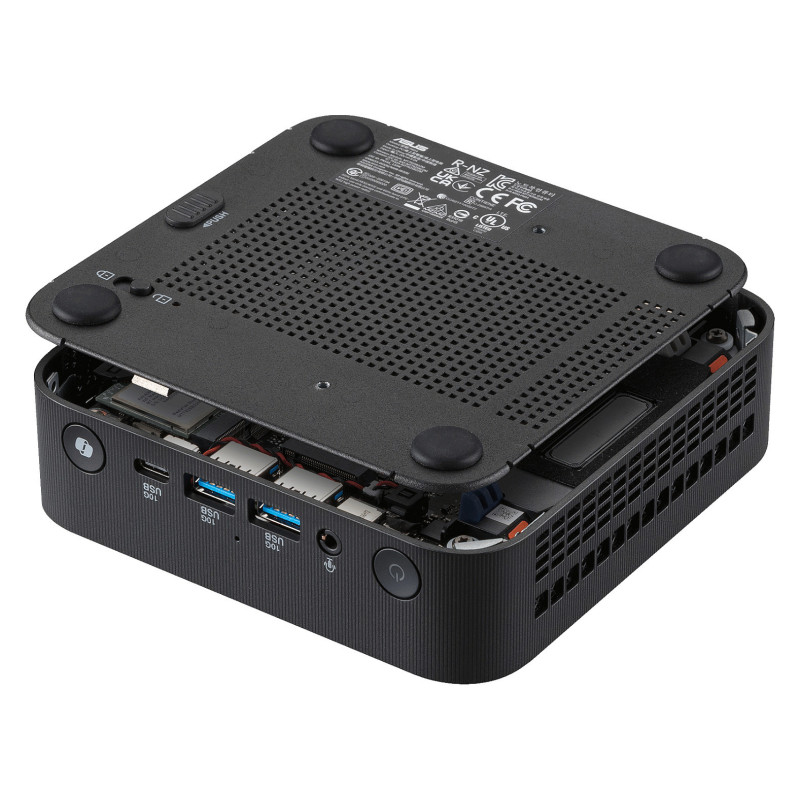

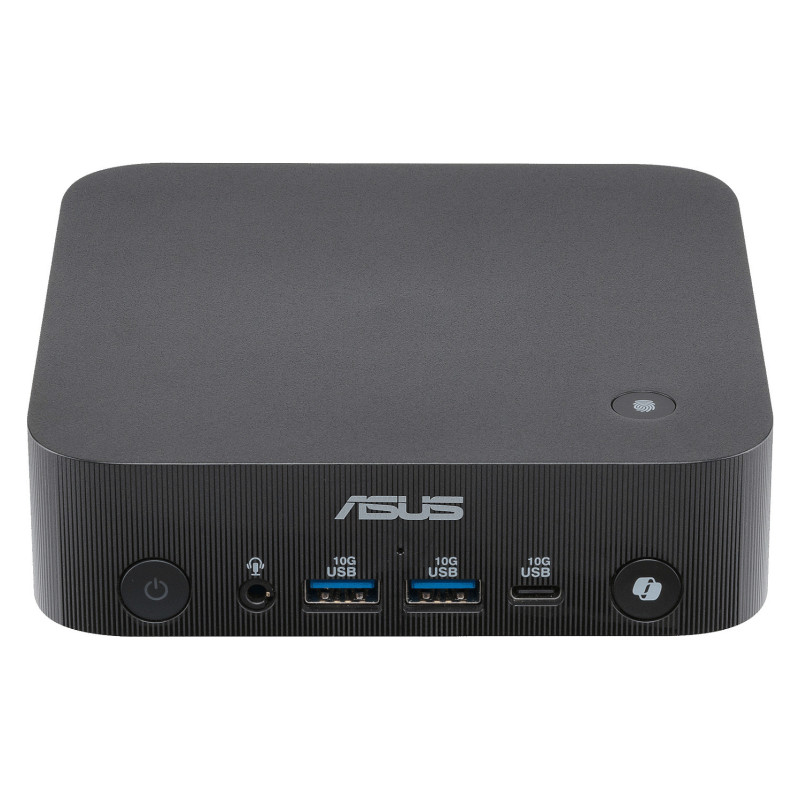

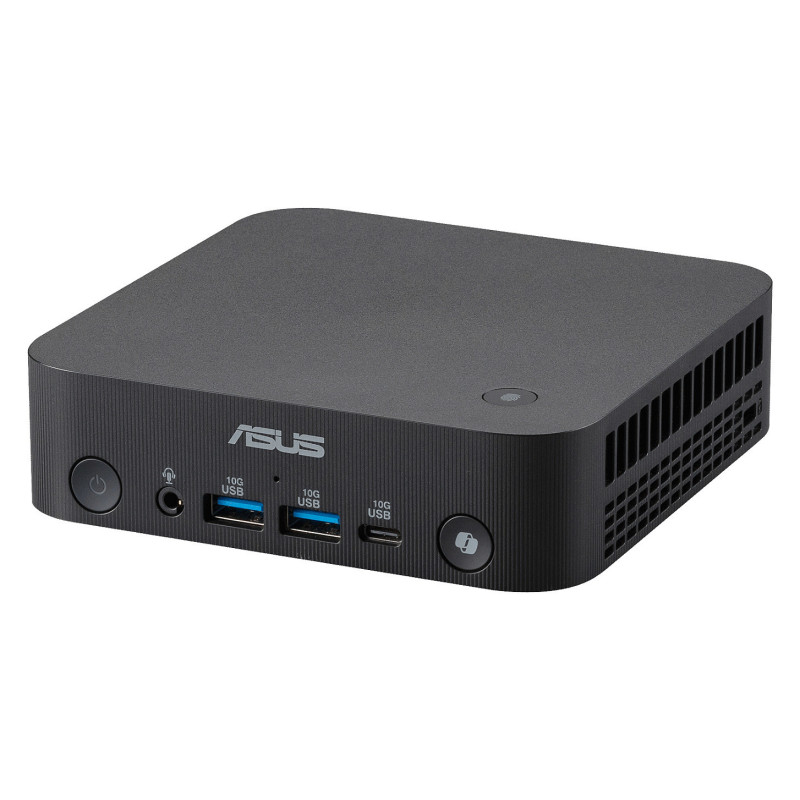

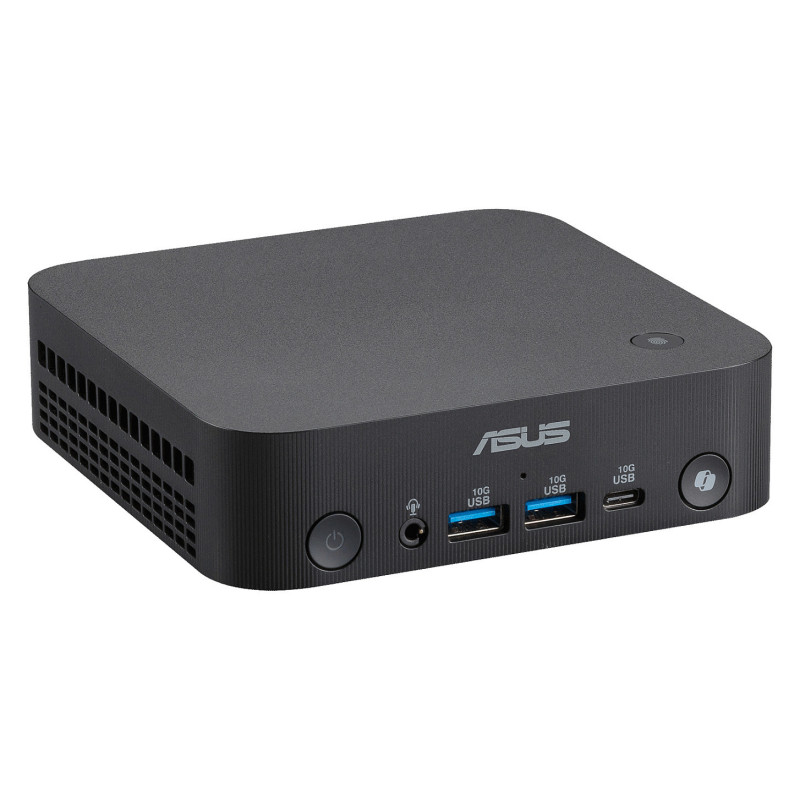

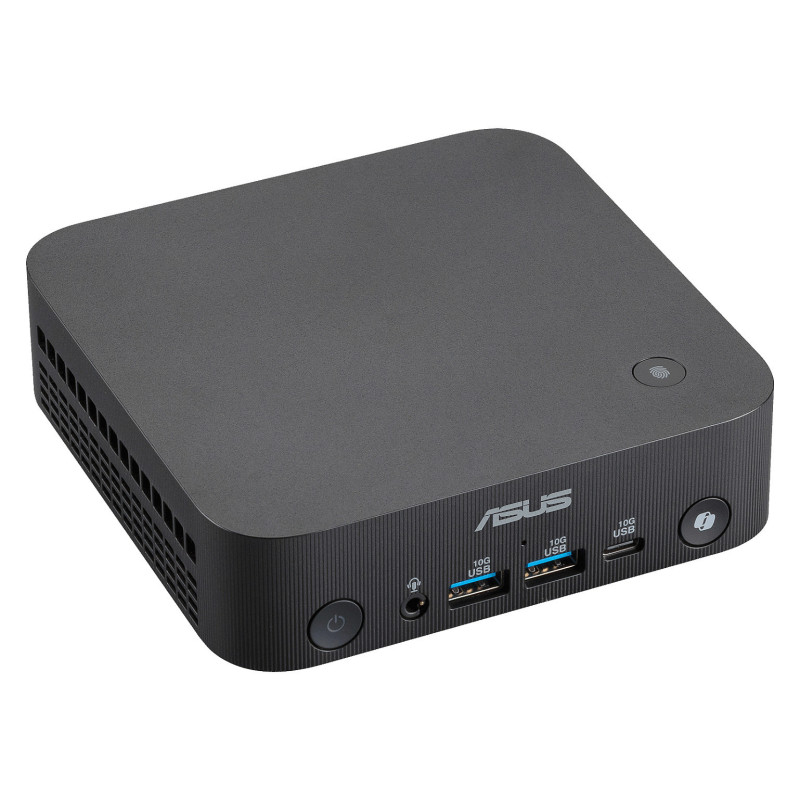

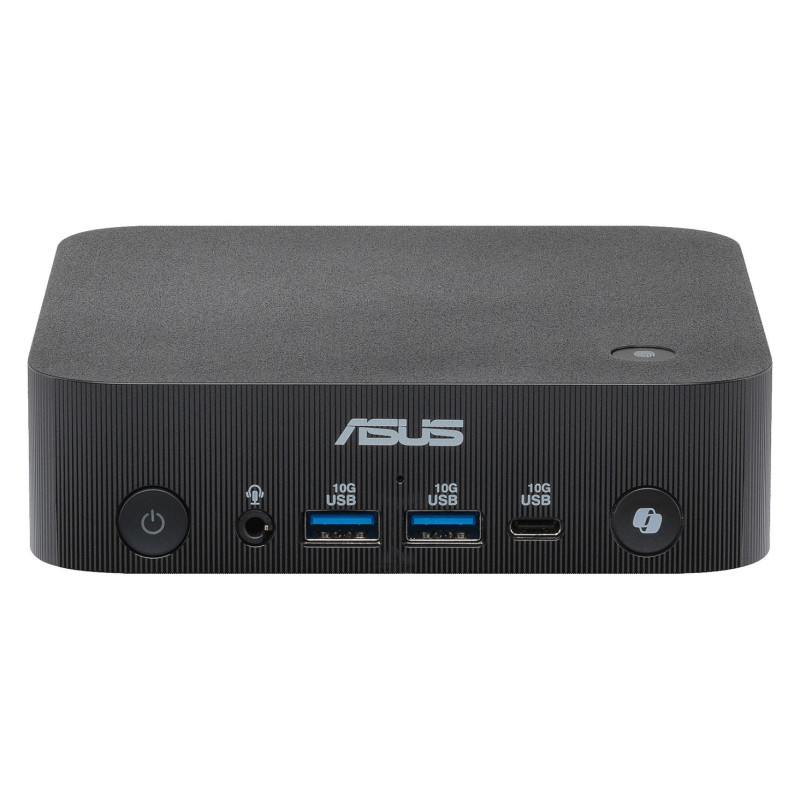

ASUS ExpertCenter PN55-S70012NL

ASUS ExpertCenter PN55-S70012NL. Processor frequency: 2 GHz, Processor family: AMD Ryzen™ AI 7, Processor model: 445. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 840M. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
AI-Driven Performance
AMD Ryzen™ AI 400 Series
Powered by an AMD Ryzen™ AI 400 Series processor and an AMD XDNA™ 2 NPU delivering up to 55 AI TOPS, the ASUS ExpertCenter PN55 Mini PC enables accelerated productivity and effective collaboration. The processor boasts 12 high-performance cores and a 16% IPC uplift to make light work of AI workloads, boosting everyday project management and code compilation.

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ AI 7
Processor generation: AMD Ryzen AI 400 Series
Processor model: 445
Processor cores: 6
Processor threads: 12
Processor boost frequency: 4.6 GHz
Processor frequency: 2 GHz
L2 cache: 6 MB
L3 cache: 8 MB
Processor cache type: L2 L3

Neural processor unit (NPU)

Copilot+ PC: Yes
Neural processor unit (NPU): AMD Ryzen AI
Total processor performance up to: 59 TOPs
NPU performance up to: 50 TOPs

Memory

Internal memory: 32 GB
Maximum internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 840M

Performance

Market positioning: Performance
Product type: Mini PC

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

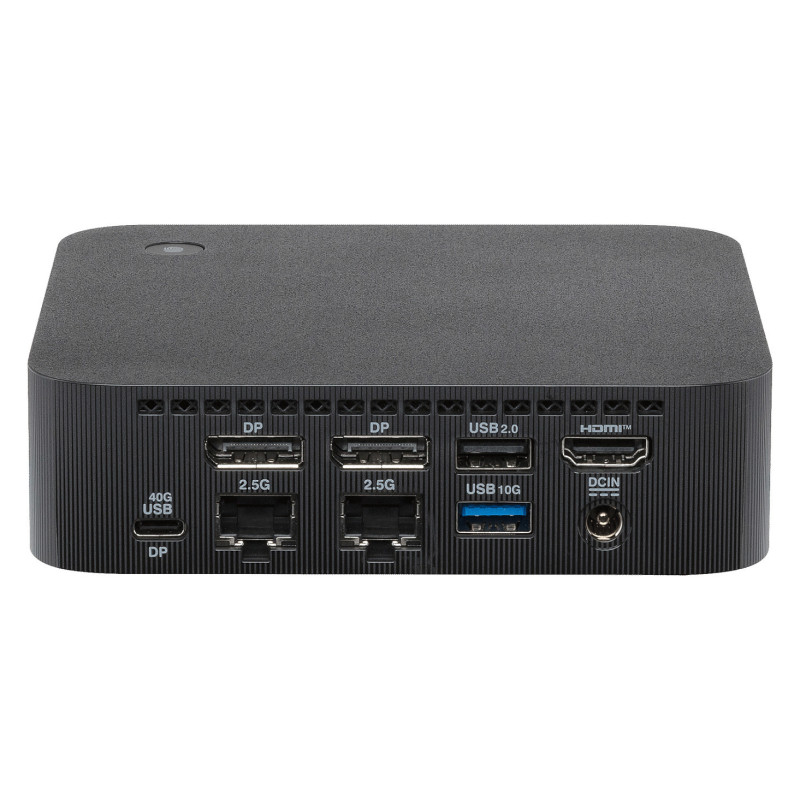

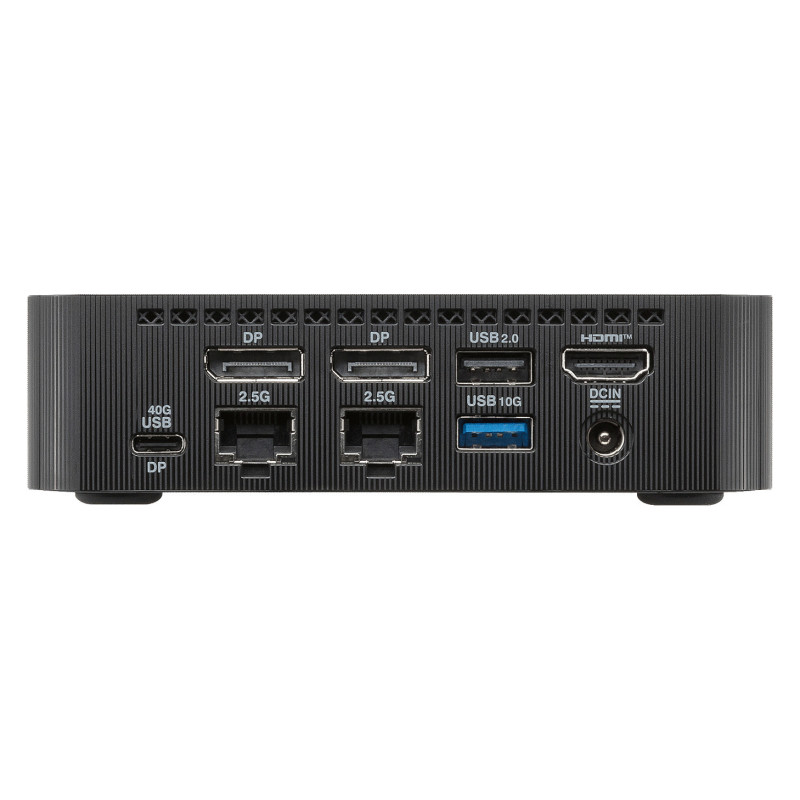

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 2
Headphone outputs: 1
Line-out: Yes
Microphone in: Yes
DC-in jack: Yes
Number of rear USB ports: 3

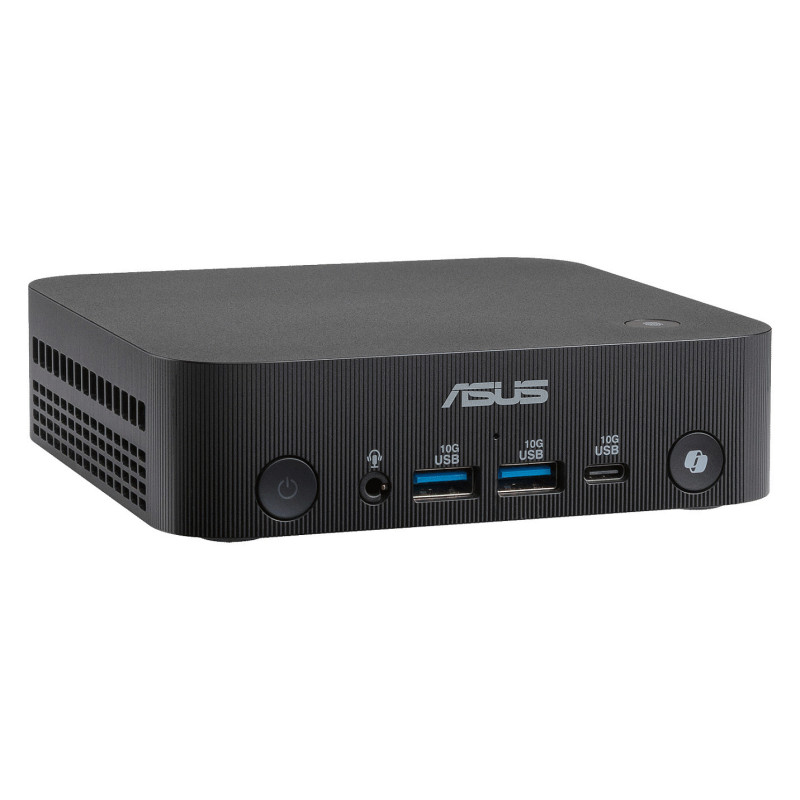

Number of front USB ports: 3
Number of front audio ports: 3

Power

Power supply: 120 W

Design

Chassis type: Mini PC
Colour name: Black
Placement supported: Horizontal/Vertical

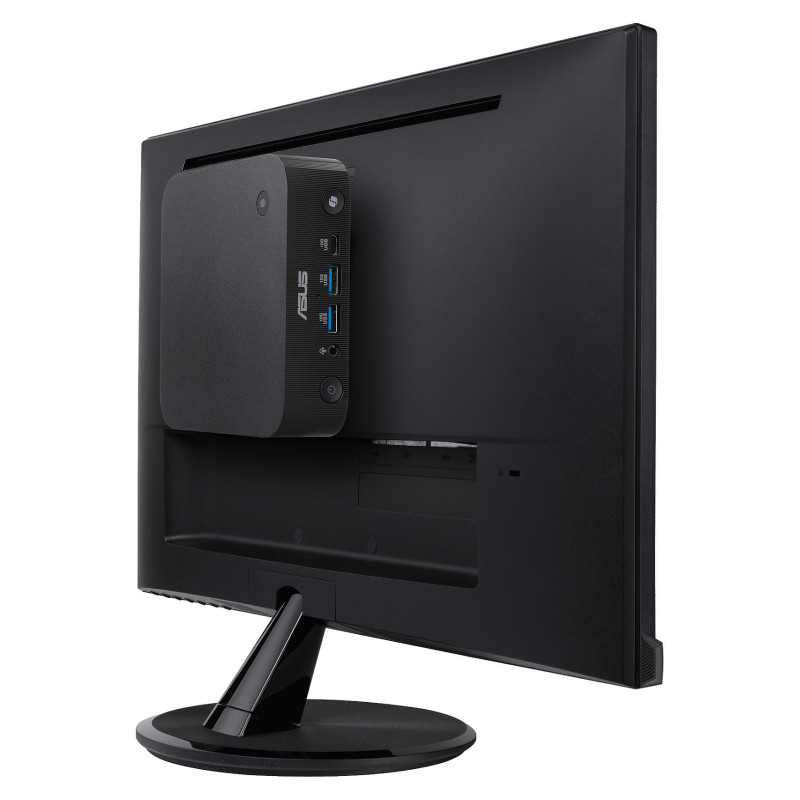

VESA mounting: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Copilot key: Yes

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Display

Display included: No

Weight dimensions

Width: 130 mm
Depth: 130 mm
Height: 34 mm
Weight: 550 g

Packaging data

Package width: 189 mm
Package depth: 157 mm
Package height: 134 mm
Package weight: 1.48 kg
