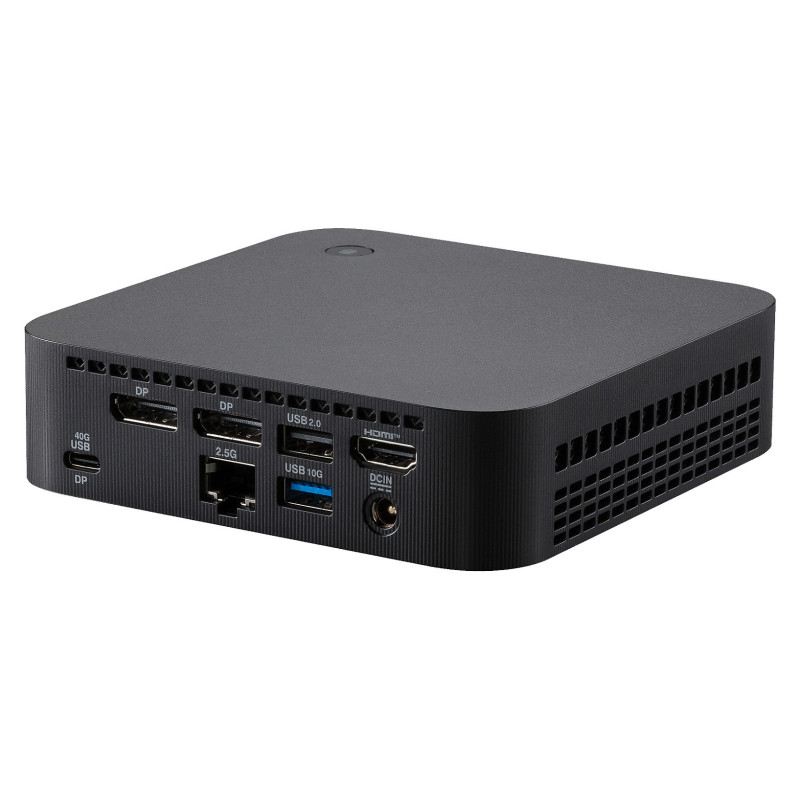

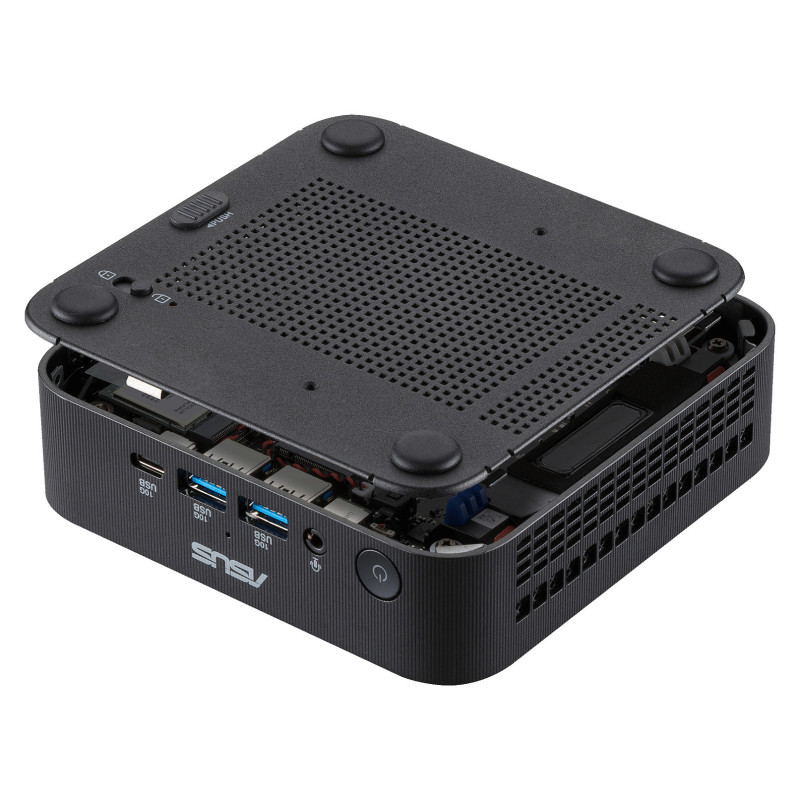

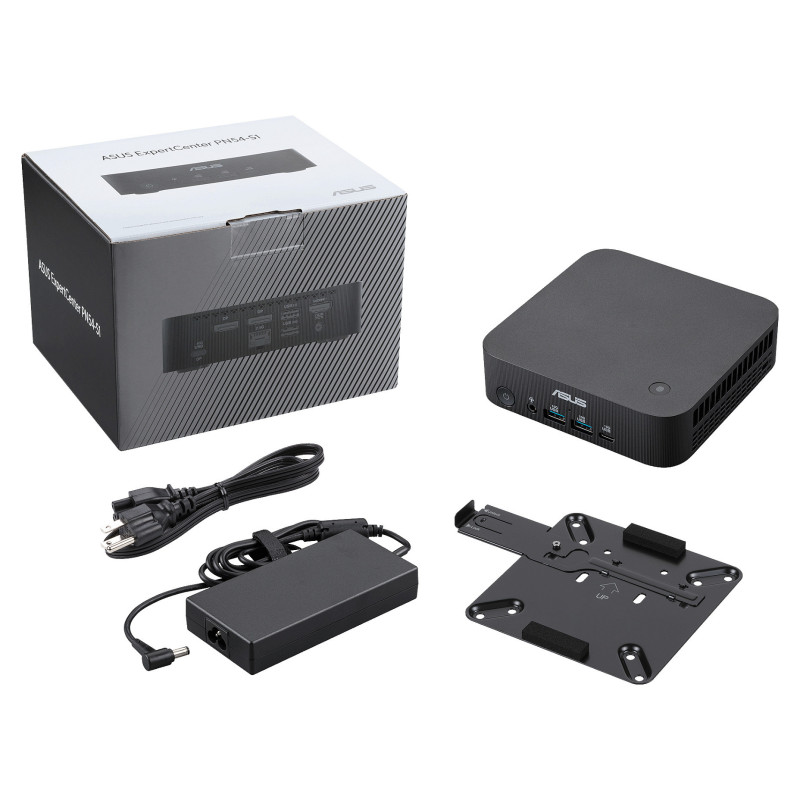

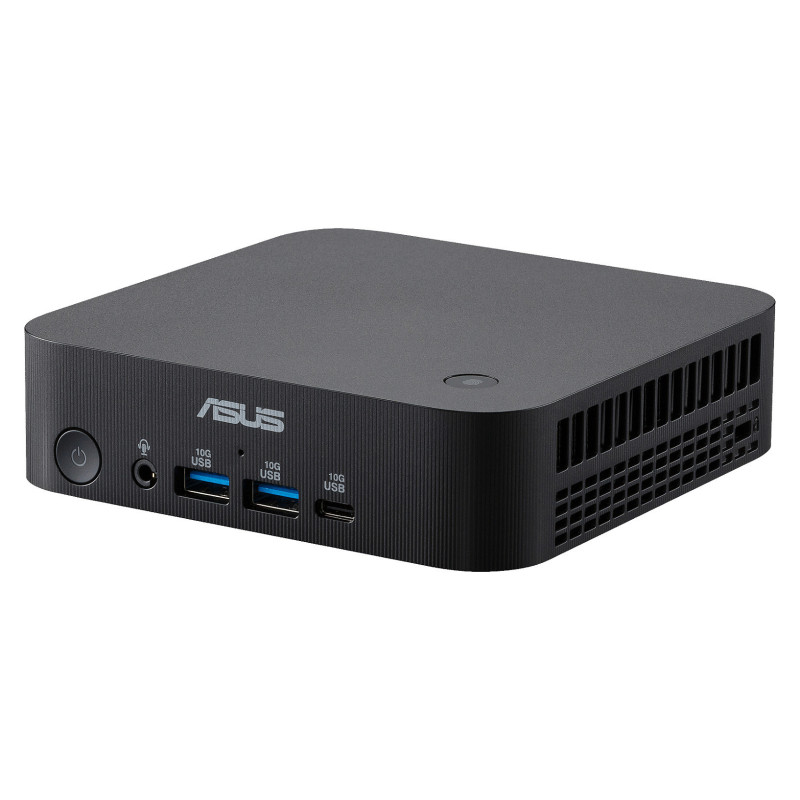

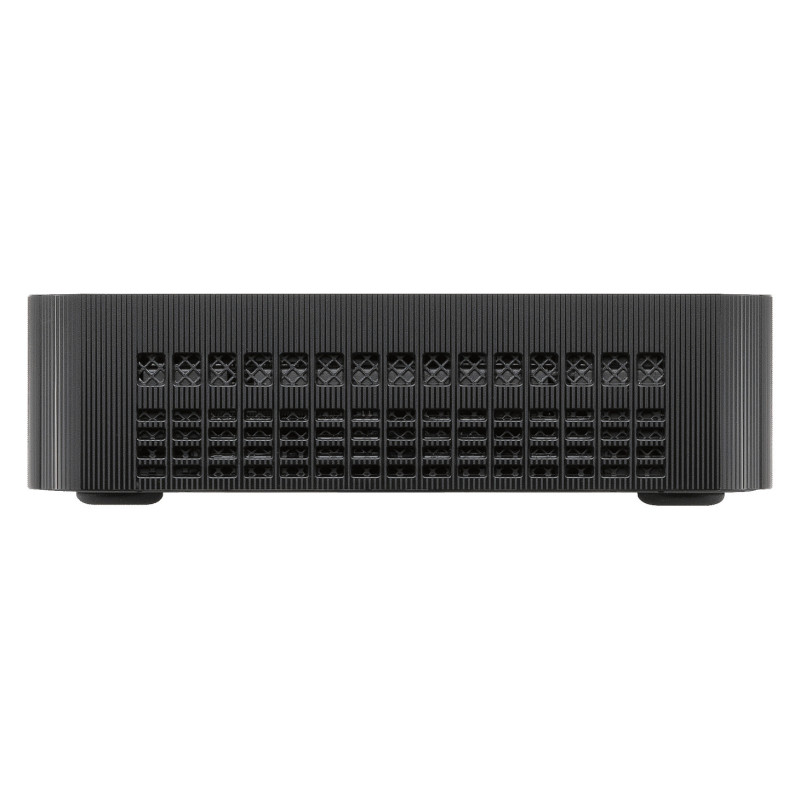

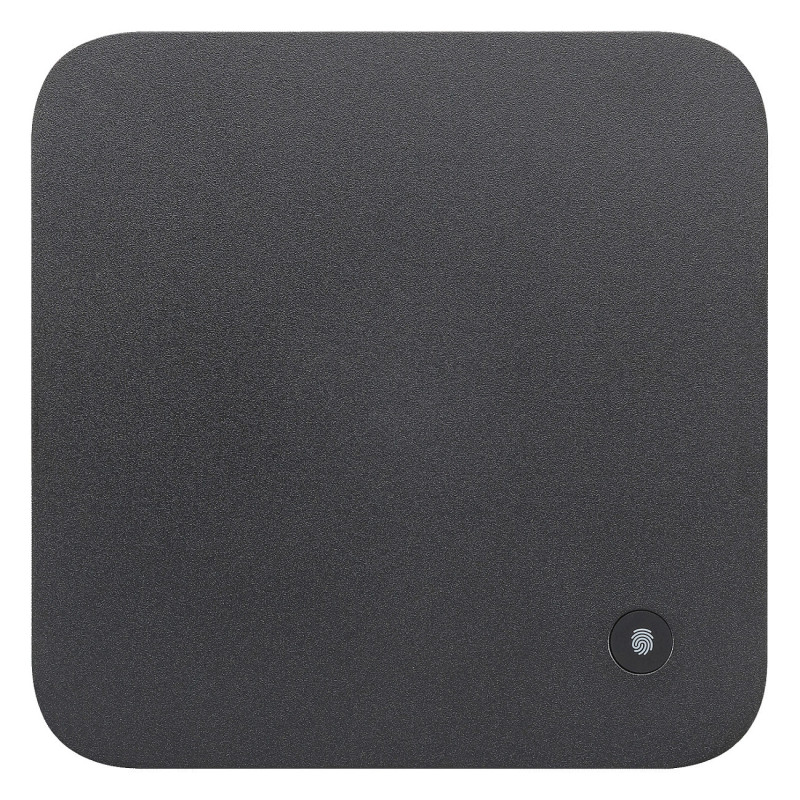

ASUS ExpertCenter PN54-S1-S30082AL

ASUS ExpertCenter PN54-S1-S30082AL. Processor frequency: 3 GHz, Processor family: AMD Ryzen™ 3, Processor model: 210. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 740M. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
ASUS ExpertCenter PN54-S1 Mini PC
Trusted Performance, Energy Efficient
ASUS ExpertCenter PN54-S1 Mini PC strikes the perfect balance of performance and energy efficiency. Featuring AMD Ryzen™ 200 Series processors, it delivers robust performance with quad 4K display support, 6 USB ports, and Wi-Fi 7 for seamless everyday computing

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 3
Processor generation: AMD Ryzen 200 Series
Processor model: 210
Processor cores: 4
Processor threads: 8
Processor boost frequency: 4.7 GHz
Processor frequency: 3 GHz
L2 cache: 4 MB
L3 cache: 8 MB
Processor cache type: L2 L3

Memory

Internal memory: 8 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 8 GB
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 740M

Performance

Product type: Mini PC

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

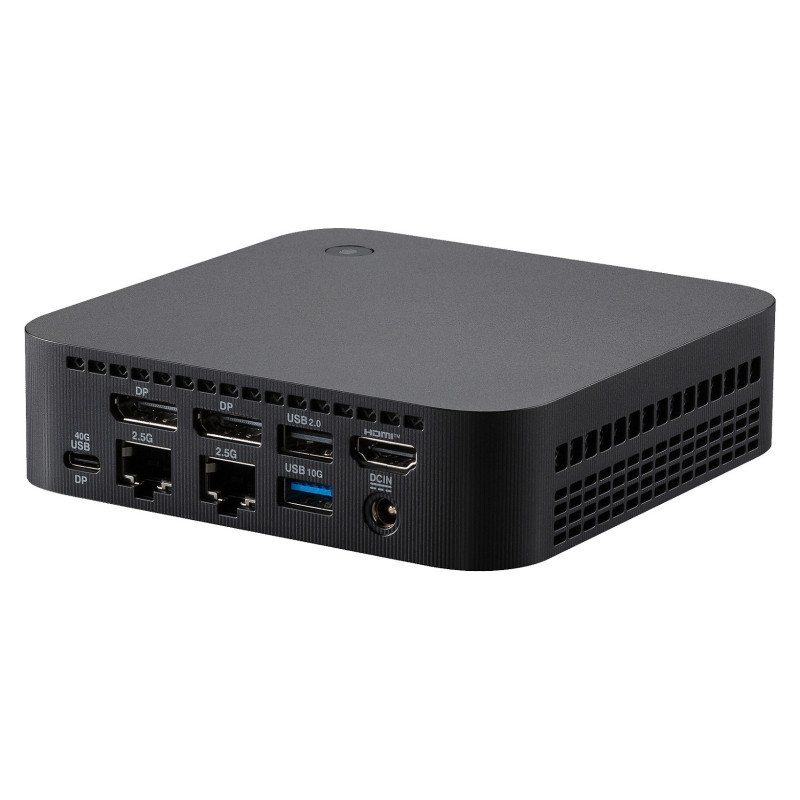

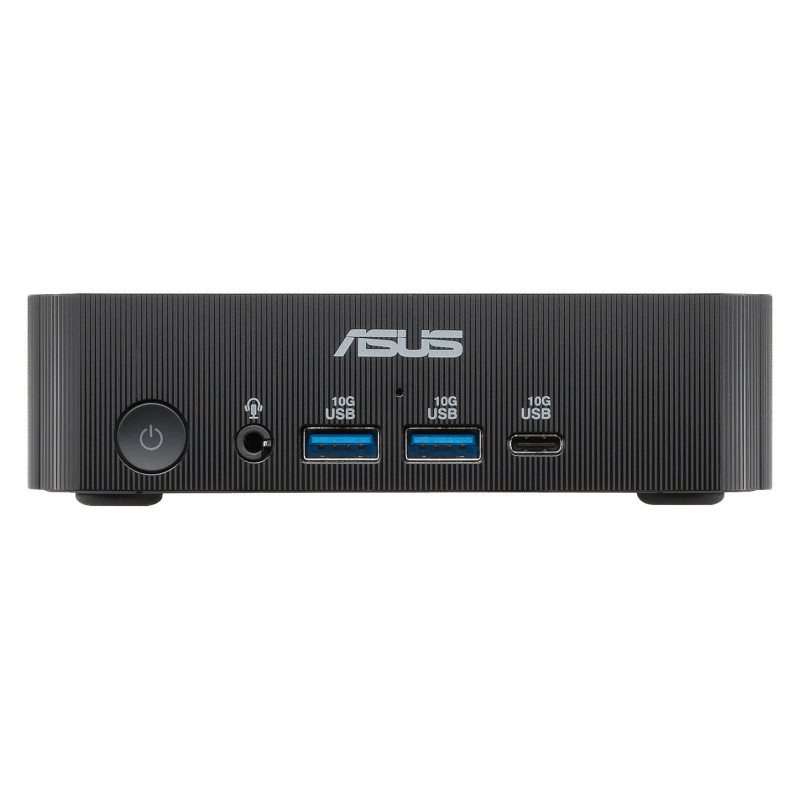

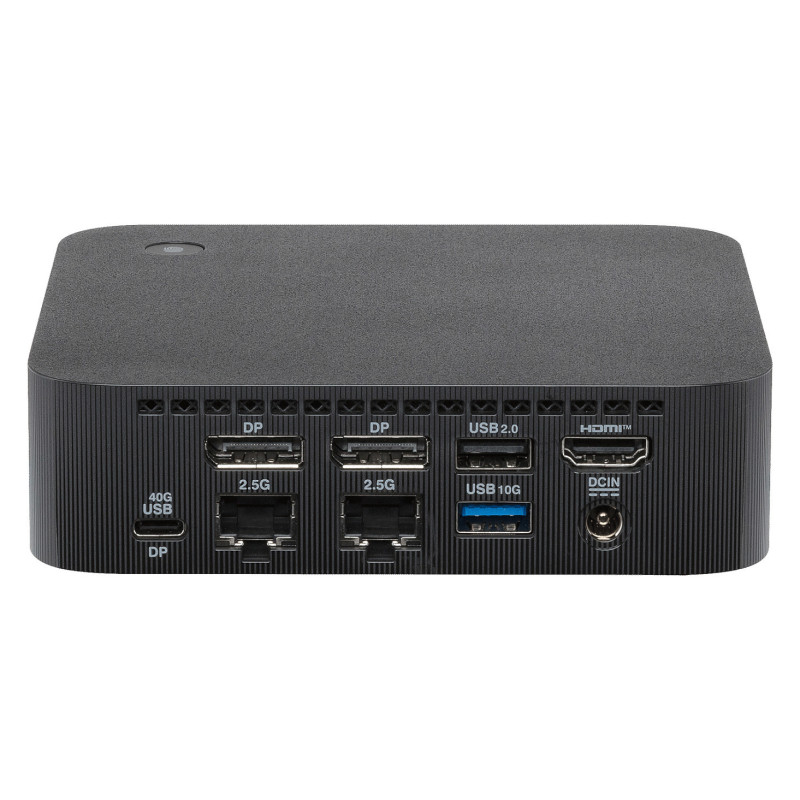

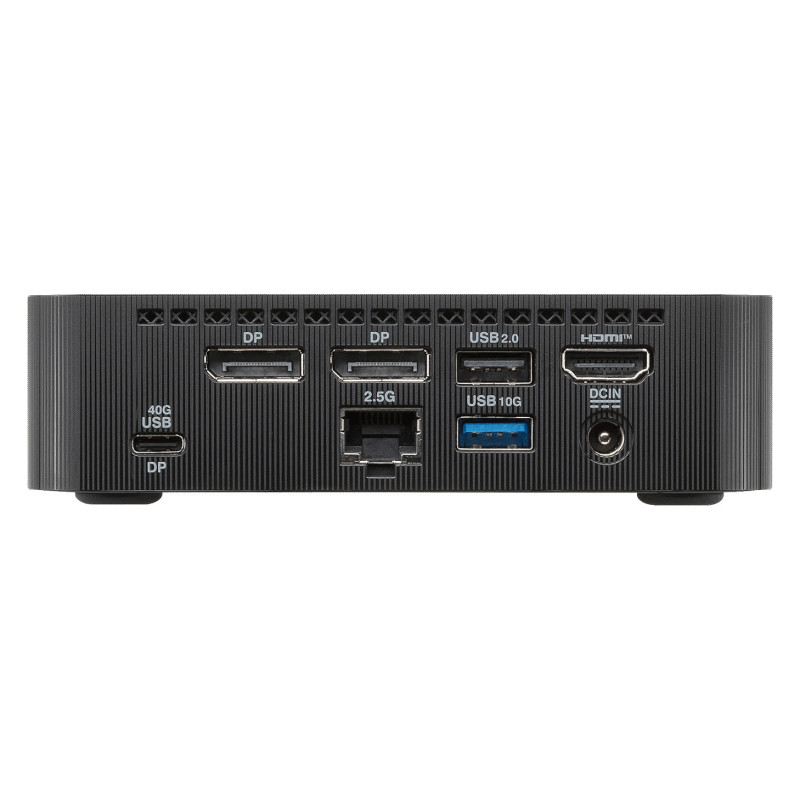

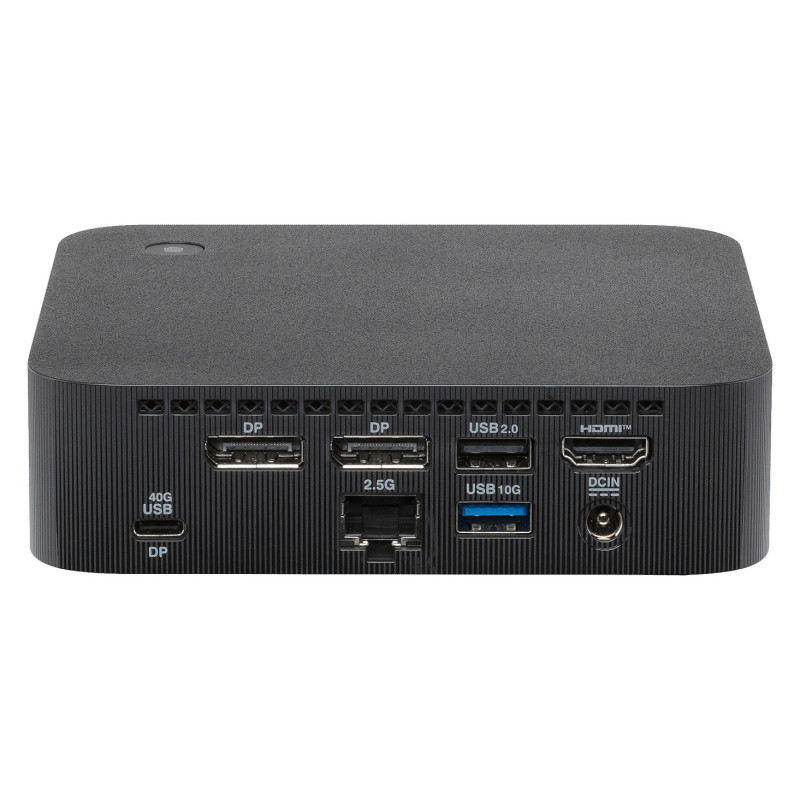

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1

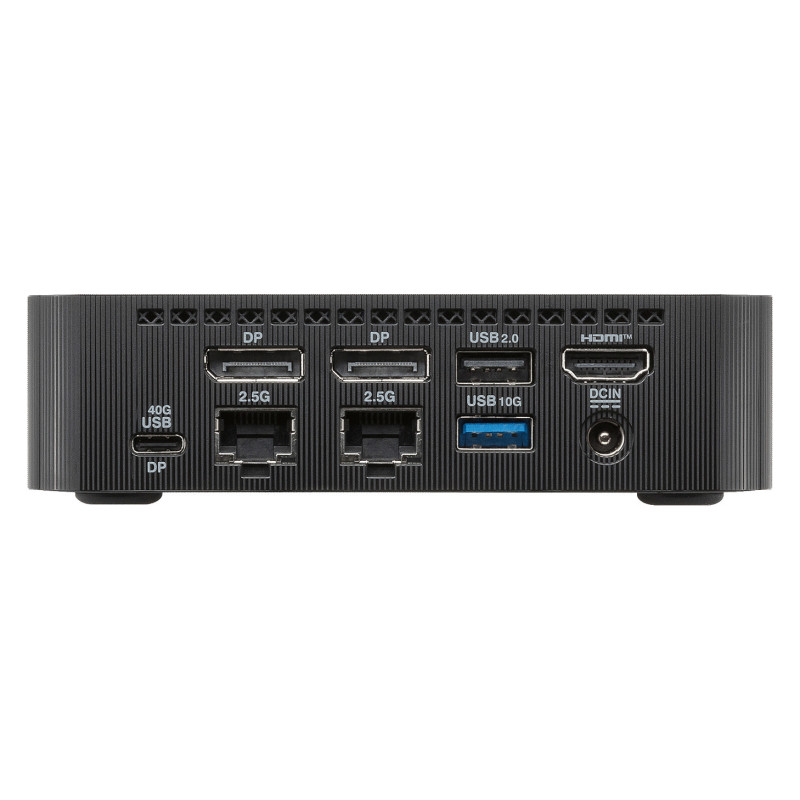

Ethernet LAN (RJ-45) ports: 2
Combo headphone/mic port: Yes
DC-in jack: Yes

Power

Power supply: 120 W

Design

Chassis type: Mini PC
Colour name: Black

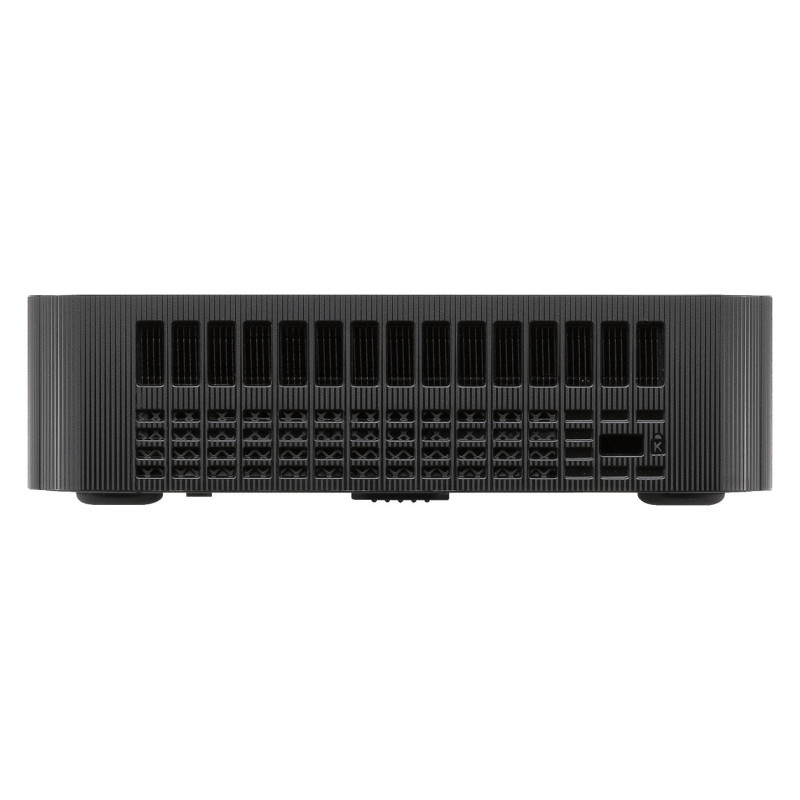

Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Display

Display included: No

Weight dimensions

Width: 130 mm
Depth: 130 mm
Height: 34 mm
Weight: 550 g

Packaging data

Package width: 189 mm
Package depth: 157 mm
Package height: 134 mm
Package weight: 1.48 kg
