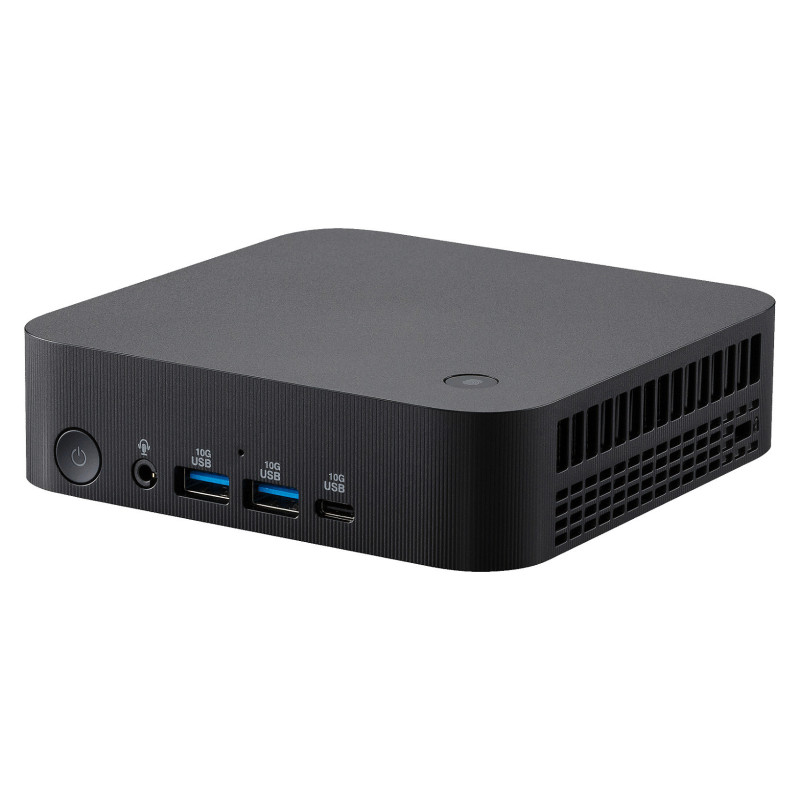

ASUS ExpertCenter PN54-BBR522MNS1

ASUS ExpertCenter PN54-BBR522MNS1. Chassis type: 0.6L sized PC, Product type: Mini PC barebone. Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 7 (802.11be), Bluetooth version: 5.4. Cooling type: Active. Power supply: 120 W
Compact Design, Mighty Performance
The ExpertCenter PN54 Mini PC features AMD Ryzen™ AI 300 Series Processors with 12 ultra-fast cores and cutting edge XDNA2 NPU with up to 50 TOPS - delivering 5x faster AI performance than before
ASUS Copilot+ PC
The fastest, most intelligent Windows PCs ever
Powered by the latest AI-enabled processors, ExpertCenter PN54 Mini PC brings you a next-level AI experience, with enhanced security, speed, and personalization. With integrated AI engine to accelerate AI computing, Copilot in Windows for personalized assistances, this mini PC is now your ultimate companion. Experience the difference easier, faster, smarter, and smoother — ASUS Copilot+ PC puts an extraordinary AI experience at your fingertips, now.

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 5
Processor generation: AMD Ryzen 200 Series
Processor model: 220
Processor cores: 6
Processor threads: 12
Processor boost frequency: 4.9 GHz
Processor frequency: 3.2 GHz
Built-in processor: Yes
Processor cache type: L2 L3

Memory

Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5600 MHz

Storage

Storage drives installed: No
Supported storage drive types: SSD
Storage drive sizes supported: M.2
NVMe: Yes

Graphics

On-board graphics card: Yes
Graphics card family: AMD
On-board graphics card model: AMD Radeon 740M

Audio

Built-in speaker(s): No

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth: MI_BR_3_36__ Bluetooth: 5.4

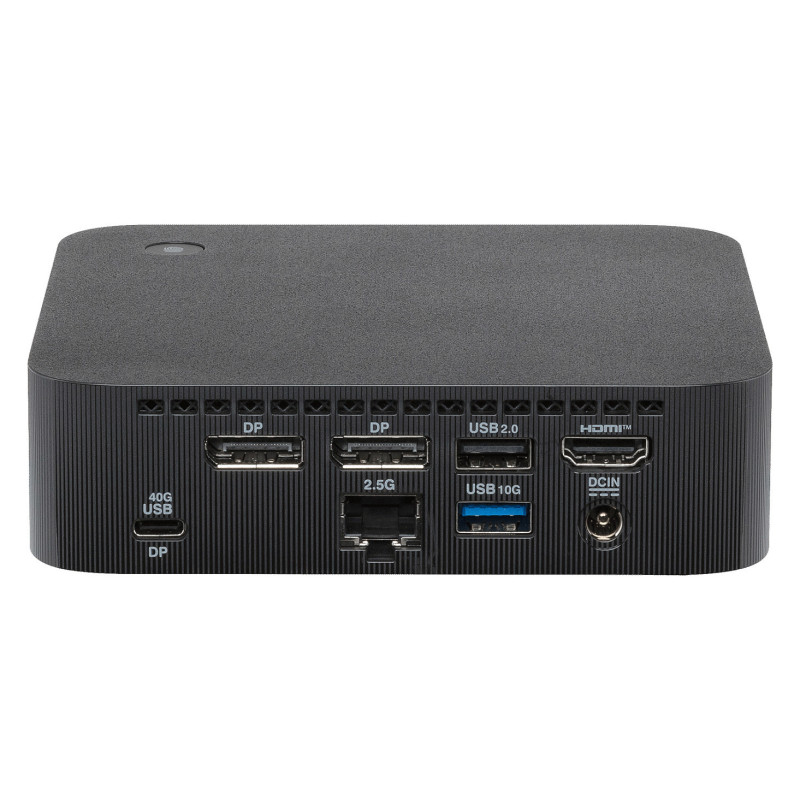

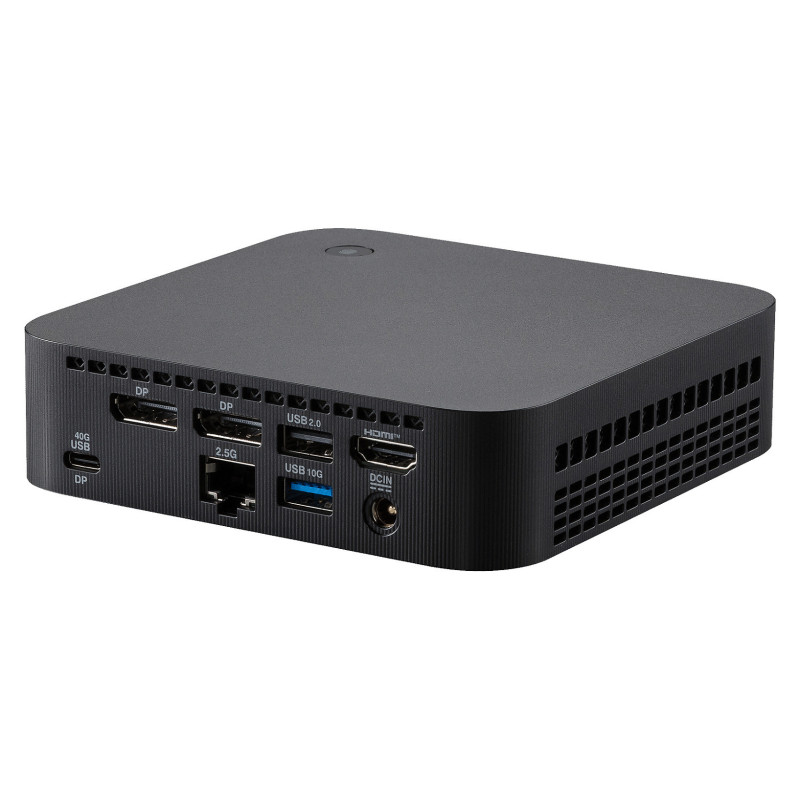

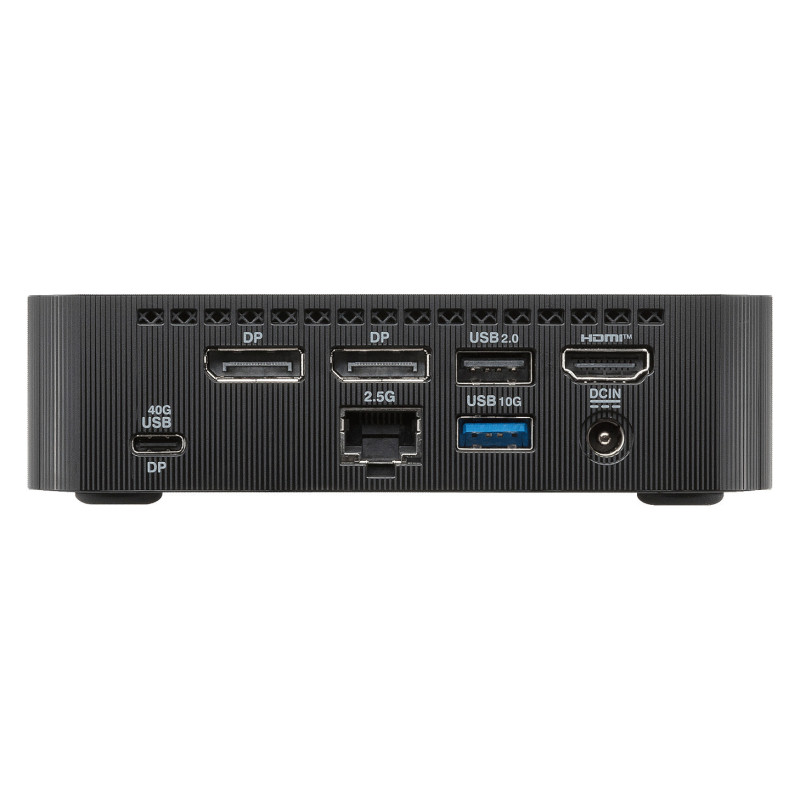

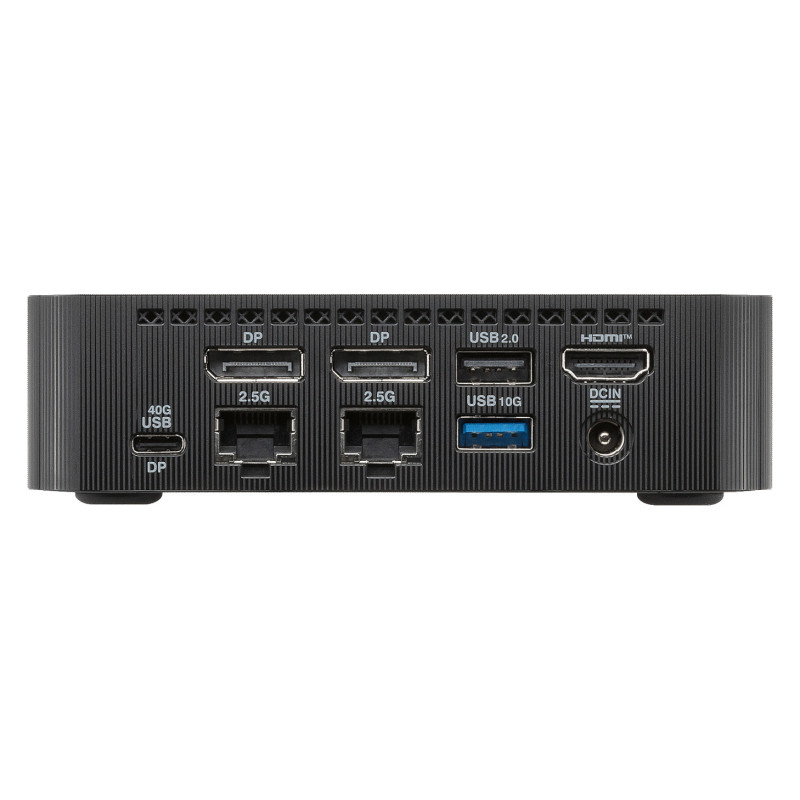

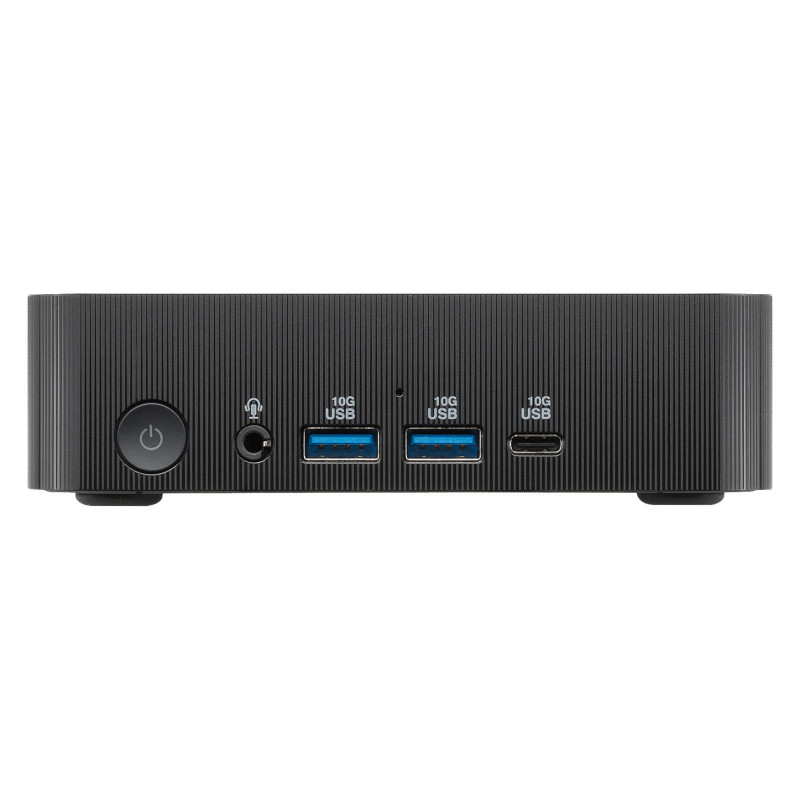

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB4 Gen 3x2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes

Design

Chassis type: 0.6L sized PC
Product colour: Black
Cooling type: Active
On/off switch: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Product type: Mini PC barebone

Software

Operating system installed: No

Power

Power supply type: External AC adapter
Power supply: 120 W

Weight dimensions

Width: 130 mm
Depth: 130 mm
Height: 34 mm
Weight: 550 g
Package width: 189 mm
Package depth: 157 mm
Package height: 134 mm
Package weight: 1.48 kg
