ASUS ExpertCenter PN53-S1 PN53-S7027MDS1

ASUS ExpertCenter PN53-S1 PN53-S7027MDS1. Processor frequency: 2 GHz, Processor family: AMD Ryzen™ 7, Processor model: 7730U. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon Graphics. Wi-Fi. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 550 g. Product colour: Black
Ultra-compact mini PC with AMD Ryzen™ 7000U Series Processor and AMD Radeon ™ Graphics, supports Quad displays and 4K resolution, 1x PCIe® Gen3x4 M.2 NVMe™ SSD, 2.5 Gb LAN, WiFi 6E
Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53-S1 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 7000 Series Processor with Radeon™ graphics, and can accommodate multiple storage combinations.

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor generation: AMD Ryzen 7000 Series
Processor model: 7730U
Processor cores: 8
Processor threads: 16
Processor boost frequency: 4.5 GHz
Processor frequency: 2 GHz
Processor cache: 16 MB
Processor cache type: L2 L3

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR4-SDRAM
Memory slots: 2x SO-DIMM

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 3.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon Graphics
On-board graphics card model: AMD Radeon Graphics

Performance

Product type: Mini PC

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.2

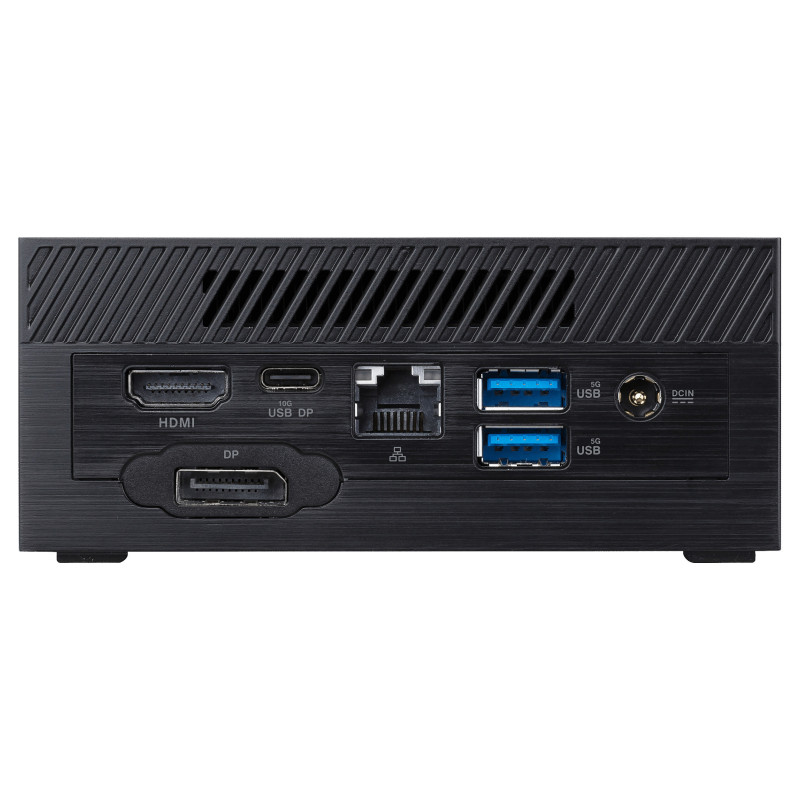

Ports interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
DC-in jack: Yes
Number of rear USB ports: 3
Number of front USB ports: 3
Number of front audio ports: 1

Power

Power supply: 90 W

Design

Chassis type: Mini PC
VESA mounting: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system installed: No

Display

Display included: No

Weight dimensions

Width: 115 mm
Depth: 115 mm
Height: 49 mm
Weight: 550 g

Packaging data

Package width: 183 mm
Package depth: 151 mm
Package height: 127 mm
Package weight: 1.84 kg

Certificates

Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Sustainability

Sustainability certificates: ENERGY STAR
