ASUS ExpertCenter PB64-B50078MH

ASUS ExpertCenter PB64-B50078MH. Processor family: Intel Core Ultra 5, Processor model: 225. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Wi-Fi. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 1.2 kg. Product colour: Black
Solid Reliability for Businesses

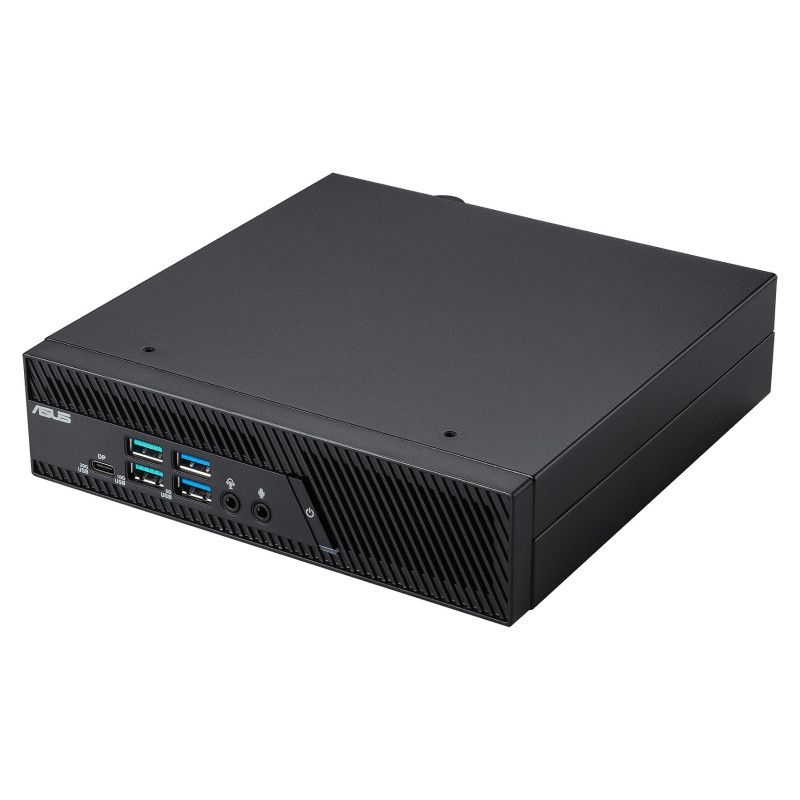

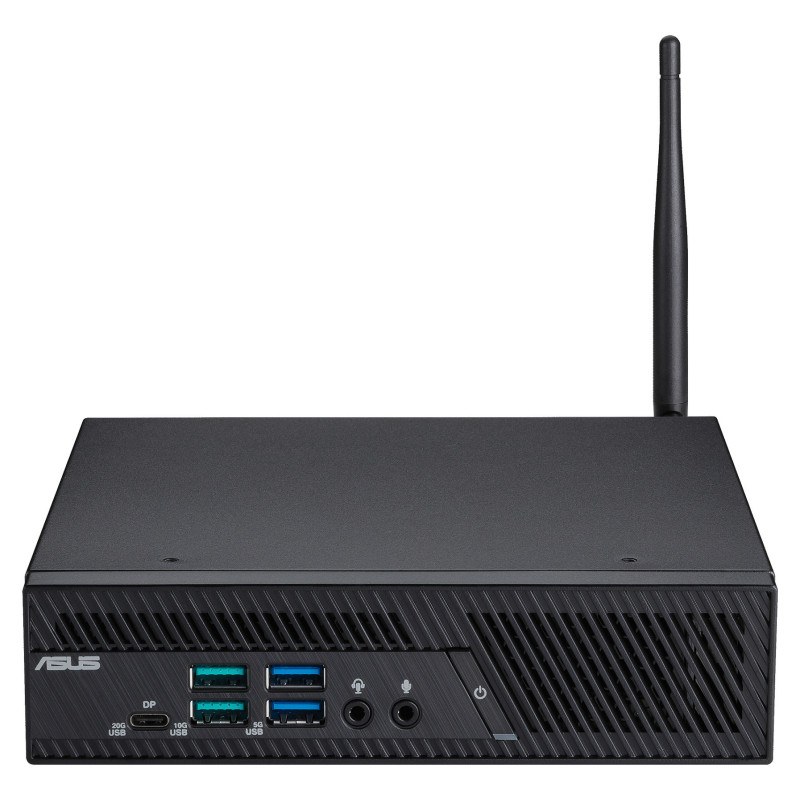

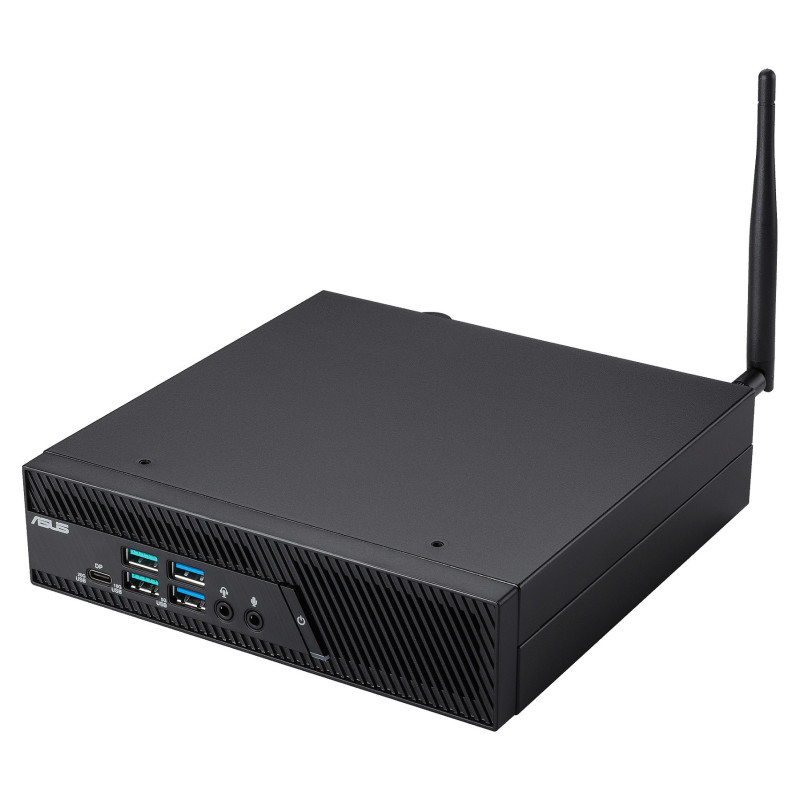

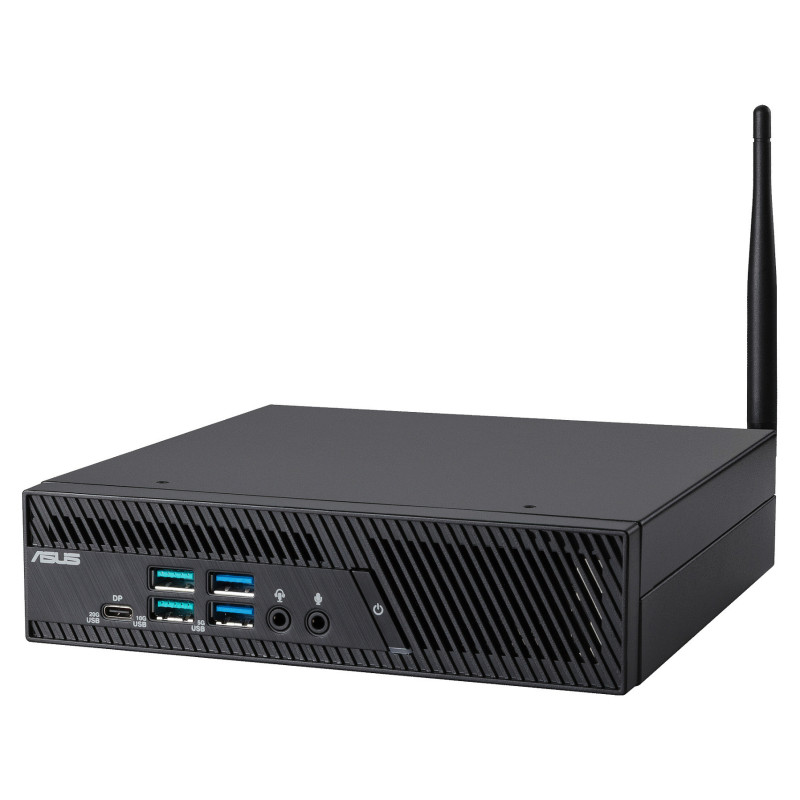

The ASUS ExpertCenter PB64 mini PC is a compact 1.35 Liter powerhouse designed for demanding computing tasks. Powered by the latest Intel® Core™Ultra processors (Series 2) with Intel® Graphics, it delivers desktop-grade performance in a small form factor. With dual PCIe Gen4 SSD slots and support for up to DDR5-6400 memory, the PB64 ensures lightning-fast data transfer. Its versatility is enhanced by configurable ports, eight USB ports, a toolless design, and triple storage options— making it an ideal solution for users who need both performance and flexibility in a mini PC.

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225
Processor cores: 10
Processor threads: 10
Processor boost frequency: 4.9 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.9 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Performance-core base frequency: 3.3 GHz
Efficient-core base frequency: 2.7 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Processor base power: 65 W
Maximum turbo power: 121 W

Neural processor unit (NPU)

Copilot+ PC: No
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: Windows ML, OpenVINO, DirectML, WebNN, ONNX RT
Total processor performance up to: 23 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 4 TOPs

Memory

Internal memory: 8 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM

Storage

Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Motherboard chipset: Intel B860
Product type: Mini PC
Built-in speaker(s): Yes

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel I226-V
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Intel Wi-Fi 7 BE202
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4

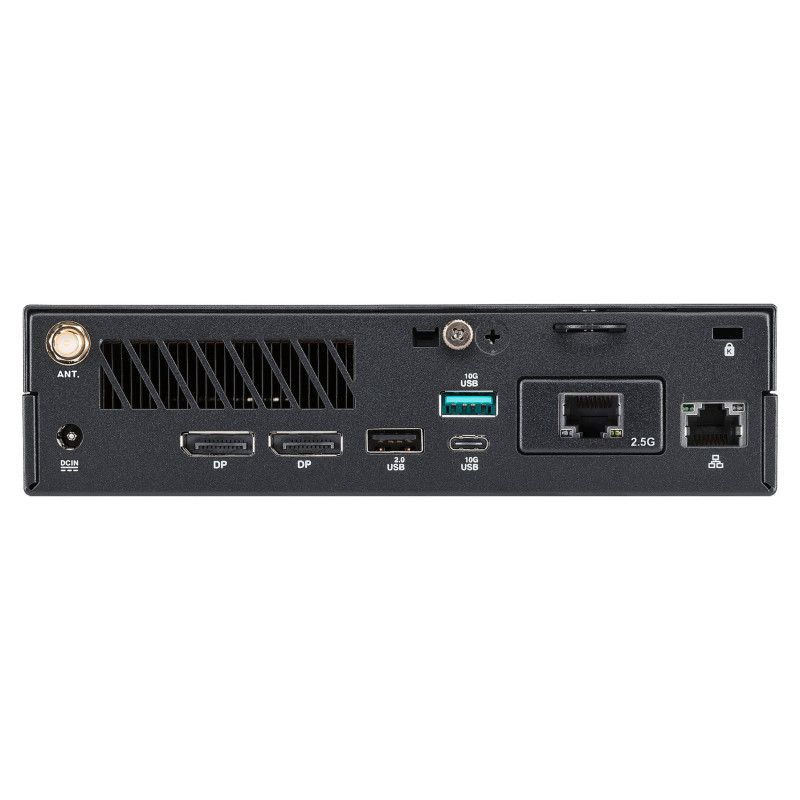

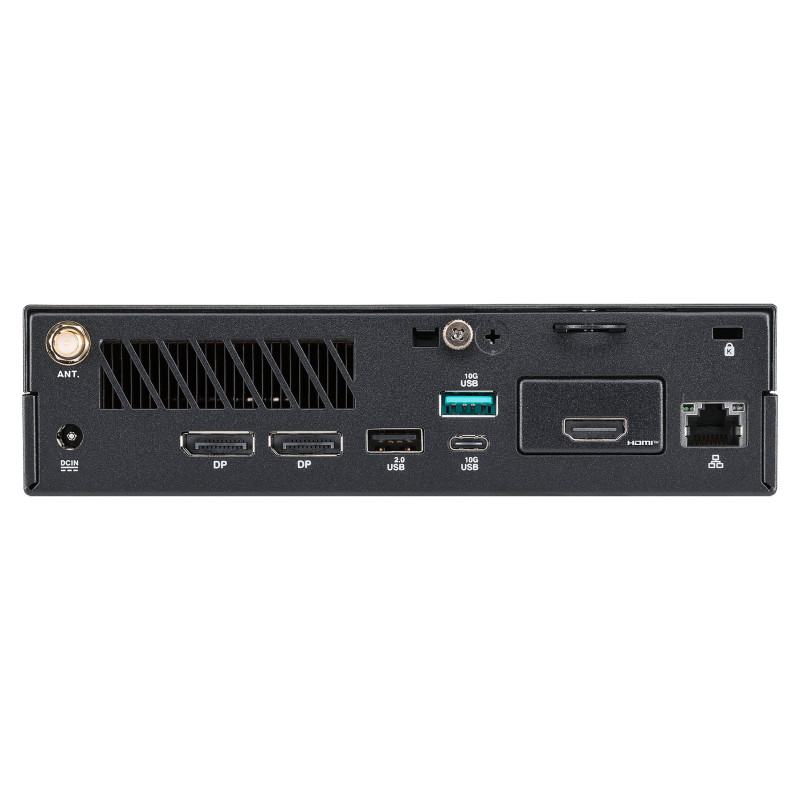

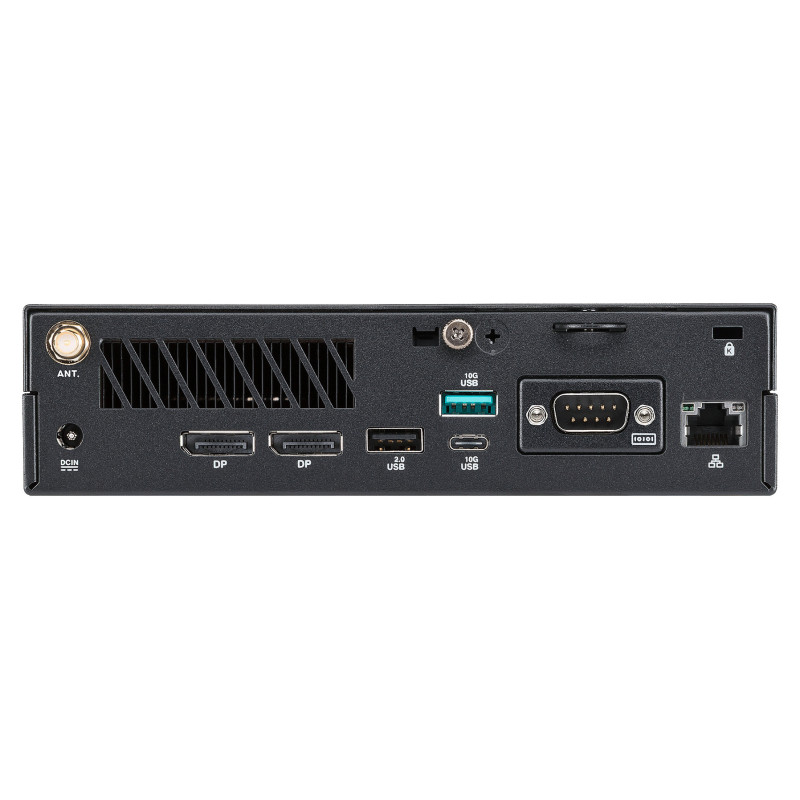

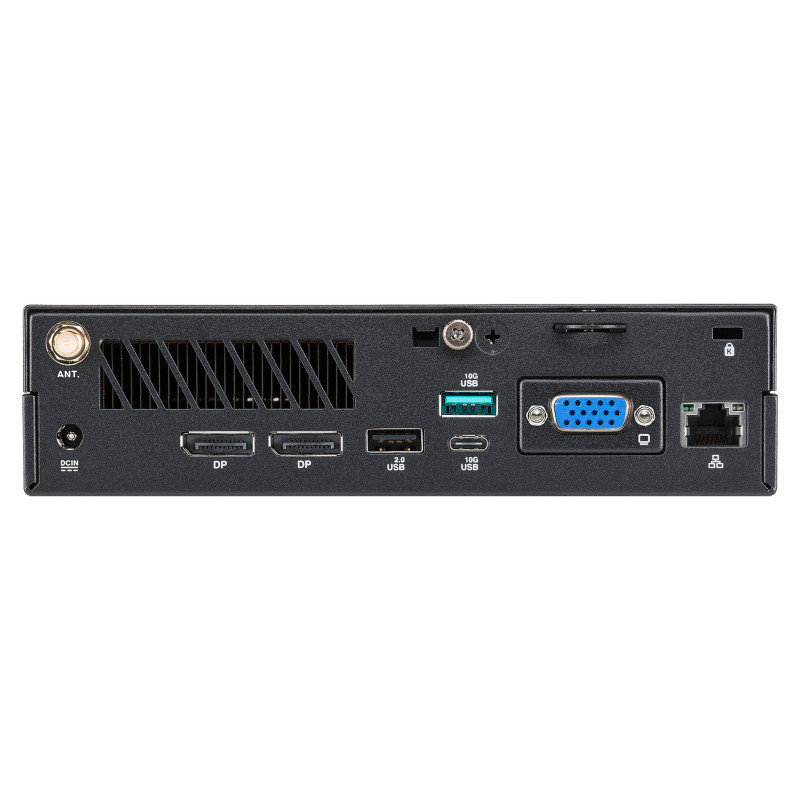

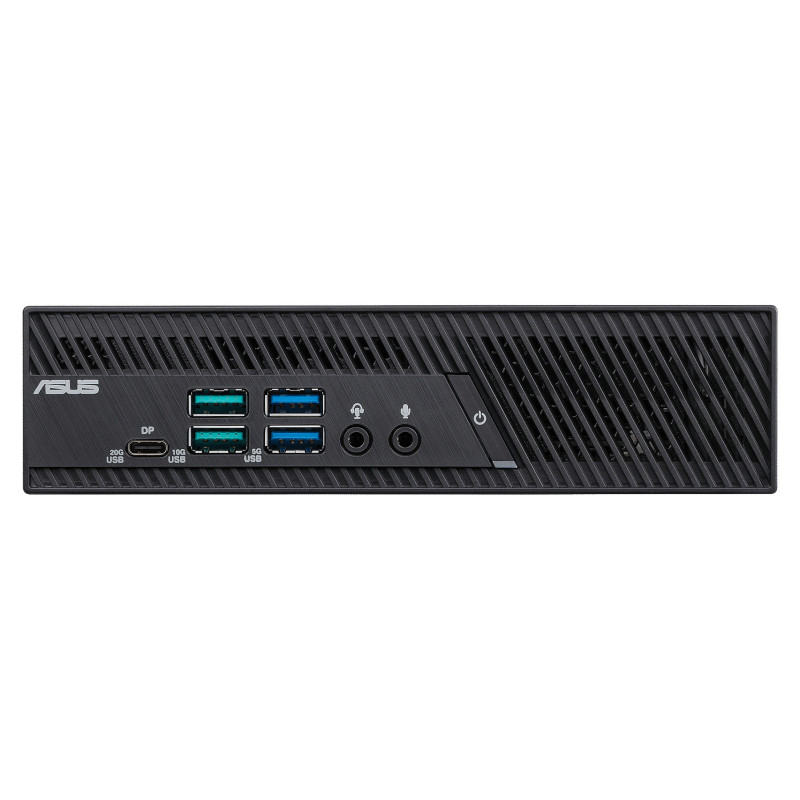

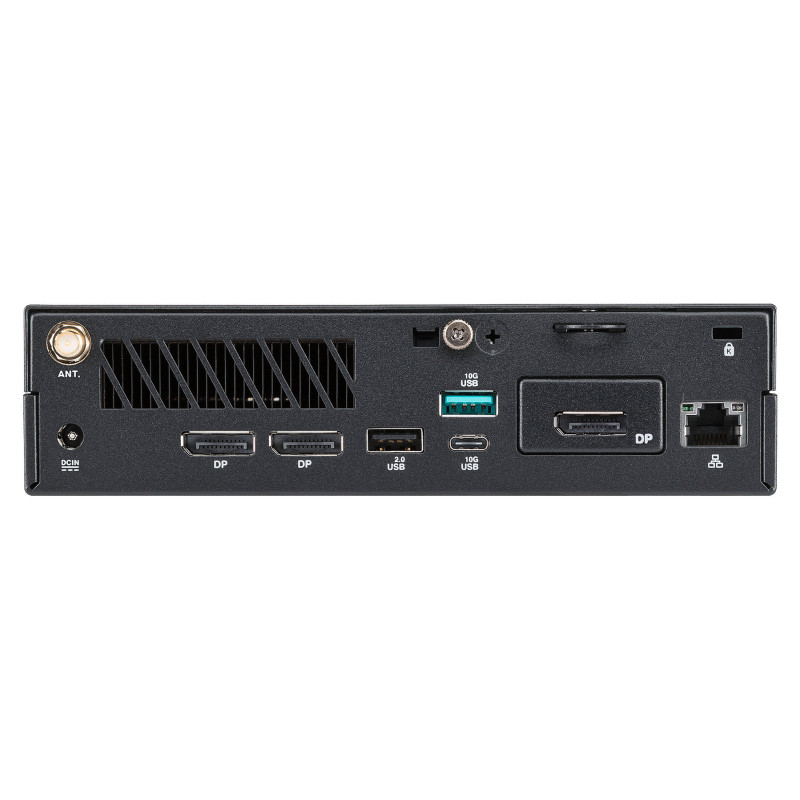

Ports interfaces

USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
USB4 Gen 2x2 ports quantity: 1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
Combo headphone/mic port: Yes
Microphone in: Yes
DC-in jack: Yes

Power

Power supply: 120 W

Design

Chassis type: Mini PC
Colour name: Black
Volume: 1.35 L
Placement supported: Horizontal/Vertical
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Certified refurbished: No

Software

Operating system installed: No

Display

Display included: No

Weight dimensions

Width: 175 mm
Depth: 175 mm
Height: 44.2 mm
Weight: 1.2 kg

Certificates

Certification: BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
