ASUS Chromebox CHROMEBOX6-S5007UN

ASUS Chromebox CHROMEBOX6-S5007UN. Processor family: Intel Core 5, Processor model: 120U. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 128 GB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel® Graphics. Operating system installed: ChromeOS. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 800 g. Product colour: Black

ASUS Chromebox 6a features 14th Generation Intel® Core™ processors and supports up to four 4K displays, with DDR5 memory and upgrades in Wi-Fi 7 & 2.5G ethernet connectivity, delivering faster performance and responsiveness for improved user productivity

Seamless Connectivity for Modern Workflows

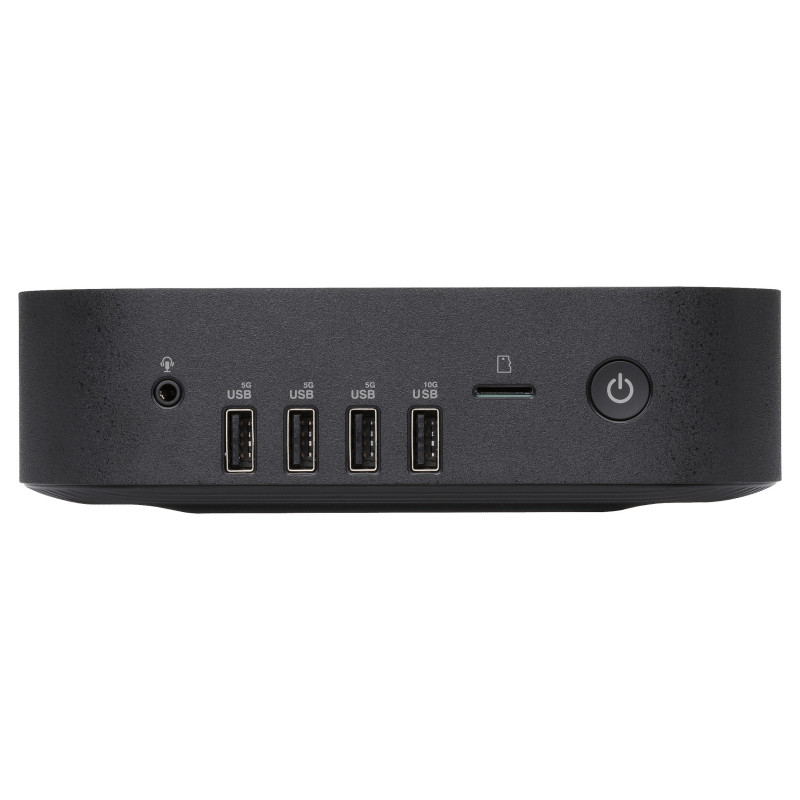

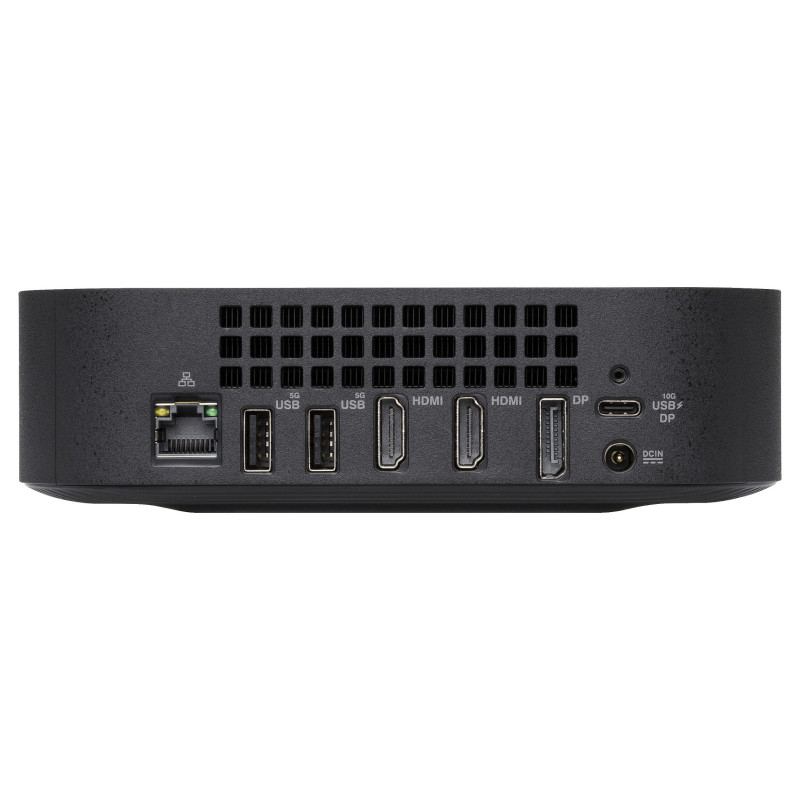

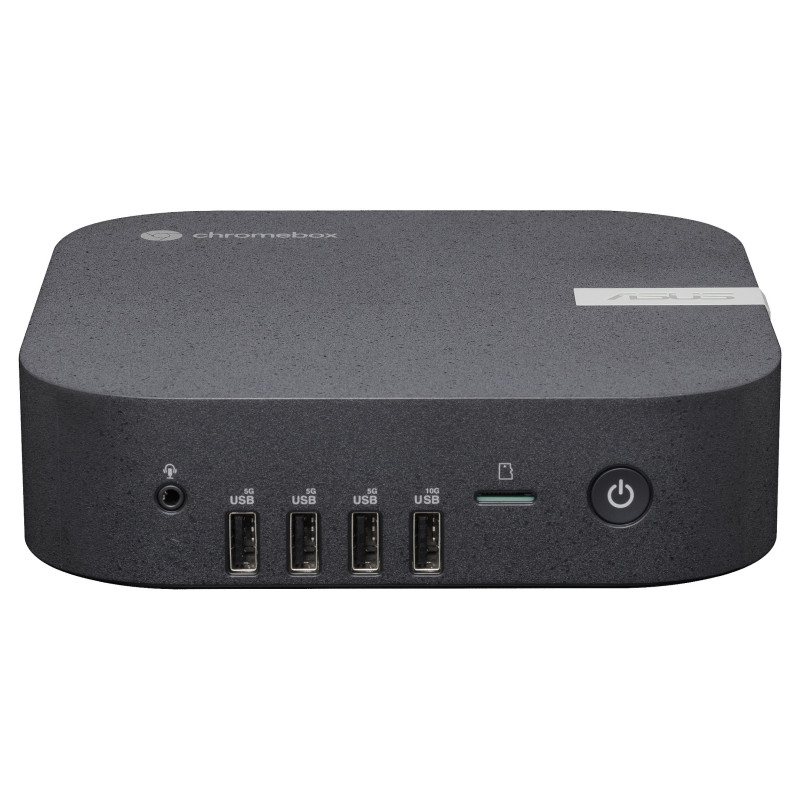

ASUS Chromebox 6a features an array of USB Type-A ports, a USB Type-C port, an SD card reader, a 2.5G LAN port, two HDMI® ports, and a DisplayPort™ connection—supporting peripherals, external drives, and multiple monitors for a seamless work experience.

Processor

Processor manufacturer: Intel
Processor family: Intel Core 5
Processor generation: Intel Core (Series 1)
Processor model: 120U
Processor cores: 10
Processor threads: 12
Processor boost frequency: 5 GHz
Performance cores: 2
Efficient cores: 8
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Performance-core base frequency: 1.2 GHz
Efficient-core base frequency: 0.9 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor socket: BGA 1744
Processor base power: 15 W
Maximum turbo power: 55 W

Memory

Internal memory: 8 GB
Maximum internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x SO-DIMM
Memory clock speed: 5600 MHz

Storage

Total storage capacity: 128 GB
Storage media: SSD
Optical drive type: No
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Feature: Card reader integrated

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Performance

Product type: Mini PC

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: DC-in jack
Feature: On/off button

Power

Power supply: 90 W
Power supply input voltage: 19 V

Design

Chassis type: Mini PC
Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system installed: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 166.5 mm
Depth: 165.8 mm
Height: 45.9 mm
Weight: 800 g

Packaging data

Package width: 334 mm
Package depth: 206 mm
Package height: 69 mm
Package weight: 1.8 kg

Certificates

Certification: BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/Wi-Fi/RF/VCCI
