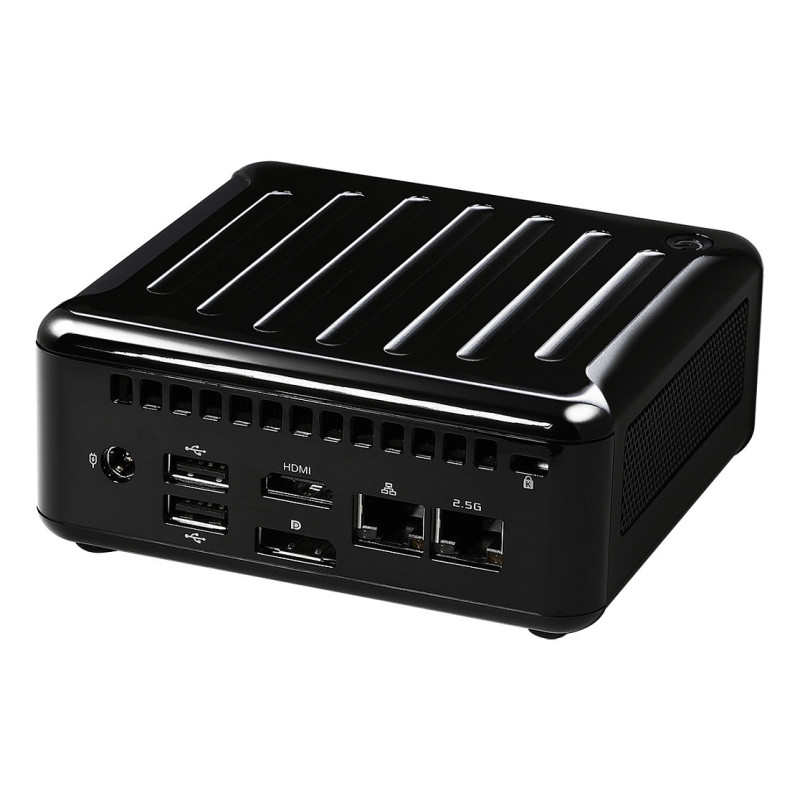

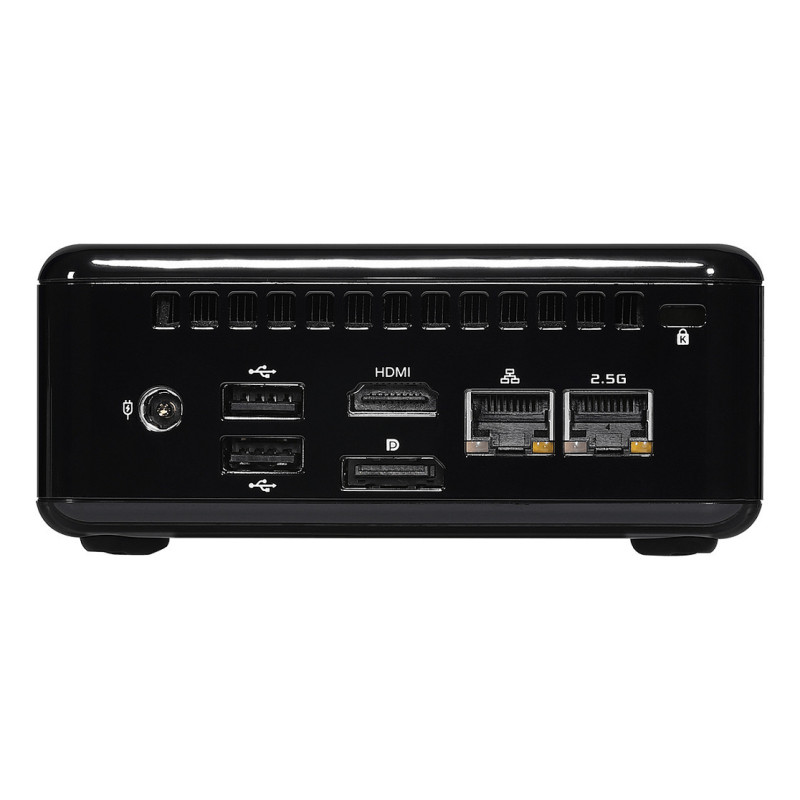

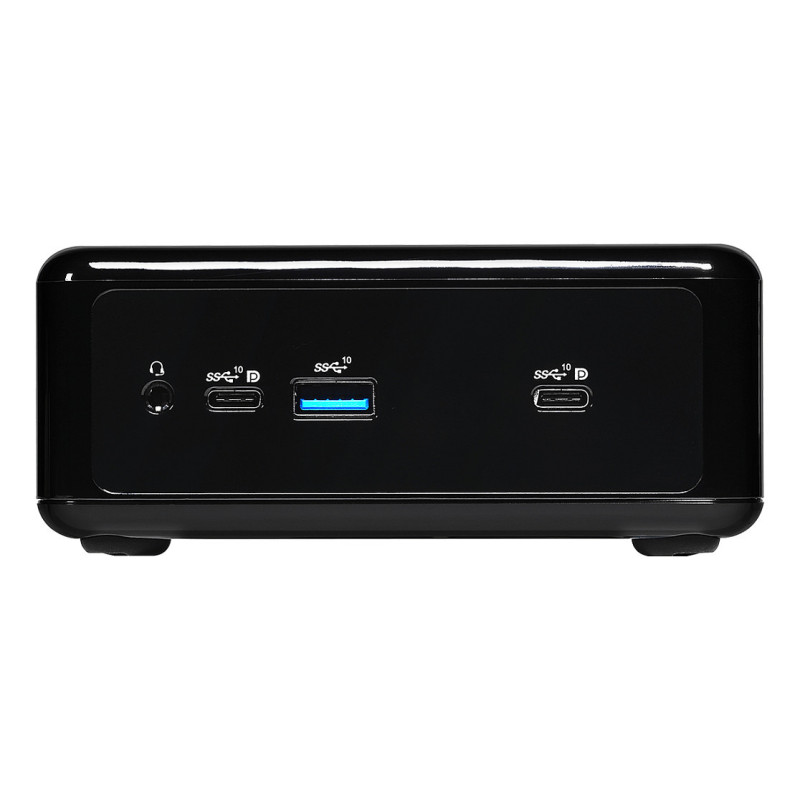

Asrock 4X4 BOX-5800U, Workstation barebone, AMD SoC, DDR4-SDRAM, PCI Express, Wi-Fi 6E (802.11ax), 90 W
Asrock 4X4 BOX-5800U, Workstation barebone, AMD SoC, DDR4-SDRAM, PCI Express, Wi-Fi 6E (802.11ax), 90 W




Asrock 4X4 BOX-5800U, Workstation barebone, AMD SoC, DDR4-SDRAM, PCI Express, Wi-Fi 6E (802.11ax), 90 W
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Asrock 4X4 BOX-5800U. Product type: Workstation barebone. Motherboard chipset: AMD SoC, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Power supply: 90 W
Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor model: 5800U
Processor cores: 8
Processor threads: 16
Processor boost frequency: 4.4 GHz
Processor frequency: 1.9 GHz
Feature: Built-in processor
L3 cache: 16 MB
Thermal Design Power (TDP): 15 W
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 3.5,M.2
SSD form factor: M.2
Storage drive interface: PCI Express
Feature: On-board graphics card
Graphics card family: AMD
On-board graphics card model: AMD Radeon Graphics
Maximum resolution: 4096 x 2160 pixels
Number of displays supported: 4
Motherboard form factor: ATX
Motherboard chipset: AMD SoC
Compatible processor series: AMD Ryzen™ 7
BIOS type: AMI
BIOS memory size: 128 Mbit
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC233
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Feature: Ethernet LAN
Feature: Wi-Fi
LAN controller: Realtek RTL8111EPV, Realtek RTL8125-BG
Feature: Bluetooth
Bluetooth version: 5.2
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0a
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Product colour: Black
Feature: On/off switch
Feature: VESA mounting
Product type: Workstation barebone
Compliance certificates: CE, Federal Communications Commission (FCC)
Power supply type: External AC adapter
Power supply: 90 W
AC adapter output voltage: 19 V
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 90%
Width: 110 mm
Depth: 117.5 mm
Height: 47.9 mm
Weight: 1 kg
| Gamintojo kodas | 90PXG970-P0EAY100 |
| Weight | 1.464 kg |
