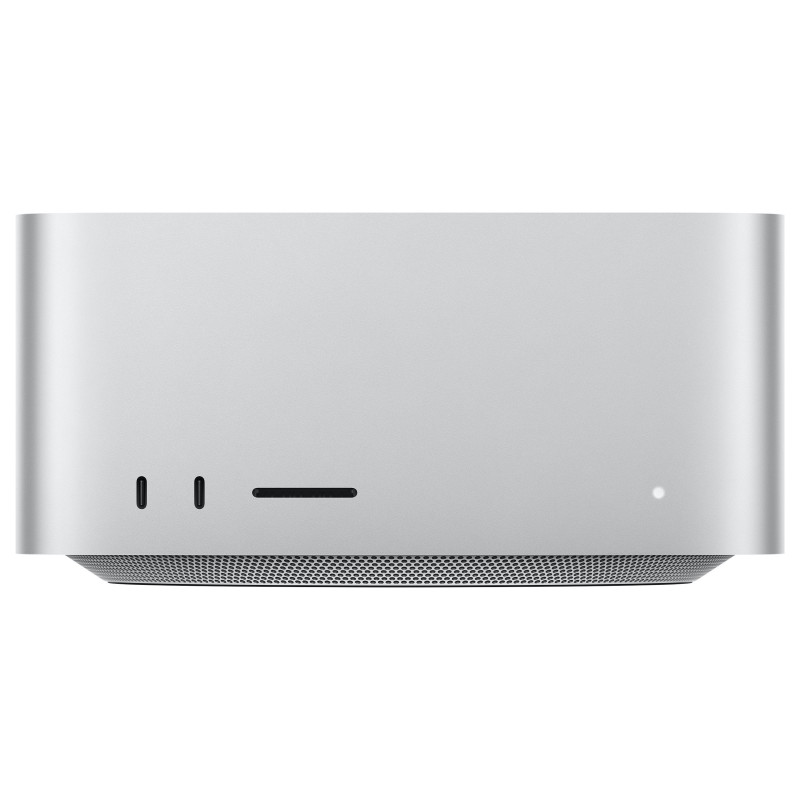

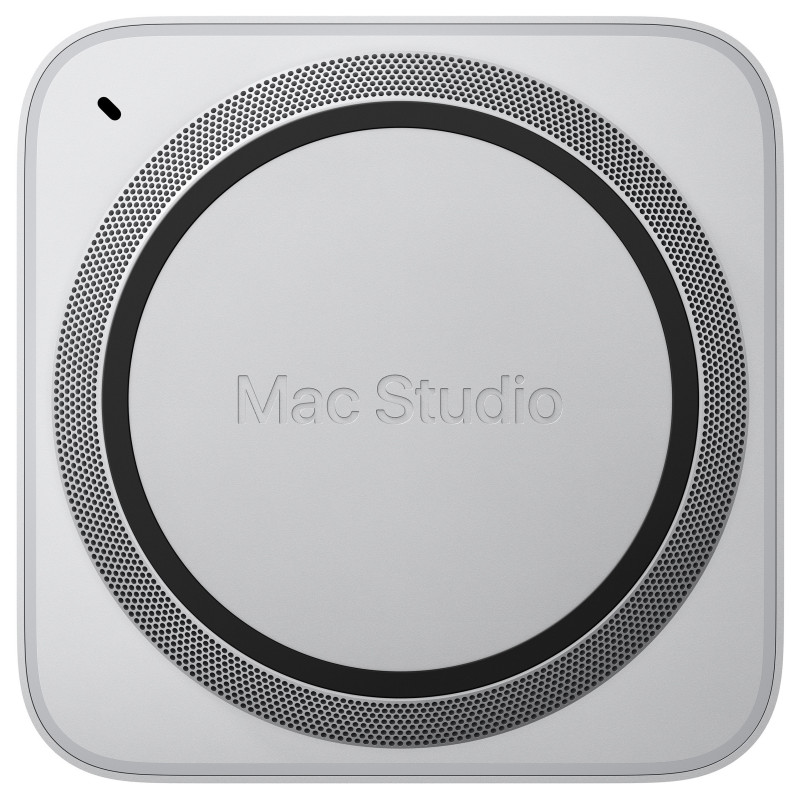

Apple Mac Studio

Apple Mac Studio . Processor family: Apple M, Processor model: M4 Max. Internal memory: 64 GB. Total storage capacity: 2 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Apple GPU. Wi-Fi. Operating system installed: macOS Sequoia. Power supply: 480 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 2.74 kg. Product colour: Silver

More power to you.

Supercharged by M4 Max and M3 Ultra.

Processor

Processor manufacturer: Apple
Processor family: Apple M
Processor generation: Apple M Max 4th Gen
Processor model: M4 Max
Processor cores: 16
Performance cores: 12
Efficient cores: 4

Neural processor unit (NPU)

Neural processor unit (NPU): Apple Neural Engine (ANE)
Neural processor unit (NPU) cores: 16

Memory

Internal memory: 64 GB
Memory bandwidth (max): 546 GB/s

Storage

Total storage capacity: 2 TB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 2 TB
Number of SSDs installed: 1
SSD capacity: 2 TB
Feature: Card reader integrated
Compatible memory cards: SDXC

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Apple
On-board graphics card family: Apple
On-board graphics card model: Apple GPU
On-board graphics card cores: 40
Feature: On-board graphics card 6K support
Feature: On-board graphics card 8K support
Number of external displays supported: 6
Feature: Ray tracing acceleration

Performance

Product type: Mini PC
Feature: Built-in speaker(s)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: Intel® Thunderbolt 5
Thunderbolt 5 ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: DC-in jack
Number of rear USB ports: 2
Number of front USB ports: 2

Power

Power supply: 480 W
Power supply input voltage: 100 - 240 V
Power supply input frequency: 50/60 Hz

Design

Chassis type: Mini PC
Product colour: Silver
Housing material: Aluminium
Introduction year: 2025
Introduction month: March

Software

Operating system installed: macOS Sequoia
Feature: Apple Intelligence

Processor special features

Feature: Video decode engine
Feature: Video encode engine

Brand-specific features

Accessibility features: Increase Contrast, Reduce Motion, Siri and Dictation, Switch Control, Voice Control, VoiceOver, Zoom, Live Captions

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 47 °C
Operating relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 5000 m

Weight & dimensions

Width: 197 mm
Depth: 197 mm
Height: 95 mm
Weight: 2.74 kg

Packaging data

Package width: 217 mm
Package depth: 283 mm
Package height: 292 mm
Package weight: 4.88 kg

Packaging content

Cables included: AC

Sustainability

Sustainability certificates: ENERGY STAR
Doesn't contain: Mercury, PVC/BFR

Multimedia

Video formats supported: AV1, H.264, HEVC, ProRes

Other features

Warranty period: 1 year(s)
