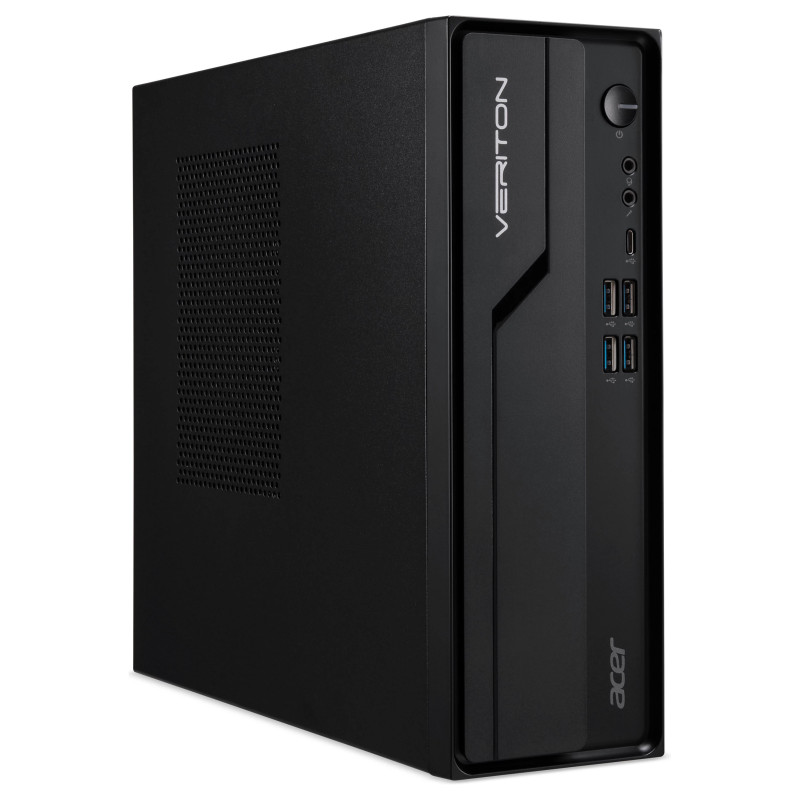

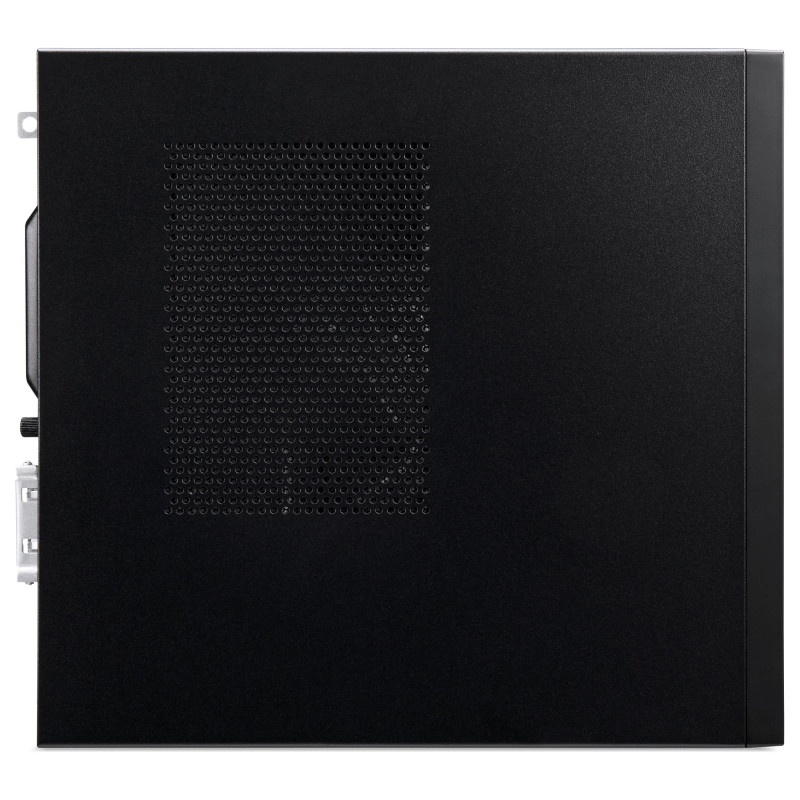

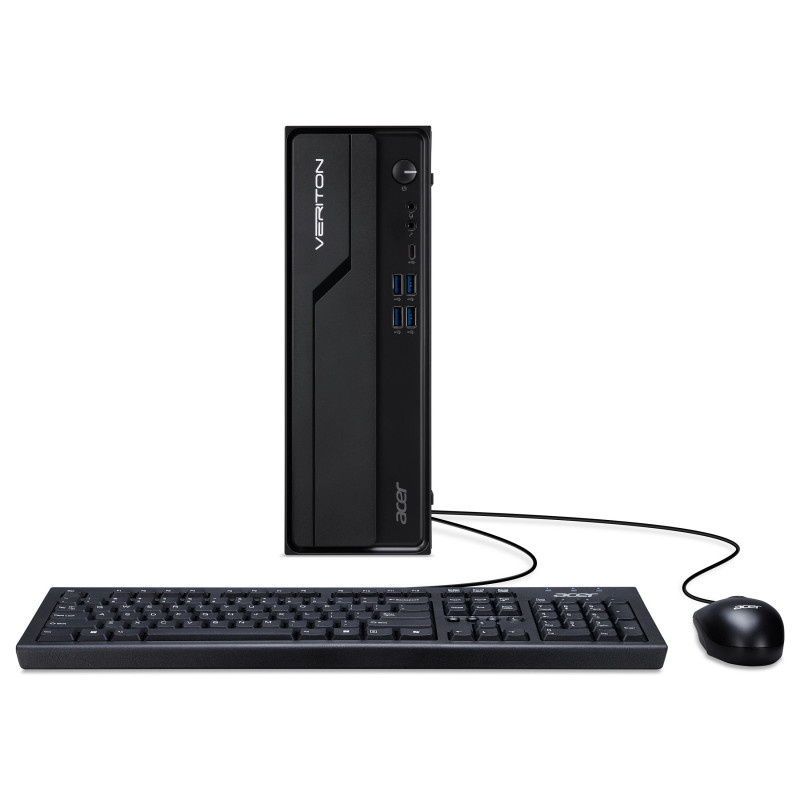

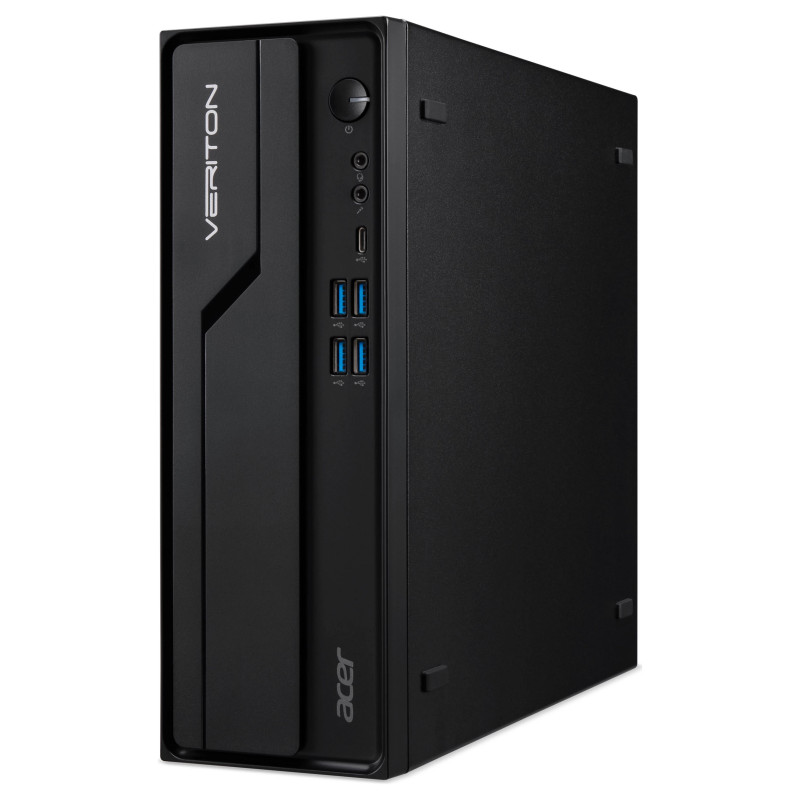

Acer Veriton X VX1720G

Acer Veriton X VX1720G. Processor family: Intel® Core™ i5, Processor model: i5-14450HX. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 200 W. Chassis type: SFF. Product type: PC. Product colour: Black

Built for evolving business needs, this compact desktop delivers next-gen Intel® Core™ Ultra performance, fast connectivity, and scalable expansion in a streamlined design.

Next-Generation Performance
Accelerate workloads with Intel® Core™ Ultra processors and advanced HM870 chipset architecture for responsive, efficient computing.

High-Speed Memory and Storage
Work efficiently with up to 64 GB DDR5 memory and up to 2 TB M.2 2280 PCIe SSD storage for quick access to files and applications.

Advanced Connectivity Options
Enable faster, more reliable connections with Wi-Fi 7 support, Bluetooth 5.4, and versatile networking capabilities.

Built-In Security Foundation
Protect business data with TPM 2.0 and hardware-level security designed for trusted operation.

Future-Ready Expansion
Scale your system as demands increase with PCIe slots for graphics, storage, and additional capabilities, ensuring long-term flexibility and performance.

Integrated Audio Experience
Deliver clear sound with built-in high-definition audio for conferencing and media tasks.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14450HX
Processor cores: 10
Processor threads: 16
Processor boost frequency: 4.8 GHz
Performance cores: 6
Efficient cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: BGA 1964
Processor base power: 55 W
Maximum turbo power: 157 W

Memory

Internal memory: 16 GB
Maximum internal memory: 64 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x SO-DIMM
Memory data transfer rate: 5600 MT/s

Storage

Total storage capacity: 512 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics

Performance

Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 5.1 channels

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.3

Ports & interfaces

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4b
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Feature: Line-out
Feature: Line-in

Expansion slots

PCI Express x1 slots: 1
PCI Express x16 slots: 1

Power

Power supply: 200 W
80 PLUS certification: 80 PLUS Bronze

Design

Chassis type: SFF
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Audio

Audio system: High Definition Audio

Weight & dimensions

Width: 95 mm
Depth: 277.5 mm
Height: 930 mm

Certificates

Certification: RoHS, DMI, GS, ENERGY STAR ®, PC2001, BSMI, CE, FCC, CB
