Ugreen 10902 storage drive enclosure

Ugreen 10902. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: M.2, PCI Express. Data transfer rate: 10 Gbit/s. Product colour: Grey. USB connector type: USB Type-C

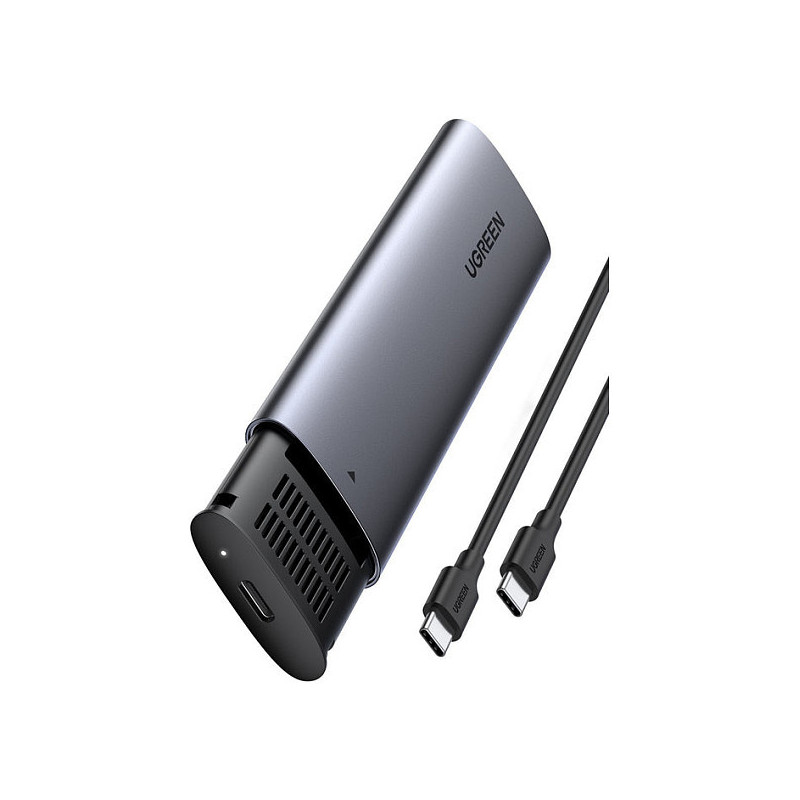

Portable NVMe M.2 SSD External Enclosure
UGREEN M.2 USB-C Enclosure is designed to house an M-Key or M+B Key NVMe PCIe SSD and turn it into a portable USB 3.1 external drive for maximum utilization. Tool-free and no driver needed, just plug and play. Ideal for cloning files, backing up data, reusing old M.2 SSD, expanding storage space.

10Gbp SuperSpeed & UASP Supported
The USB 3.1 interface incorporates with UASP (USB Attached SCSI Protocol) that enables it to perform a 70% faster read speed and 40% faster write speed than conventional USB 3.1 when used with a UASP-enabled host computer.

Main Features
Plug & Play and Hot-Swapping. Easy installation & no driver required. No additional power required.
Support all 2230 2242 2260 2280 PCIe NVMe M.2 SSD of M-Key or M+B Key form factor.
Support UASP, S.M.A.R.T and TRIM.
Constructed with aluminum alloy which is better for heat dissipation, no worry about over-heat.
Built with short-circuit, over-current and multi-protection to ensure safety for your SSD and valuable data.

Designed for NVMe PCIe M.2 SSD
The NVMe M.2 Caddy features a sleek and compact size(L122*W40*H12mm), it is specially designed for M-Key and M+B Key PCIe NVMe M.2 SSD of 2230/2242/2260/2280 from factors up to 2TB, Does not support NGFF SATA based B-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, mSATA SSD.

Storage

Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: M.2, PCI Express

Ports & interfaces

Feature: USB connectivity
USB version: 2.0/3.2 Gen 2 (3.1 Gen 2)
USB connector type: USB Type-C

Design

Product type: SSD enclosure
Product colour: Grey
Material: Aluminium

Performance

Data transfer rate: 10 Gbit/s

Weight & dimensions

Width: 37 mm
Depth: 119 mm
Height: 12 mm
