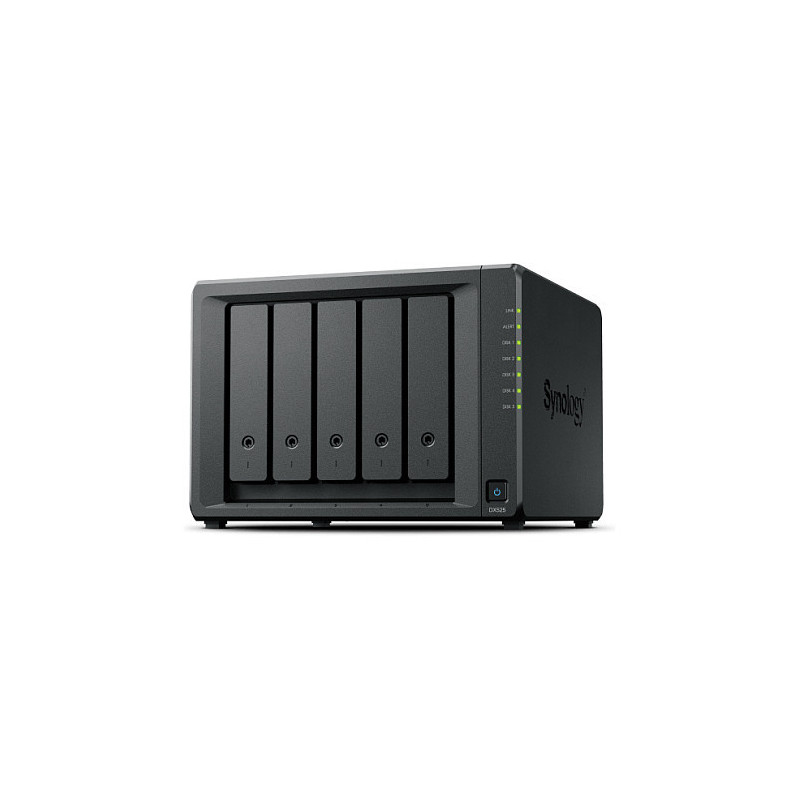

Synology DX525 disk array

Synology DX525. Chassis type: Desktop, Device class: Small & Medium Business. Number of storage drives supported: 5, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Storage drive sizes supported: 2.5,3.5". Width: 230 mm, Depth: 223 mm, Height: 166 mm, Weight: 2.46 kg. Product colour: Black

Storage expansion without downtime
Easily add five additional drive bays to your Synology DiskStation.1 The DX525 supports both 2.5" and 3.5" SATA drives and features plug-and-play setup and hot-swap capability for uninterrupted operation during capacity expansion.

Dedicated local backup solution
The Synology DX525 provides a dedicated local backup solution for your Synology DiskStation. When configured as a separate volume, it safeguards data on its local disks in case of system failure.

Online volume expansion
Managed through the host NAS's DiskStation Manager (DSM), the DX525's additional bays are immediately available upon connection. On-the-fly volume expansion ensures uninterrupted service and storage expansion on the host.

Performance backed by Synology drives
Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.

Synology has you covered
The DX525 is backed by Synology's three-year limited warranty,2,3 including technical support and hardware replacement services. Extend your coverage to five years and gain access to premium services that accelerate recovery in the event of a disaster with Extended Warranty Plus.

Storage

Supported storage drive types: HDD & SSD
Number of storage drives supported: 5
Supported storage drive interfaces: Serial ATA
Storage drive sizes supported: 2.5,3.5"
Feature: Hot-swap drive bays

Design

Device class: Small & Medium Business
Chassis type: Desktop
Product colour: Black
LED indicators: Yes
Feature: Cable lock slot
Cable lock slot type: Kensington
Number of fans: 2 fan(s)
Noise level: 20.4 dB
Fan diameter: 9.2 cm
Certification: FCCCEBSMIUKCAEACVCCIRCMKCBIS

Power

Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Weight & dimensions

Width: 230 mm
Depth: 223 mm
Height: 166 mm
Weight: 2.46 kg

Packaging content

Cables included: AC
Power cables quantity: 1

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 60 °C

Other features

Compliance certificates: RoHS
