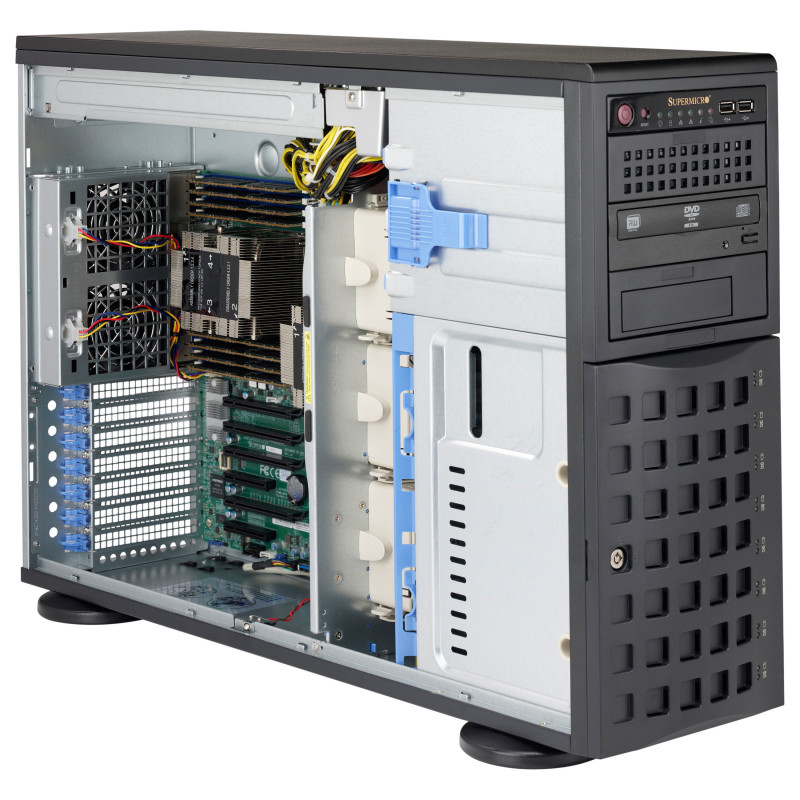

Supermicro CSE-745BAC-R1K23B-SQ computer case

Supermicro CSE-745BAC-R1K23B-SQ. Form factor: Full Tower, Type: Server, Product colour: Black. Power supply: 1230 W. Front fans installed: 2x 80 mm, Front fans diameters supported: 80 mm, Rear fans installed: 1x 90 mm. Supported HDD sizes: 2.5,3.5,5.25". Width: 178 mm, Depth: 647 mm, Height: 452 mm
Supermicro's SC745 chassis series is optimized for the latest Intel Xeon processor and is also compatible with previous generation Intel and AMD single/dual processor-based motherboards. Utilizing redundant, high-efficiency power supplies (95+%) and eight hot-swap 3.5" drive bays, this chassis offers reliable performance with problem-free maintenance. Designed with 100% cooling redundancy using a combination of high-performance fans, the chassis minimizes the probability of system downtime or performance degradation from thermal-related issues. With seven tool-less PCIe expansion slots, and 6-pin power connectors supporting up to three high-end graphics cards, and it is quick to configure and easy to operate. Optionally, this tower can be converted to a 4U rack-mountable chassis in a standard rack.

Design

Form factor: Full Tower
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX
Number of 3.5" bays: 8
Number of 5.25" bays: 3
Number of 2.5" bays: 8
Number of expansion slots: 7
Rack mounting: Yes
Rack capacity: 4U
Reset button: Yes
On/off button: Yes
LED indicators: HDD, Network, Power, Power fail, System
Certification: Redundant Titanium Level Certified

Power supply

Power supply included: Yes
Power supply: 1230 W
Number of SATA connectors: 8

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Front fans installed: 2x 80 mm
Number of front fans supported (max): 2
Front fans diameters supported: 80 mm
Rear fans installed: 1x 90 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 90 mm

Storage

Supported HDD sizes: 2.5,3.5,5.25"
Number of HDDs supported: 19
Hot-swap: Yes

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width: 178 mm
Depth: 647 mm
Height: 452 mm
Weight: 26.8 kg

Logistics data

Harmonized System (HS) code: 84733080
