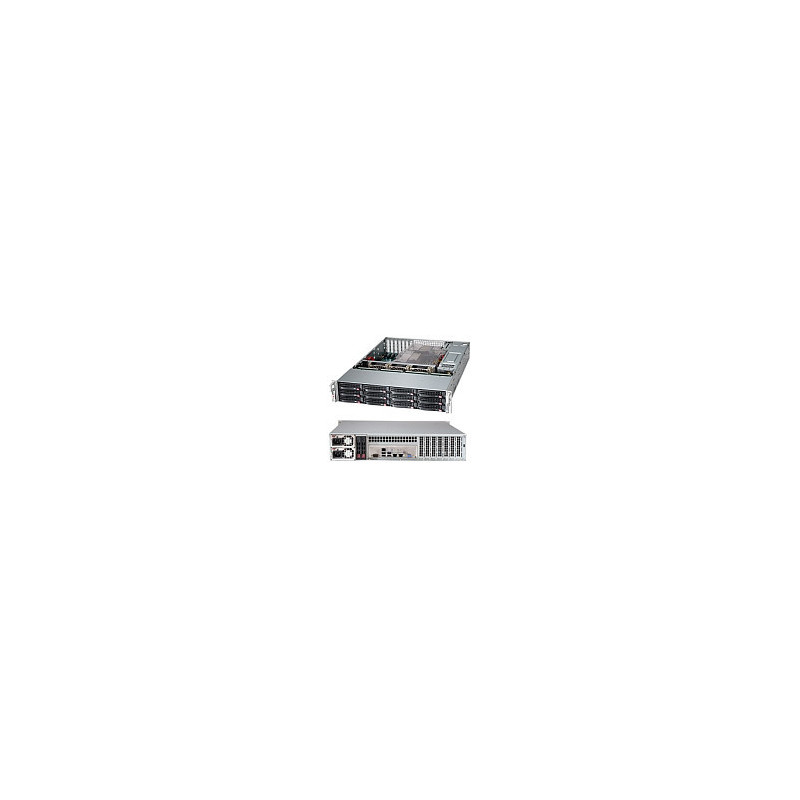

Supermicro CSE-826BAC12-R1K23LPB computer case

Supermicro CSE-826BAC12-R1K23LPB. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 1200 W. Front fans installed: 3x 80 mm, Front fans diameters supported: 80 mm. Supported HDD sizes: 2.5,3.5". Width: 437 mm, Depth: 647 mm, Height: 89 mm

Supermicro's SC826 chassis maximizes the storage capacity of a 2U form factor by offering twelve hot-swappable hard drive bays. It is ideal for data storage applications. The chassis design optimizes every aspect of interior space, without compromising superior cooling and is equipped with a redundant power supply.

Design

Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, EATX
Number of 3.5" bays: 12
Number of 2.5" bays: 2
Number of expansion slots: 7
Feature: Rack mounting
Rack capacity: 2U
Feature: Reset button
Feature: On/off button
LED indicators: Fan fail, HDD, Network, Power
Certification: Titanium Power Supply

Power supply

Feature: Power supply included
Power supply: 1200 W
Number of SATA connectors: 12

Cooling

Front fans installed: 3x 80 mm
Number of front fans supported (max): 3
Front fans diameters supported: 80 mm

Storage

Supported HDD sizes: 2.5,3.5"
Number of HDDs supported: 14
Feature: Hot-swap

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 437 mm
Depth: 647 mm
Height: 89 mm
Weight: 18.1 kg
