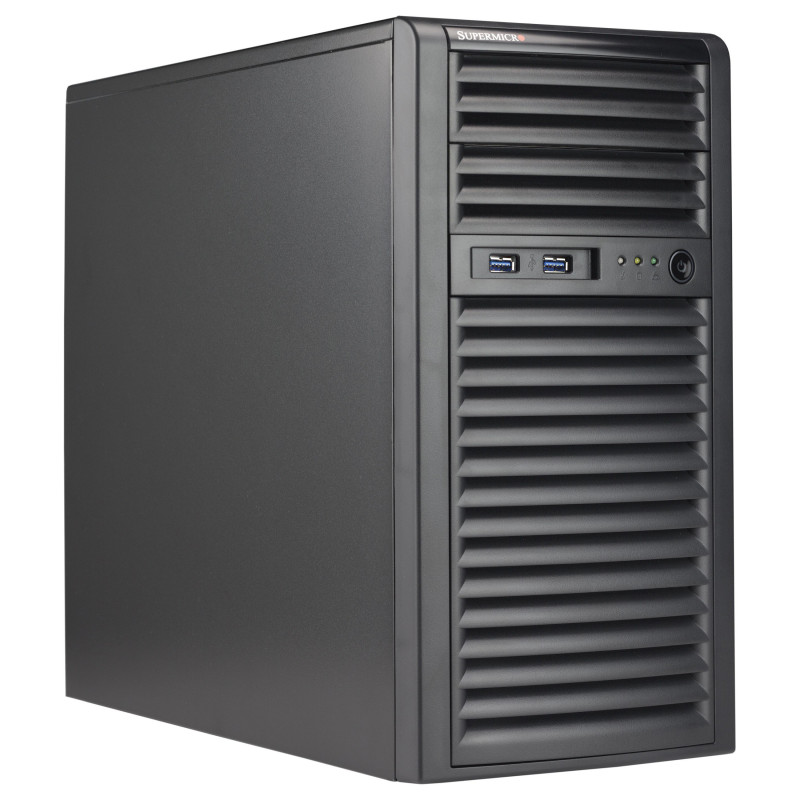

Supermicro CSE-731I-404B computer case

Supermicro CSE-731I-404B. Form factor: Mini Tower, Type: Server, Product colour: Black. Power supply: 400 W. Rear fans installed: 1x 90 mm, Rear fans diameters supported: 90 mm. Supported HDD sizes: 3.5,5.25". Width: 184 mm, Depth: 425 mm, Height: 362 mm

Supermicro's SC731 chassis features a unique and highly-optimized design, allowing most configuration of the chassis to be accomplished without tools or screws. The chassis is equipped with high-efficiency power supply. High-performance fans provide ample optimized cooling for FB-DIMM memory modules, and four hot-swap drive bays offer maximum storage capacity.

Design

Form factor: Mini Tower
Type: Server
Product colour: Black
Supported motherboard form factors: micro ATX
Number of 3.5" bays: 4
Number of 5.25" bays: 2
Number of expansion slots: 4
Feature: On/off button
LED indicators: HDD, Network, Power, System
Feature: Cable lock slot
Cable lock slot type: Kensington
Certification: Gold Level

Power supply

Feature: Power supply included
Power supply: 400 W
Feature: ATX power connector (20+4 pin)

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Cooling

Rear fans installed: 1x 90 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 90 mm

Storage

Supported HDD sizes: 3.5,5.25"
Number of HDDs supported: 6

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 184 mm
Depth: 425 mm
Height: 362 mm
Weight: 7.26 kg

Logistics data

Harmonized System (HS) code: 84733080
