StarTech.com TB31PCIEX16 laptop dock / port replicator

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure with One PCI Express Slot, PCIe Box for Laptops/Desktops/All-In-Ones, 5K/4K Output Via TB3/DP Ports, TAA Compliant. Connectivity technology: Wired, Host interface: Thunderbolt 3. Product colour: Black, Data transfer rate: 40 Gbit/s, LED indicators: Power. Number of fans: 1 fan(s), Bearing type: Sleeve bearing, Fan diameter: 6 cm. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 2 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,...

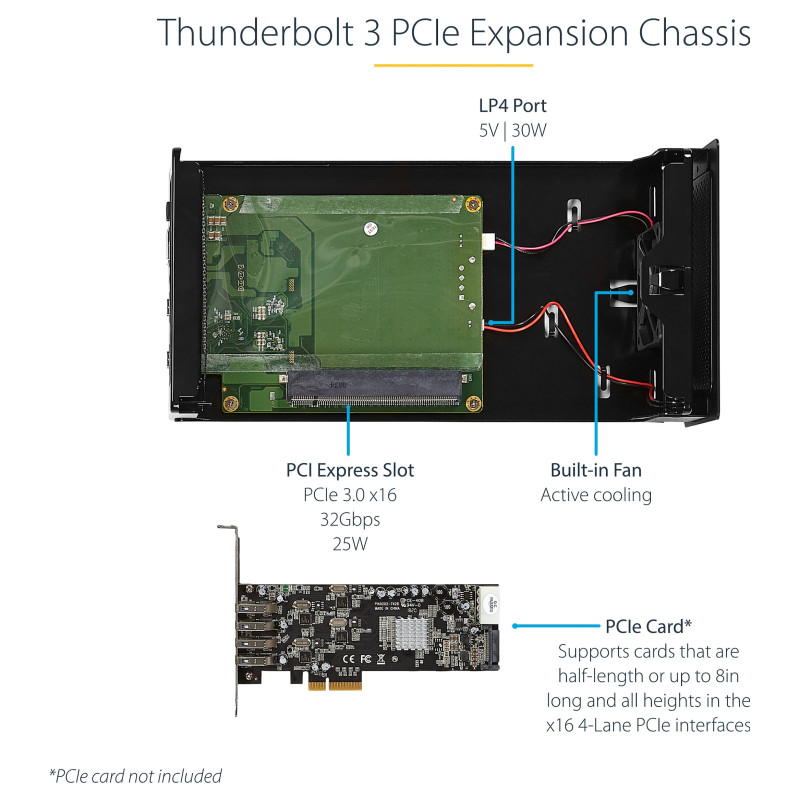

Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop

This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.

Expand the capabilities of your Thunderbolt 3 computer

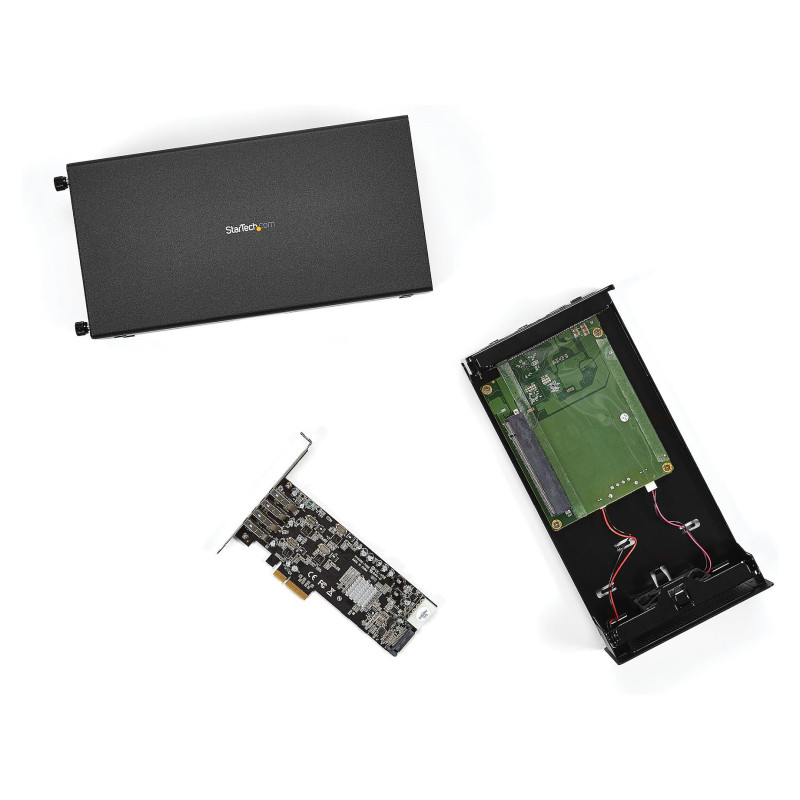

The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.

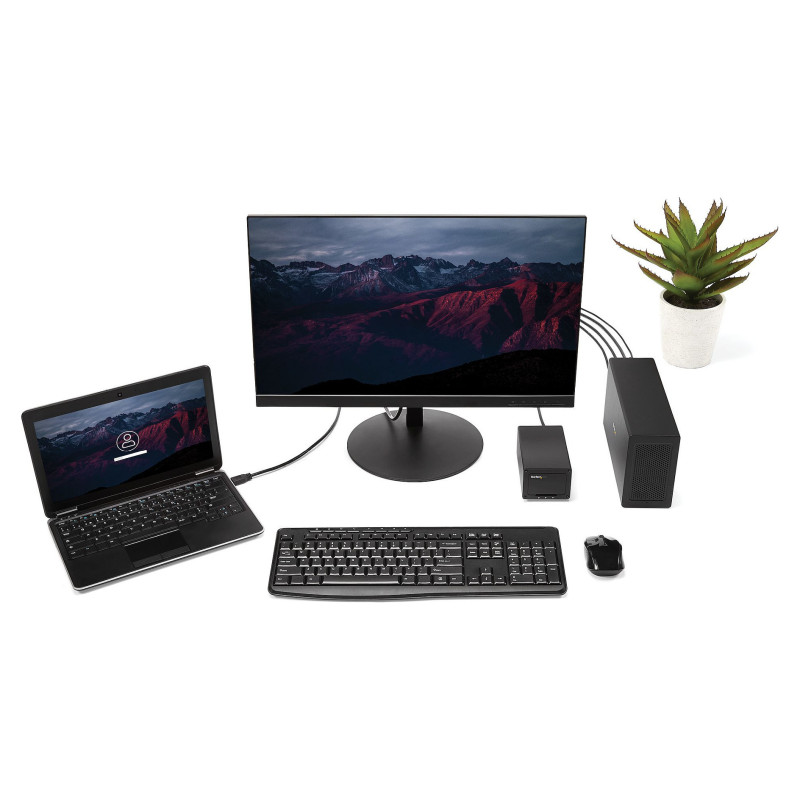

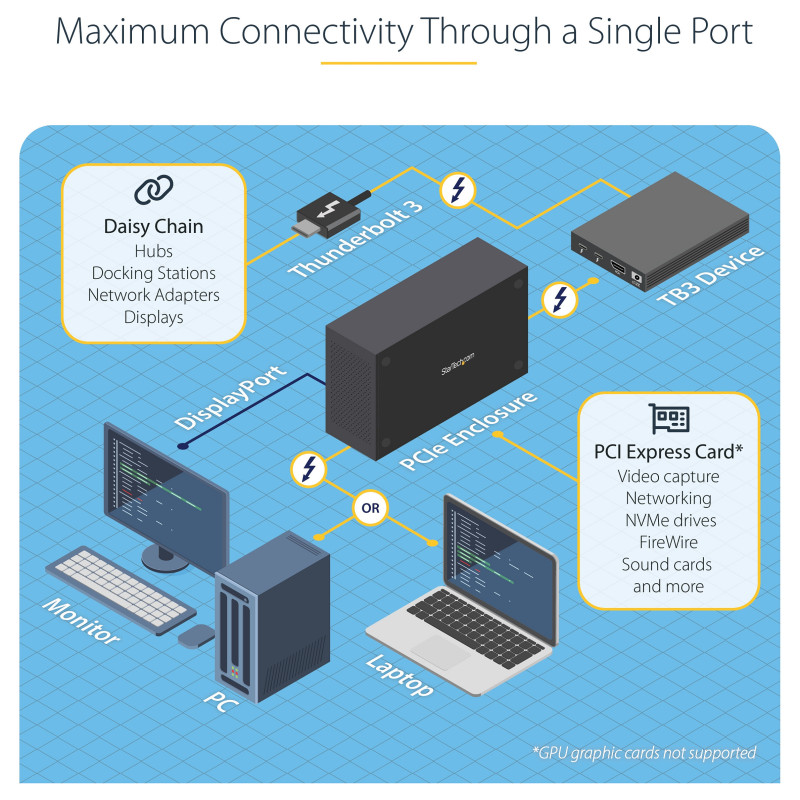

Extend your workstation

The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.

You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.

Increase productivity with faster speeds

Thunderbolt 3 is the fastest connection available, which means you don't have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.

At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.

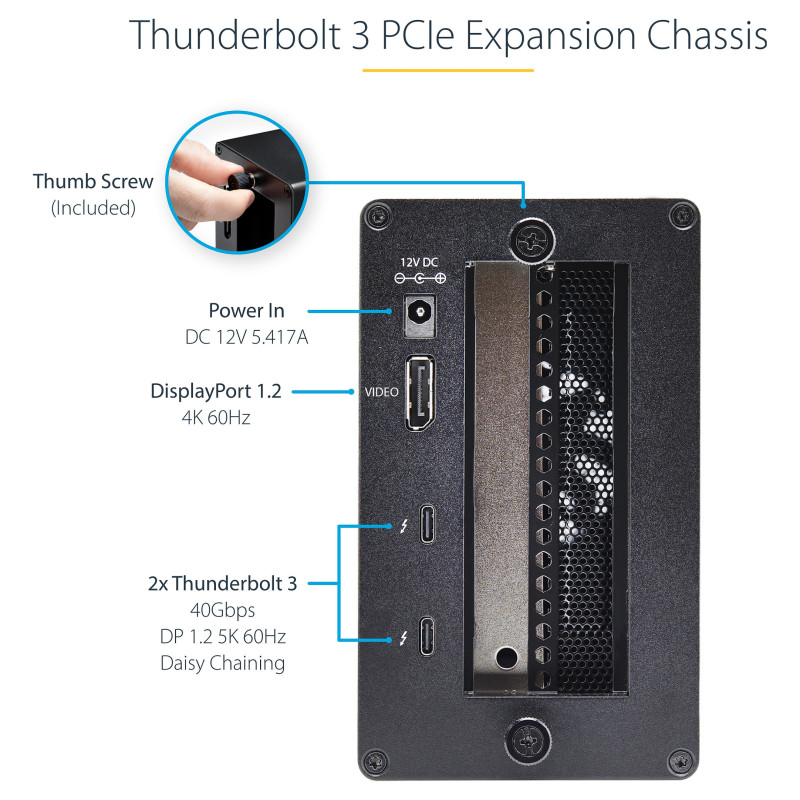

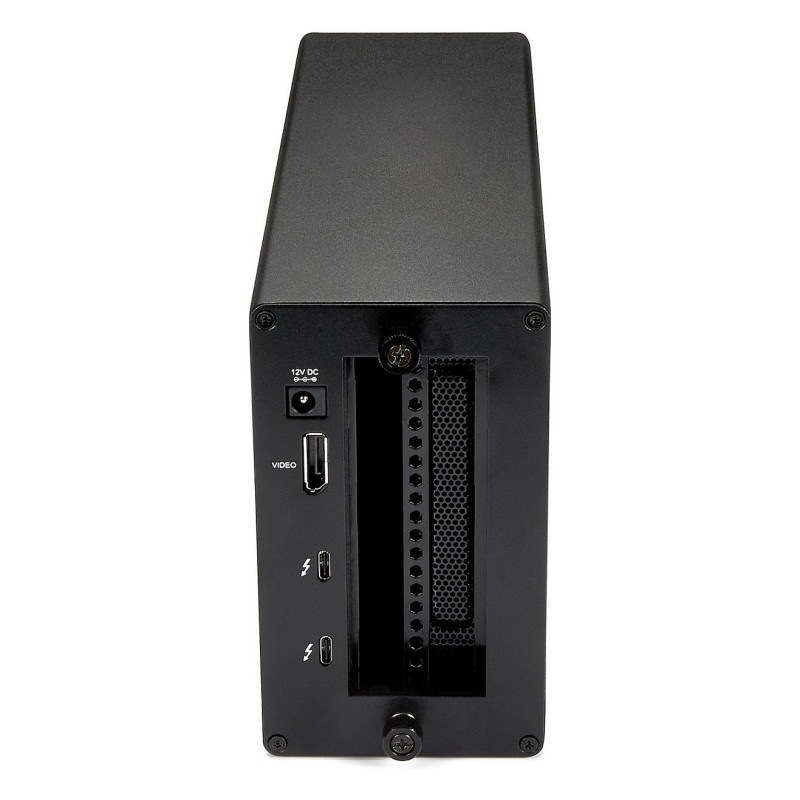

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
DisplayPorts quantity: 1
Thunderbolt 3 ports quantity: 2
Feature: DC-in jack

Performance

Data transfer rate: 40 Gbit/s
Product colour: Black
LED indicators: Power
Feature: Rubber feet
Housing material: Aluminium, Steel

Cooling

Feature: Built-in fan
Number of fans: 1 fan(s)
Bearing type: Sleeve bearing
Fan diameter: 6 cm
Noise level: 24.55 dB
Maximum airflow: 14.06 cfm

Power

Power source type: DC
AC input voltage: 100 - 240 V
Input current: 2 A
Output voltage: 12 V
Output current: 5.417 A
Power consumption (typical): 65 W
Power plug type: Type N
Compatible power plug types: AU, EU, JP, UK, US

Software

Feature: Mac compatibility

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 20 - 80%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 142 mm
Depth: 280 mm
Height: 82 mm
Weight: 1.6 kg

Packaging data

Package width: 471 mm
Package depth: 239 mm
Package height: 94 mm
Package weight: 3.1 kg

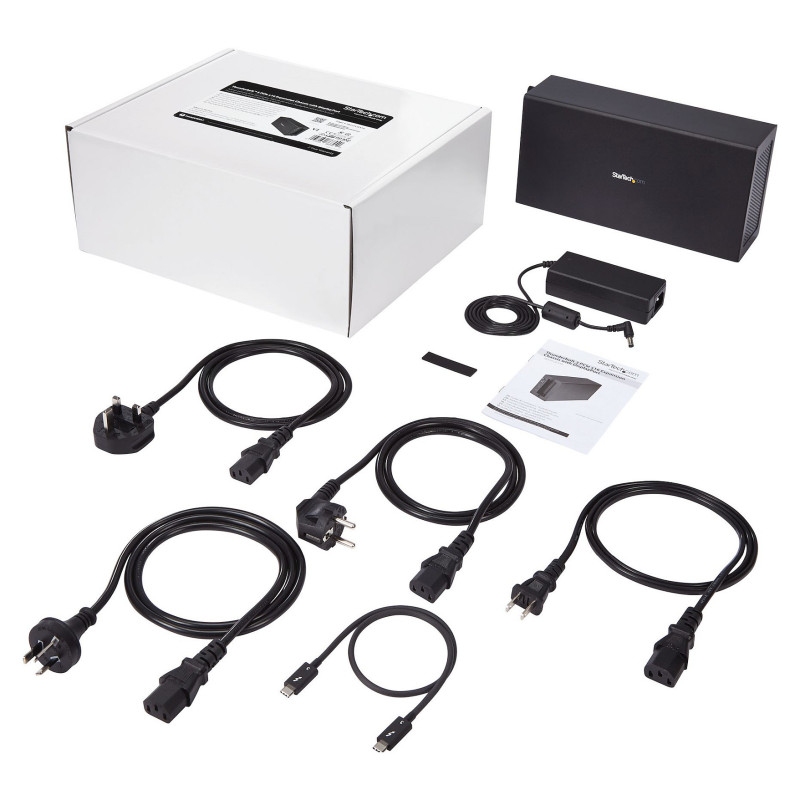

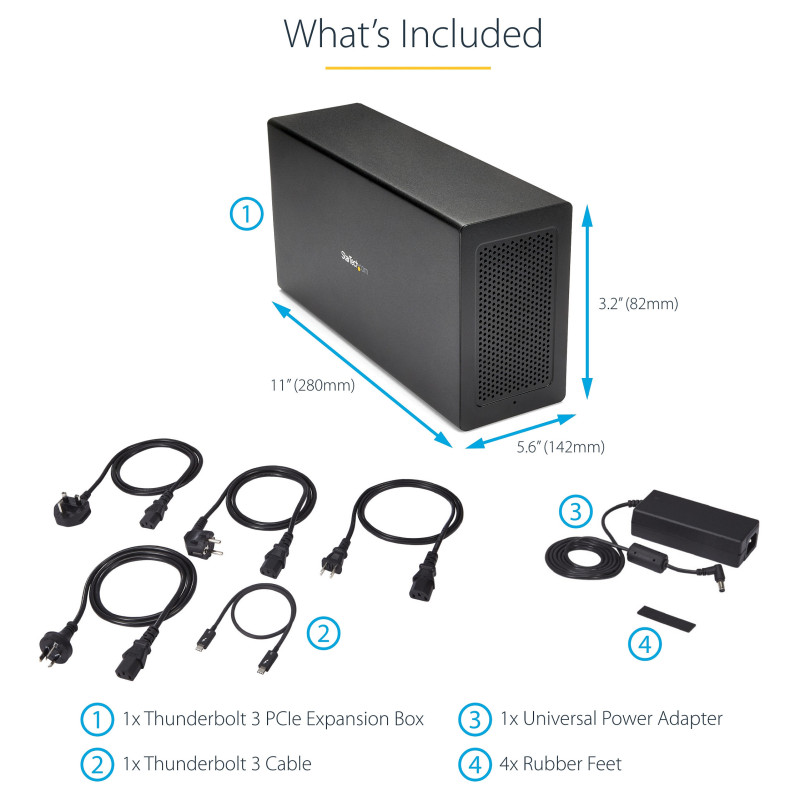

Packaging content

Cables included: Thunderbolt
Feature: AC adapter included
Feature: Quick start guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 3 pc(s)
Master (outer) case width: 467 mm
Master (outer) case length: 384 mm
Master (outer) case height: 331 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.5 m
Chipset: Intel - Alpine Ridge DSL6540
Maximum port bandwidth: 3.94 GB/s
