Silverstone RM51

Silverstone RM51. Form factor: Rack, Type: Server, Product colour: Black. Supported power supply form factors: ATX, SFX. Front fans installed: 2x 180 mm, Front fans diameters supported: 120,180 mm, Rear fans diameters supported: 80,120,140 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 440 mm, Depth: 485 mm, Height: 220 mm

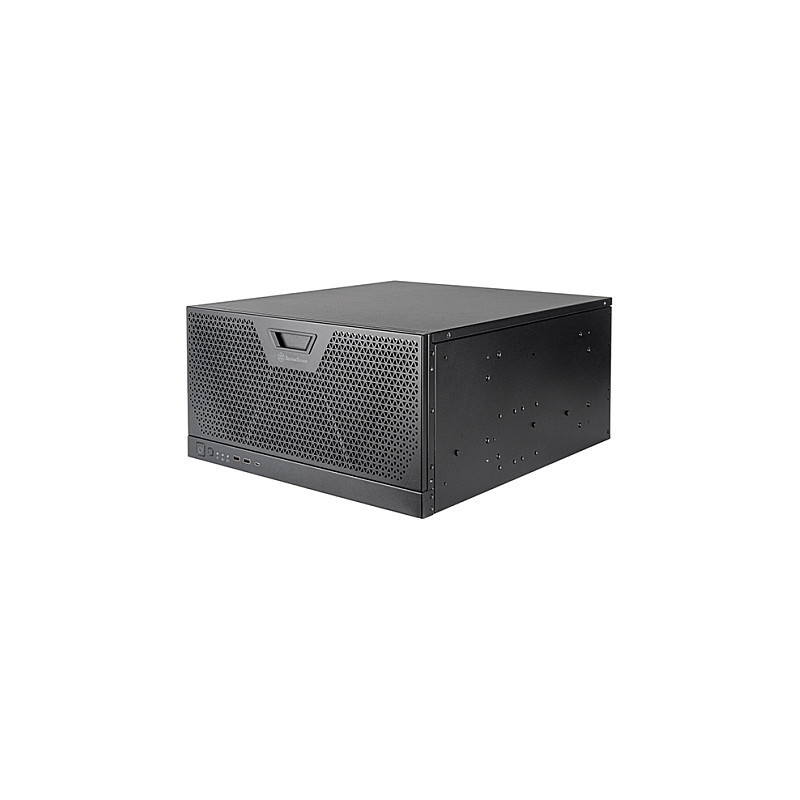

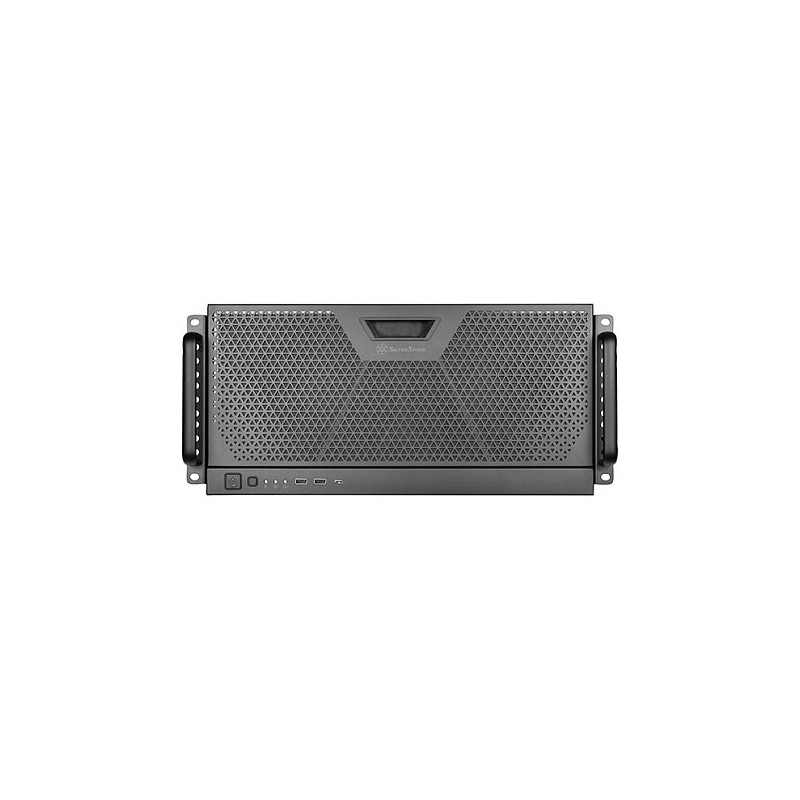

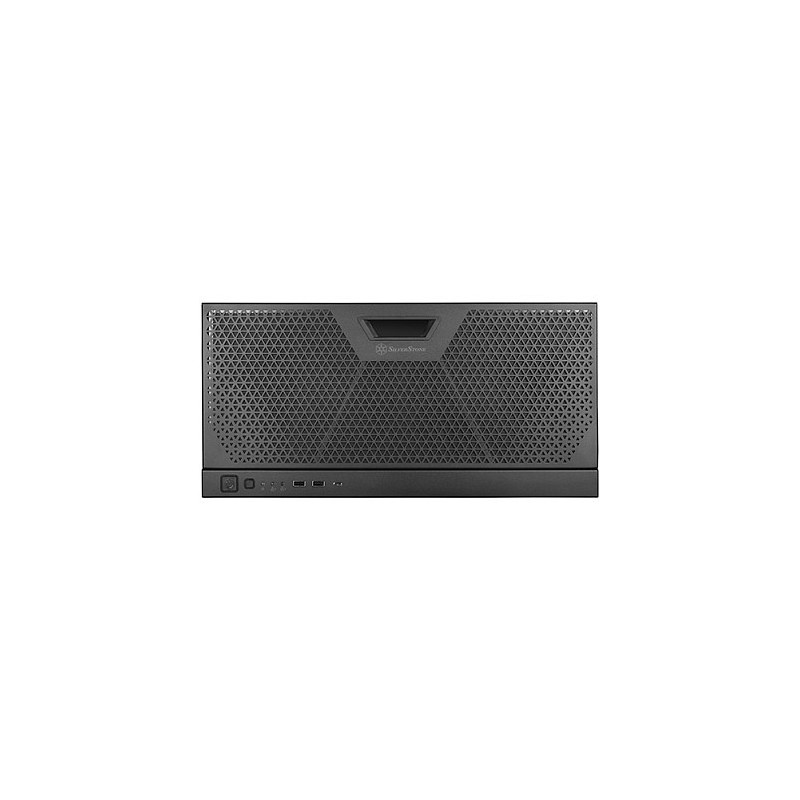

5U rackmount server chassis with dual 180mm fans and enhanced liquid cooling compatibility

Dual-purpose chassis - Industrial / Home

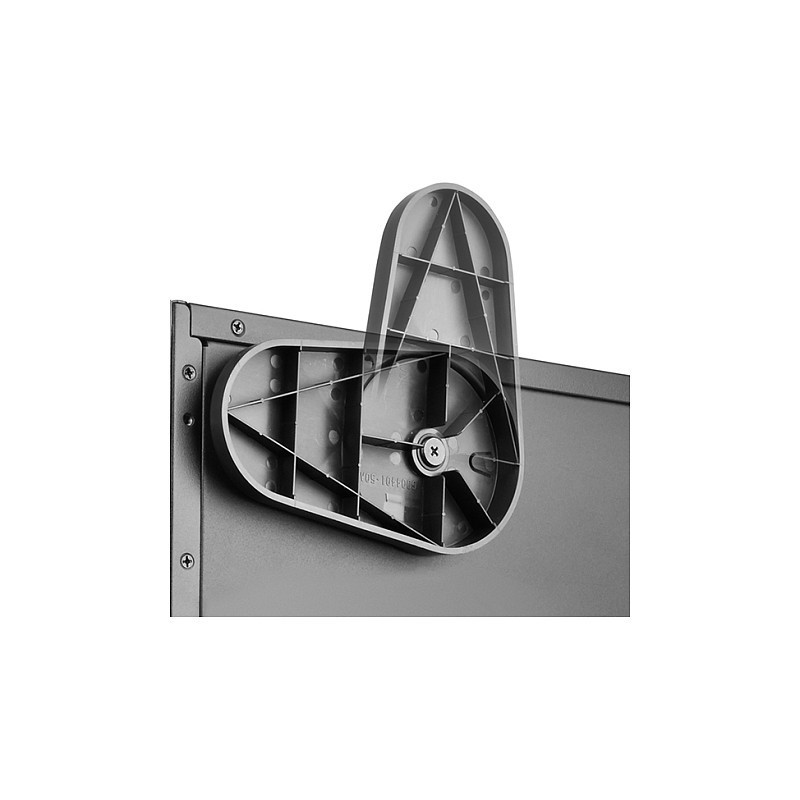

Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.

Unparalleled rackmount cooling performance

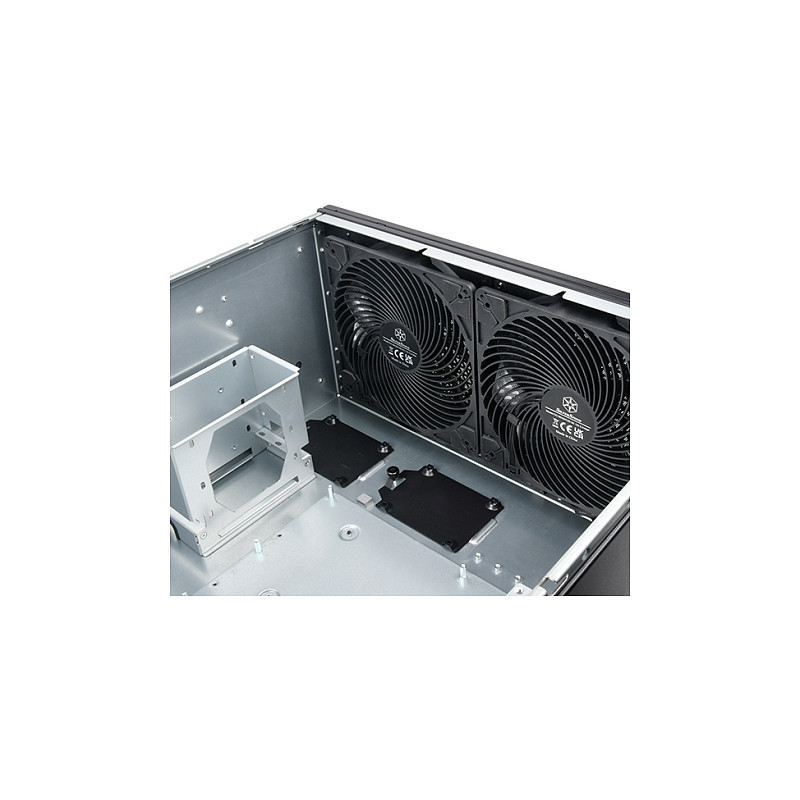

2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling.
Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.

Tremendous hardware versatility

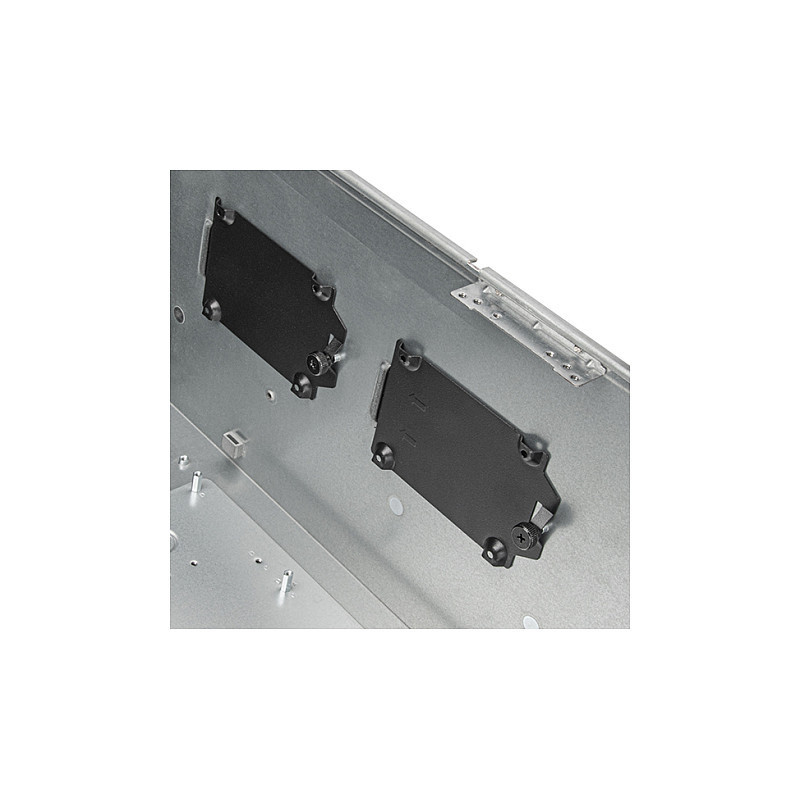

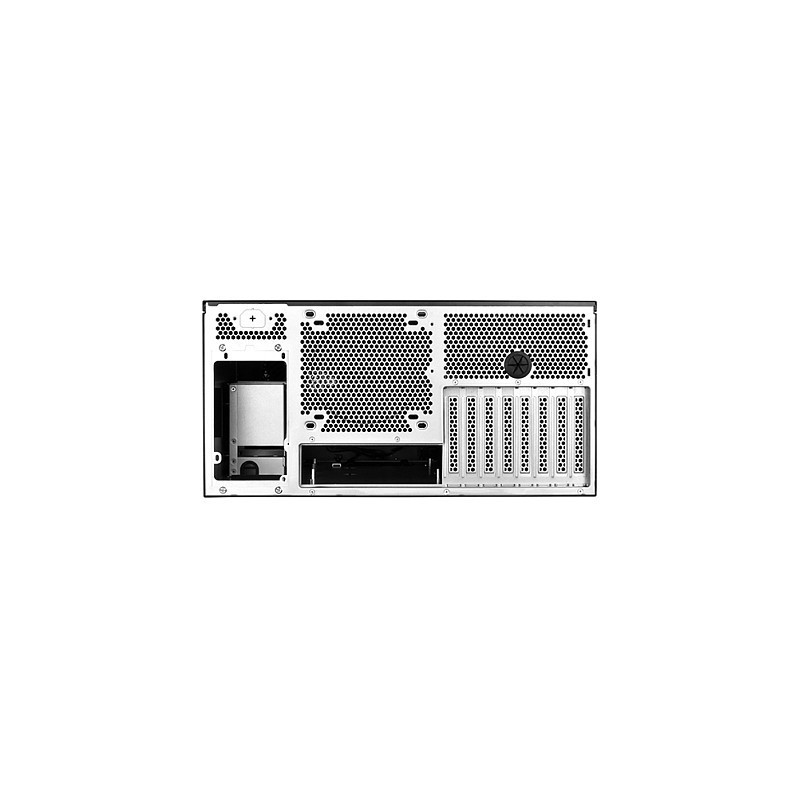

An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor

Excellent space maximization
To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization

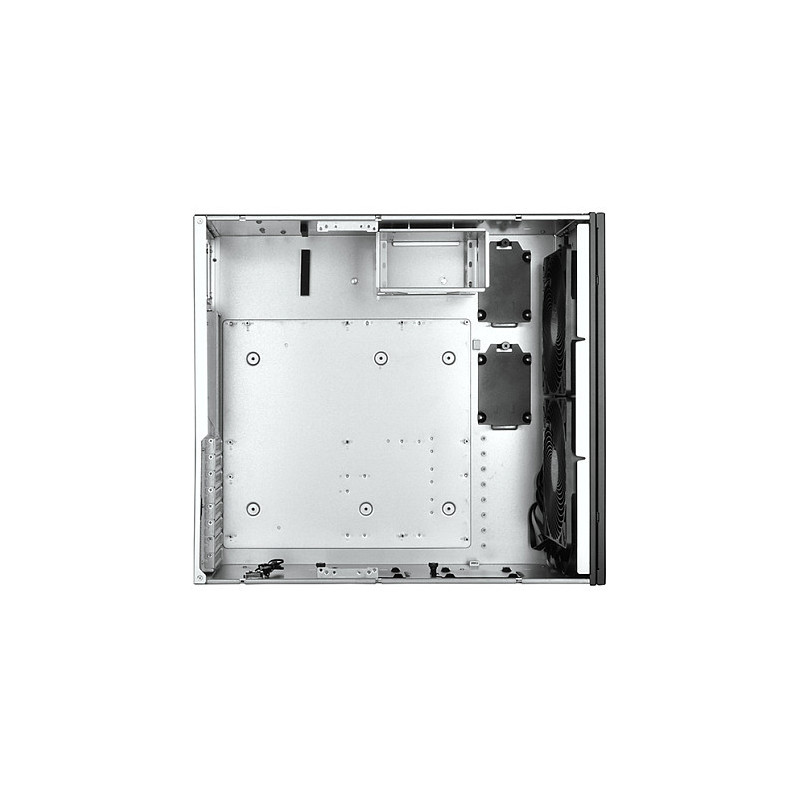

Highly versatile internal layout

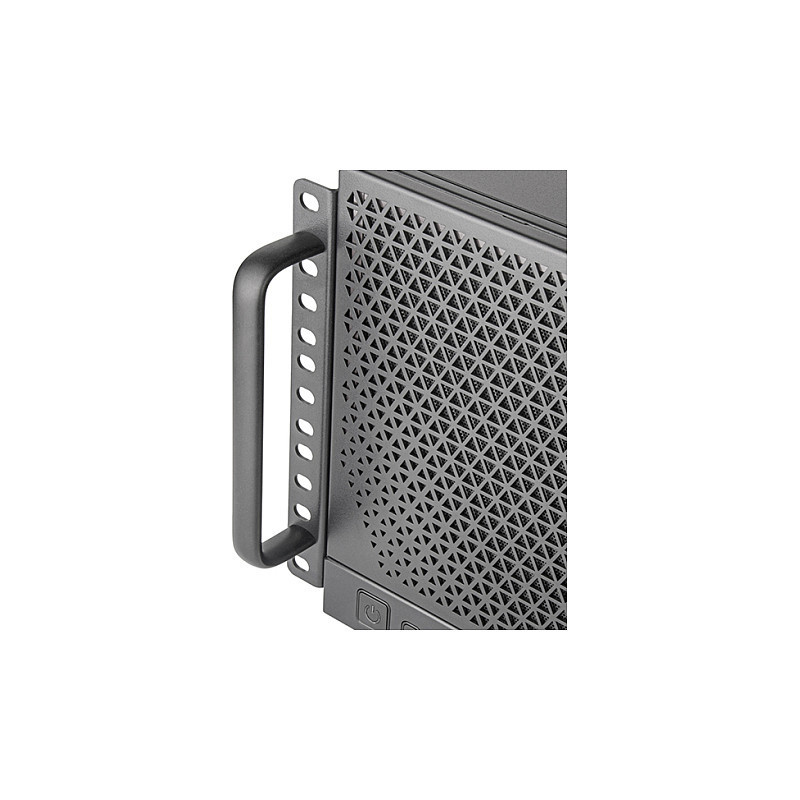

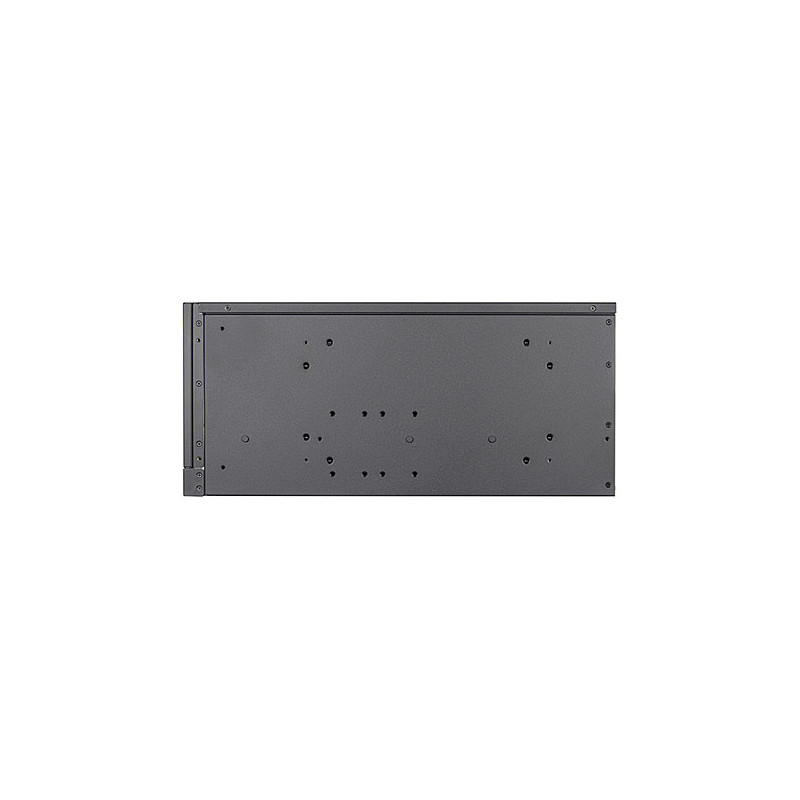

Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes.

Design

Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 4
Number of 2.5" bays: 4
Number of internal 3.5" bays: 4

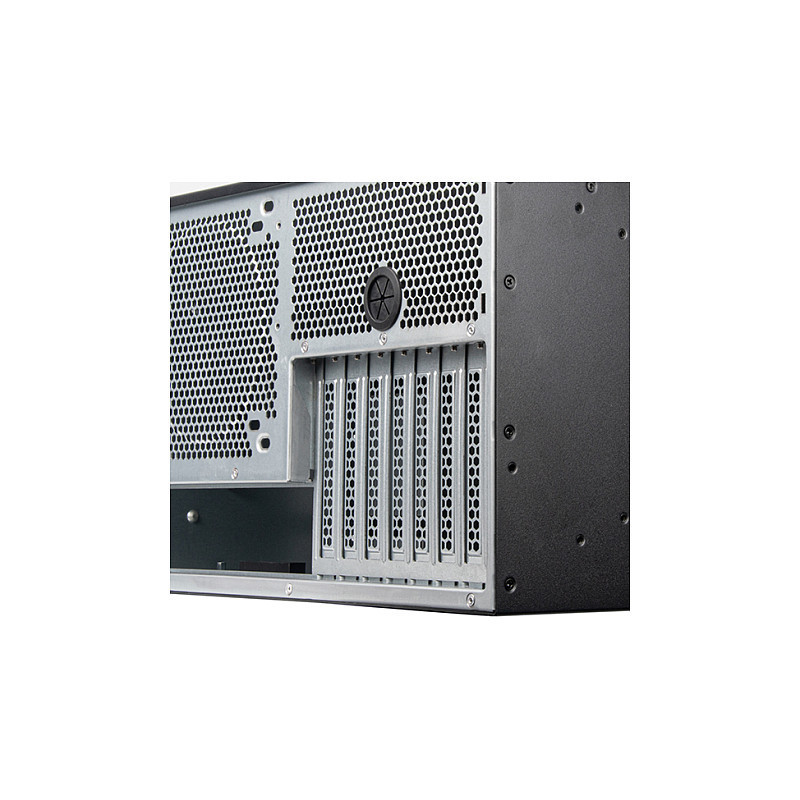

Number of expansion slots: 8
Rack capacity: 5U

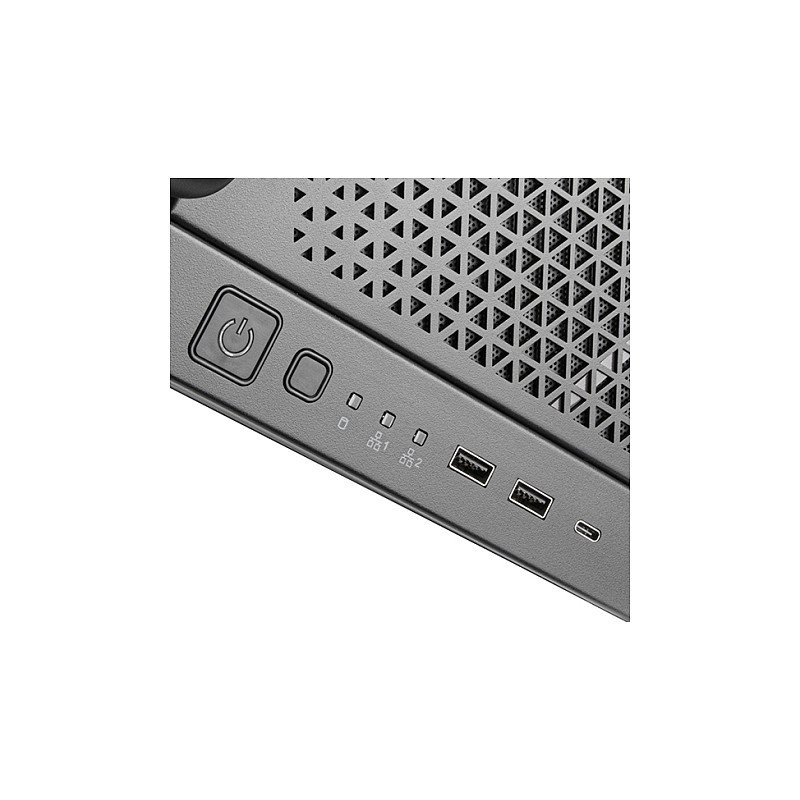

LED indicators: HDD, LAN, Power
Maximum CPU cooler height: 18.1 cm
Maximum graphics card length: 15.7 cm
Maximum PSU length: 19 cm

Power supply

Feature: Power supply included
Supported power supply form factors: ATX, SFX

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Cooling

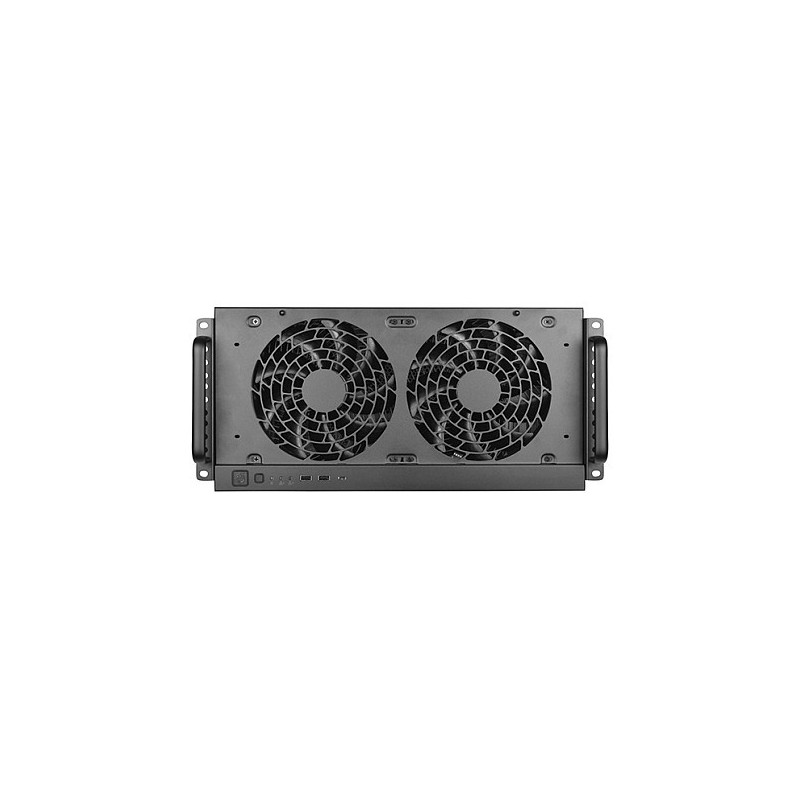

Front fans installed: 2x 180 mm
Number of front fans supported (max): 5
Front fans diameters supported: 120,180 mm
Number of rear fans supported (max): 4
Rear fans diameters supported: 80,120,140 mm
Front radiator sizes supported: 120,240,360 mm
Rear radiator sizes supported: 120 mm

Storage

Supported HDD sizes: 3.5"
SSD form factor: 2.5"
Number of HDDs supported: 2

Weight & dimensions

Width: 440 mm
Depth: 485 mm
Height: 220 mm
Weight: 10.6 kg
