NZXT H9 H3 Flow

NZXT H9 H3 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 389 mm, Height: 400 mm

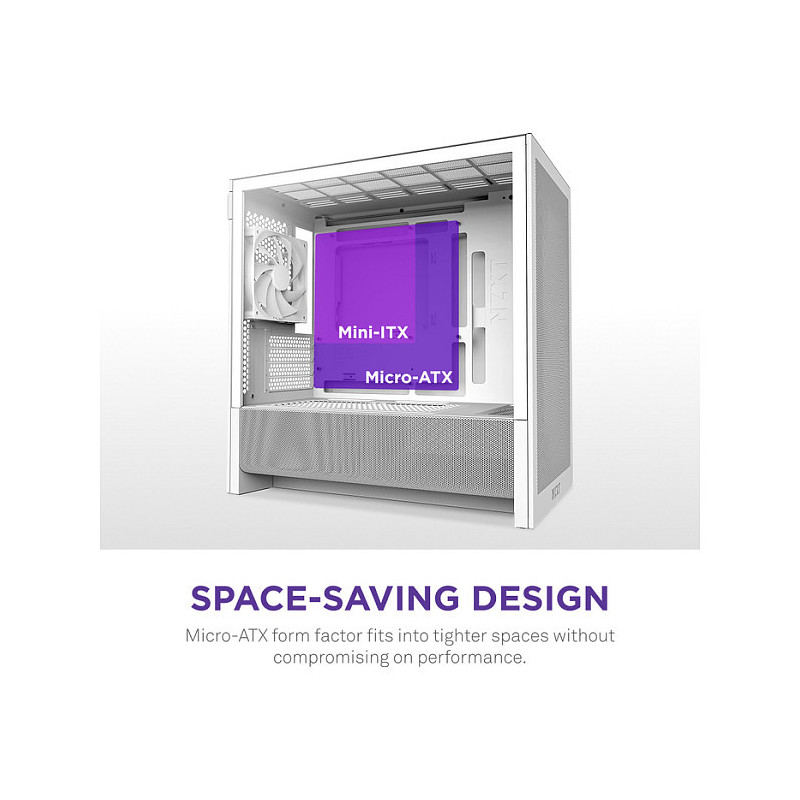

Space-Saving Design
The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

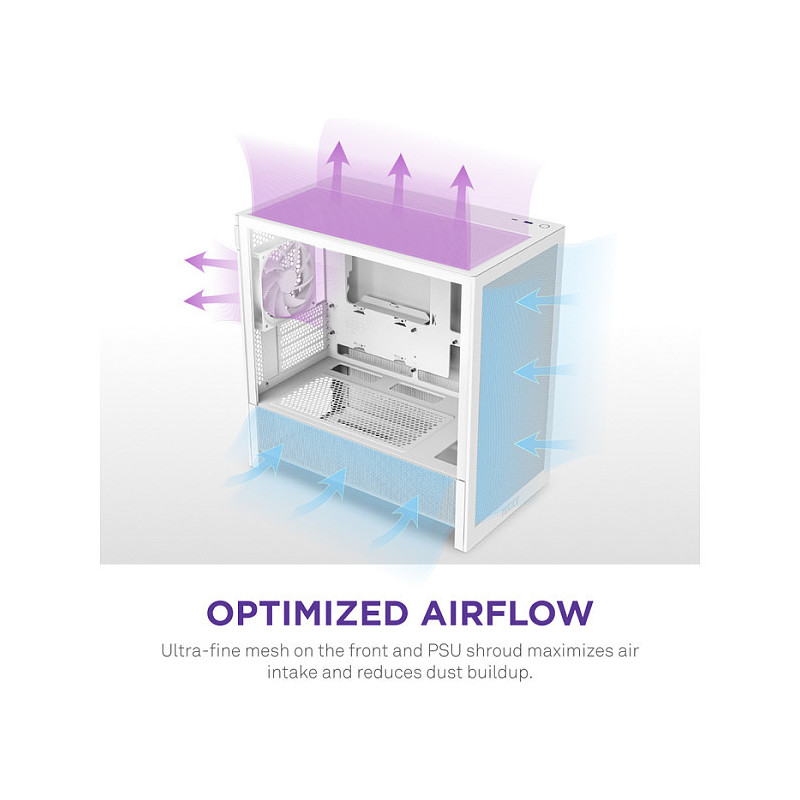

Optimized Airflow
Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

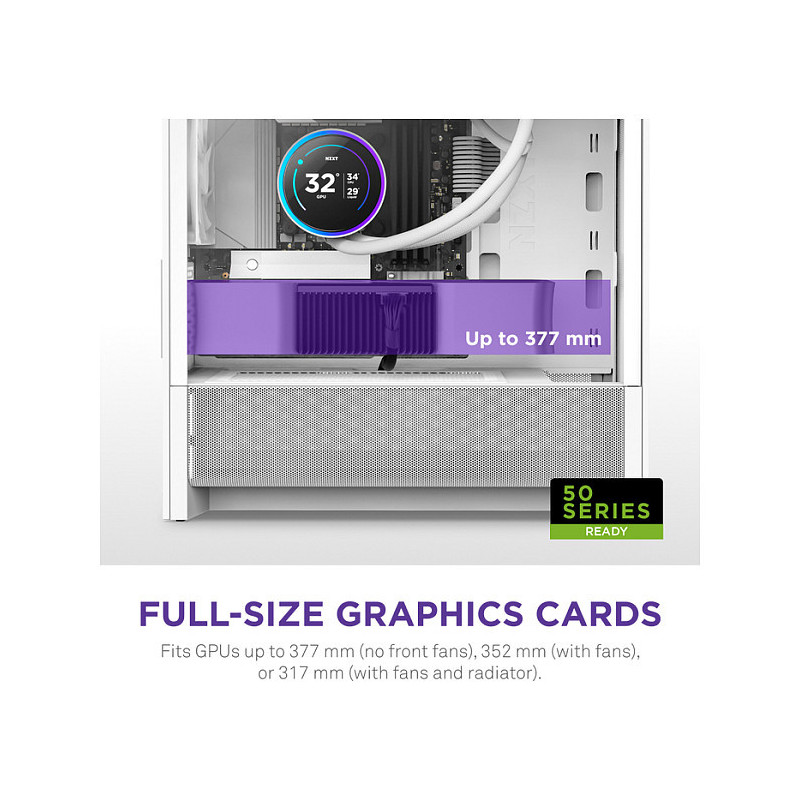

Full-Size GPU Support
Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).

7-Fan Capacity
Supports up to 140 mm fans (two front, two top) and 120 mm fans (two bottom, one rear).

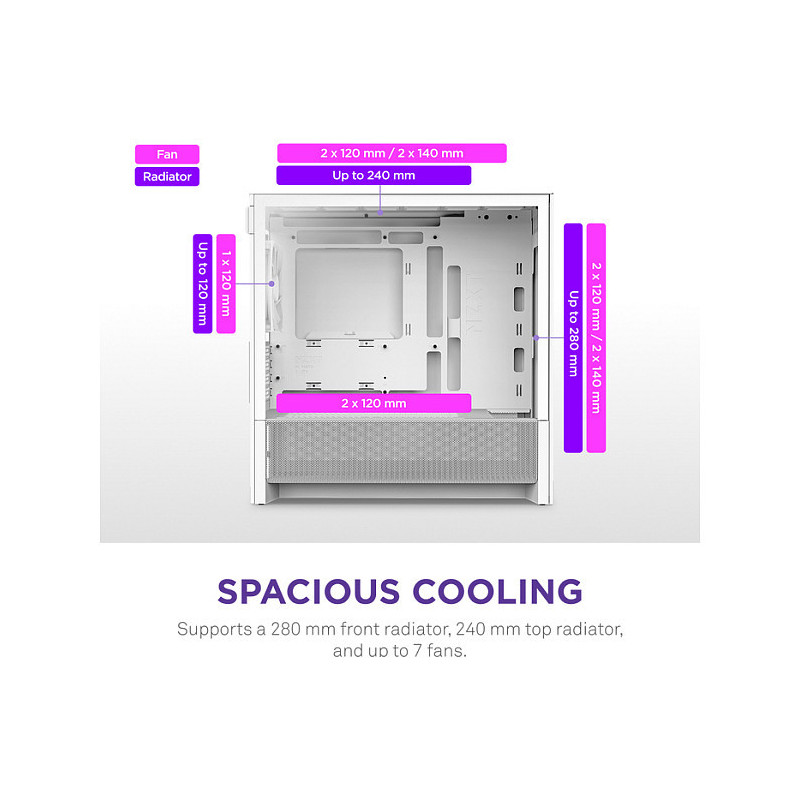

Radiator Ready
Supports a 280 mm front radiator and a 240 mm top radiator for versatile cooling setups.

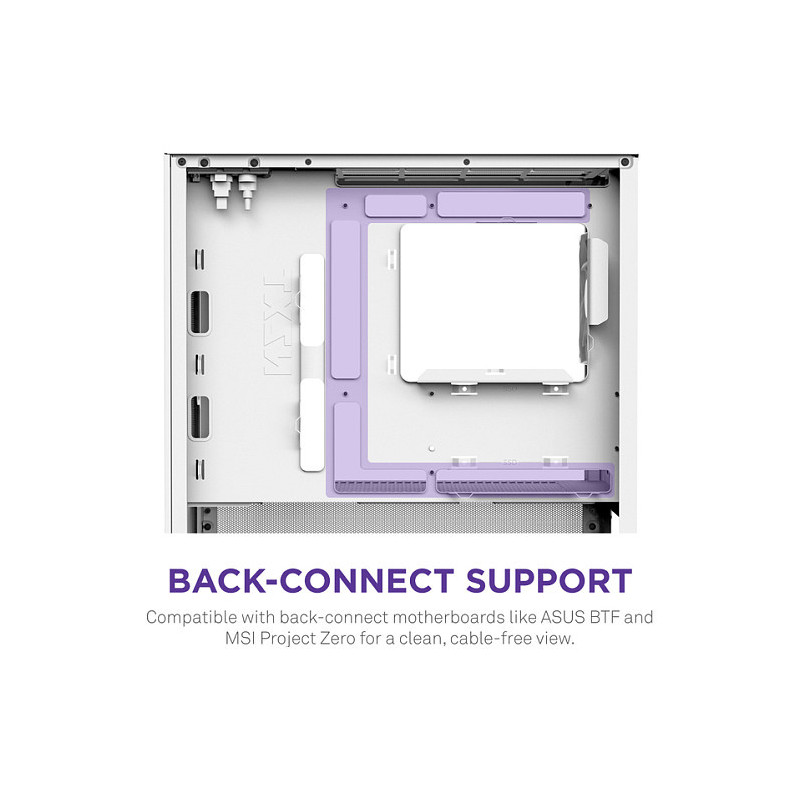

Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.

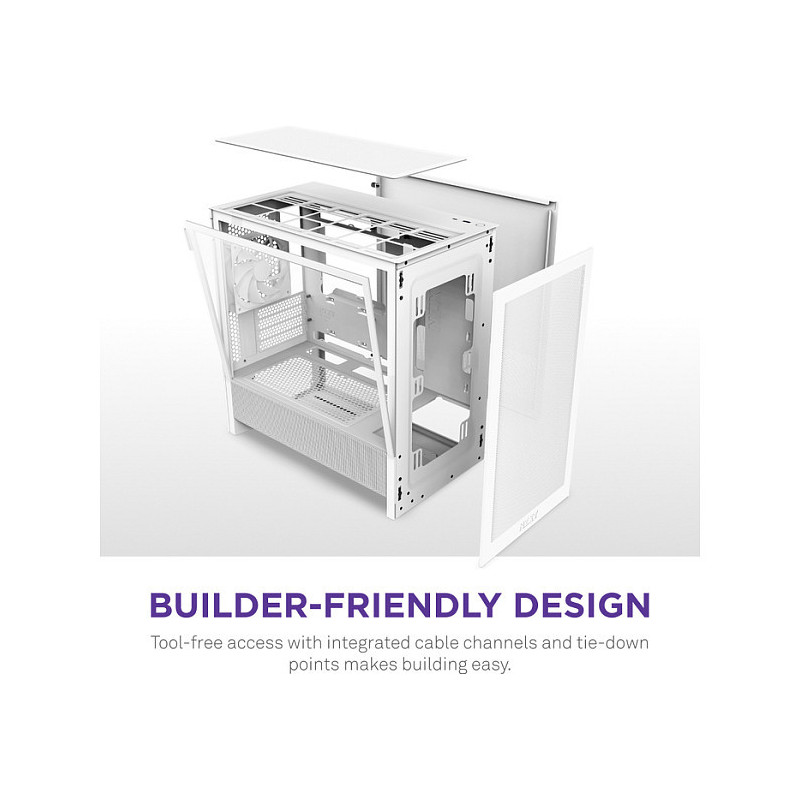

Tool-Free Access
Easily remove panels for building, upgrading, or cleaning.

Easy Cable Management
Integrated cable channels and tie-down points make routing clean and simple.

Design

Material: Mesh, SGCC, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 3
Number of expansion slots: 4
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Cable management
Maximum CPU cooler height: 17 cm
Maximum graphics card length: 37.7 cm
Maximum PSU length: 18.5 cm

Power supply

Number of power supply units: 1

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Feature: Combo headphone/mic port
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm

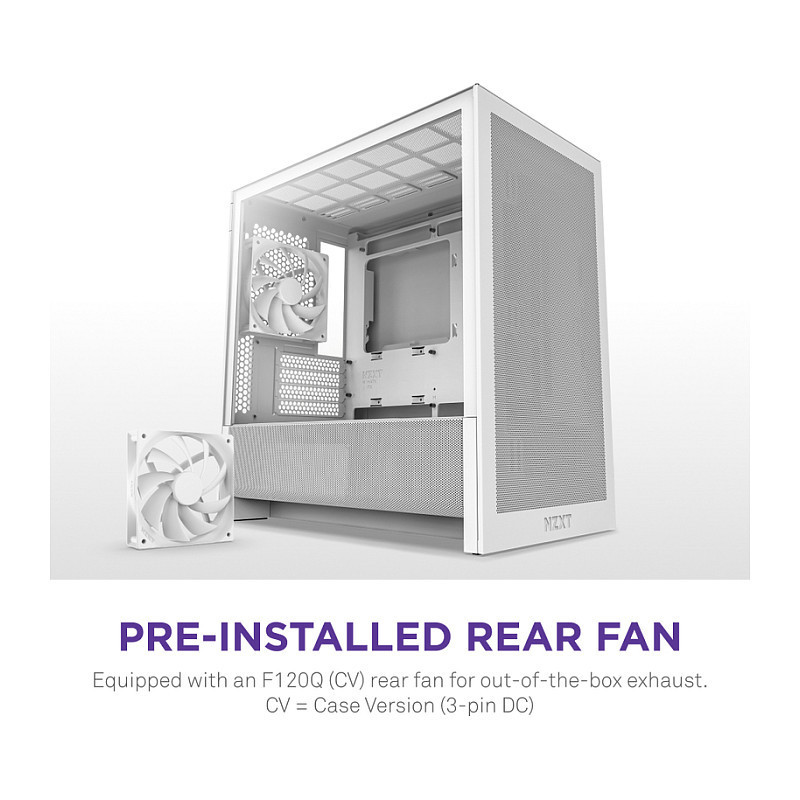

Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120 mm
Front radiator sizes supported: 280 mm
Top radiator sizes supported: 240 mm

Storage

Supported HDD sizes: 2.5,3.5"

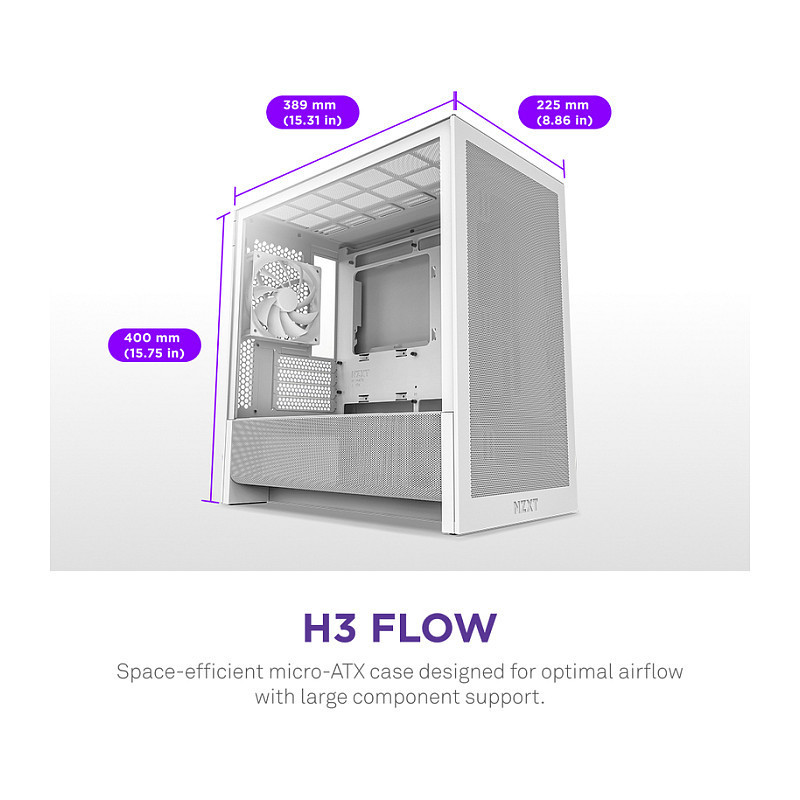

Weight & dimensions

Width: 225 mm
Depth: 389 mm
Height: 400 mm
Weight: 4.8 kg
