NZXT H9 Flow 2025 Computer Case
Product reference:
3-5056547207636
NZXT H9 Flow 2025 Computer Case
NZXT H9 Flow 2025 Computer Case
Product reference:
3-5056547207636
NZXT H9 Flow 2025 Computer Case
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
Built to Flow. Made to Show.
The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.
Optimized Airflow
Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.
Mesh Panels
Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.
Spacious Dual-Chamber
Separates heat-generating components for improved airflow and a cleaner build.
10-Fan Cooling
Fits up to nine 140 mm fans and one 120 mm rear fan.
Large Radiator Support
Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.
Maximum Graphics
Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.
Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.
Easy Cable Management
Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds

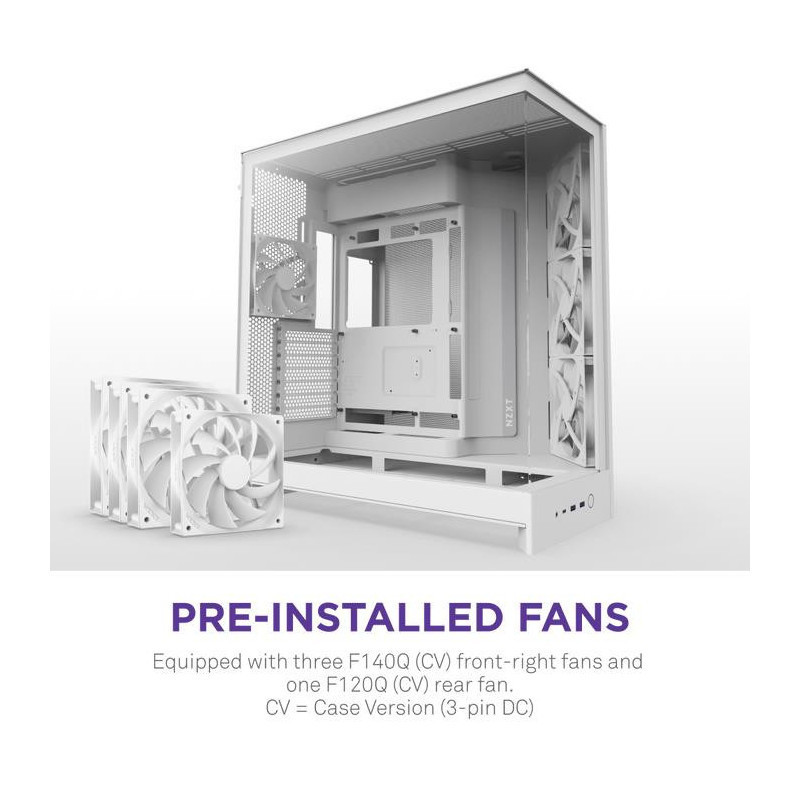

- Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look

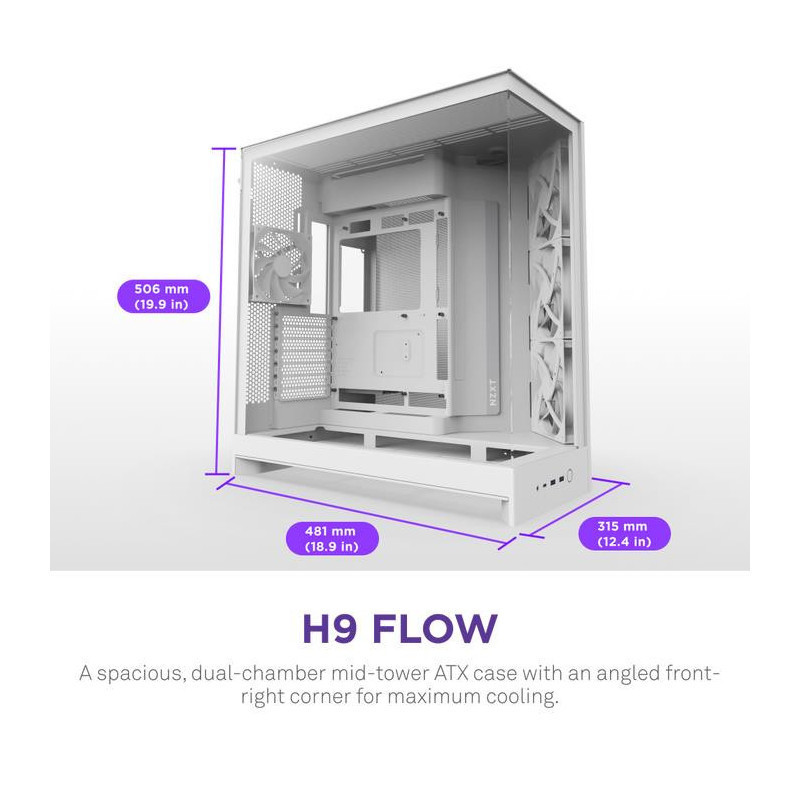

| Summary: | NZXT H9 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 315 mm, Depth: 481 mm, Height: 506 mm |
| Vendor Homepage: | https://nzxt.com/products/h9-flow |
| Category Code: | CAS |
| CnCode: | 84733080 |
| Unit Box Height: | 0.569 |
| Unit Box Length: | 0.583 |
| Unit Box Width: | 0.405 |
| Type: | PC |
| Form factor: | Midi Tower |
| Product colour: | White |
| Material: | Mesh/SGCC/Tempered glass |
| Supported motherboard form factors: | ATX/EATX/micro ATX/Mini-ITX |
| Number of 3.5" bays: | 2 |
| Number of 2.5" bays: | 6 |
| Number of expansion slots: | 7 |
| Side window: | Yes |
| Suitable for: | Gaming |
| Tempered glass panel(s): | Yes |
| Anti-dust filter: | Yes |
| Cable management: | Yes |
| On/off button: | Yes |
| Maximum CPU cooler height: | 165mm |
| Maximum graphics card length: | 459mm |
| Maximum PSU length: | 200mm |
| Number of power supply units: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Combo headphone/mic port: | Yes |
| Front fans installed: | 3x 140 mm |
| Number of front fans supported (max): | 3 |
| Front fans diameters supported: | 120/140mm |
| Rear fans installed: | 1x 120 mm |
| Number of rear fans supported (max): | 1 |
| Rear fans diameters supported: | 120mm |
| Number of top fans supported (max): | 3 |
| Top fans diameters supported: | 120/140mm |
| Number of bottom fans supported (max): | 3 |
| Bottom fans diameters supported: | 120/140mm |
| Fan 2 maximum air pressure: | 1.05mmH2O |
| Fan 2 maximum airflow: | 60.2cfm |
| Fan speed: | 0 - 1350RPM |
| Maximum air pressure: | 1.4mmH2O |
| Maximum airflow: | 100.25cfm |
| Liquid cooling capability: | Yes |
| Suitable location: | Computer case |
| Front radiator sizes supported: | 420mm |
| Bottom radiator sizes supported: | 360mm |
| Rear radiator sizes supported: | 120mm |
| Top radiator sizes supported: | 420mm |
| Supported HDD sizes: | 2.5/3.5" |
| Width: | 315mm |
| Depth: | 481mm |
| Height: | 506mm |
| Weight: | 12460g |
| Unit Calculated Weight: | 15.1kg |
| Product Net Weight: | 12.5kg |
| Unit Calculated Volume: | 0.1343m³ |
| Units per Shipping Box: | 1 |
| Shipping Box Weight: | 15.0500001907349kg |
| Units per Pallet: | 0 |
| Shipping Box Height: | 56.9000015258789cm |
| Shipping Box Depth: | 58.2999992370605cm |
| Shipping Box Width: | 40.5cm |
| Name: | CASE MIDITOWER ATX W/O PSU/WHITE H9 FLOW 2025 NZXT |
