NZXT H6 Flow

NZXT H6 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 287 mm, Depth: 415 mm, Height: 435 mm. Package width: 508 mm, Package depth: 361 mm, Package height: 515 mm
Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance

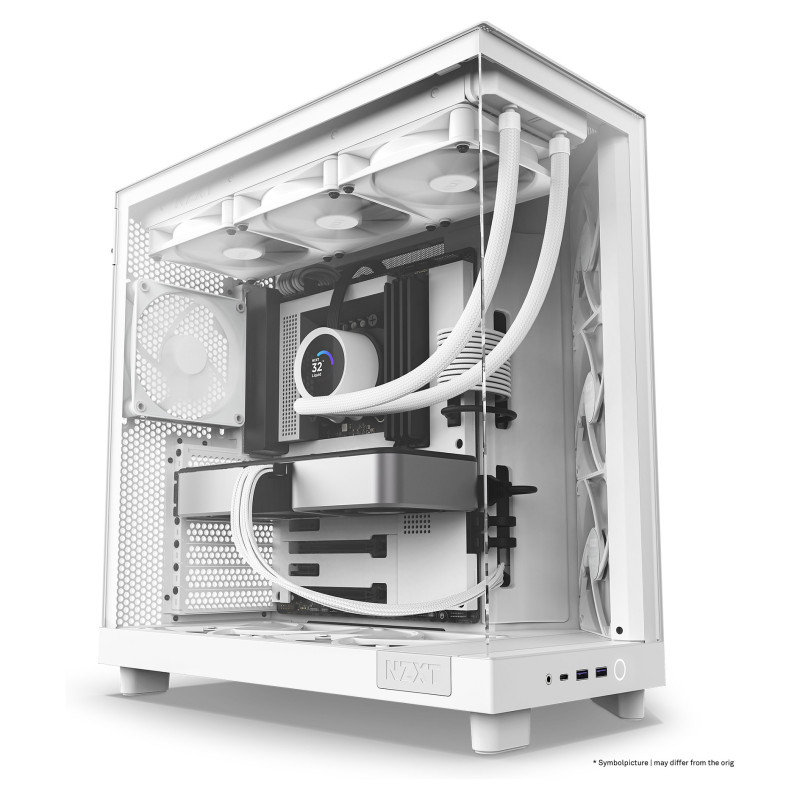

A SEAMLESS SHOWCASE

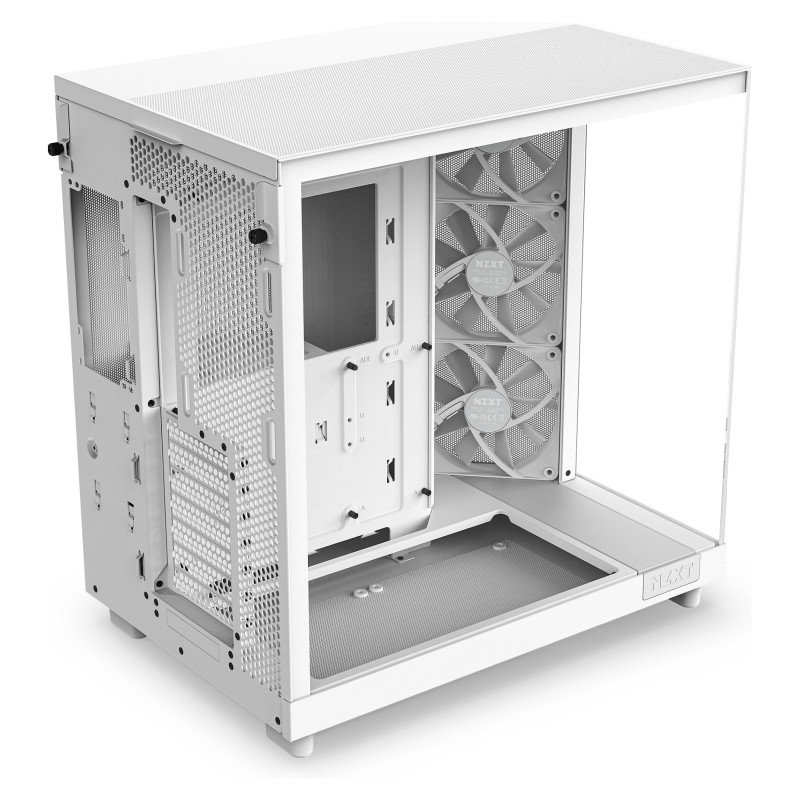

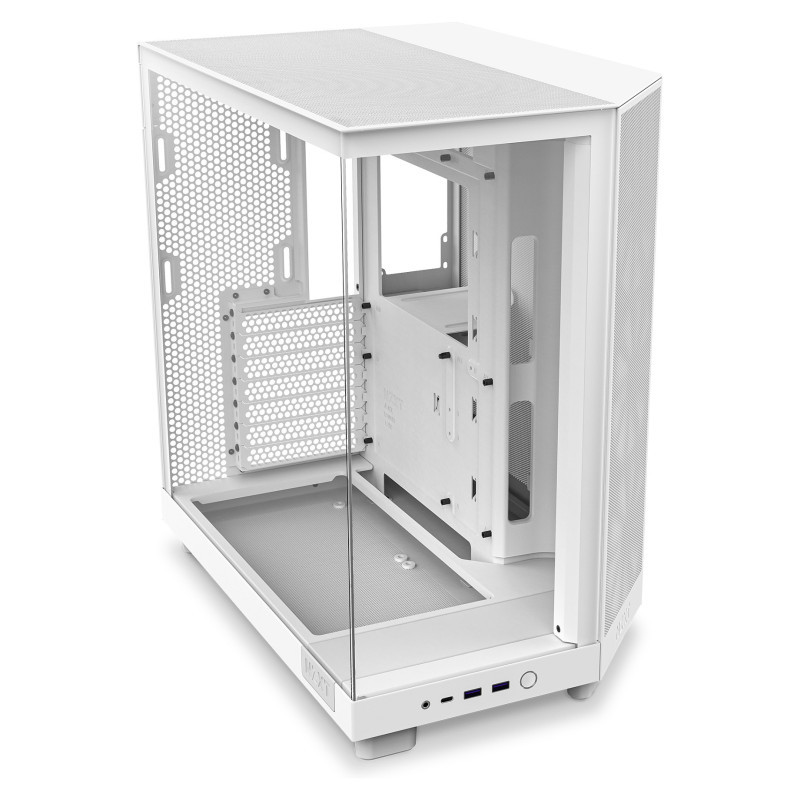

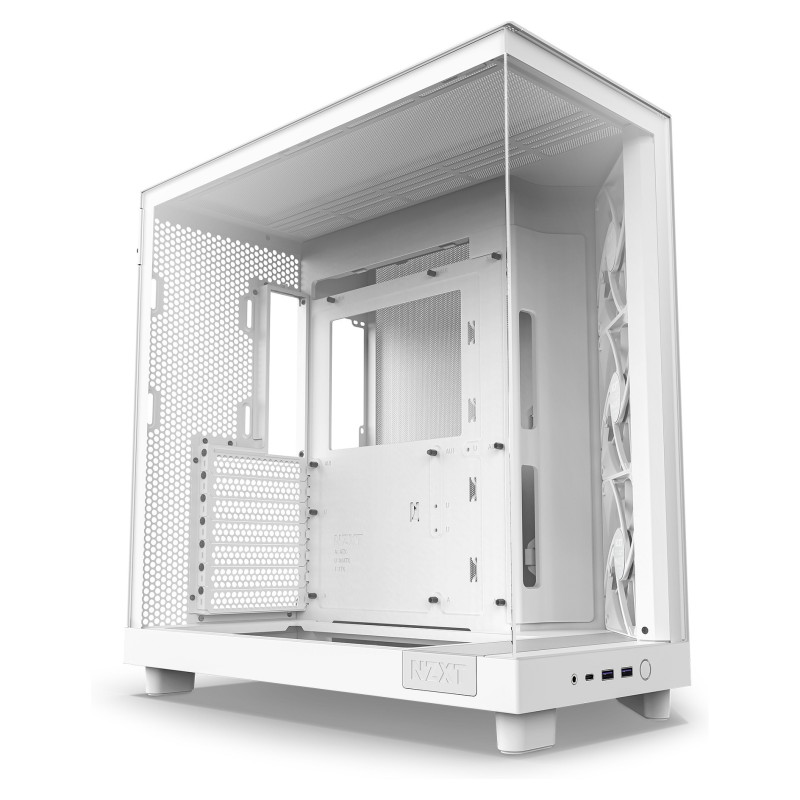

Tempered glass front and side panels offer an uninterrupted view of components, while the dual-chamber design hides PSU and storage for a sleek, compact, and standout look

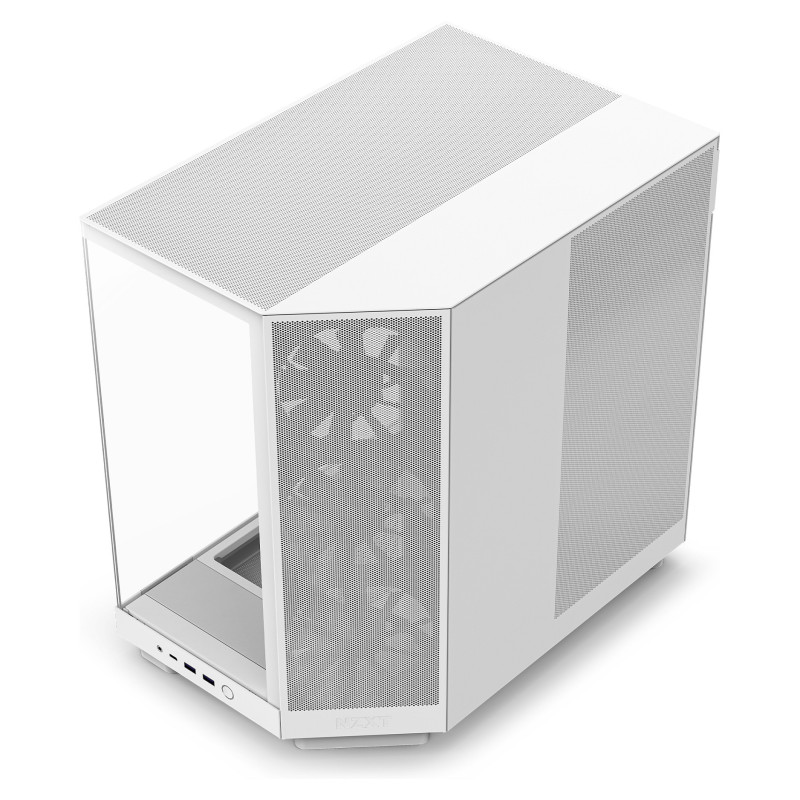

ANGLED AIRFLOW

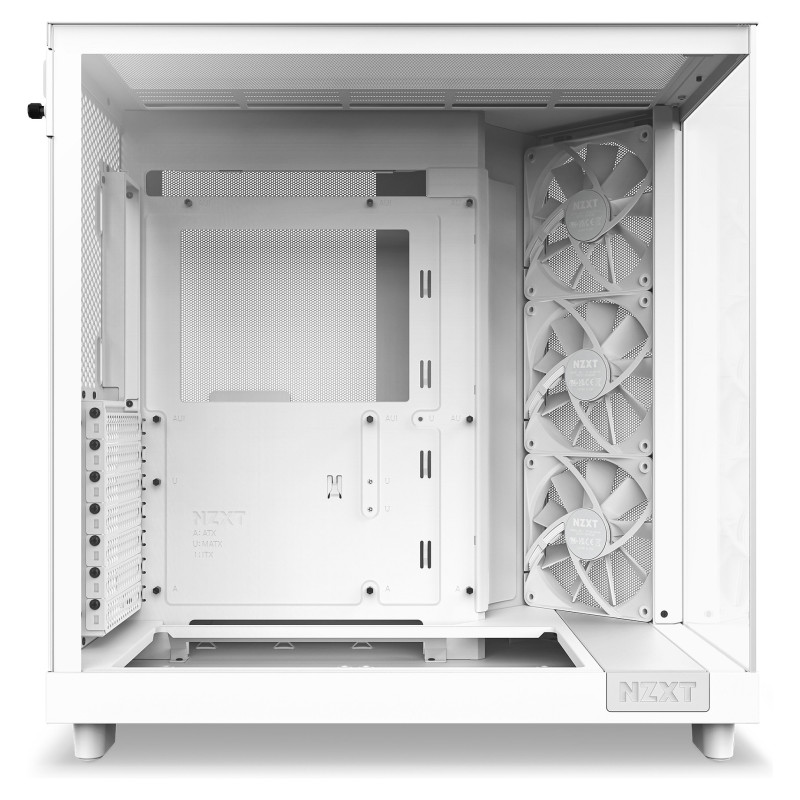

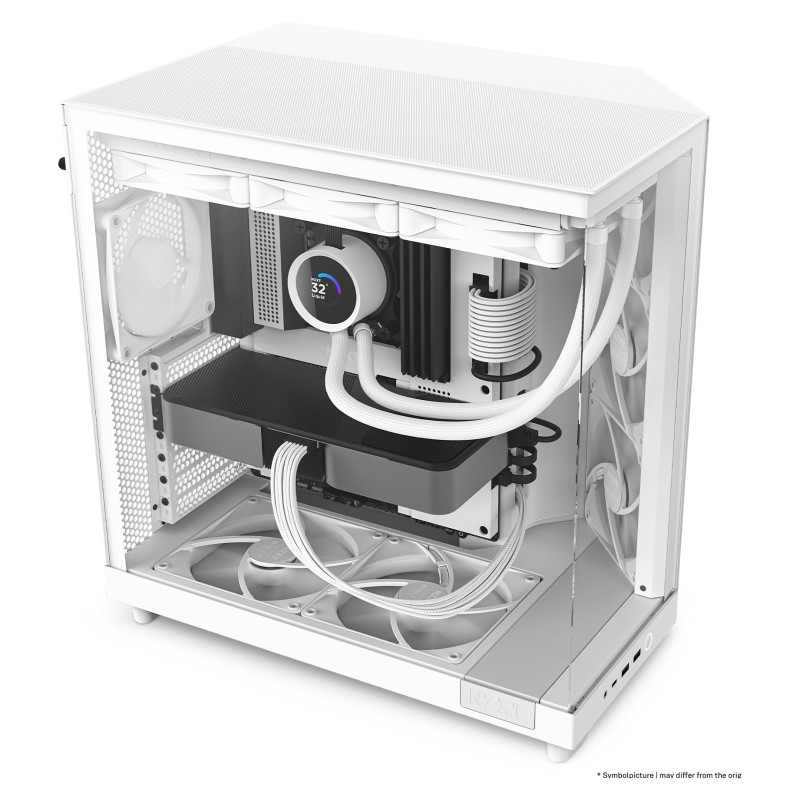

The angled front-right corner with 3 x 120mm fans targets heat-prone components. Supports 2 x 140mm fans beneath the GPU for optimal cooling while perforated panels enhance airflow.

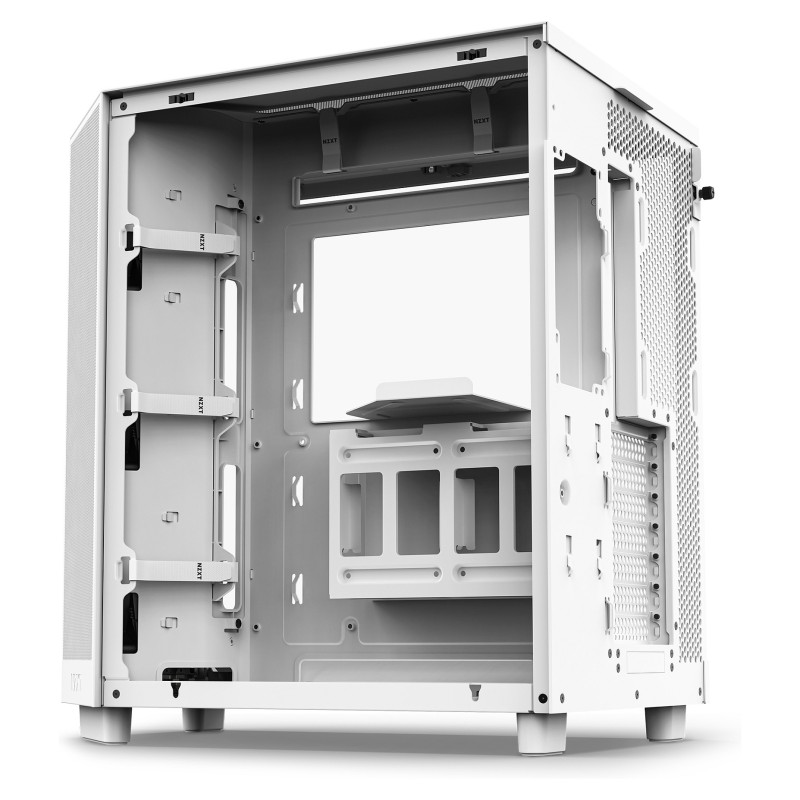

BUILDING MADE SIMPLE

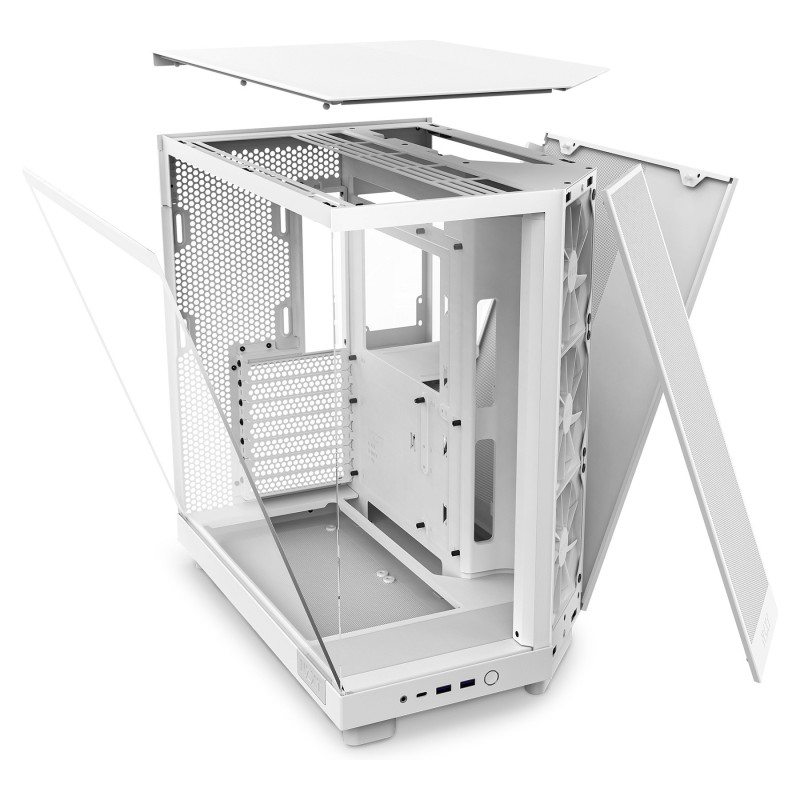

H6 Flow's intuitive design makes building a breeze. Wide channels and included straps aid cable management. Tool-less access to top and side panels simplifies tinkering and upgrading.

Design

Material: Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 2
Number of expansion slots: 7
Feature: Tempered glass panel(s)
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 16.3 cm
Maximum graphics card length: 36.5 cm
Maximum PSU length: 20 cm

Ports interfaces

Audio input: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Cooling

Front fans installed: 3x 120 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 140 mm
Fan speed: 0 - 1200 RPM
Maximum airflow: 62.18 cfm
Maximum air pressure: 1.05 mmH2O
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 360 mm

Storage

Supported HDD sizes: 2.5,3.5"

Technical details

Warranty period: 2 year(s)

Packaging content

Feature: Manual

Weight dimensions

Width: 287 mm
Depth: 415 mm
Height: 435 mm
Weight: 9.4 kg

Packaging data

Package width: 508 mm
Package depth: 361 mm
Package height: 515 mm
Package weight: 11.2 kg
