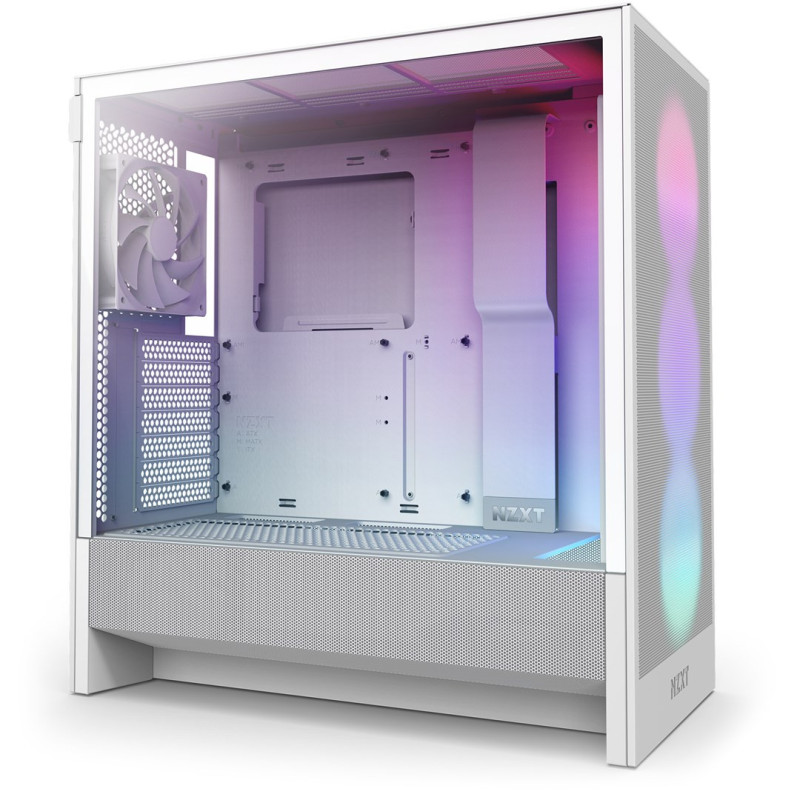

Case Nzxt H5 Flow RGB White (CC-H52FW-R1)

The NZXT H5 Flow RGB in white is a high-airflow, mid-tower ATX PC case designed for gamers, influencers and performance builds. Featuring a mesh-front panel, perforated PSU shroud, and tempered glass side window, it allows for exceptional component cooling and aesthetic showcasing. The RGB variant includes pre-installed F140 RGB Core fans and supports large radiators up front and on top, making it ideal for custom liquid cooling setups or high-end air/cooled systems.

Technical Specifications:

•


  Model: H5 Flow RGB (White)





•


  Type: Midi/ATX Tower Case





•


  Materials: SGCC steel, ultra-clear tempered glass (white version)





•


  External Dimensions (H × W × D): 465 × 225 × 430 mm approx.





•


  Weight: approx. 7.63 kg (white RGB variant)





•


  Motherboard Support: E-ATX (up to ~277 mm wide) / ATX / Micro-ATX / Mini-ITX





•


  GPU Length Clearance: Up to ~410 mm





•


  CPU Cooler Height Clearance: Up to ~170 mm





•


  PSU Length Clearance: Up to 200 mm





•


  Drive Bays: 2 × 2.5″ + 1 × 3.5″ approx.





•


  Fan Support:





  •


    Front: up to 3 × 120 mm or 2 × 140 mm





  •


    Top: up to 2 × 120 mm or 2 × 140 mm





  •


    Bottom: 2 × 120 mm





  •


    Rear: 1 × 120 mm









•


  Radiator Support: Front up to 360 mm, Top up to 240 mm





•


  I/O Ports: USB 3.2 Type-A (1), USB 3.2 Gen2 Type-C (1), headset jack (1)





•


  Colour: White exterior with tempered glass side panel




Highlights & Features:

•


  Mesh-front and perforated PSU shroud help maximize airflow to GPU and internal components.





•


  Pre-installed RGB fans (for the RGB model) provide aesthetic lighting out of the box.





•


  Spacious internal design accommodating large GPUs, multi-fan/ radiator setups.





•


  Tool-less access and well-designed cable management channels simplify the build process.





•


  Designed for both air and liquid cooling options, ideal for high-performance builds.
