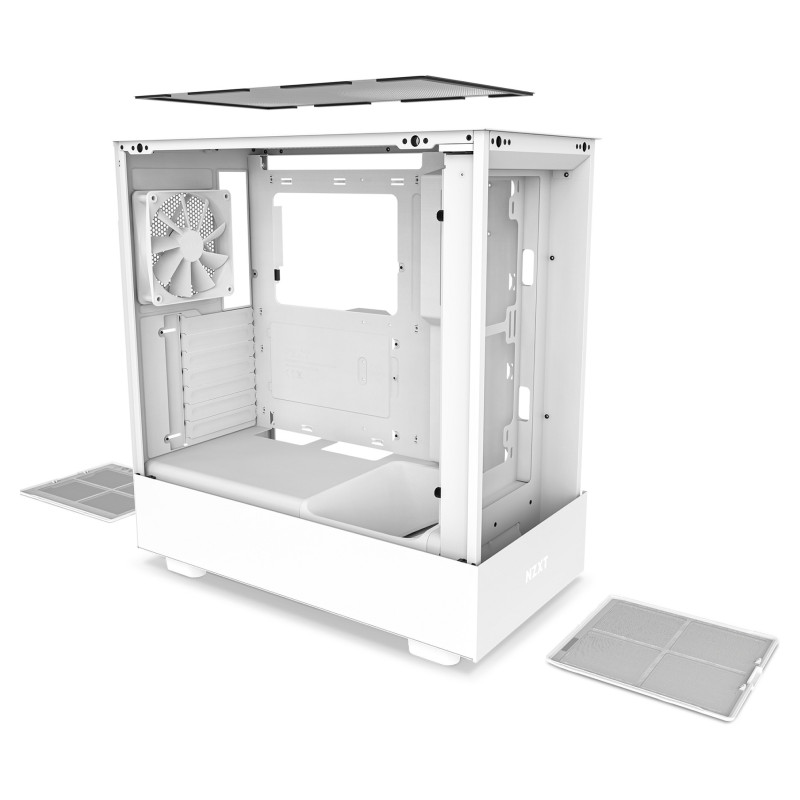

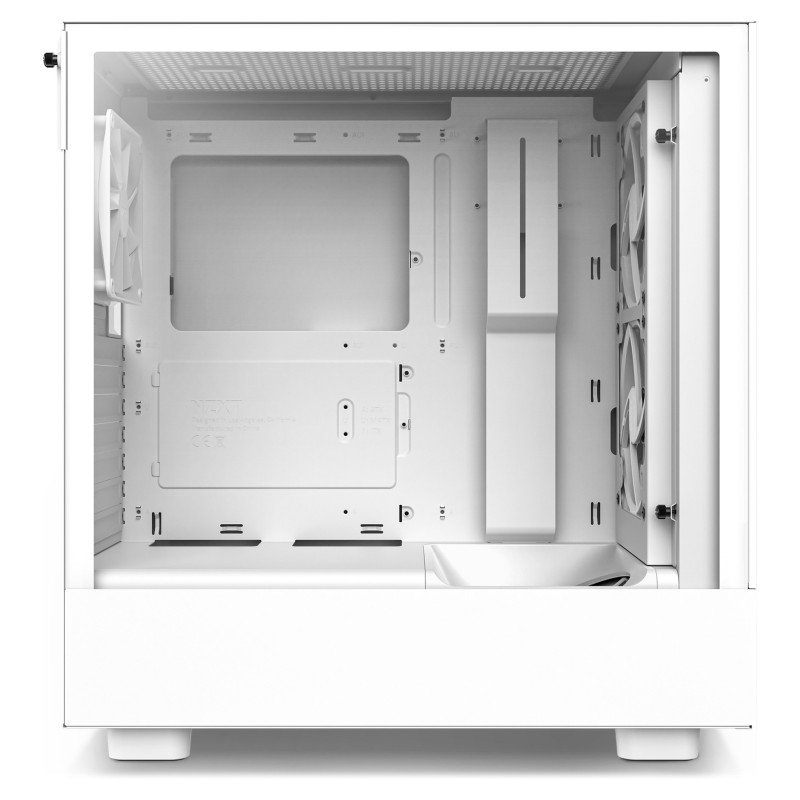

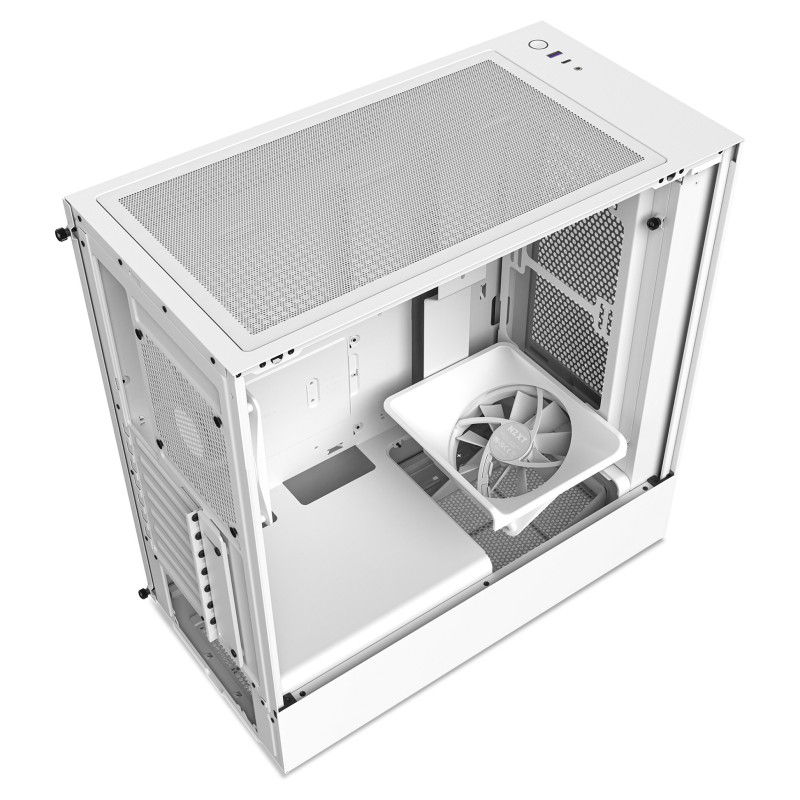

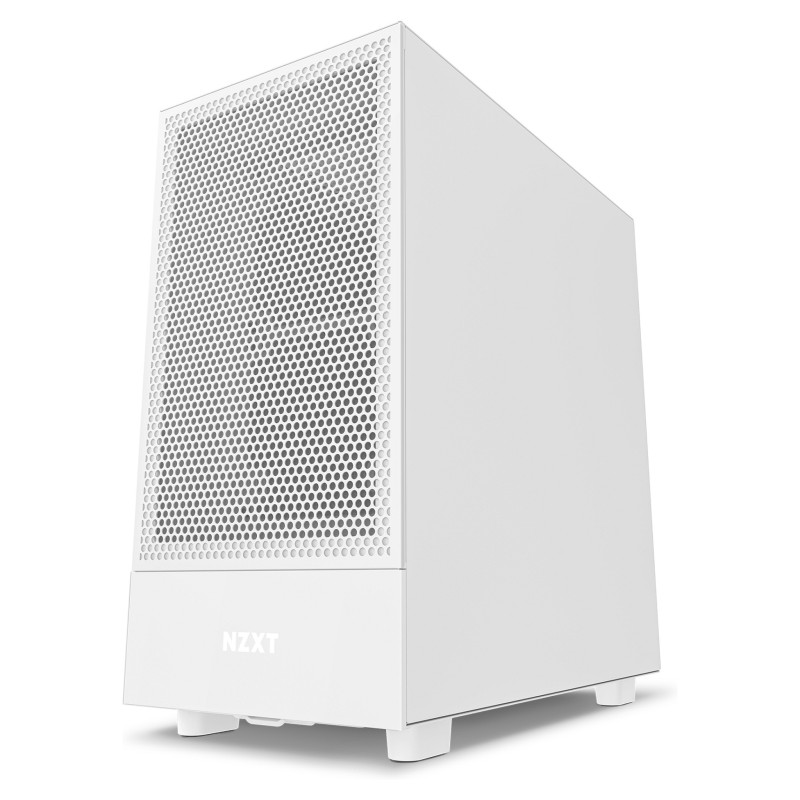

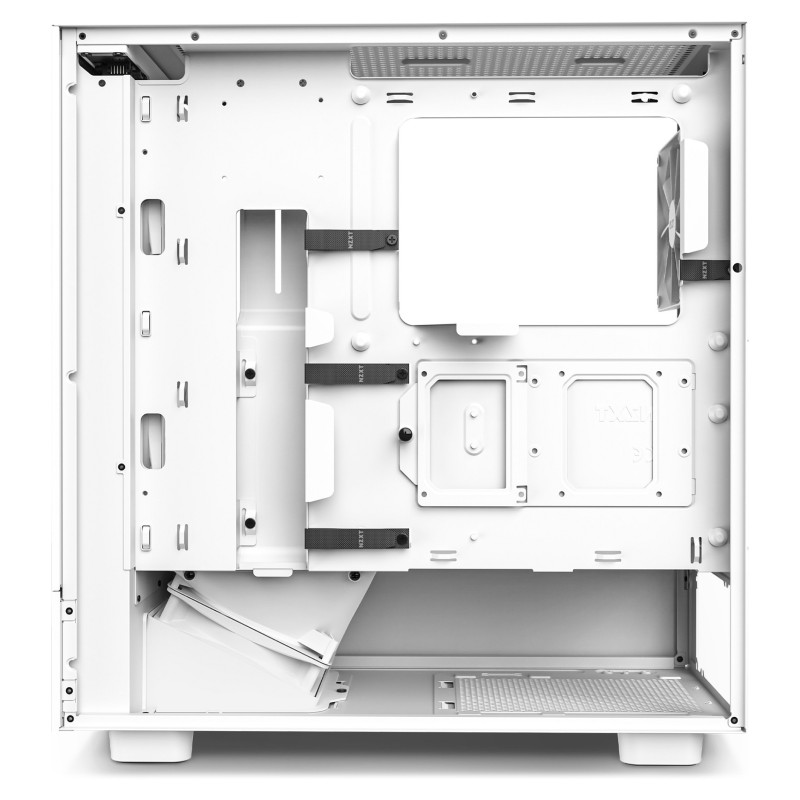

NZXT H5 Flow

NZXT H5 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Top fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 227 mm, Depth: 446 mm, Height: 464 mm

Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.

Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.

Design

Material: Steel, Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: White
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 2
Number of expansion slots: 7
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: On/off button
Maximum CPU cooler height: 16.5 cm
Maximum graphics card length: 36.5 cm

Ports & interfaces

Audio input: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Cooling

Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120 mm
Bottom fans installed: 1x 120 mm
Front radiator sizes supported: 60,120,140,200,240,280 mm
Rear radiator sizes supported: 80,92,120 mm
Top radiator sizes supported: 120,140,180,240 mm

Storage

Supported HDD sizes: 2.5,3.5"

Packaging content

Feature: Manual

Weight & dimensions

Width: 227 mm
Depth: 446 mm
Height: 464 mm
Weight: 7.01 kg
