NZXT H2 Flow

NZXT H2 Flow. Form factor: Small Form Factor (SFF), Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Top fans installed: 2x 120 mm, Top fans diameters supported: 120 mm. Supported HDD sizes: 2.5". Width: 181 mm, Depth: 263 mm, Height: 435 mm. Package width: 341 mm, Package depth: 250 mm, Package height: 520 mm

The H2 Flow is a mighty, compact vertical mini-ITX case designed to save space while showcasing top-tier components. Smart cable management, tool-less access, dual top fans, and a premium PCIe 5.0 riser cable make the building experience fast and simple.

Liquid Cooling Support: Handles up to a 280 mm radiator, ensuring lower temperatures so system performance consistently thrives.
331 mm GPU Capacity: Fits modern graphics cards with ease, delivering top-tier power in a clean, compact 20.7 L footprint.
Ultra-Fine Mesh Panels: Mesh on all sides maximizes air intake while filtering dust, keeping core components clear and running optimally.
Hybrid Glass-and-Mesh Side: Unique two-piece panel features tempered glass and mesh, displaying the build without compromising thermal efficiency.
Two F120Q CV (3-pin DC) Fans Included: Two pre-installed 120 mm fans on the top deliver convenient and immediate exhaust.

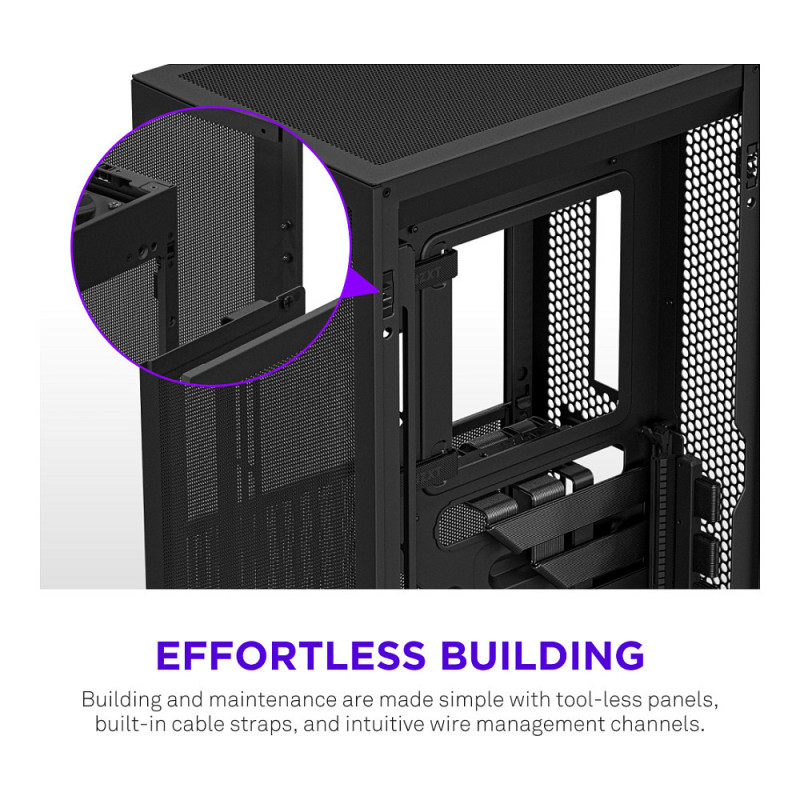

Tool-Less Access Panels: Panels pop off without tools, making every upgrade, cleaning session, or adjustment quick and completely seamless.
Integrated Cable Routing: Built-in routing points and included Velcro straps simplify organization, leading to a much tidier look and superior internal airflow.
PCIe 5.0 Riser Cable: A premium riser cable is included, making vertical GPU mounting easy while providing reliable, lightning-fast bandwidth.

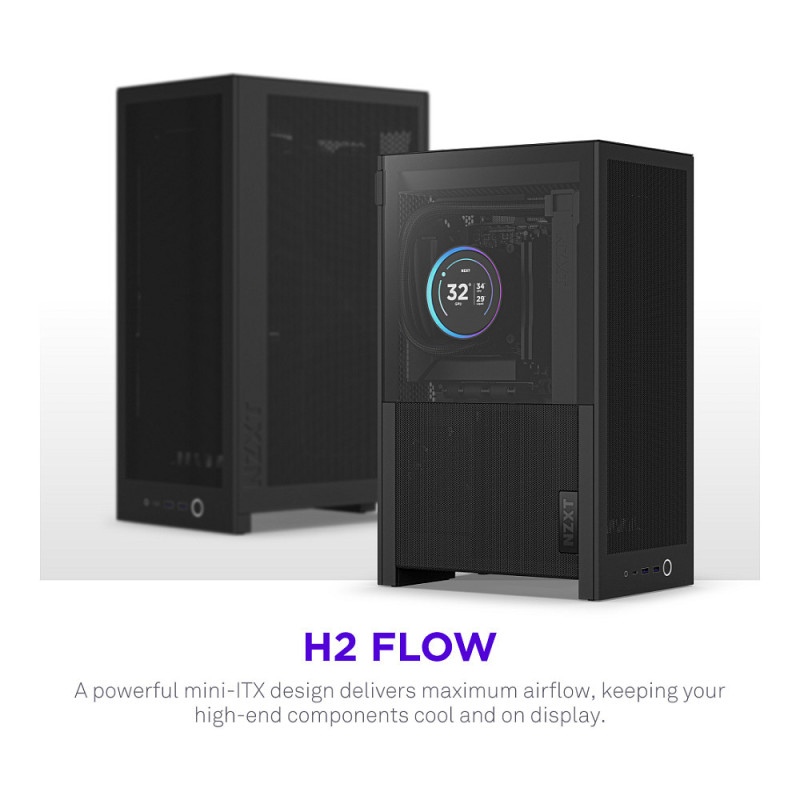

Mighty View. Mini Case.
The H2 Flow redefines compact power by visualizing it, packing high-end components and liquid cooling support into a sleek vertical design that frees your desk space. Every detail is engineered to simplify your build and keep your system cool and quiet.

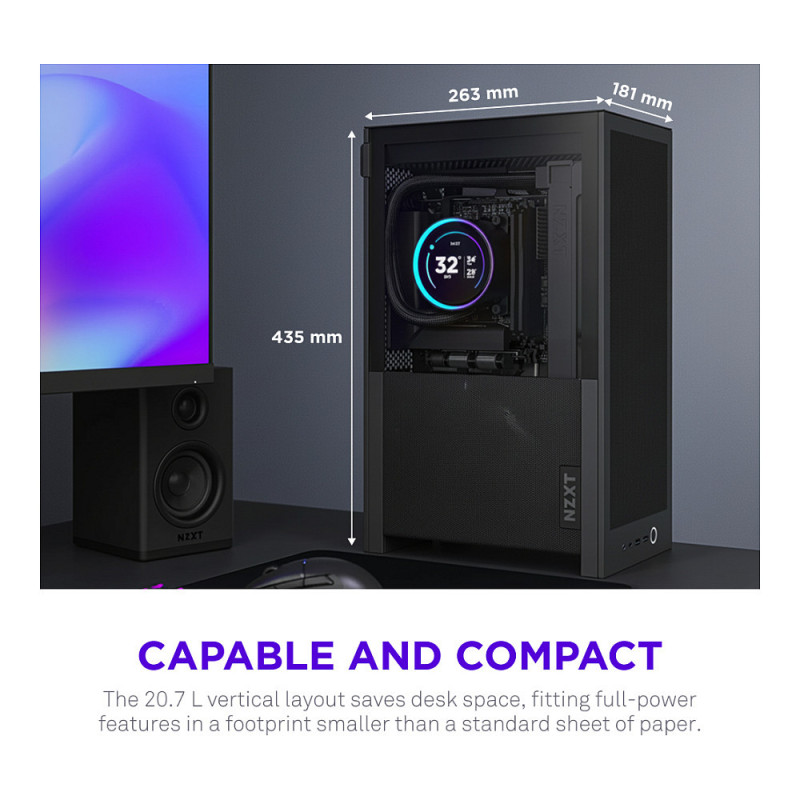

Compact Size, Full Power
The 20.7 L vertical layout saves desk space, fitting full-power features in a footprint smaller than a standard sheet of paper.

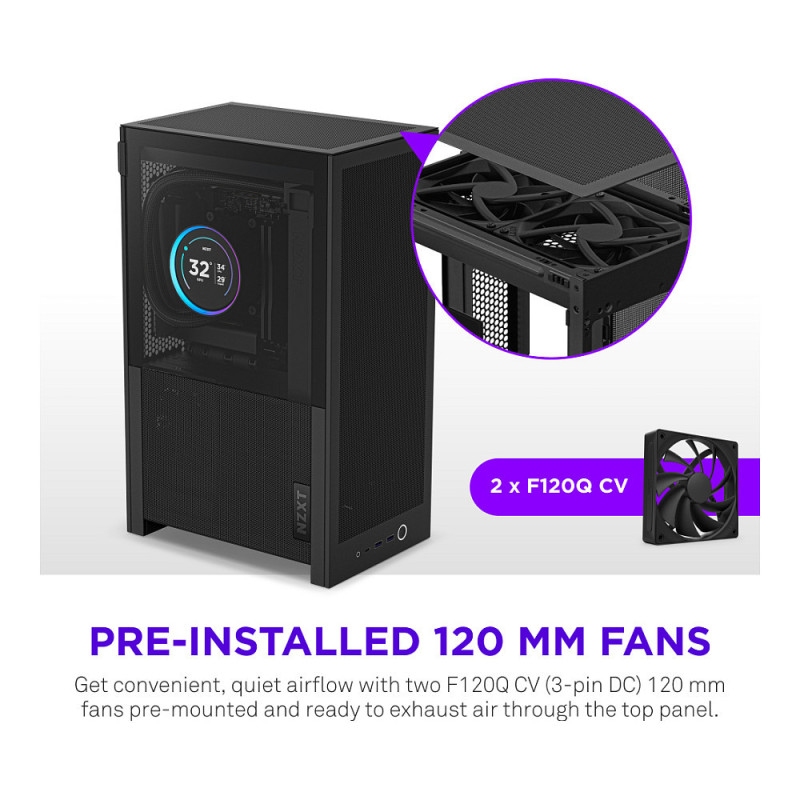

Two F120Q Fans
Get convenient, quiet airflow with two F120Q CV (3-pin DC) 120 mm fans pre-mounted and ready to work on the top panel.

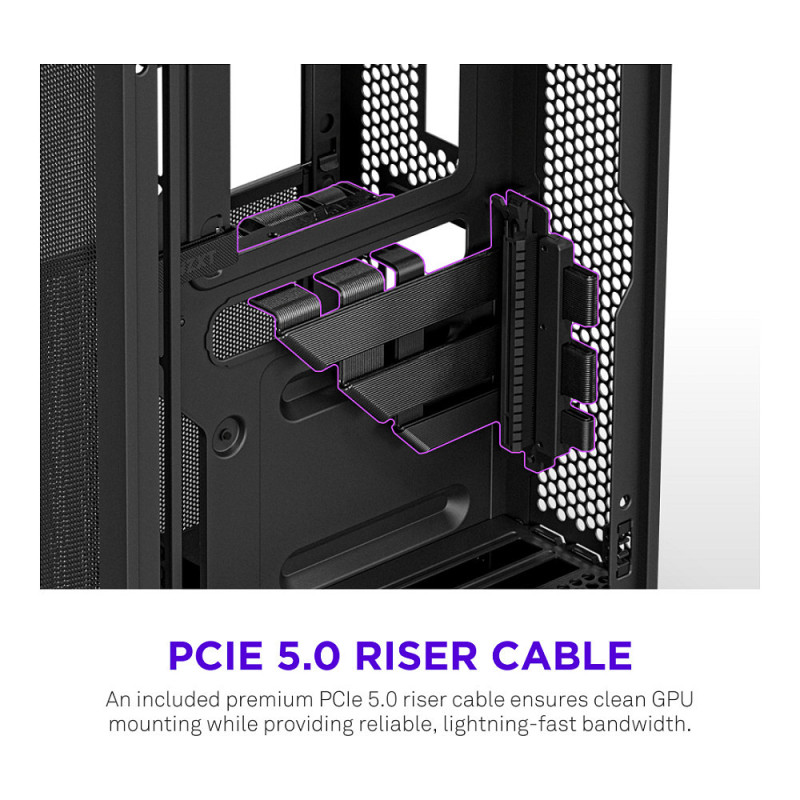

PCIe 5.0 Riser Cable
An included premium PCIe 5.0 riser cable ensures clean GPU mounting while providing reliable, lightning-fast bandwidth.

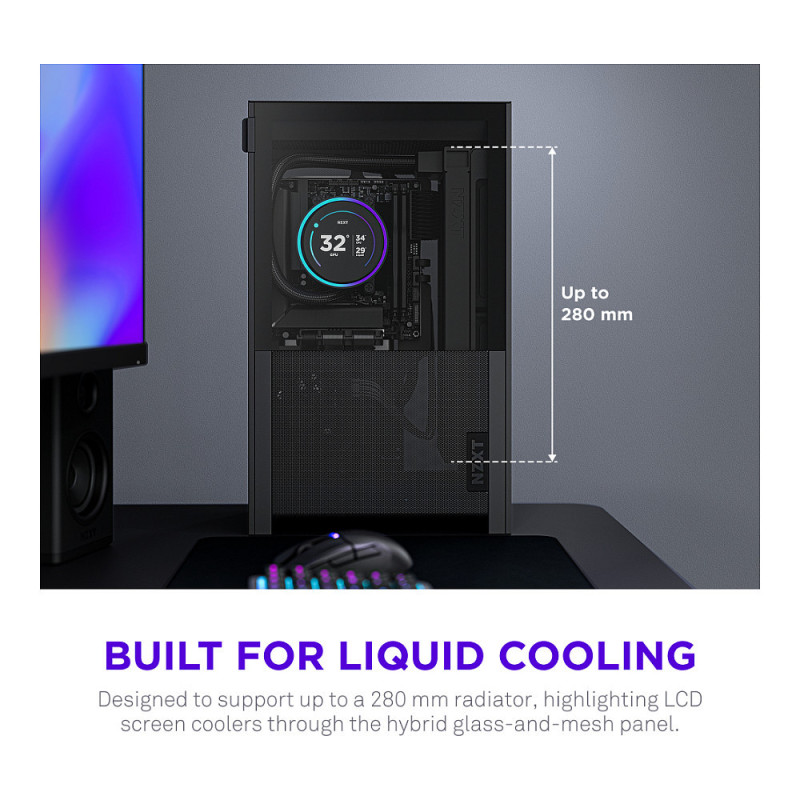

Built For Liquid Cooling
The hybrid glass-and-mesh panel puts LCD screen coolers on full display, with support of up to a 280 mm radiator for optimal performance.

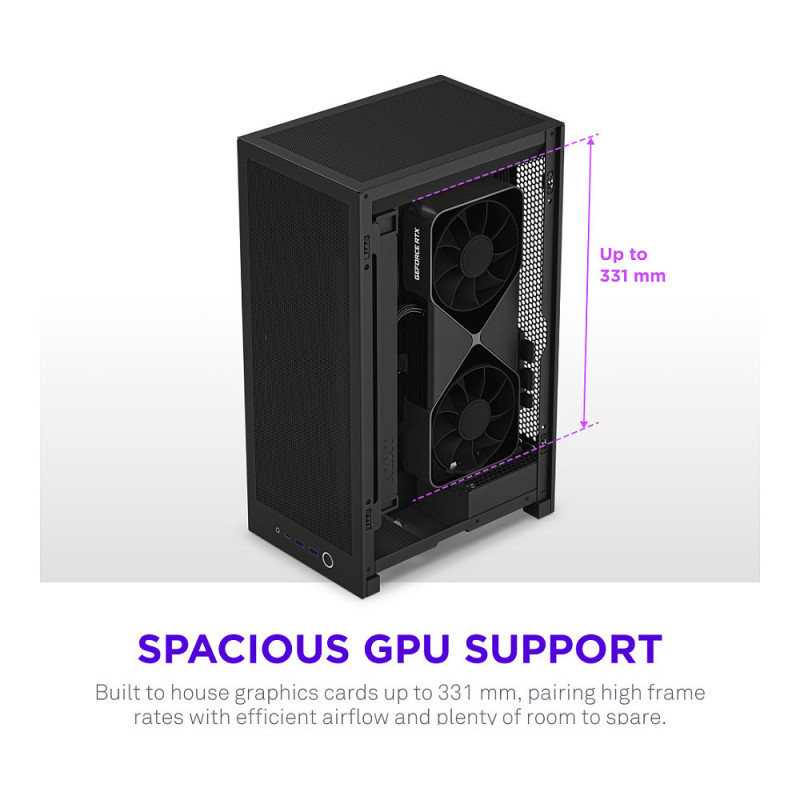

Spacious GPU Support
Accommodating graphics cards up to 331 mm, it delivers strong performance and steady high frame rates, all while maintaining efficient airflow and room to spare.

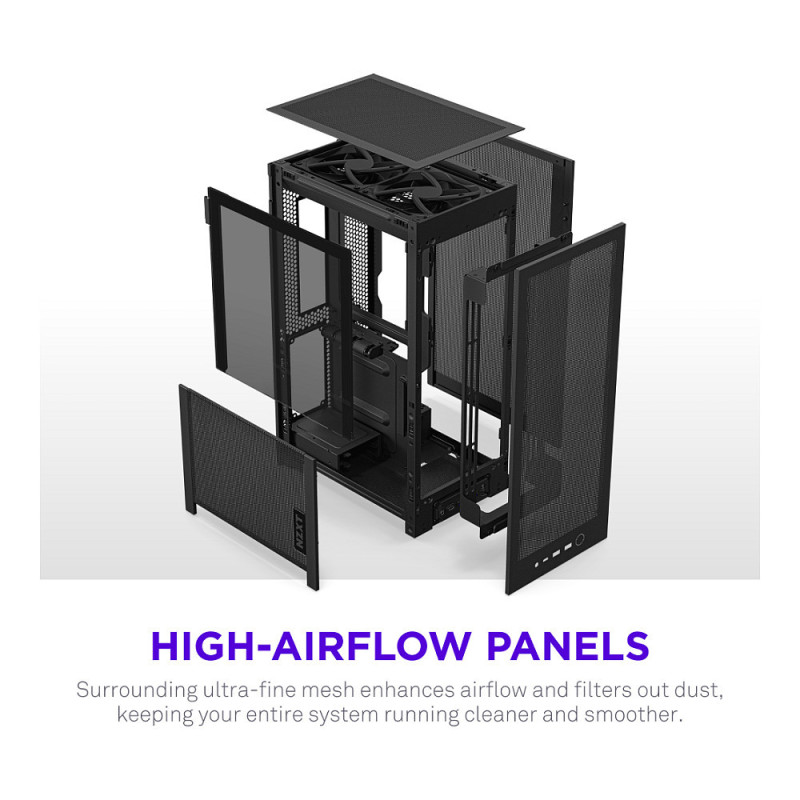

High-Airflow Panels
Ultra-fine mesh ensures steady airflow while keeping dust out for smooth, reliable performance.

Design

Material: Steel, Tempered glass
Form factor: Small Form Factor (SFF)
Type: PC
Product colour: Black
Supported motherboard form factors: Mini-ITX
Number of 2.5" bays: 2
Number of expansion slots: 3
Maximum CPU cooler height: 7.5 cm
Maximum graphics card length: 33.1 cm
Maximum PSU length: 13 cm

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Feature: Combo headphone/mic port
USB 3.2 Gen 2x2 Type-C ports quantity: 1

Cooling

Number of front fans supported (max): 2
Front fans diameters supported: 120,140 mm
Top fans installed: 2x 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120 mm
Maximum airflow: 60.2 cfm
Maximum air pressure: 1.05 mmH2O

Storage

Supported HDD sizes: 2.5"

Packaging content

Feature: Riser cable included

Weight & dimensions

Width: 181 mm
Depth: 263 mm
Height: 435 mm
Weight: 4.55 kg

Packaging data

Package width: 341 mm
Package depth: 250 mm
Package height: 520 mm
Package weight: 5.41 kg
