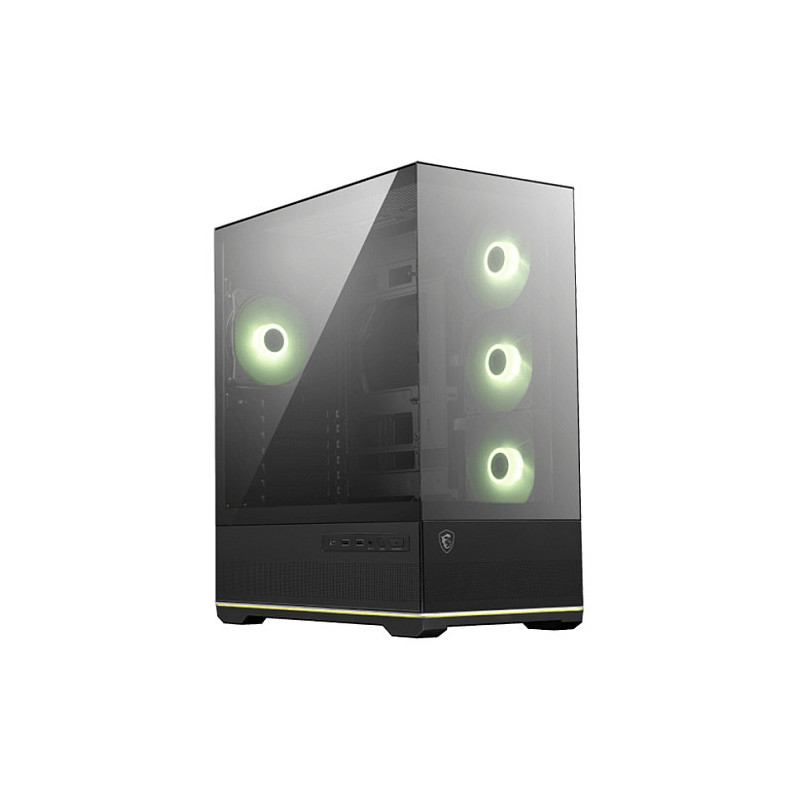

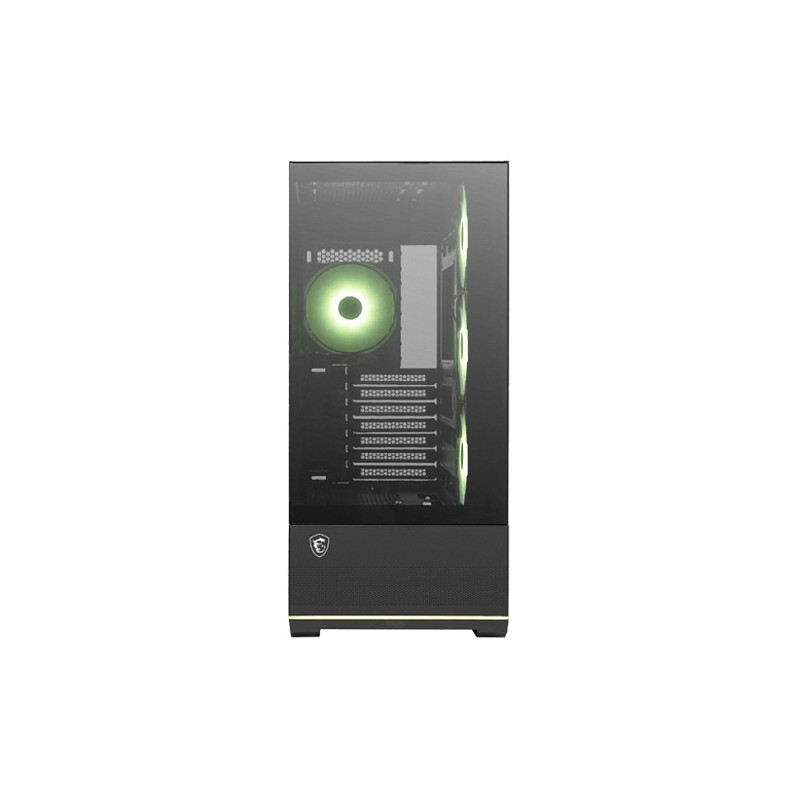

MSI MAG PANO 110R PZ computer case

MSI MAG PANO 110R PZ. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 420 mm, Height: 485 mm

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

Decorated with a metal nameplate to highlight the MAG family identity.

Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.

Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.

Design

Material: Tempered glass
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, micro ATX, Mini-ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of expansion slots: 7
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination location: Case fans
Feature: On/off button
LED indicators: Yes
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 20 cm
Maximum PSU length: 40 cm

Power supply

Power supply location: Bottom
Supported power supply form factors: ATX

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: Combo headphone/mic port

Cooling

Side fans installed: 3x 120 mm
Number of side fans supported (max): 3
Side fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 3
Bottom fans diameters supported: 120,140,160 mm
Feature: Liquid cooling capability
Side radiator sizes supported: 120,240,360 mm
Bottom radiator sizes supported: 120,240,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,240,360 mm

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 225 mm
Depth: 420 mm
Height: 485 mm
