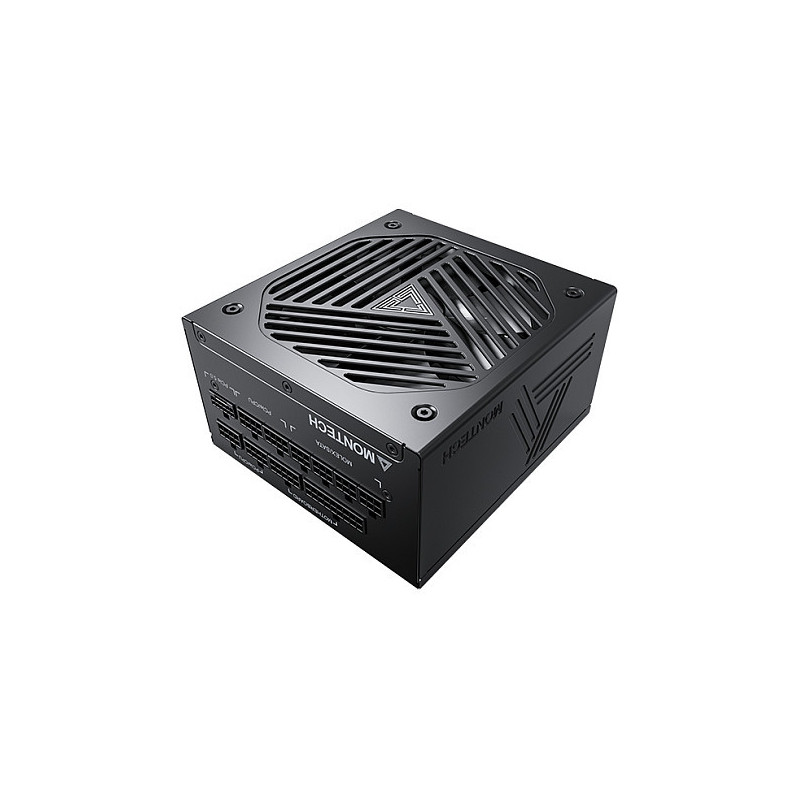

Montech TITAN GOLD 1200W power supply unit

Montech TITAN GOLD 1200W. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: All-in-One PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, SATA

Silent Power for Every Gamer:
The MONTECH TITAN GOLD Series
Introducing the MONTECH TITAN GOLD series, delivering premium components and ultra-quiet high performance tailored for gamers at every level. With ATX 3.0 and PCIe Gen 5.0 compatibility, the TITAN GOLD is a must-have for those eyeing the NVIDIA GeForce RTX 40 series GPUs.

Compliant with The Highest Standards
The TITAN GOLD is ATX 3.0 and PCIe Gen 5.0 ready, it has an output port that is compliant with PCIe 5.0, includes native 12+4 pin 12VHPWR connector, which is designed to better communicate with the newer GPUs and delivers up to 600W.

Also, the TITAN GOLD series are fully compliant with Intel PSDG ATX 3.0, the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

80 PLUS Gold & Cybenetics Gold Certified
TITAN GOLD is extremely efficient and quiet with dual authentic certifications, and a maximum efficiency above 92%.

Elevate Your System with TITAN GOLD's Premium Components
Elevate your setup with TITAN GOLD's premium Japanese capacitors, rated at 105°C and bolstered by dual bulk capacitors. These high-quality components ensure unmatched durability and stability for your system.

Power Perfected, Unleash Optimal Performance with TITAN GOLD
TITAN GOLD's advanced technology, featuring half-bridge, LLC, and Synchronous Rectifier (SR) tech, ensures exceptional signal stability and power efficiency. With DC-to-DC conversion for precise voltage regulation and minimal ripple noise, TITAN GOLD guarantees optimal performance

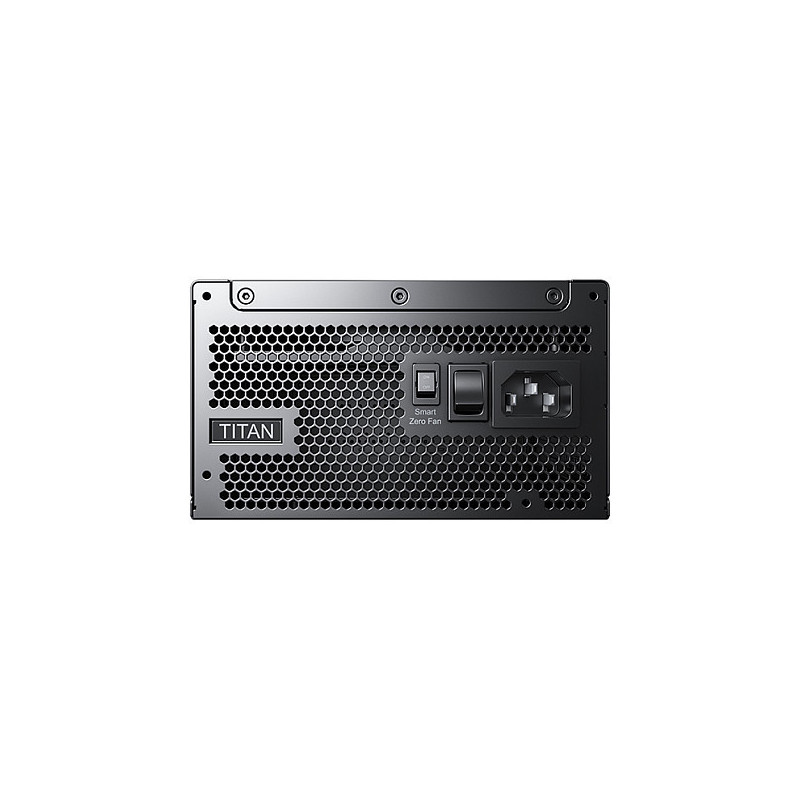

Whisper-Quiet Performance with TITAN GOLD Smart Zero Fan Function

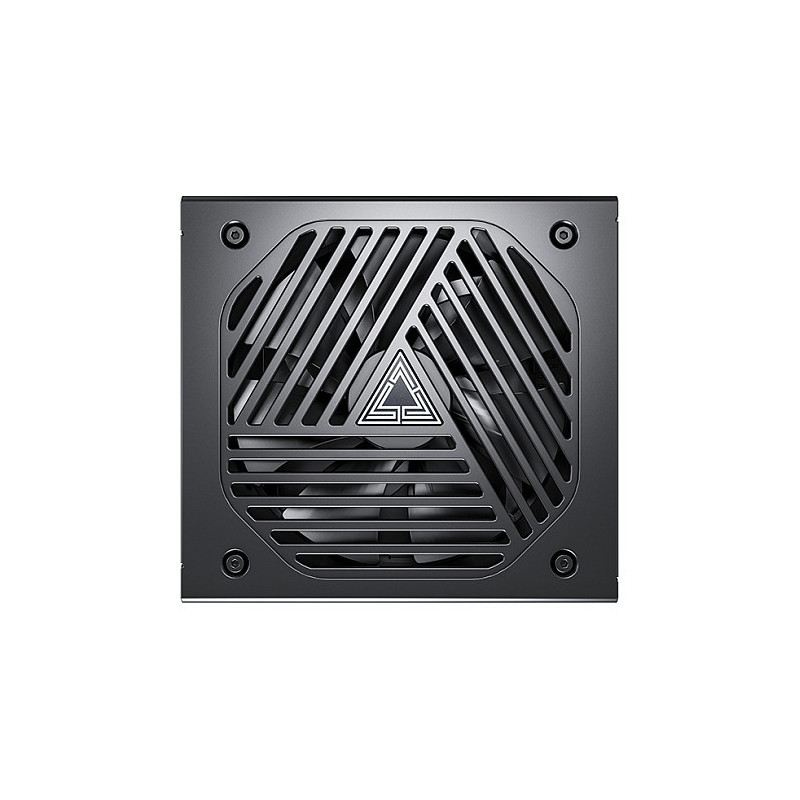

Experience whisper-quiet operation with the TITAN GOLD's 135mm fluid dynamic bearing (FDB) fan. With zero RPM mode until 40% loading, it maintains silence during light usage. At maximum load, the noise level peaks at just 27 dBA at 1400 RPM.

Cybenetics Ultra Quiet Certified
TITAN GOLD earns the prestigious Cybenetics LAMBDA A Certification, verifying its superior noise reduction and efficiency levels through independent testing.

Compatible with all generations of GPU
The TITAN GOLD series provide various I/O interfaces, leading to the satisfaction of the power supply not only for the new generation 40 series GPU, but all generations from AMD and NVIDIA.

Reliable & Safe
Equipped with industrial level of power protection, including all six protections mechanisms to ensure stable and safe system operation. Plus 10 year-warranty to guarantee long-term reliable use.

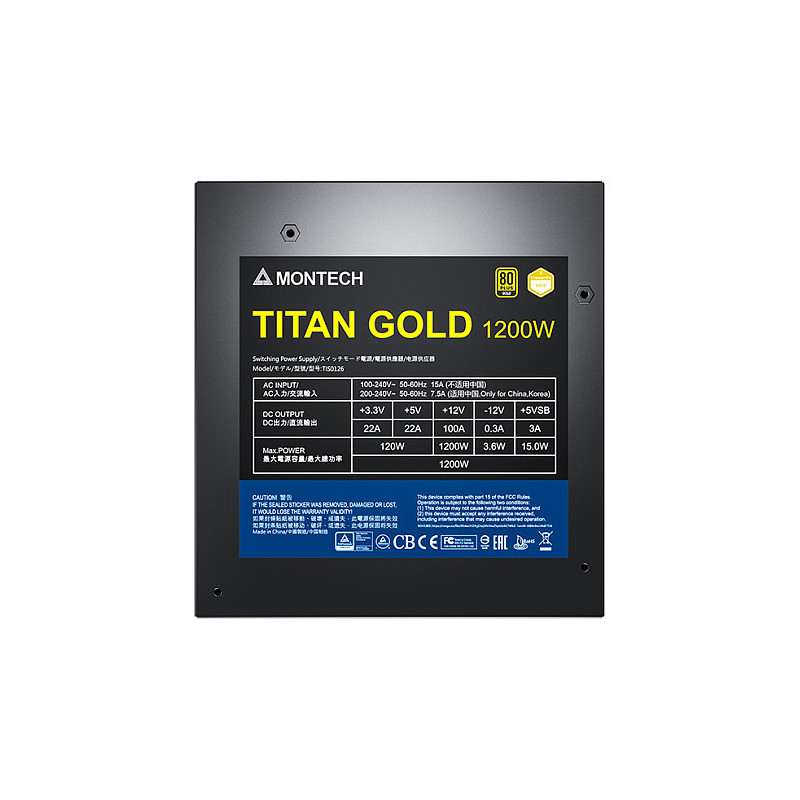

Power

Total power: 1200 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 100 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 12
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 5
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Supported motherboard form factors: ATX
Purpose: All-in-One PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Packaging content

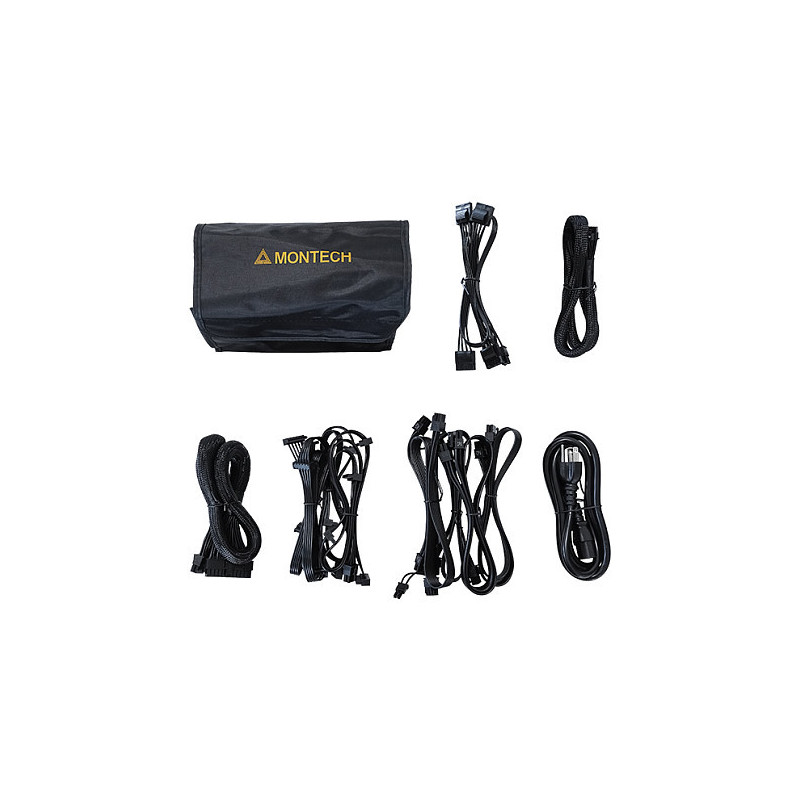

Cables included: AC, CPU, SATA

Weight & dimensions

Width: 160 mm
Depth: 150 mm
Height: 86 mm

Logistics data

Warranty period: 10 year(s)
