Inter-Tech 3U-3416

Inter-Tech 3U-3416. Form factor: Rack, Type: Server, Product colour: Black. Rear fans installed: 2x 60 mm, Rear fans diameters supported: 60 mm. Supported HDD sizes: 2.5,3.5". Width: 482 mm, Depth: 685 mm, Height: 134 mm. Package width: 560 mm, Package depth: 830 mm, Package height: 195 mm

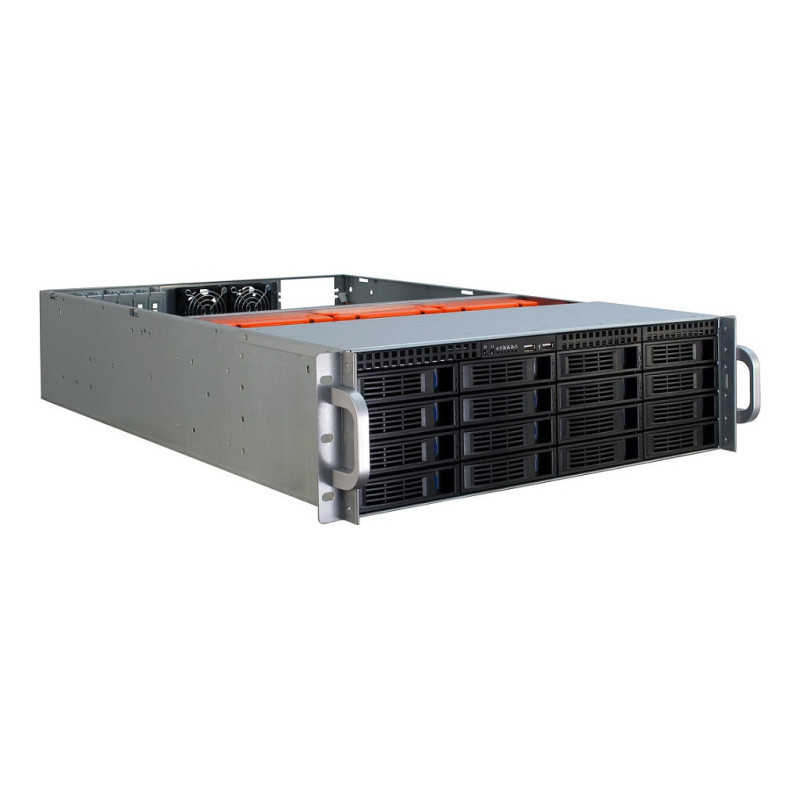

The IPC 3U-3416 is the ideal case for a small and cheap server solution. With its excellent quality and finish, Inter-Tech established the basis for a very variable case.

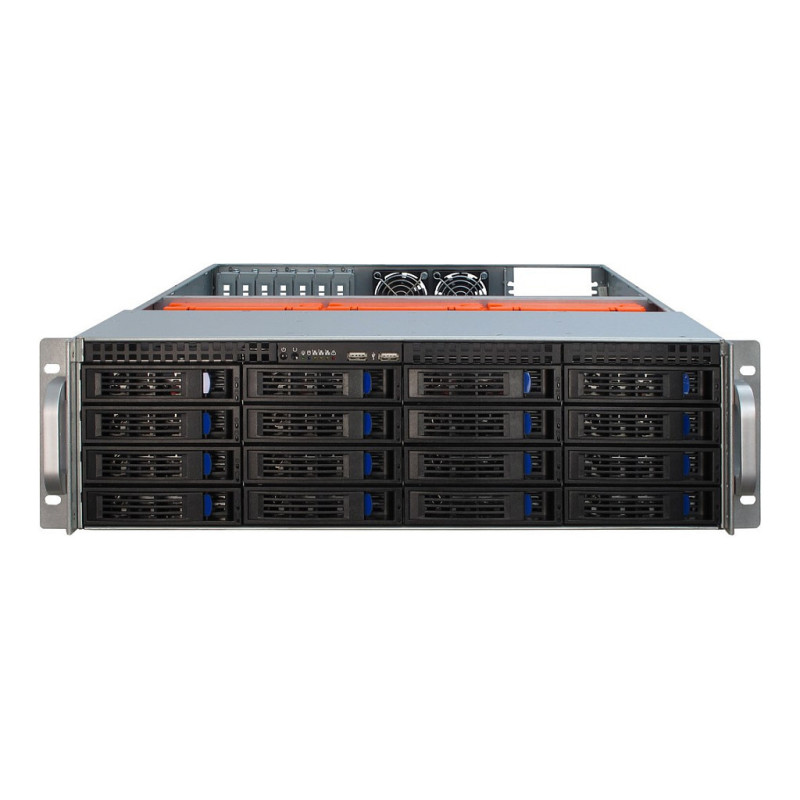

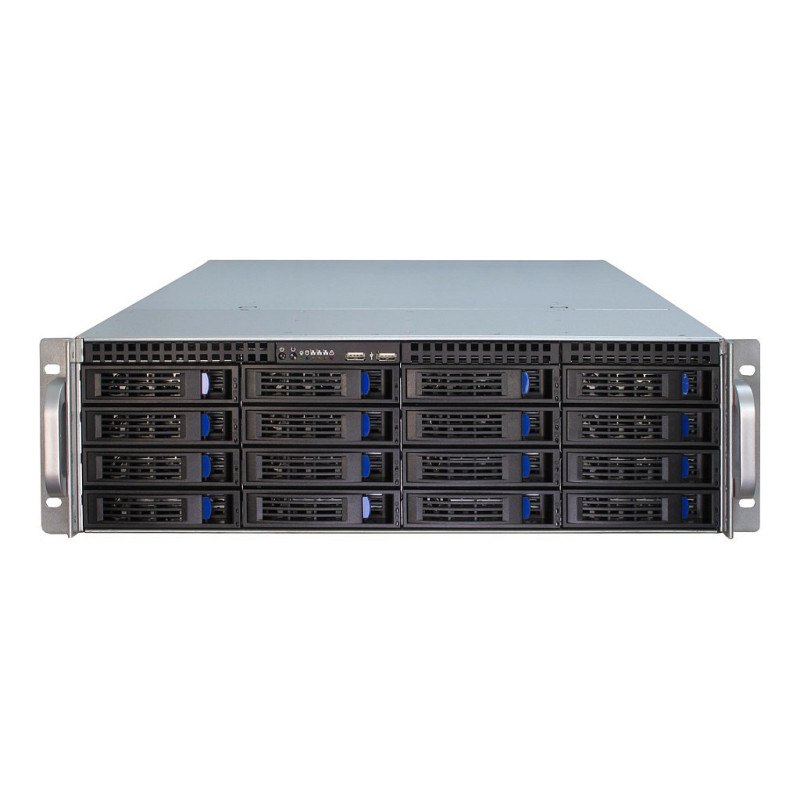

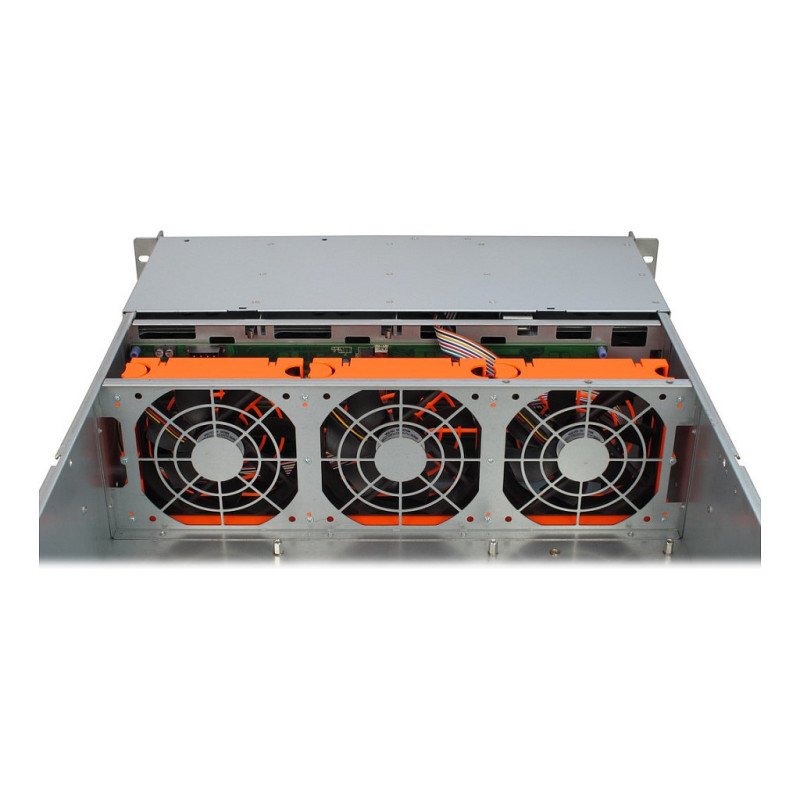

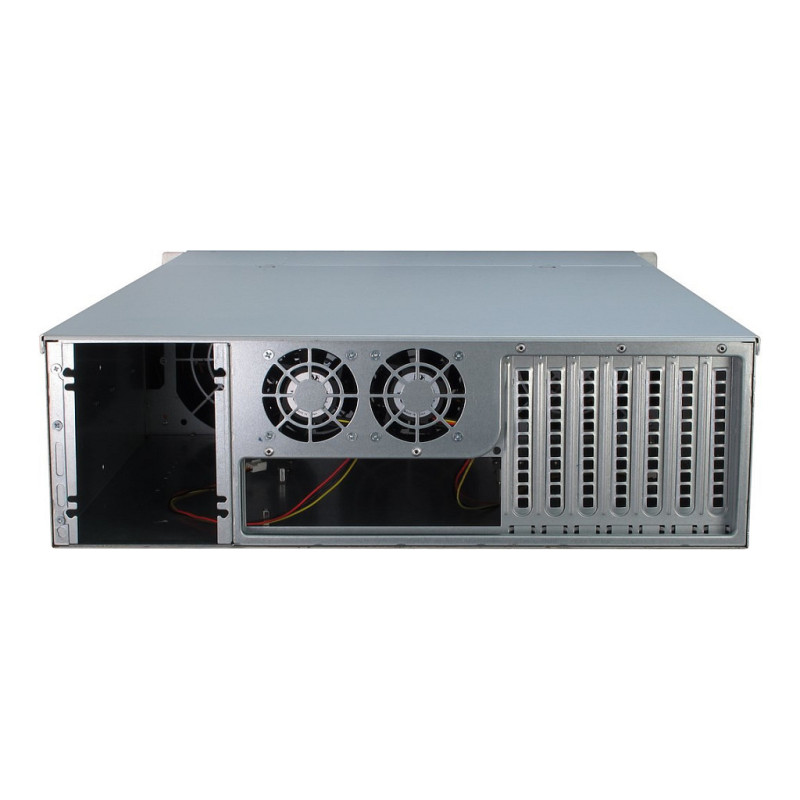

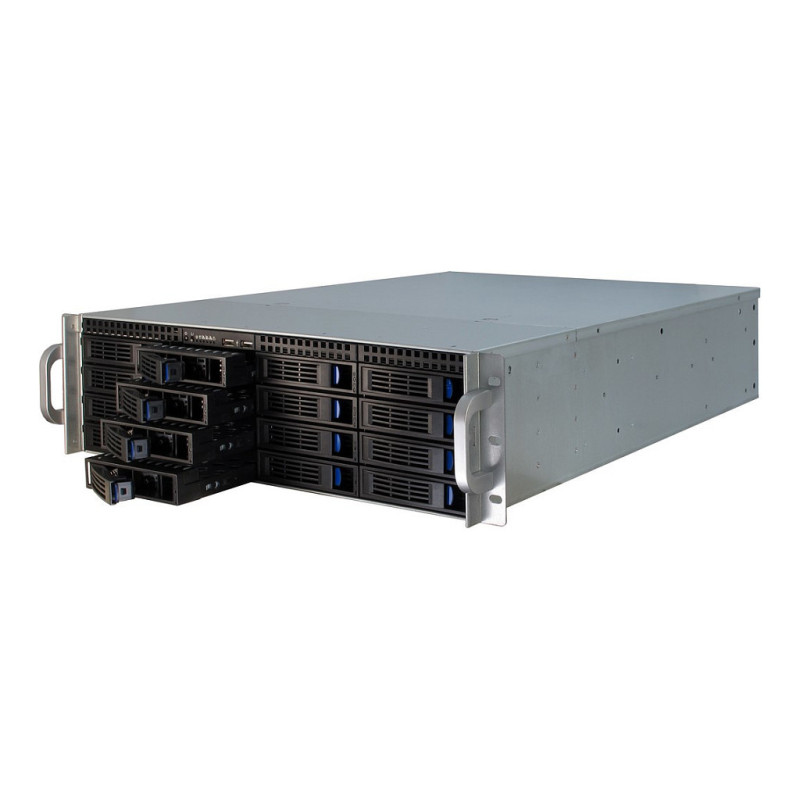

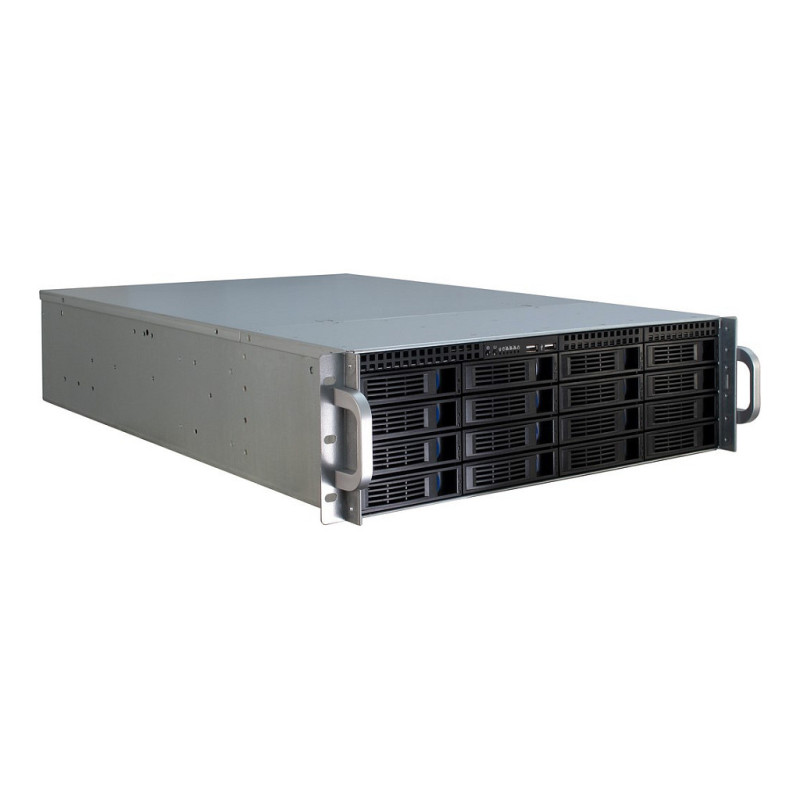

The IPC 3U-3416 offers the possibility to install maximal sixteen 2.5" or 3.5" Hot-Swap HDDs, one Slim DVD external and three internal 2.5" HDDs. The IPC 3U-3416 has five fans included, from which three 120mm fans are mounted directly at the back of the drive brackets. Another two 60mm fans are mounted at the back and ensure a reliable and optimal cooling.

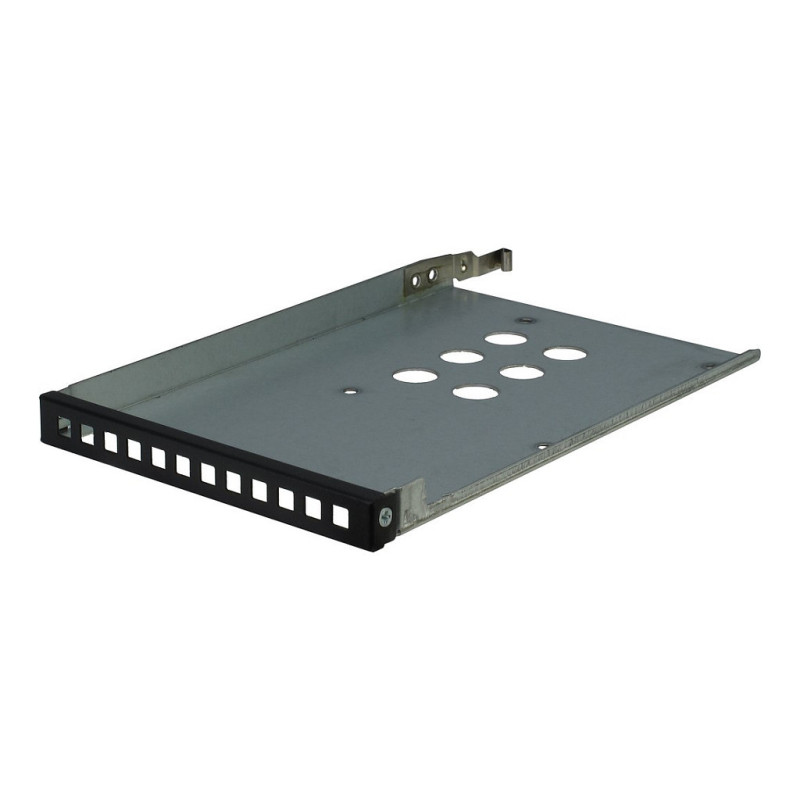

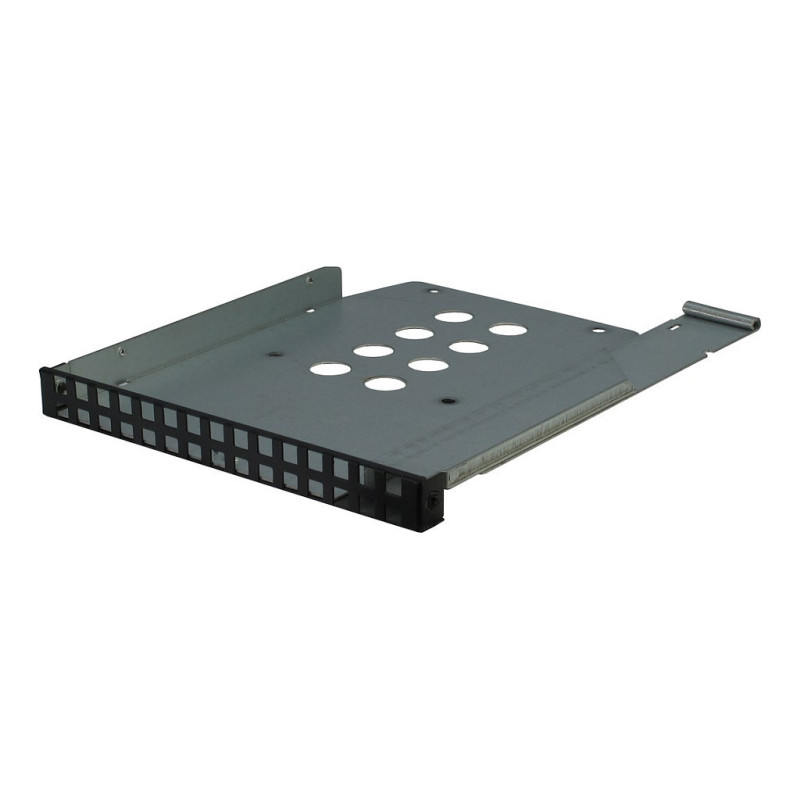

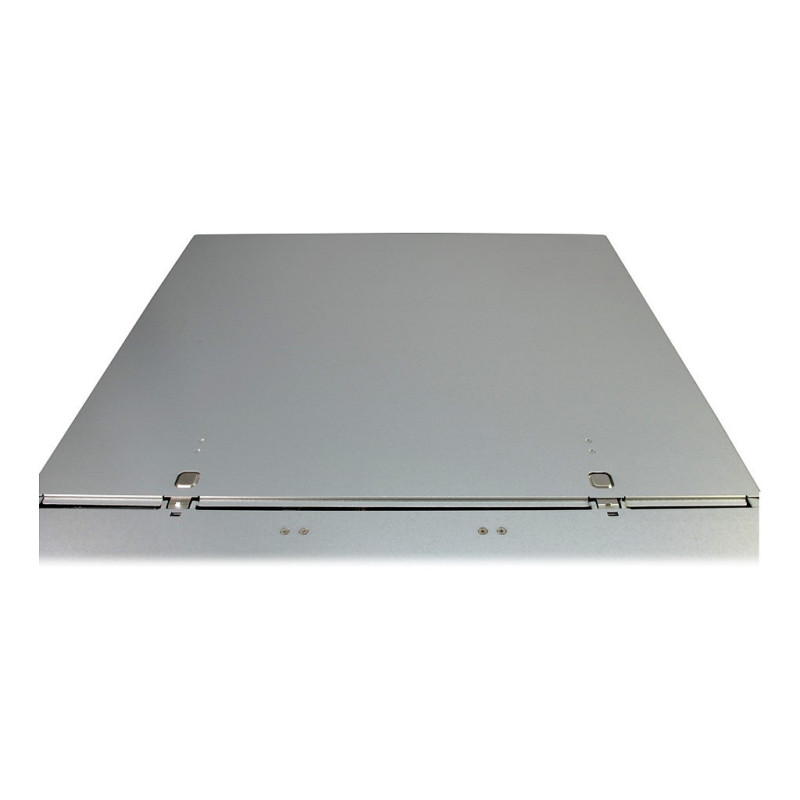

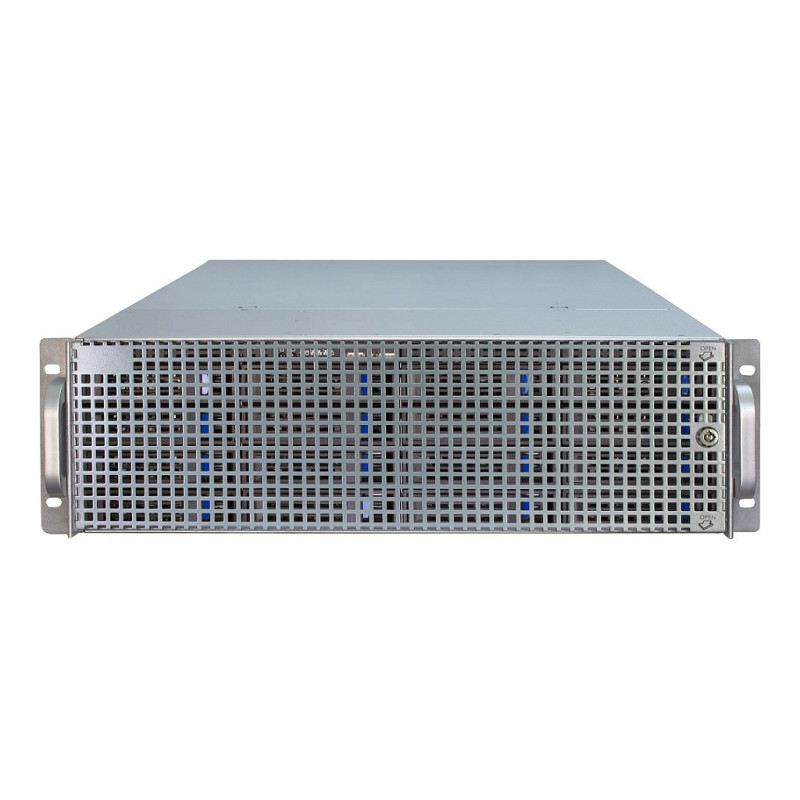

Additional extras like the reusable and perforated slot brackets and the lid with the snap lock round off the picture.

Design

Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX, SSI EEB
Number of 5.25" bays: 1
Number of 2.5" bays: 19
Number of external 5.25" bays: 1
Feature: Rack mounting
Feature: Reset button
LED indicators: HDD, Network, Power, Temperature

Ports & interfaces

Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Cooling

Rear fans installed: 2x 60 mm
Rear fans diameters supported: 60 mm

Storage

Supported HDD sizes: 2.5,3.5"
Number of HDDs supported: 20
Feature: Hot-swap

Weight & dimensions

Width: 482 mm
Depth: 685 mm
Height: 134 mm
Weight: 13.4 kg
Material thickness: 1.2 mm

Packaging data

Package width: 560 mm
Package depth: 830 mm
Package height: 195 mm
Package weight: 15.6 kg

Logistics data

Harmonized System (HS) code: 84733080

Other features

Ventilation fan(s): 3x 120mm, 2x 60mm
Size (imperial): 48.3 cm (19")
