Inter-Tech 1U-10240

Inter-Tech 1U-10240. Form factor: Rack, Type: Server, Product colour: Black. Supported power supply form factors: Flex-ATX. Supported HDD sizes: 2.5,3.5". Width: 482 mm, Depth: 428 mm, Height: 44.5 mm. Package width: 545 mm, Package depth: 560 mm, Package height: 110 mm

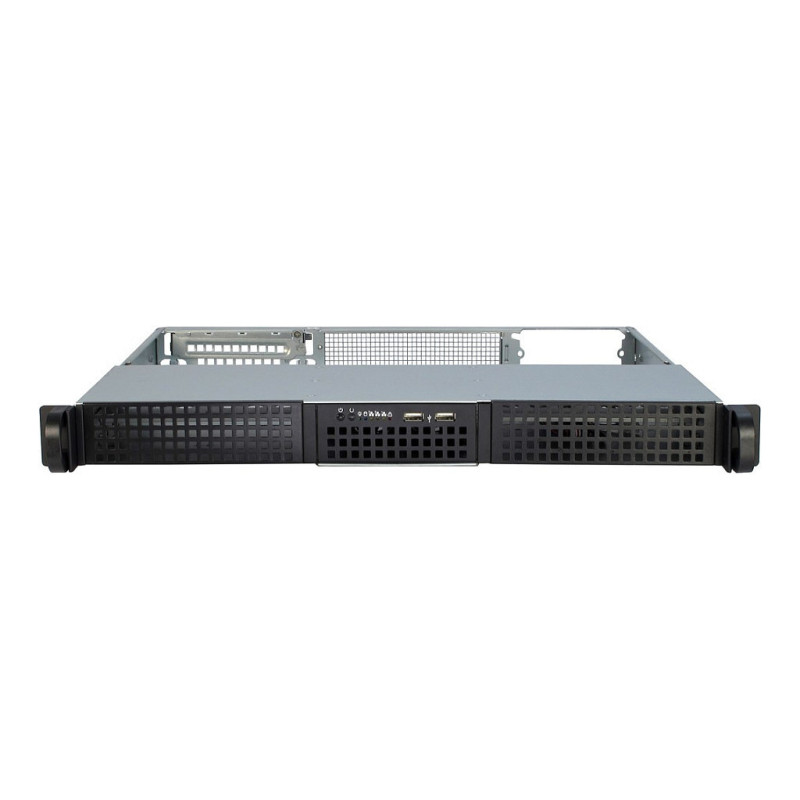

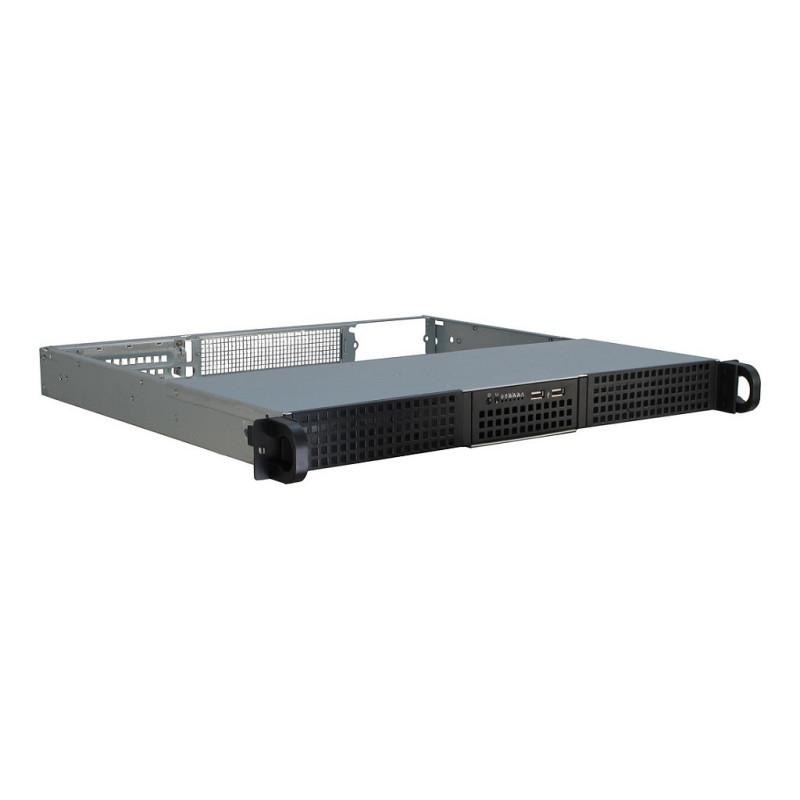

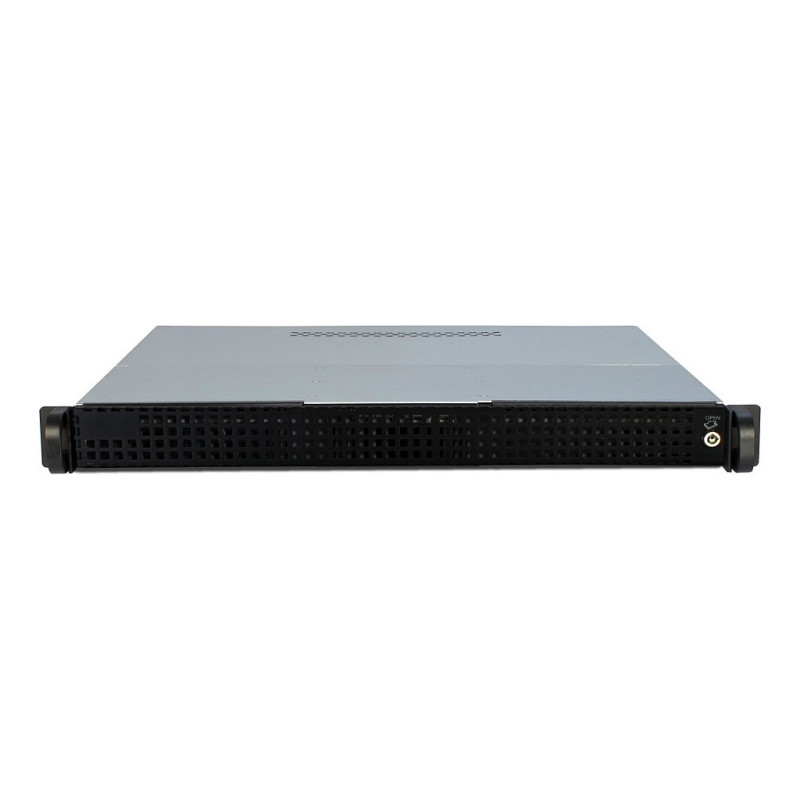

The IPC 1U-10240 is the perfect rack for a low-priced server system. The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

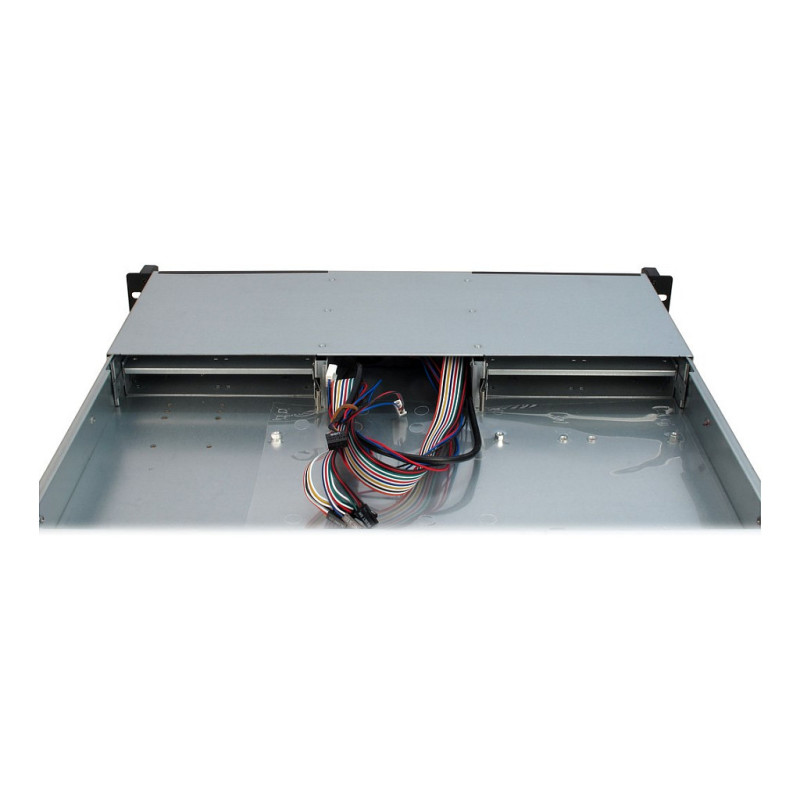

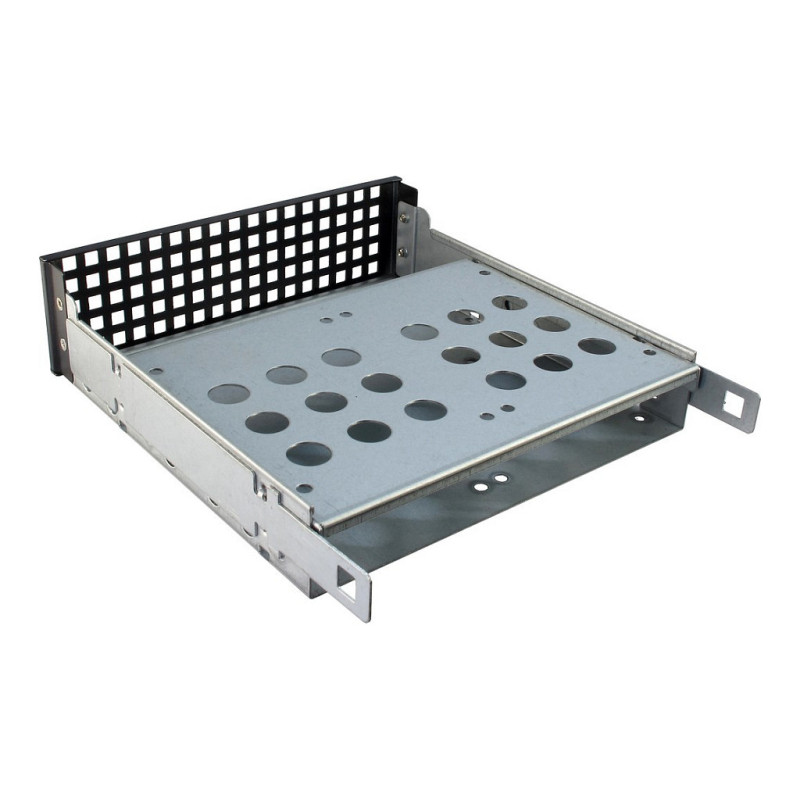

The IPC 1U-10240 provides the possibility to mount maximal eight 2.5" or two 3.5" internal hard drives. Two standard 40mm fans guarantee an optimal cooling.

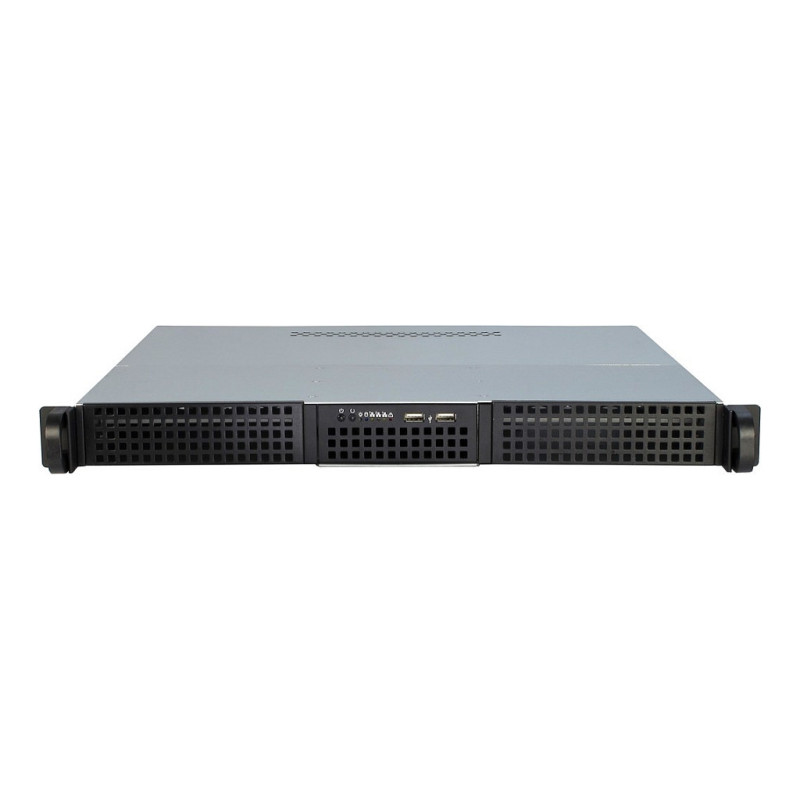

Additional extras like easily reachable USB 2.0 connectors and the universal slot bracket complete this total package.

Design

Material: Steel
Form factor: Rack
Type: Server
Product colour: Black
Supported motherboard form factors: ATX, Flex-ATX, micro ATX, Mini-ATX, Mini-ITX
Number of 3.5" bays: 2
Number of 5.25" bays: 2
Number of 2.5" bays: 8
Number of internal 3.5" bays: 2
Number of external 5.25" bays: 2
Feature: Rack mounting
Rack capacity: 1U
Feature: Reset button
LED indicators: HDD, Network, Power
Certification: RoHS, CE

Power supply

Supported power supply form factors: Flex-ATX

Ports & interfaces

Audio input: No
Audio output: No
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Storage

Supported HDD sizes: 2.5,3.5"

Weight & dimensions

Width: 482 mm
Depth: 428 mm
Height: 44.5 mm
Weight: 5 kg
Material thickness: 1.2 mm

Packaging data

Package width: 545 mm
Package depth: 560 mm
Package height: 110 mm
Package weight: 6 kg

Logistics data

Harmonized System (HS) code: 84733080
Products per pallet: 42 pc(s)

Other features

Ventilation fan(s): 2x 40mm
Size (imperial): 48.3 cm (19")
Fan diameter: 4 cm
