ICY BOX IB-RD2253-C31

ICY BOX RAID enclosure for 2x HDD/SSD USB 3.2 Gen 2 Type-C® / Type-A interface. Product type: HDD/SSD enclosure. Number of storage drives supported: 1, Storage drive size: 2.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III. Data transfer rate: 10 Gbit/s. RAID levels: 0, 1. Product colour: Black. USB connector type: USB Type-C

Failure safety or performance

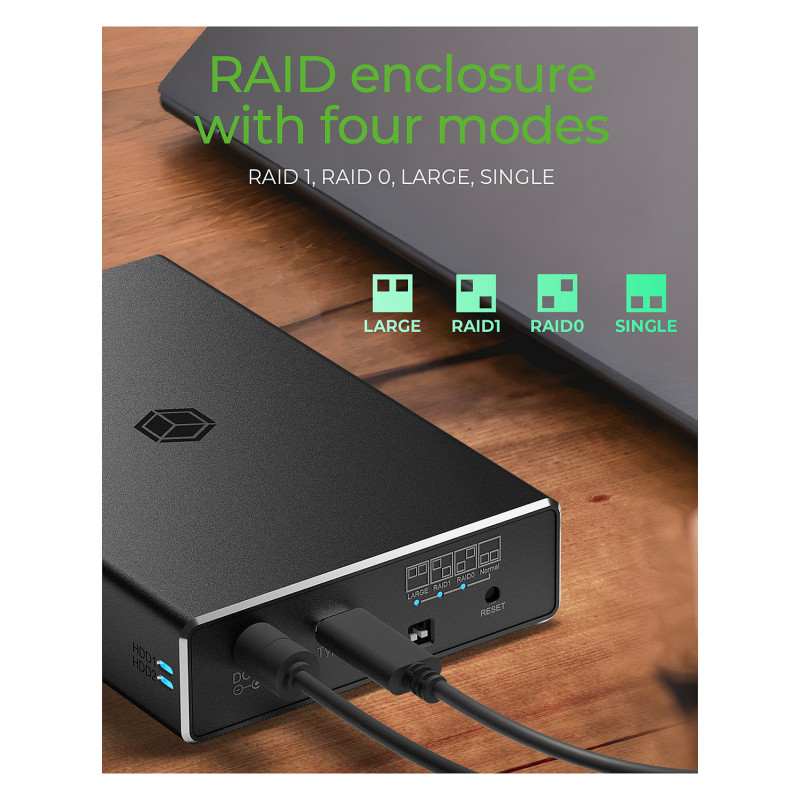

Double the security of your data by mirroring with RAID 1 or push the performance of your drives and data transfer rates to the limits with RAID 0. Use each installed drive separately with SINGLE mode or the entire available storage volume in LARGE mode.

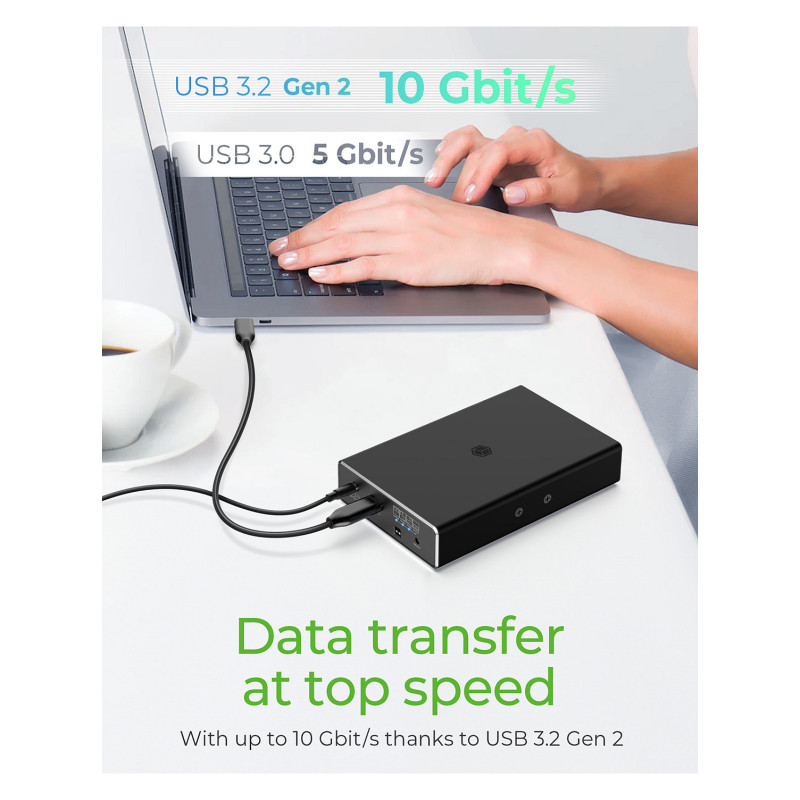

Data transfer at top speed
With USB 3.2 Gen 2 you enjoy data transfer rates of up to 10 Gbit/s without waiting times or delay and can transport files from one drive to another within seconds. To suit your current equipment best, the IBRD2253- C31 comes fully equipped with both a USB Type-C® and a Type-A cable.

Compact and resilient

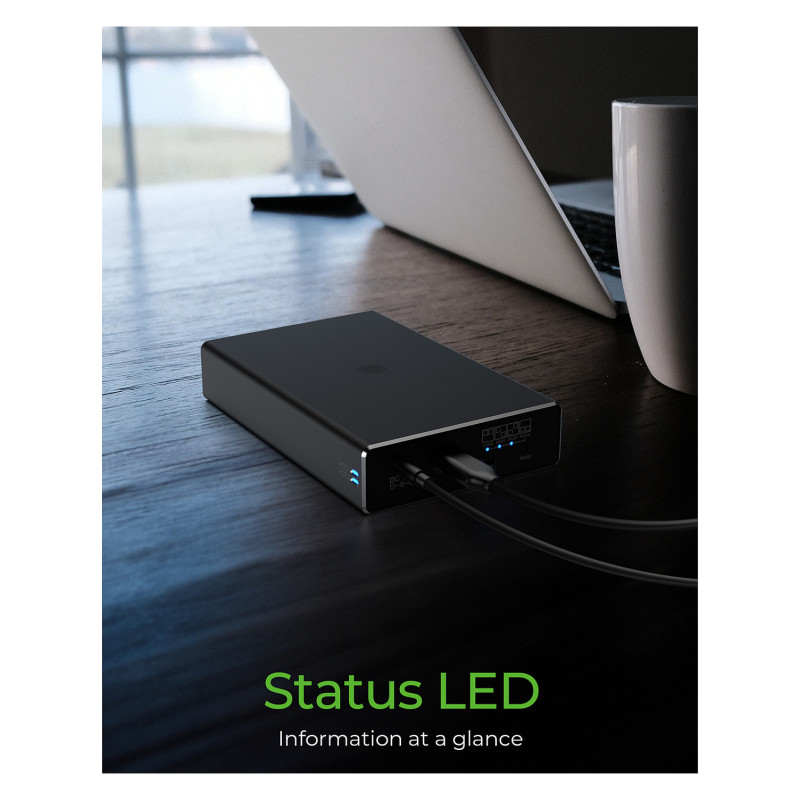

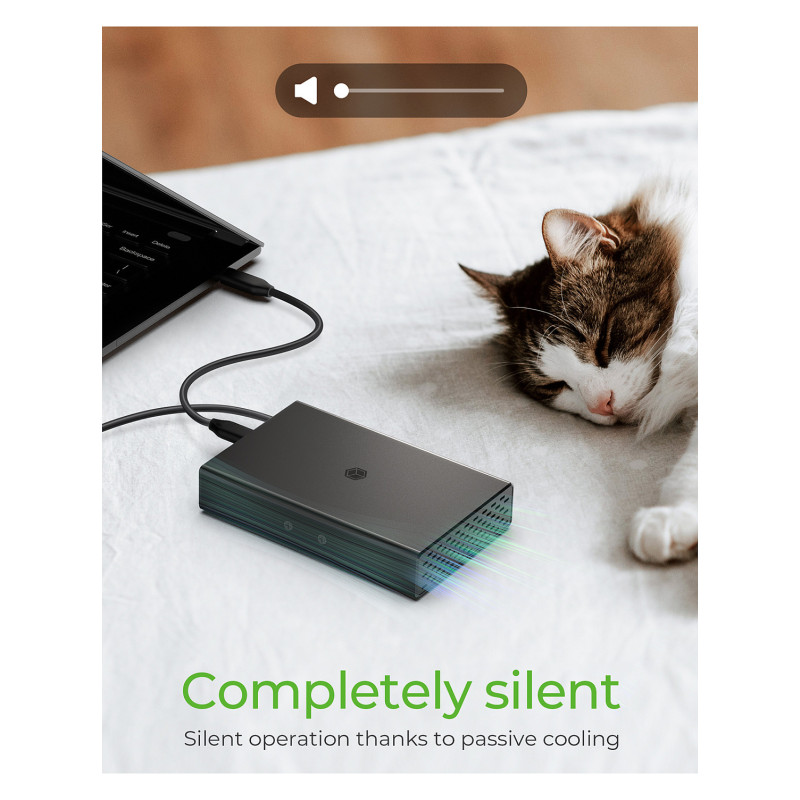

The enclosure is made from aluminium and therefore very durable. Designed with passive cooling and without a fan, both professional and private workplaces benefit from this very silent setup. A status LED keeps you informed about the current state of the installed drives at all times.

Storage

Number of storage drives supported: 1
Storage drive size: 2.5"
Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
Supported storage drive heights: 9.5 mm
RAID levels: 0, 1

Ports & interfaces

Feature: USB connectivity
USB version: 3.2 Gen 2 (3.1 Gen 2)
USB connector type: USB Type-C
USB connector gender: Female

Design

Product type: HDD/SSD enclosure
Product colour: Black
Material: Aluminium, Plastic
LED indicators: RAID mode, Access, Power

Performance

Data transfer rate: 10 Gbit/s
Feature: UASP support

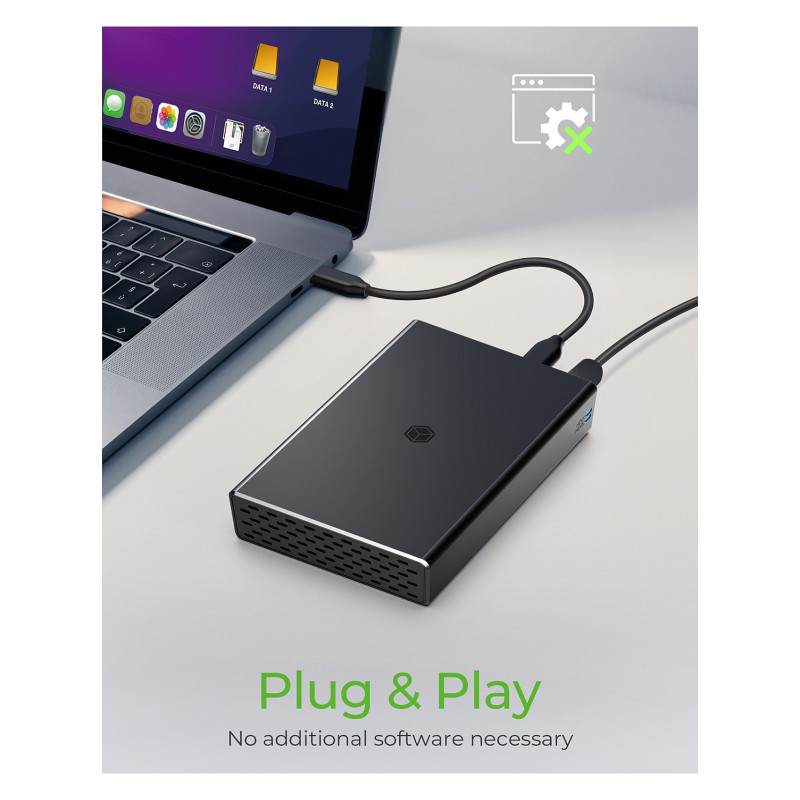

Feature: Plug and Play
Country of origin: China

Power

Power source type: DC
AC adapter input voltage: 230 V
AC adapter output voltage: 5 V
AC adapter output current: 2 A

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 84 mm
Depth: 130 mm
Height: 26 mm
Weight: 187 g
Package width: 231 mm
Package depth: 131 mm
Package height: 66 mm
Package weight: 537 g

Packaging content

Feature: AC adapter included
Cables included: USB Type-A to USB Type-C, USB Type-C to USB Type-C
Feature: Screws included
Feature: Screwdriver included
Feature: Manual

Logistics data

Harmonized System (HS) code: 84718000
Master (outer) case width: 341 mm
Master (outer) case length: 506 mm
Master (outer) case height: 270 mm
Master (outer) case gross weight: 10.7 kg
Products per master (outer) case: 20 pc(s)
