ICY BOX IB-575SSK-12G

ICY BOX IB-575SSK-12G. Size (imperial): 8.89 cm (3.5"), Type: Backplane, Product colour: Black. Width: 127 mm, Depth: 220 mm, Height: 148 mm. Package width: 252 mm, Package depth: 162 mm, Package height: 180 mm. Quantity per pack: 1 pc(s), Cables included: SATA, Number of lock keys included: 2 pc(s). Products per master (outer) case: 6 pc(s), Master (outer) case width: 380 mm, Master (outer) case length: 520 mm

Stress resistant
The best materials are used in the enclosure, making this 3.5" drive solution the ideal partner for extreme loads. The backplane with its lockable bays is also ideally equipped in terms of security requirements.

Cool and silent

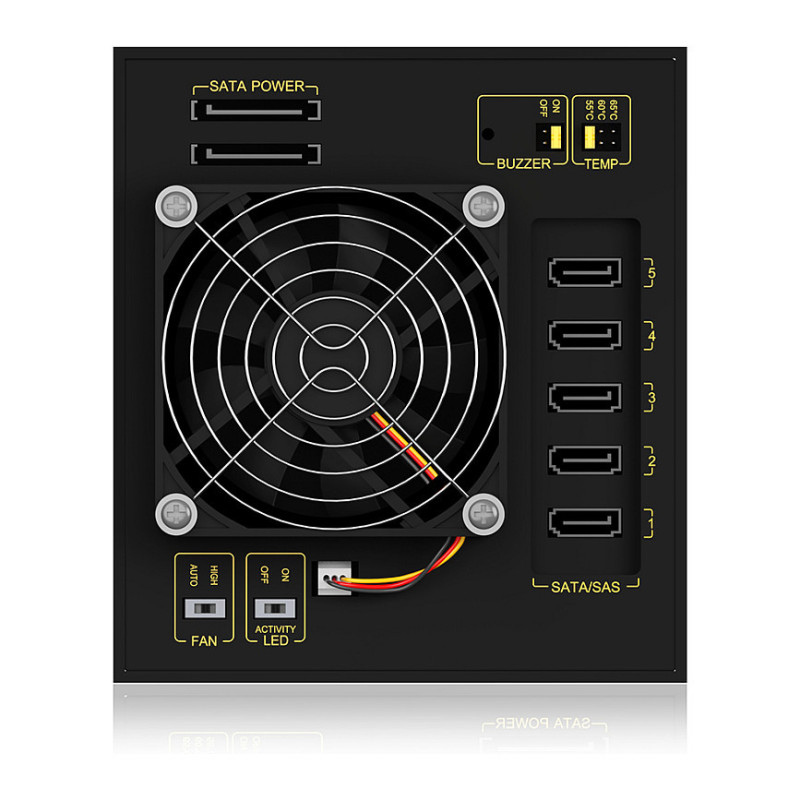

The active 80x80 mm fan works efficiently and adjusts its running performance to the temperatures as required, making the housing pleasantly quiet. The aluminium housing also contributes to passive convection to the surroundings.

Real time
Visual and acoustic signals indicate the current status of the hard drives and the fan. The alarm temperature for the signal can be set to three levels, 55° C, 60° C and 65° C.

Features

Size (imperial): 8.89 cm (3.5")
Type: Backplane
Product colour: Black
Number of HDDs supported: 5
HDD size: 3.5"
HDD interface: SATA III, Serial Attached SCSI (SAS)
Material: Aluminium, Plastic, Steel
Feature: Hot-swap
Number of fans: 1 fan(s)
Fan diameter: 8 cm
Data transfer rate: 12 Gbit/s
LED indicators: Yes
Feature: Key lock

Ports & interfaces

Number of SATA connectors: 5
External SATA ports quantity: 2

Weight & dimensions

Width: 127 mm
Depth: 220 mm
Height: 148 mm
Weight: 1.82 kg

Packaging data

Package width: 252 mm
Package depth: 162 mm
Package height: 180 mm
Package weight: 2.32 kg

Packaging content

Quantity per pack: 1 pc(s)
Cables included: SATA
Feature: Manual
Number of lock keys included: 2 pc(s)
Number of screws: 8

Logistics data

Products per master (outer) case: 6 pc(s)
Master (outer) case width: 380 mm
Master (outer) case length: 520 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 14 kg
Harmonized System (HS) code: 84718000
Country of origin: China
