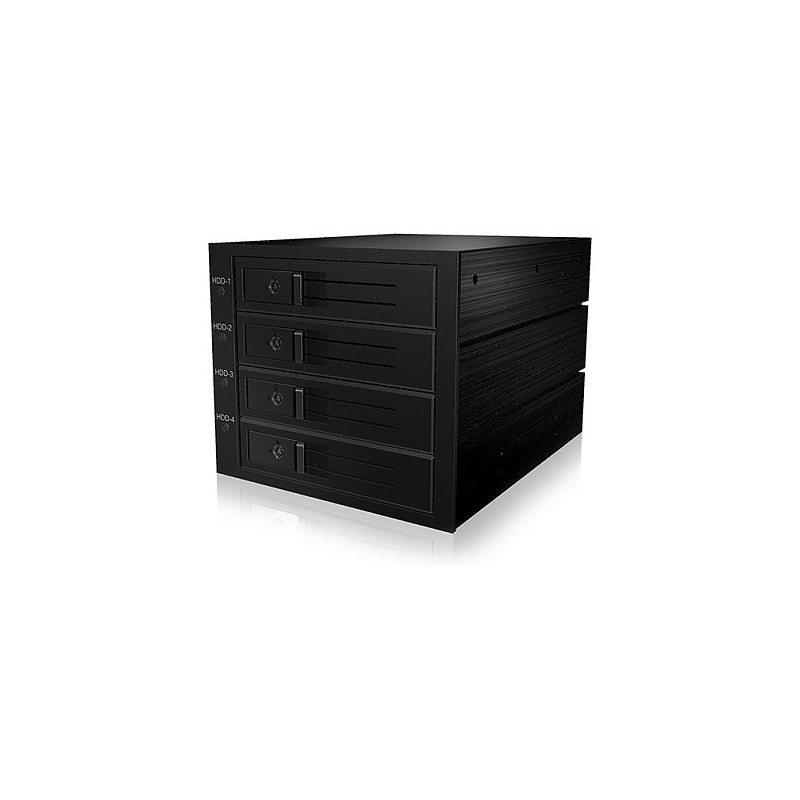

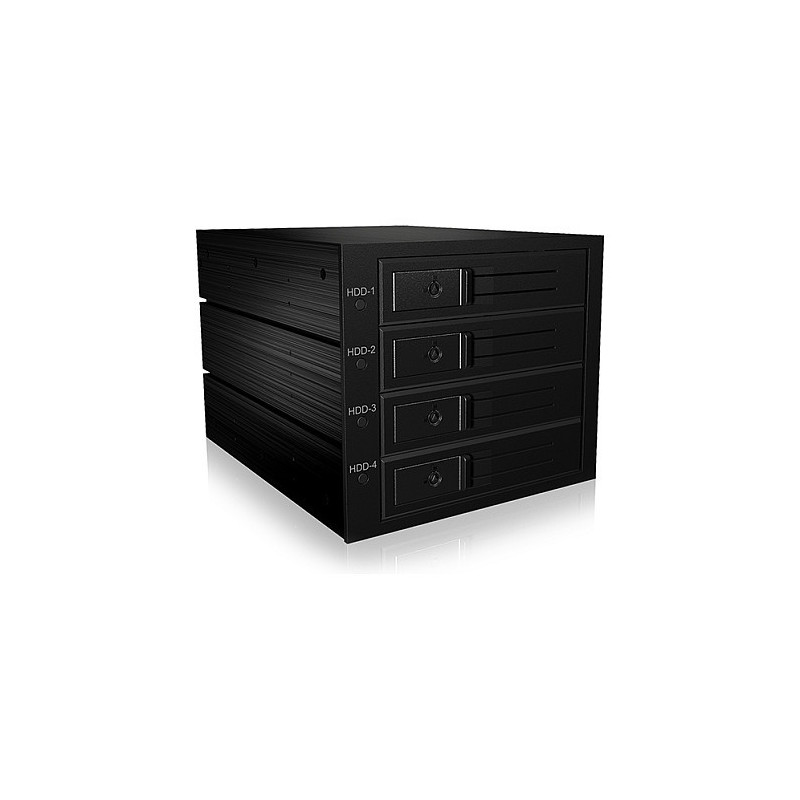

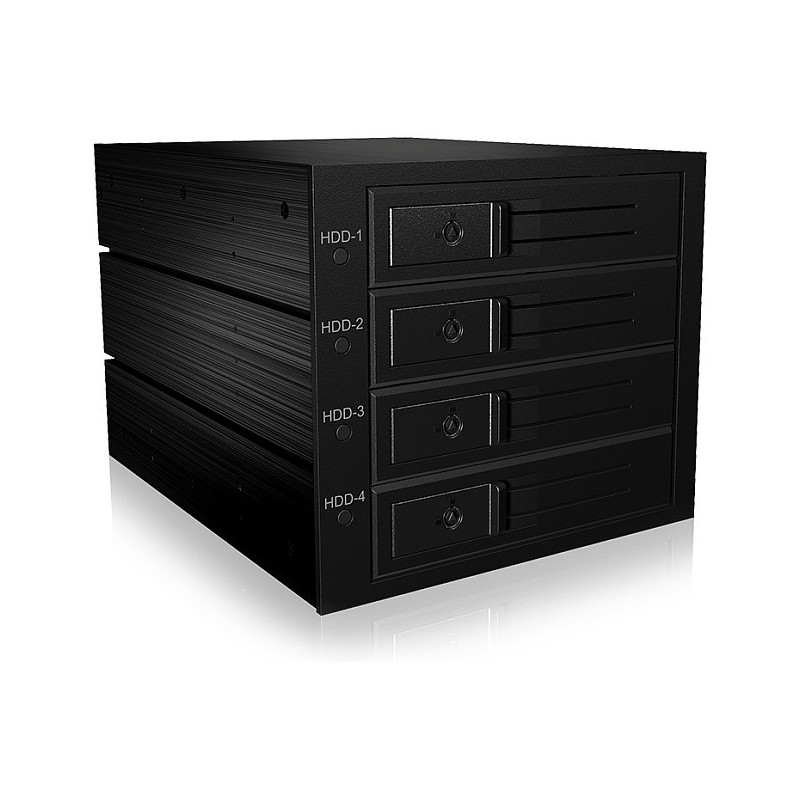

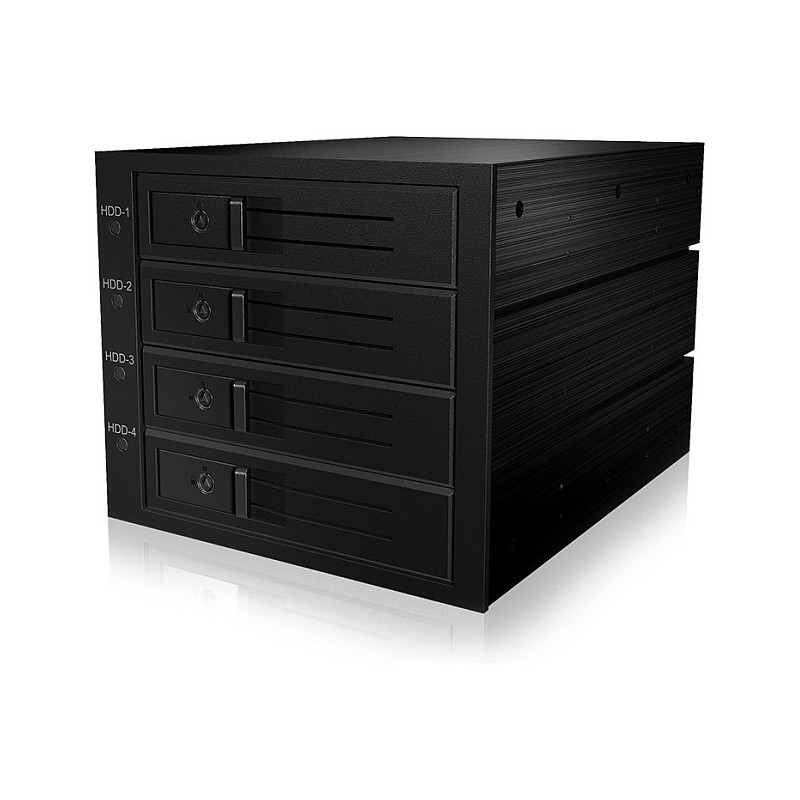

ICY BOX IB-564SAS-12G disk array

ICY BOX IB-564SAS-12G. Device class: Home & Home Office. Number of storage drives supported: 4, Supported storage drive types: HDD, Supported storage drive interfaces: SAS, SAS-2, SAS-3, Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 3.5". Width: 148 mm, Depth: 220 mm, Height: 127 mm, Weight: 1.79 kg. Product colour: Black

Stress resistant

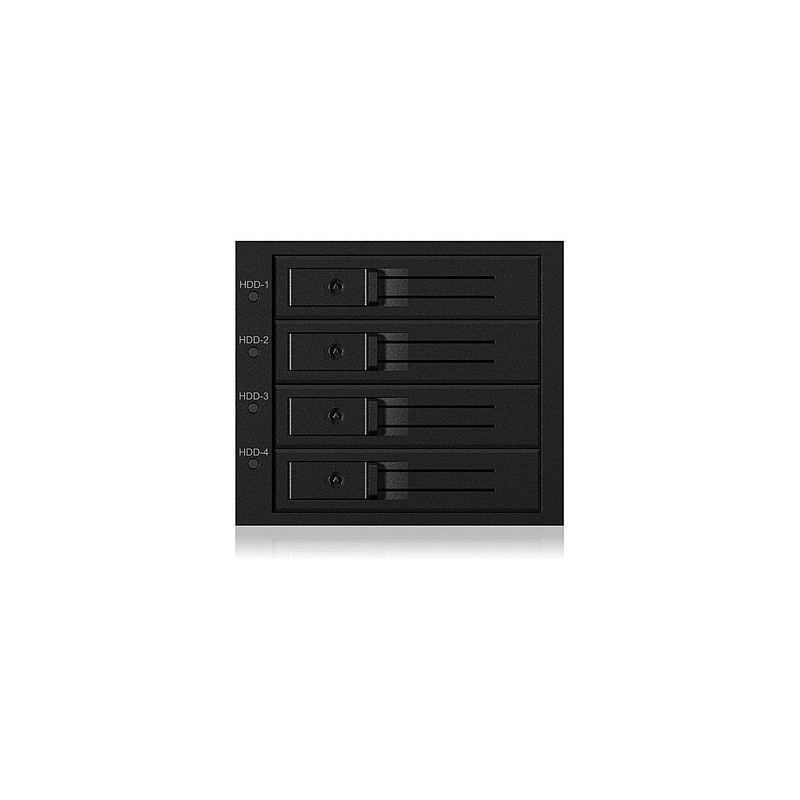

The best materials are used in the case and make this 3.5" hard disk solution the ideal partner for extreme loads. The Back Plane with its lockable bays is also ideally equipped for security requirements.

Cool and silent

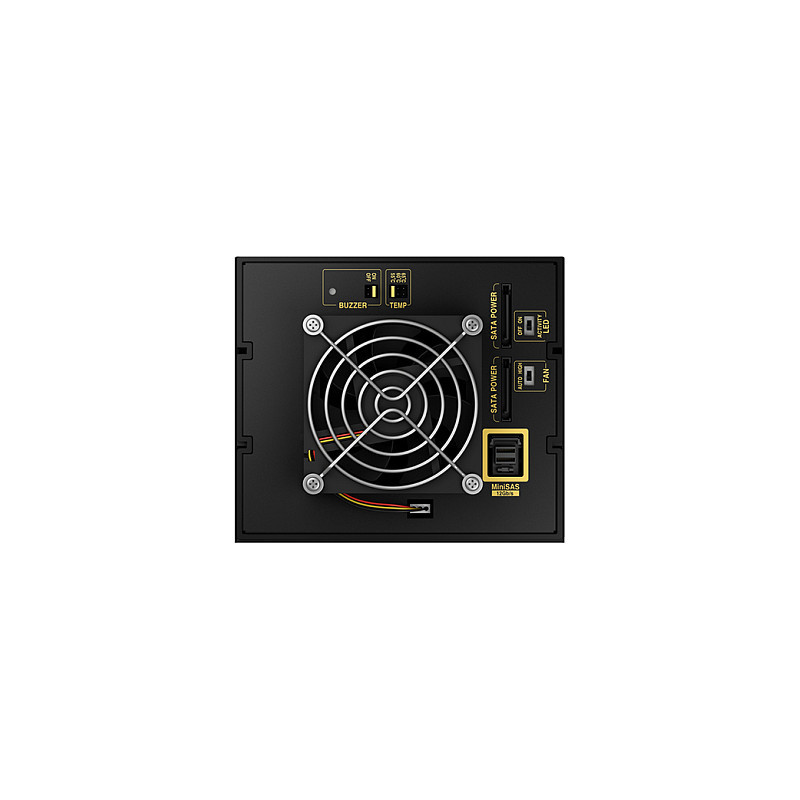

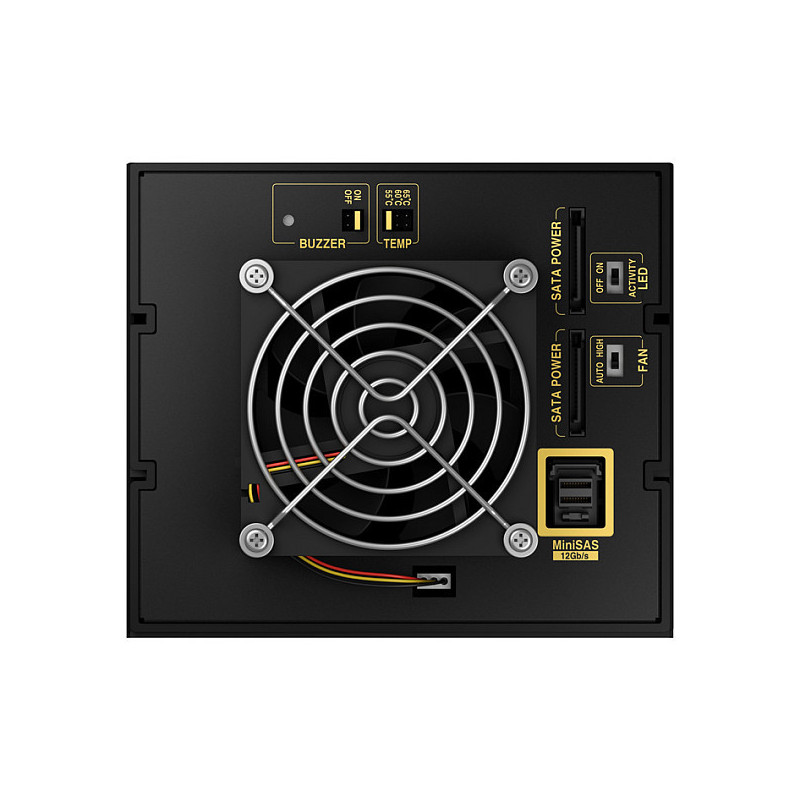

The active 80x80 mm fan works efficiently and adapts the temperatures as needed, keeping the case fairly quiet. But also the processed Alumimun contributes to the passive convection to the environment.

Realtime

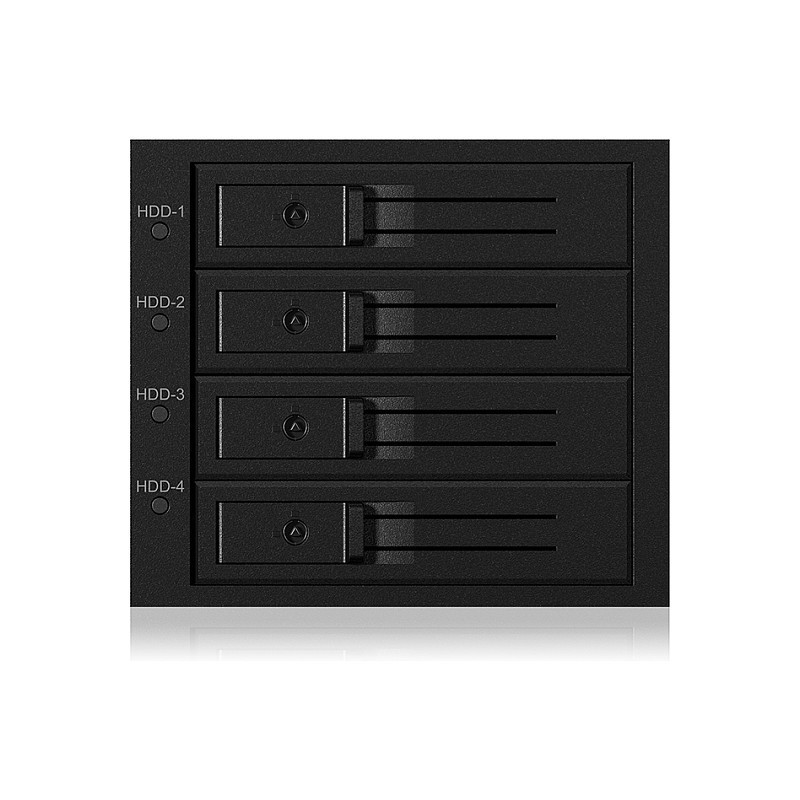

Optical and acoustic signals report the current status of the hard disks and the fan at all times. The alarm temperature for the signal can be set to three levels (55° C, 60° C, 65° C).

Storage

Installed storage drive type: No
Supported storage drive types: HDD
Number of storage drives supported: 4
Supported storage drive interfaces: SAS, SAS-2, SAS-3, Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 3.5"
Data transfer rate: 12 Gbit/s

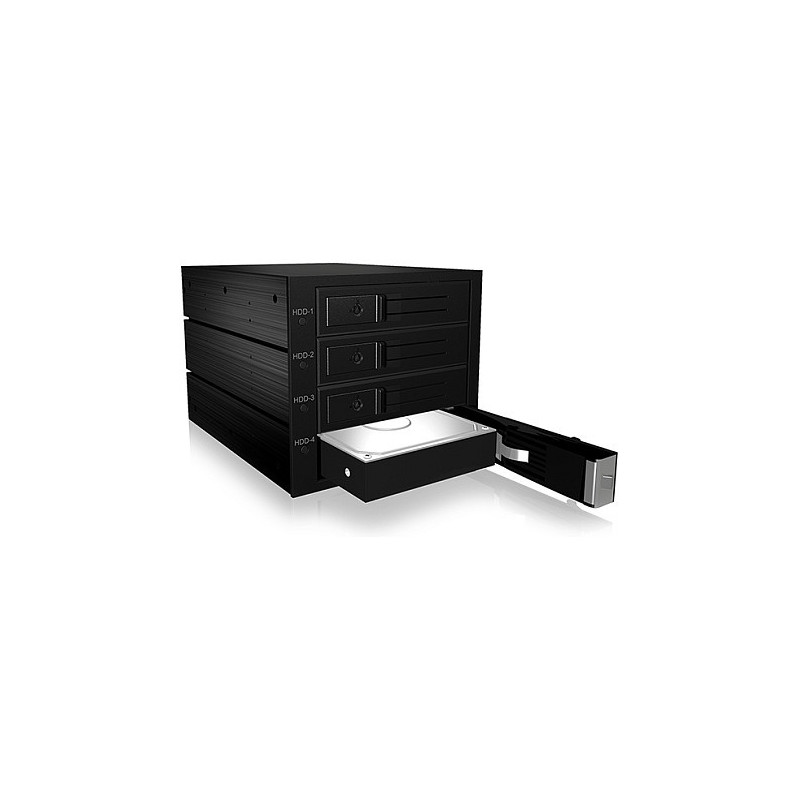

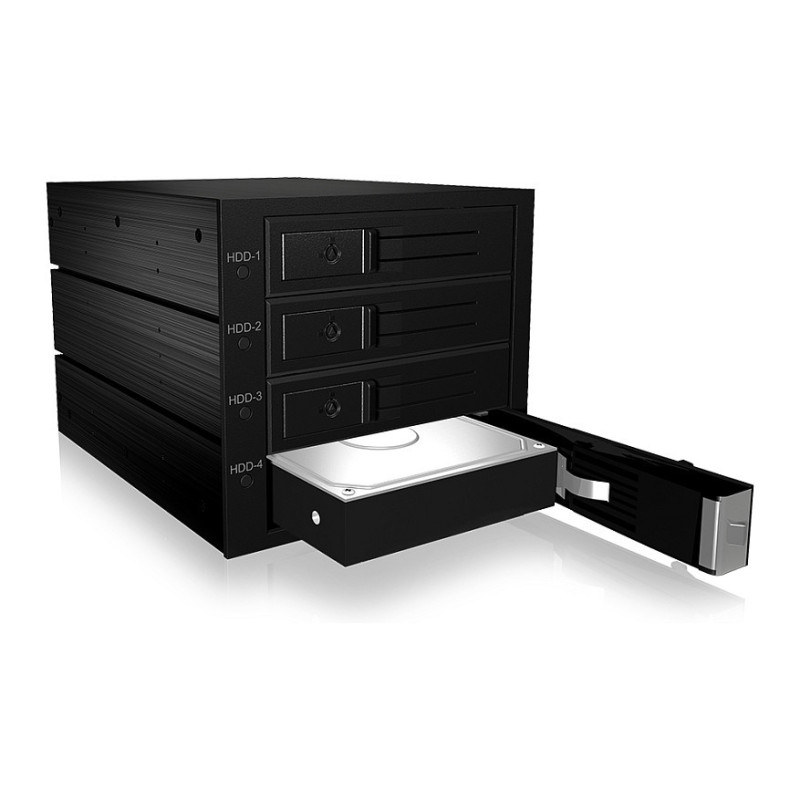

Feature: Hot-swap drive bays

Ports & interfaces

Feature: SATA host port
Number of SAS host ports: 4
Feature: Mini-SAS host port
Number of mini-SAS host ports: 1
Number of SATA power connectors: 1
SATA power connector type: SATA 15-pin

Design

Device class: Home & Home Office
Housing material: Aluminium
Product colour: Black
LED indicators: Access, Error, Power
Feature: Cooling
Number of fans: 1 fan(s)
Fan diameter: 8 cm
Feature: Key lock

System requirements

Feature: Mac compatibility
Mac operating systems supported: Yes
Windows operating systems supported: Yes

Weight & dimensions

Width: 148 mm
Depth: 220 mm
Height: 127 mm
Weight: 1.79 kg

Packaging data

Package width: 252 mm
Package depth: 162 mm
Package height: 180 mm
Package weight: 2.33 kg

Packaging content

Feature: Screws included

Logistics data

Country of origin: China
Products per master (outer) case: 6 pc(s)
Harmonized System (HS) code: 84718000
