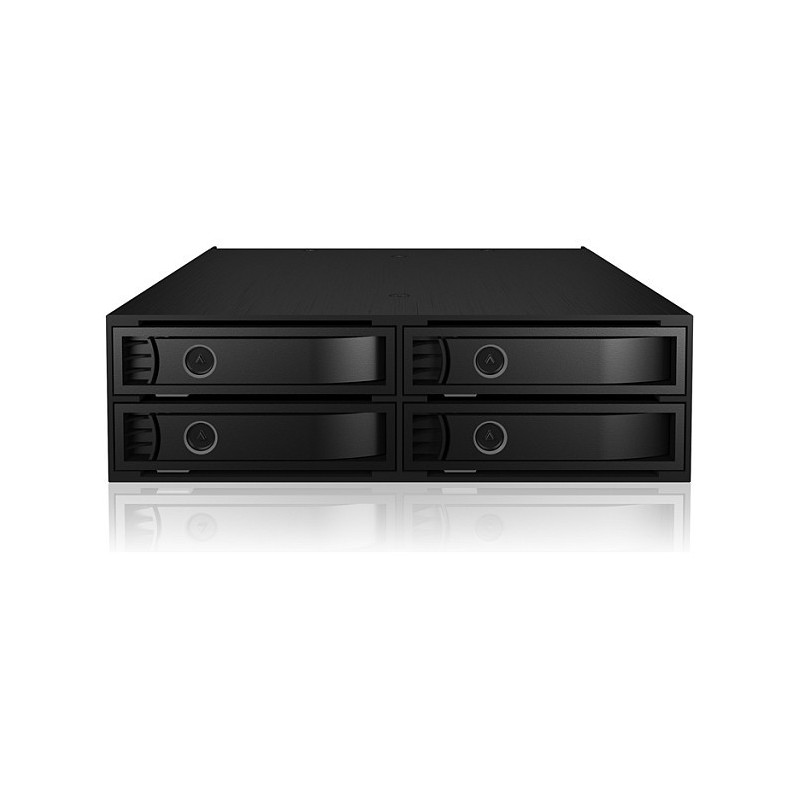

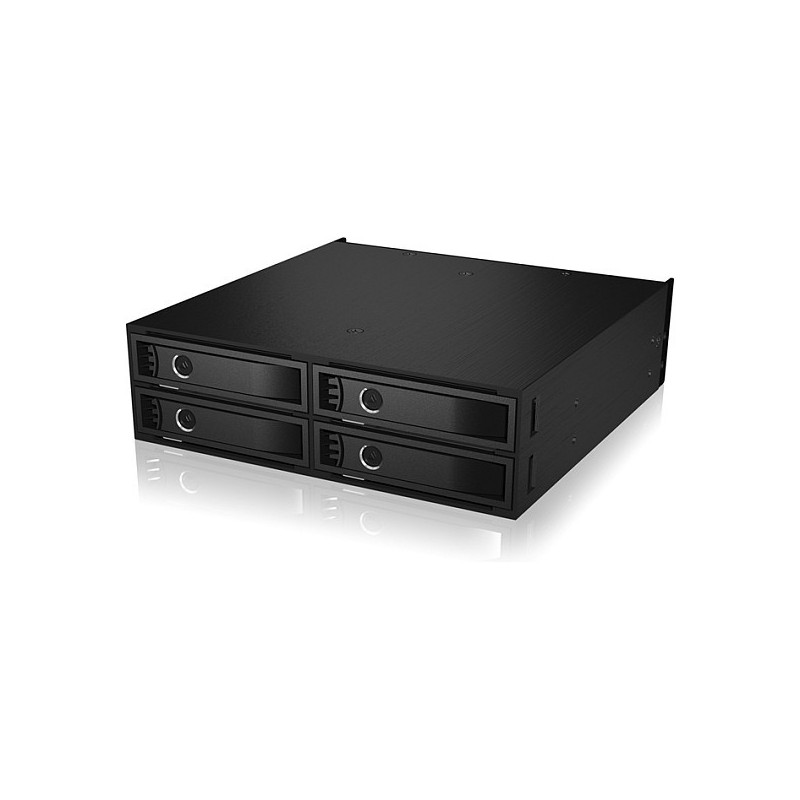

ICY BOX IB-2242U2K

ICY BOX IB-2242U2K. Size (imperial): 13.3 cm (5.25"), Type: Storage drive tray, Product colour: Black. Width: 150 mm, Depth: 145 mm, Height: 41 mm. Package width: 195 mm, Package depth: 214 mm, Package height: 80 mm. Quantity per pack: 1 pc(s), Number of lock keys included: 2 pc(s). Products per master (outer) case: 8 pc(s), Country of origin: China

The sprinter in the storage segment
U.2 is finding its way more and more into professional storage solutions. No surprise, U.2 delivers PCIe (NVMe) data transfer rates of up to 32 Gbit/s into the 2.5" format and supports HotSwap. The IB-2242U2K supports 2.5" SSDs with a hight of up to 15 mm.

Cooling in two levels

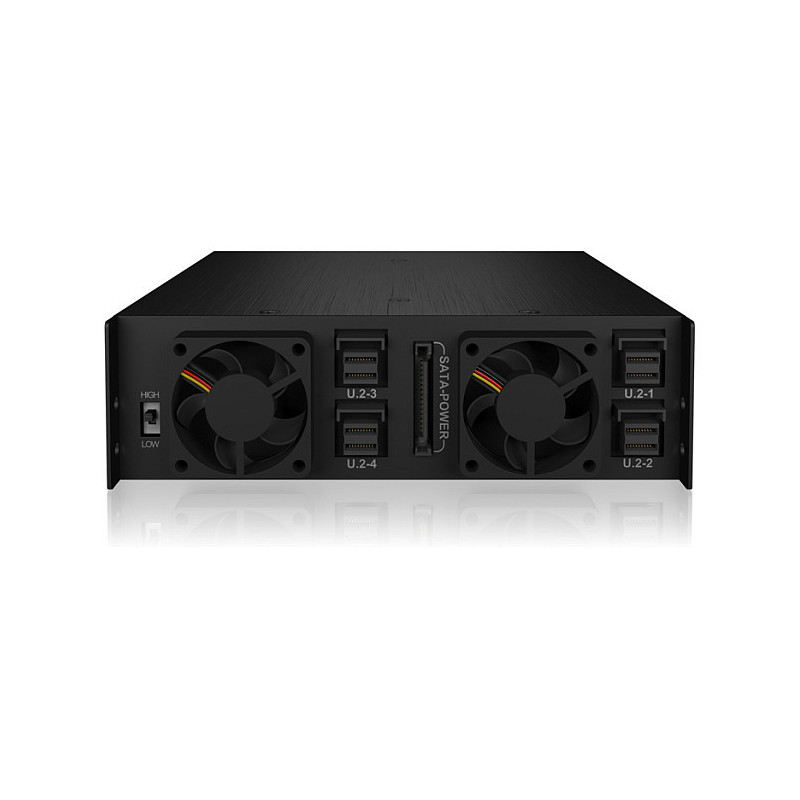

The IB-2242U2K contains two 40 mm fans for optimal cooling. The fans are adjustable in two levels with a switch on the back side and offer the right mode for every application.

Under lock and key

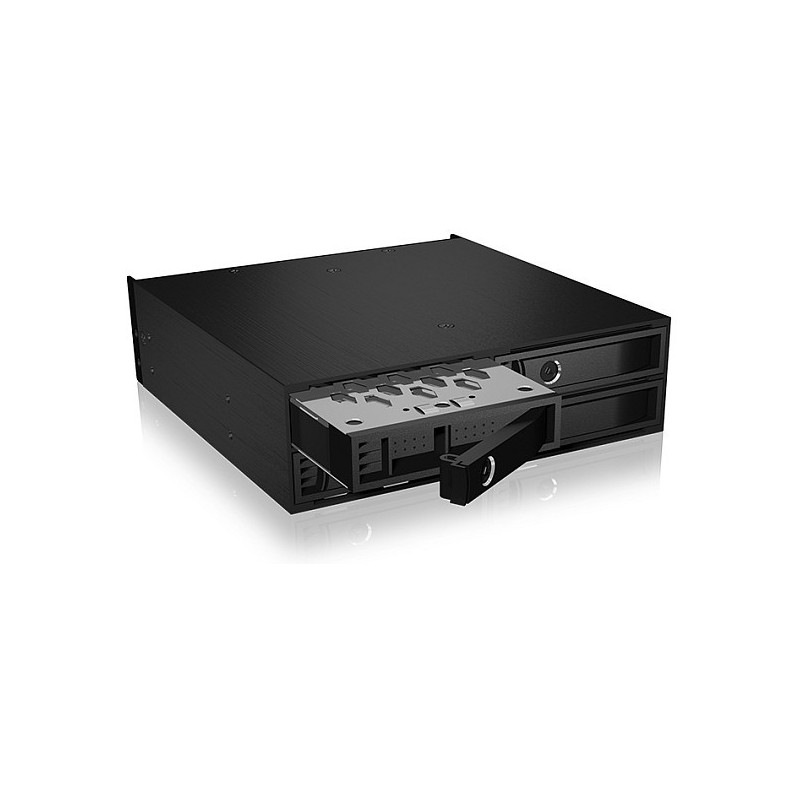

Data security is very important for ICY BOX. Each of the four carriers can be locked separately thank to the integrated locks and thus protect your SSDs against unauthorized access.

Features

Size (imperial): 13.3 cm (5.25")
Type: Storage drive tray
Product colour: Black
Number of SSDs supported: 4
SSD interface: U.2
SSD form factor: M.2
Material: Aluminium, Metal
Supported storage drive heights: 15 mm
Feature: Hot-swap
Number of fans: 1 fan(s)
Fan diameter: 4 cm
Data transfer rate: 32 Gbit/s
LED indicators: Access, Power
Feature: Key lock

Ports & interfaces

External SATA ports quantity: 1

Weight & dimensions

Width: 150 mm
Depth: 145 mm
Height: 41 mm
Weight: 708 g

Packaging data

Package width: 195 mm
Package depth: 214 mm
Package height: 80 mm
Package weight: 1 kg

Packaging content

Quantity per pack: 1 pc(s)
Feature: Screws included
Feature: Manual
Number of lock keys included: 2 pc(s)
Number of screws: 24

System requirements

Windows operating systems supported: Yes

Logistics data

Products per master (outer) case: 8 pc(s)
Harmonized System (HS) code: 84718000
Country of origin: China
